(1PC) KM681000CLGI-7L Samsung Standard SRAM, 128KX8, 70ns, CMOS SOIC32
Tax included.

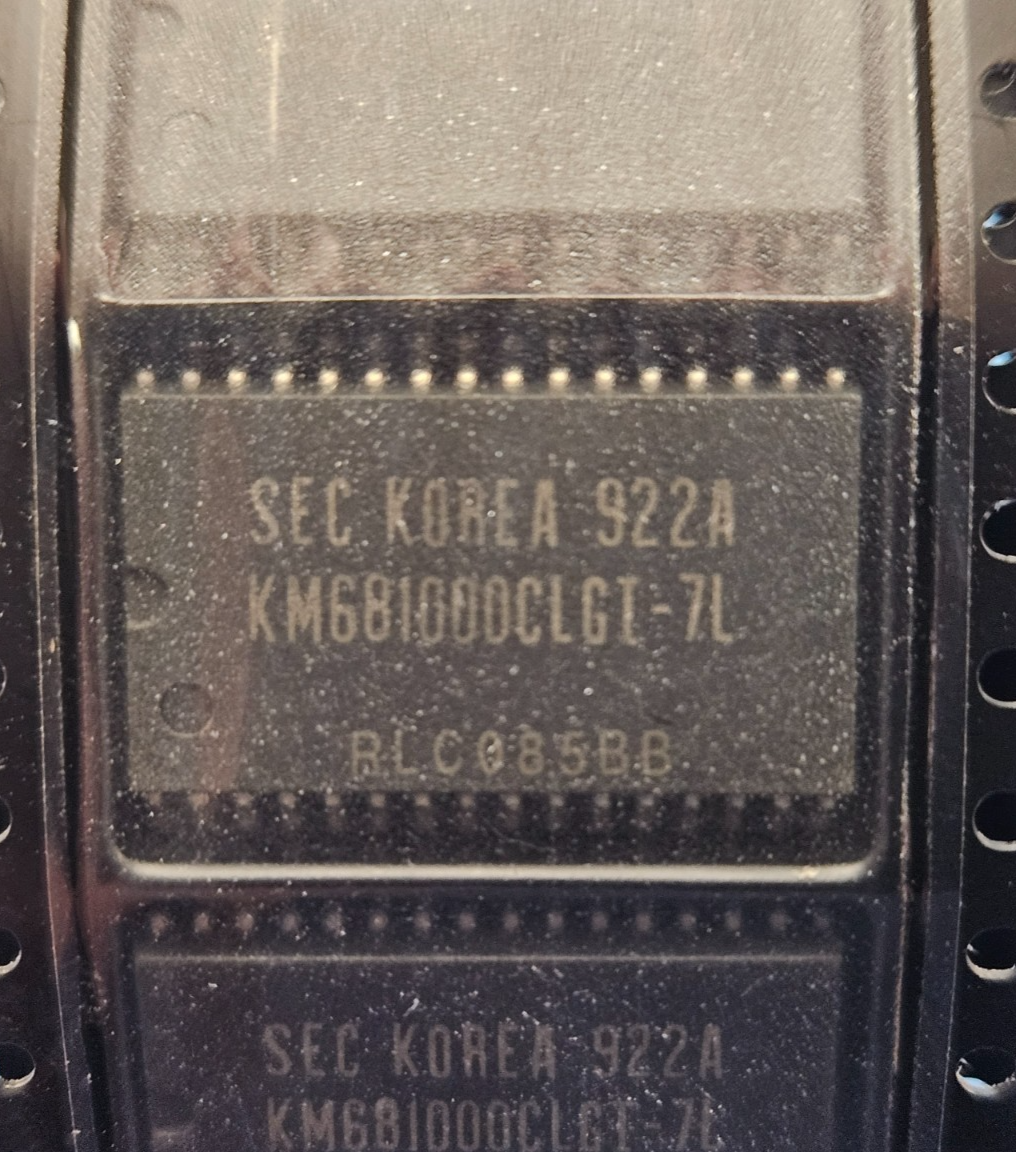

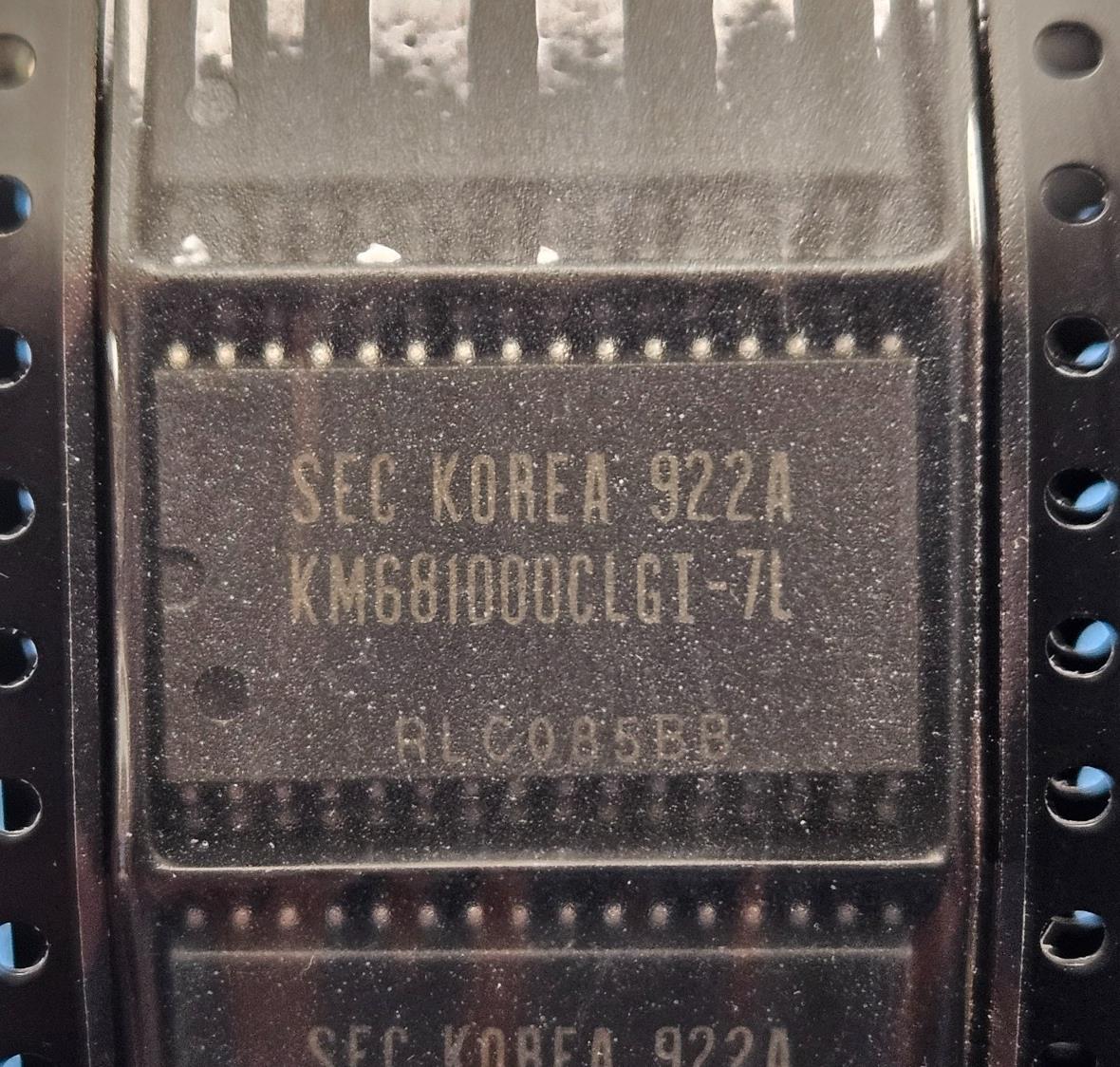

This listing is for (1PC) of KM681000CLGI-7L by Samsung
Status Discontinued
Access Time-Max (ns) 70.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-G32
J-STD-609 Code e0
Length (mm) 20.4700
Memory Density (bits) 1048576.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words (words) 131072.0000000000000000
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -40.0
Memory Organization 128KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.0000
Standby Current-Max (A) 0.000010000000000
Standby Voltage-Min (V) 2.000000
Supply Current-Max (mA) 60.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 11.4300
