(1PC) KM4132G112Q-7 Synchronous Graphics RAM, 1MX32, 5.5ns, CMOS, PQFP100
Tax included.

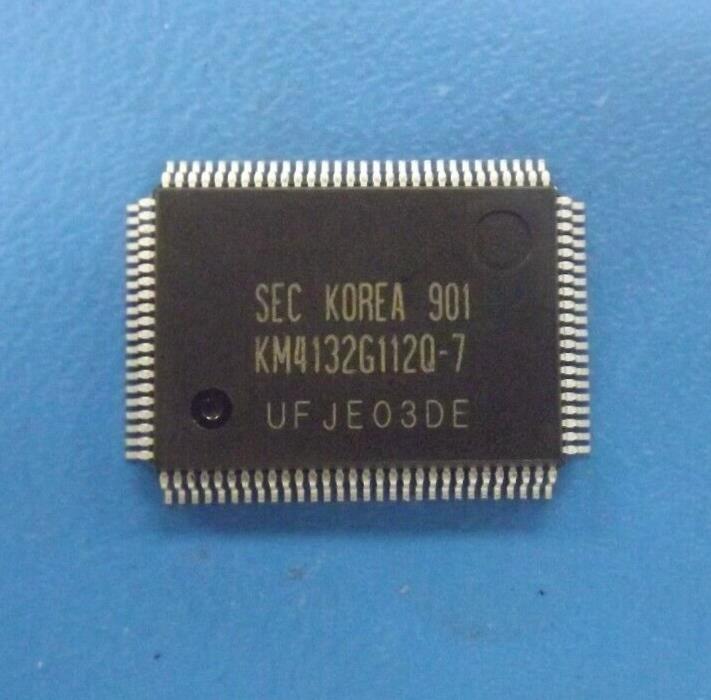

THIS LISTING IS FOR (1PC) OF KM4132G112Q-7 BY SAMSUNG
Mfr Package Description 14 X 20 MM, PLASTIC, QFP-100
Status Discontinued
Sub Category DRAMs
Access Mode DUAL BANK PAGE BURST
Access Time-Max 5.5 ns
Clock Frequency-Max (fCLK) 143.0 MHz
Interleaved Burst Length 4,8
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 3.3554432E7 bit
Memory IC Type SYNCHRONOUS GRAPHICS RAM
Memory Width 32
Number of Functions 1
Number of Ports 1
Number of Terminals 100
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX32
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP100,.7X.9
Package Shape RECTANGULAR
Package Style FLATPACK
Qualification Status Not Qualified
Refresh Cycles 2048.0
Seated Height-Max 3.0 mm
Sequential Burst Length 1,2,4,8,FP
Standby Current-Max 0.002 Amp
Supply Current-Max 0.23 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
