(1PC) K7N401801M-QC13 SRAM Chip Sync Single 3.3V 4M-Bit 256Kx16 5ns 100-PinPQFP
Tax included.

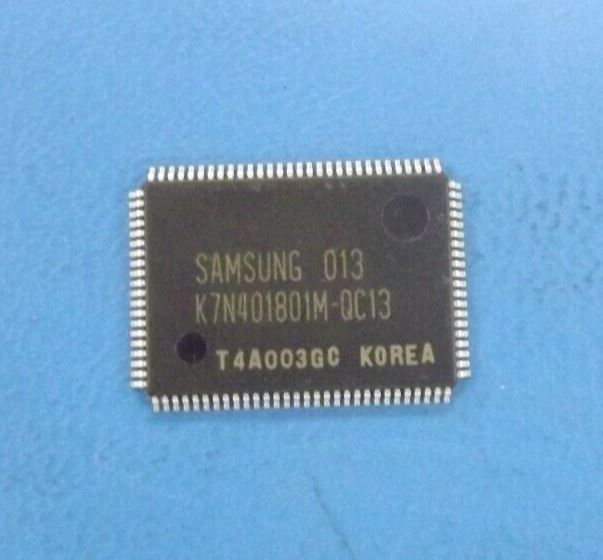

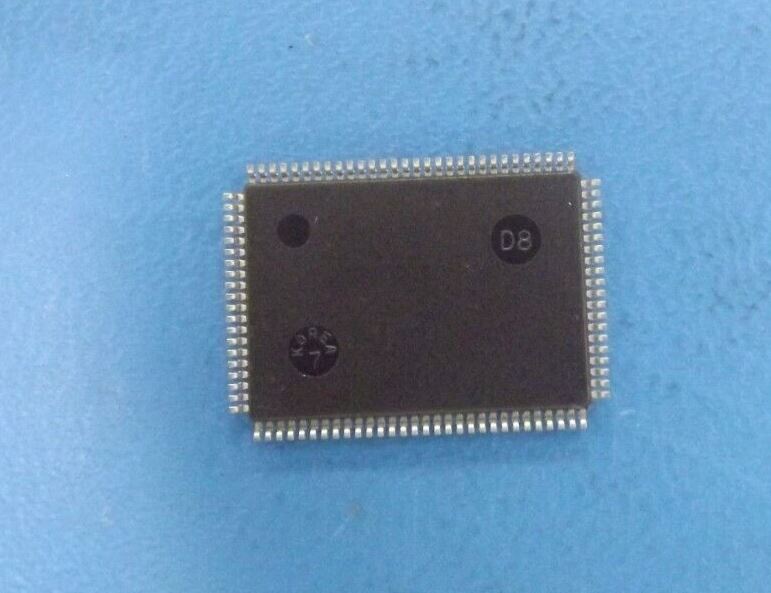

THIS LISTING IS FOR (1PC) OF K7N401801M-QC13 BY SAMSUNG
Mfr Package Description 14 X 20 MM, TQFP-100
Status Discontinued
Sub Category SRAMs
Access Time-Max 4.2 ns
Clock Frequency-Max (fCLK) 133.0 MHz
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 4718592.0 bit
Memory IC Type ZBT SRAM
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256KX18
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.03 Amp
Standby Voltage-Min 3.14 V
Supply Current-Max 0.3 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.465 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
