(1PC) K7B401825M-QC90 Samsung SRAM, 256KX18, 9ns, CMOS, PQFP100
Tax included.

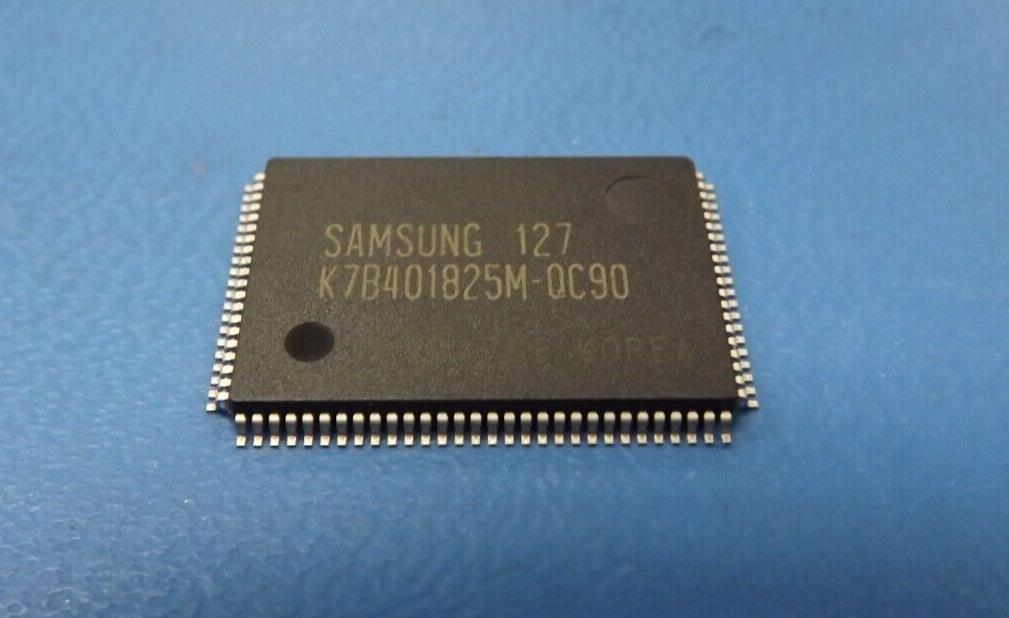

This listing is for (1pc) of K7B401825M-QC90 by Samsung
Mfr Package Description 20 X 14 MM, TQFP-100
Status Discontinued
Sub Category SRAMs
Access Time-Max 9.0 ns
Clock Frequency-Max (fCLK) 83.0 MHz
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 4718592.0 bit
Memory IC Type STANDARD SRAM
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256KX18
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.03 Amp
Standby Voltage-Min 3.14 V
Supply Current-Max 0.3 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
