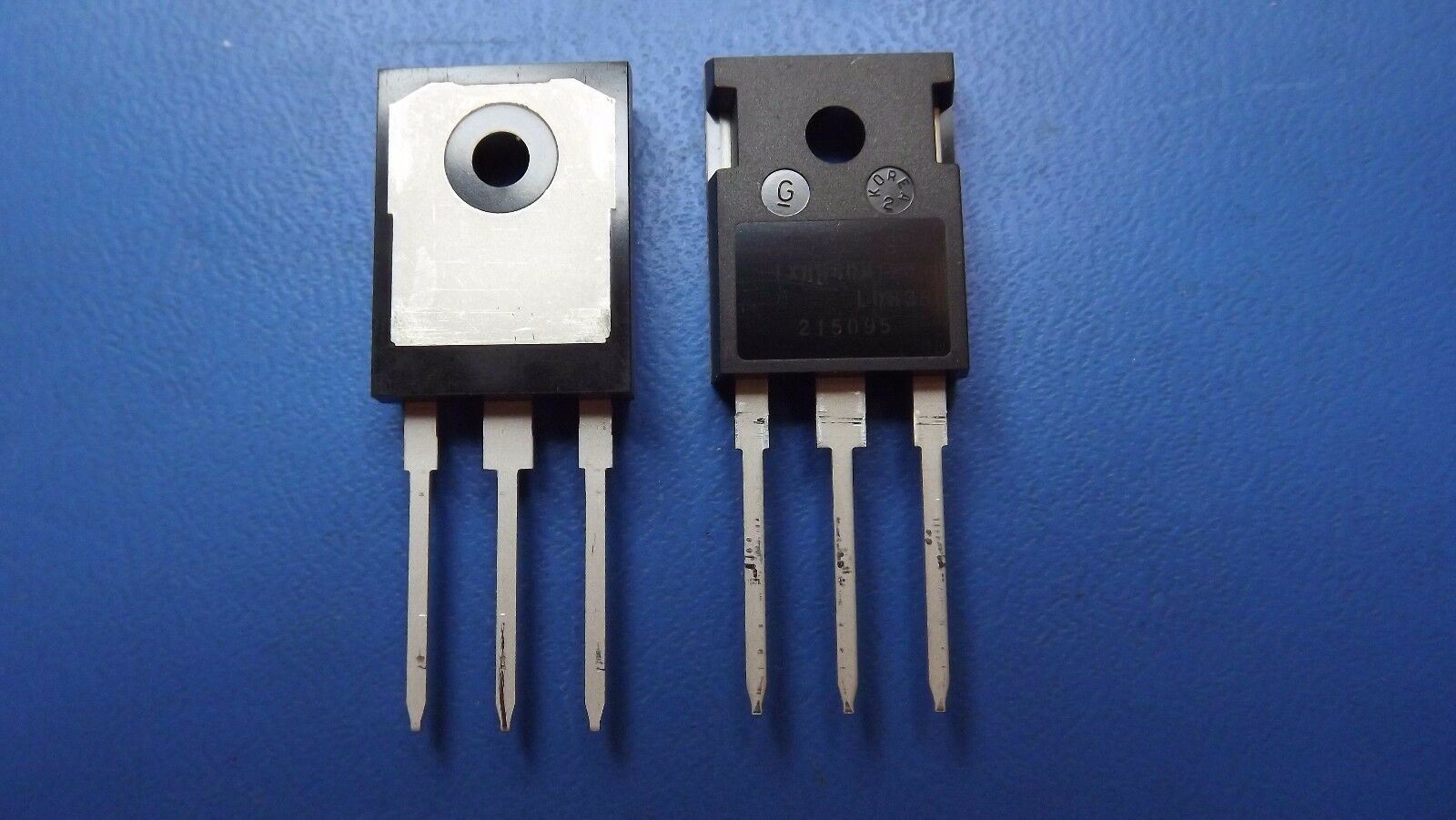

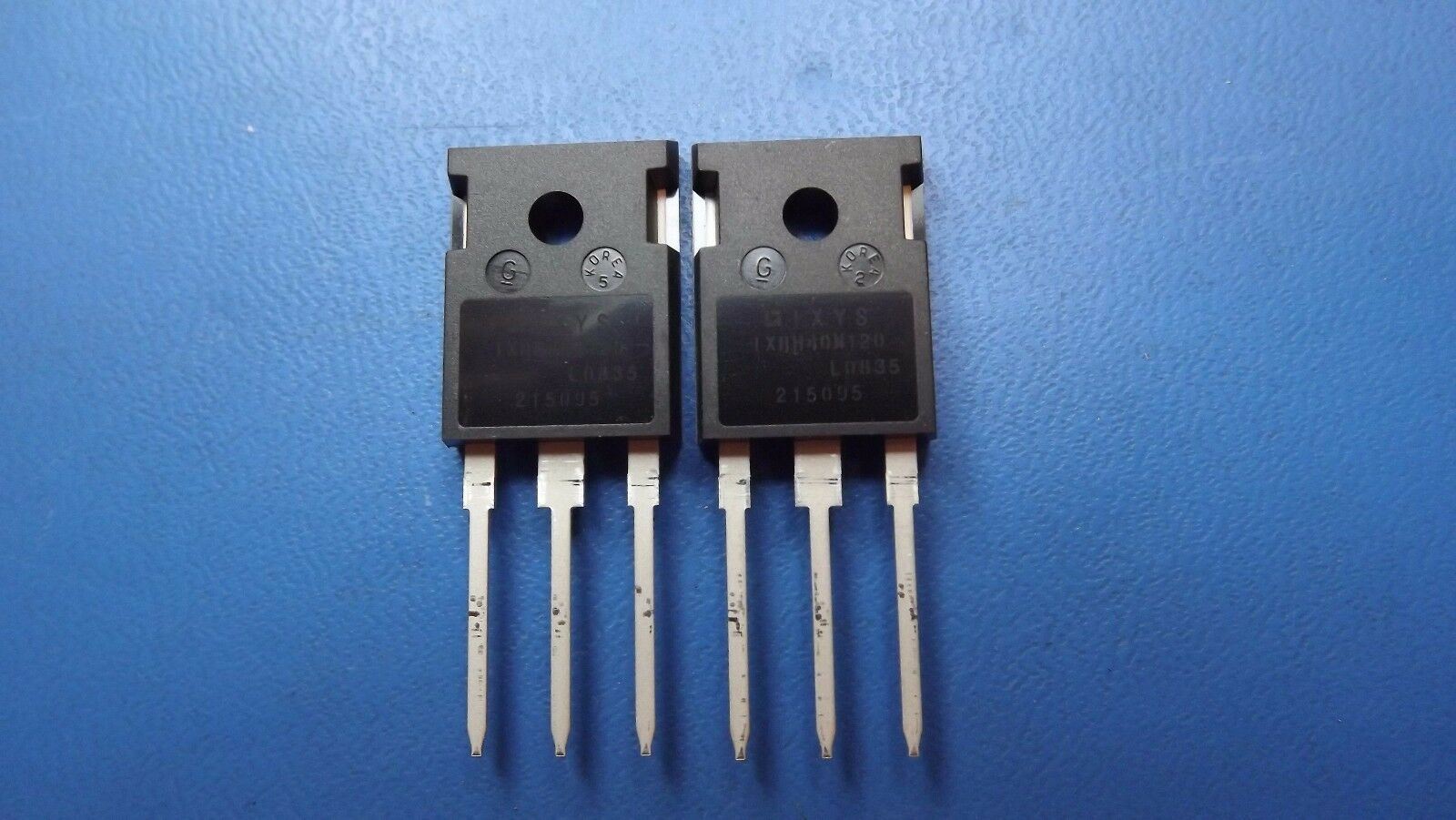

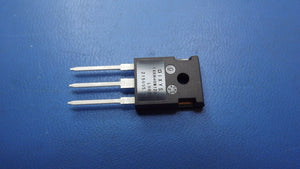

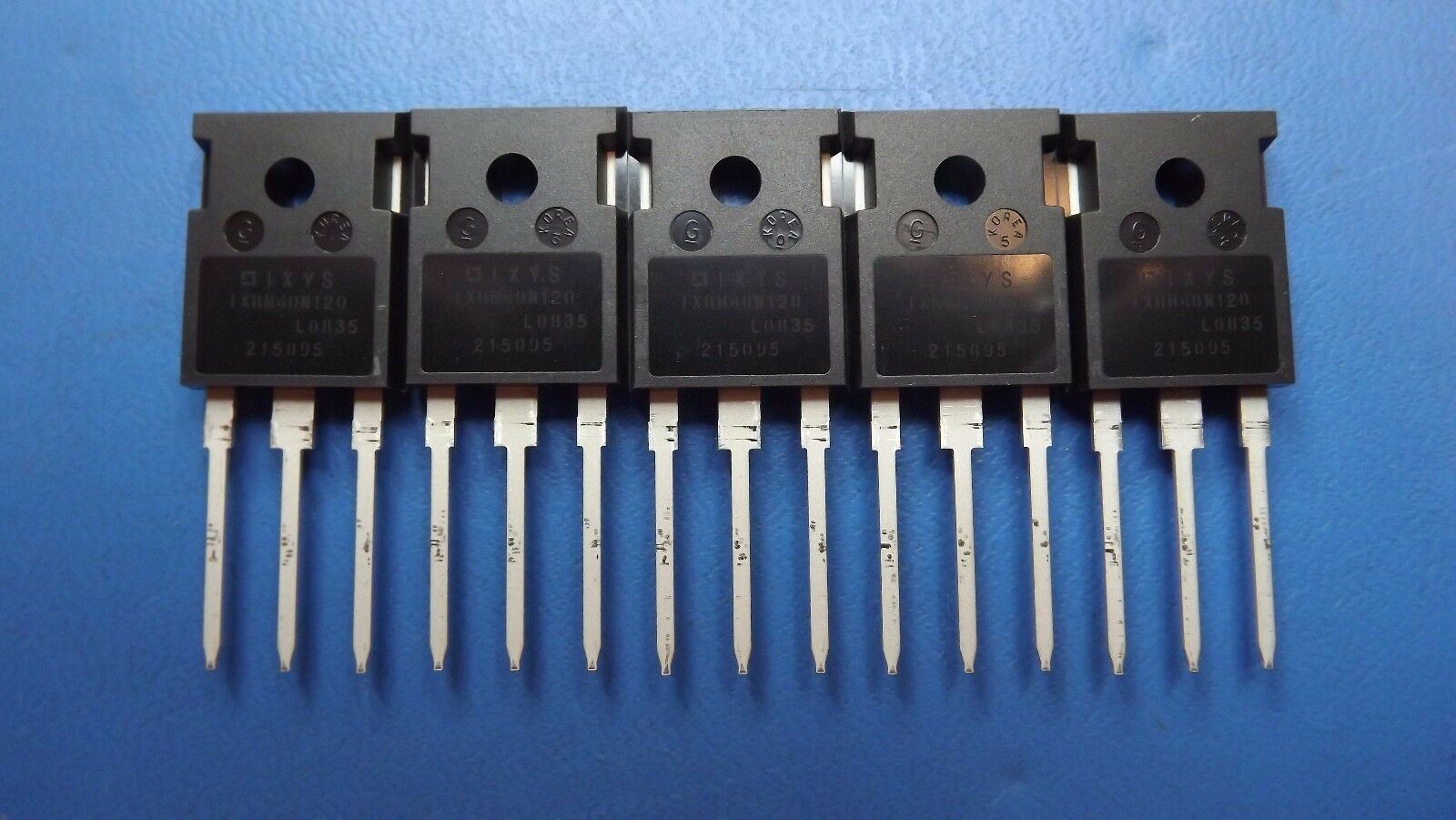

(1PC) IXRH40N120 IXYS IGBT 1200V 55A 300W TO247AD
Tax included.

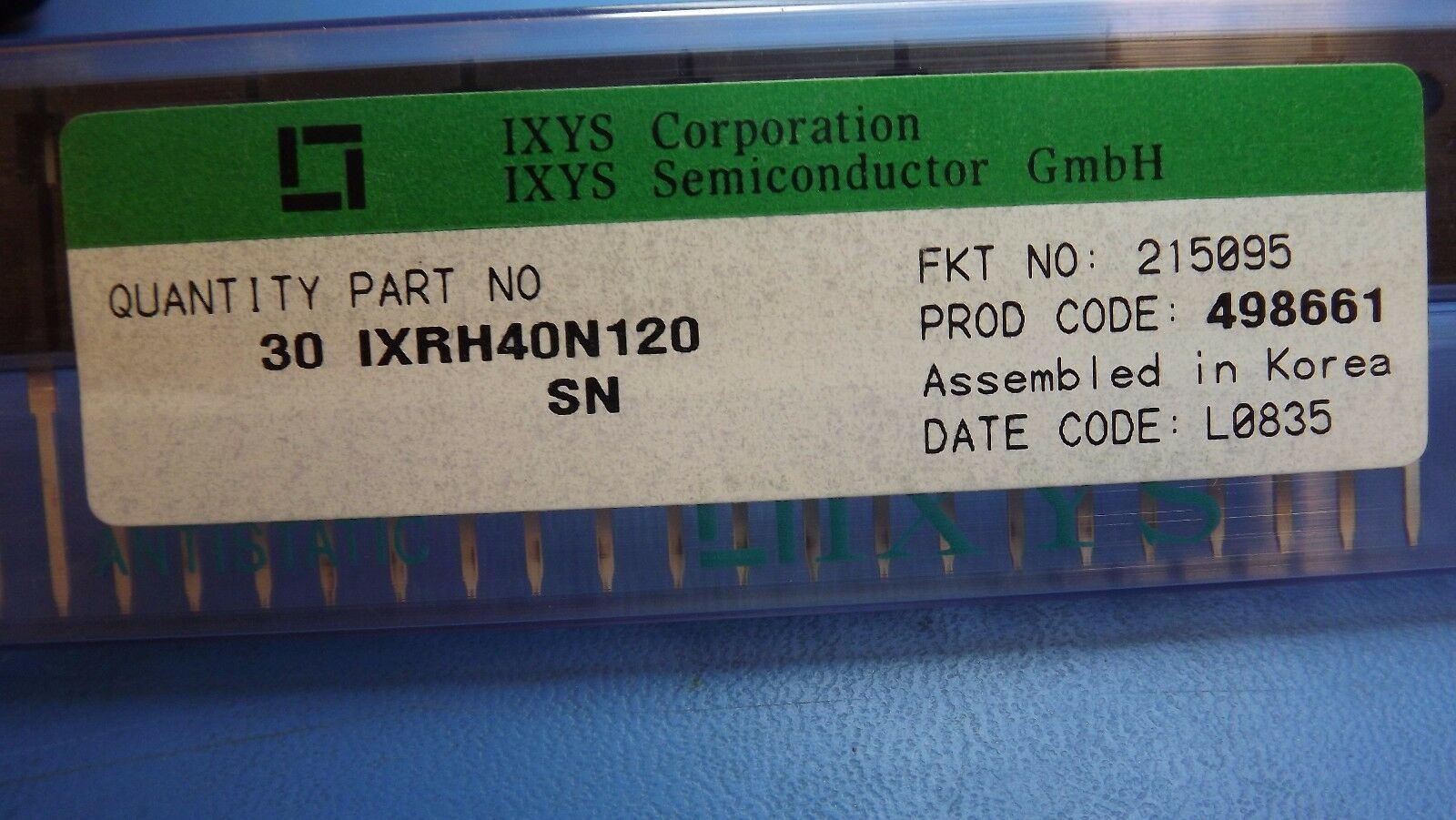

THIS LISTING IS FOR (1PC) OF IXRH40N120 BY IXYS
SPECIFICATIONS
| Mfr Package Description | PLASTIC PACKAGE-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | EOL |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 55.0 A |
| Collector-emitter Voltage-Max | 1200.0 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| JEDEC-95 Code | TO-247AD |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | NOT SPECIFIED |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 350.0 ns |
| Turn-on Time-Nom (ton) | 220.0 ns |
