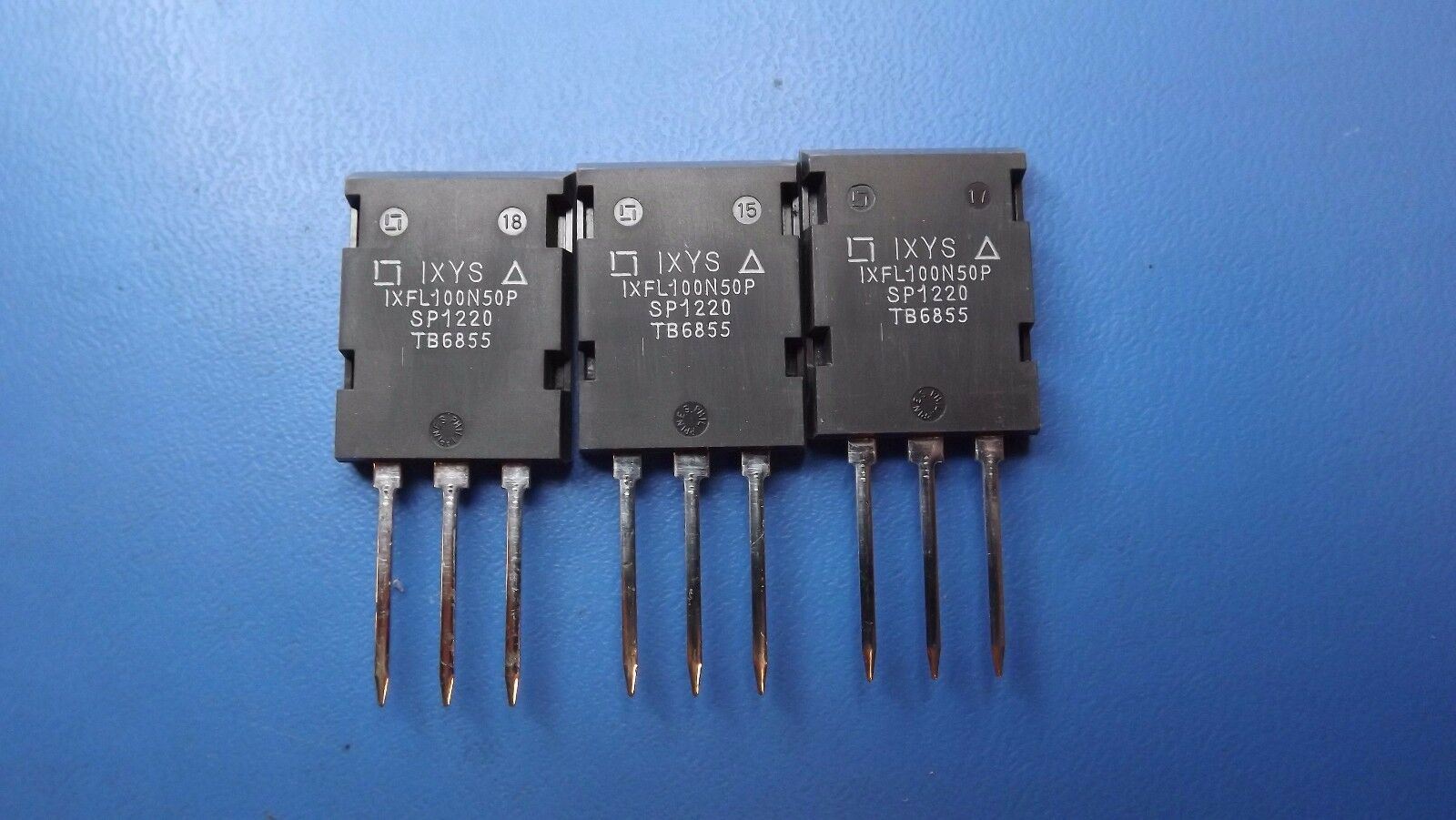

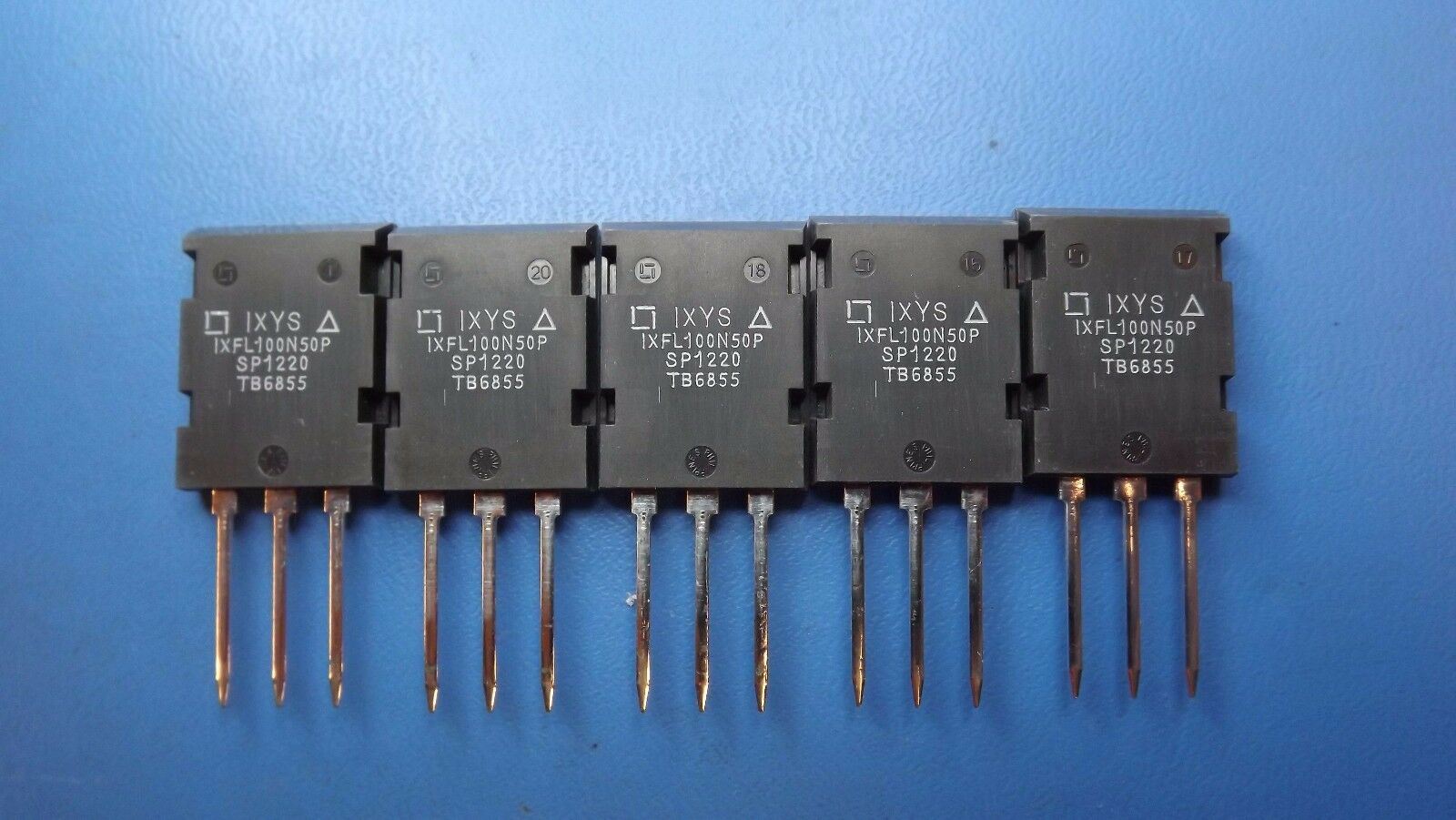

(1PC) IXFL100N50P IXYS MOSFET N-CH 500V 70A ISOPLUS264

  • $19.95
    Unit price per
Tax included.

Only 29 left!

THIS LISTING IS FOR (1PC) OF IXFL100N50P BY IXYS

SPECIFICATIONS

Mfr Package Description ISOPLUS264, 3 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Avalanche Energy Rating (Eas) 5000.0 mJ
Case Connection ISOLATED
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (ID) 70.0 A
Drain-source On Resistance-Max 0.052 ohm
DS Breakdown Voltage-Min 500.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PSIP-T3
JESD-609 Code e1
Number of Elements 1.0
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) 250.0 A
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish TIN SILVER COPPER
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature AVALANCHE RATED, UL RECOGNIZED
