(1PC) IXEH40N120 IXYS IGBT 1200V 60A 300W TO247AD

  • $8.95
    Unit price per
Tax included.

Only 4 left!

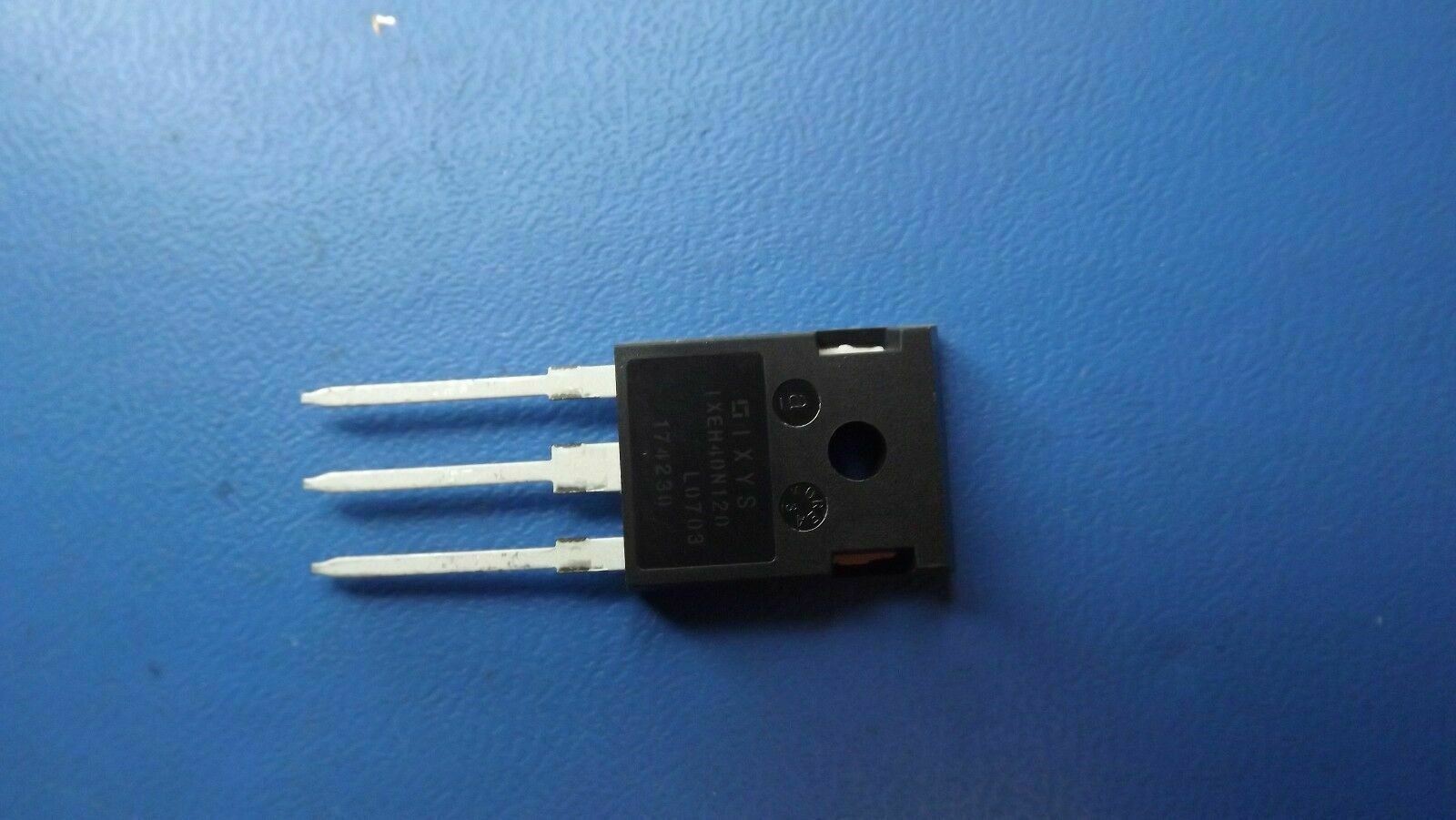

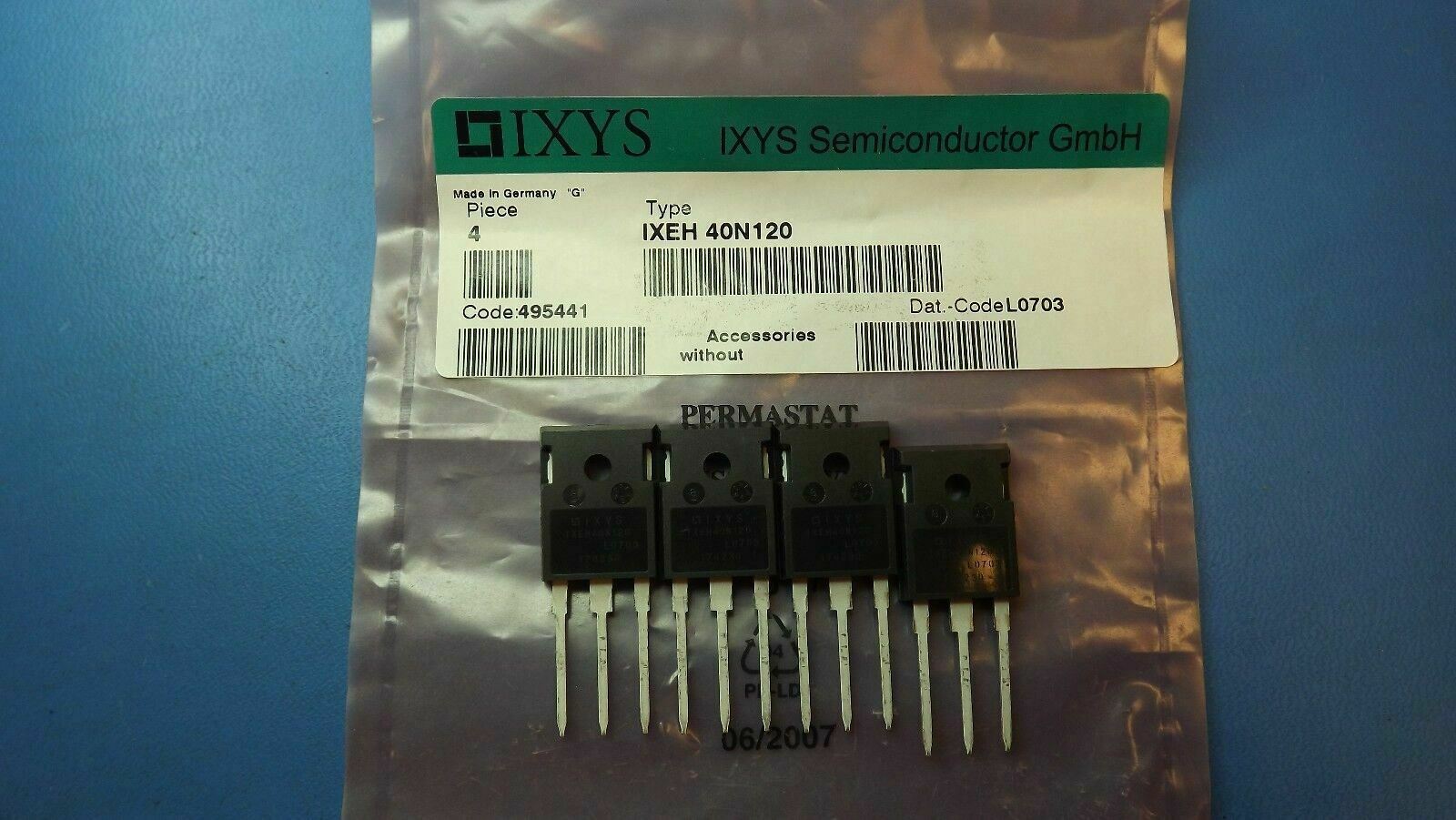

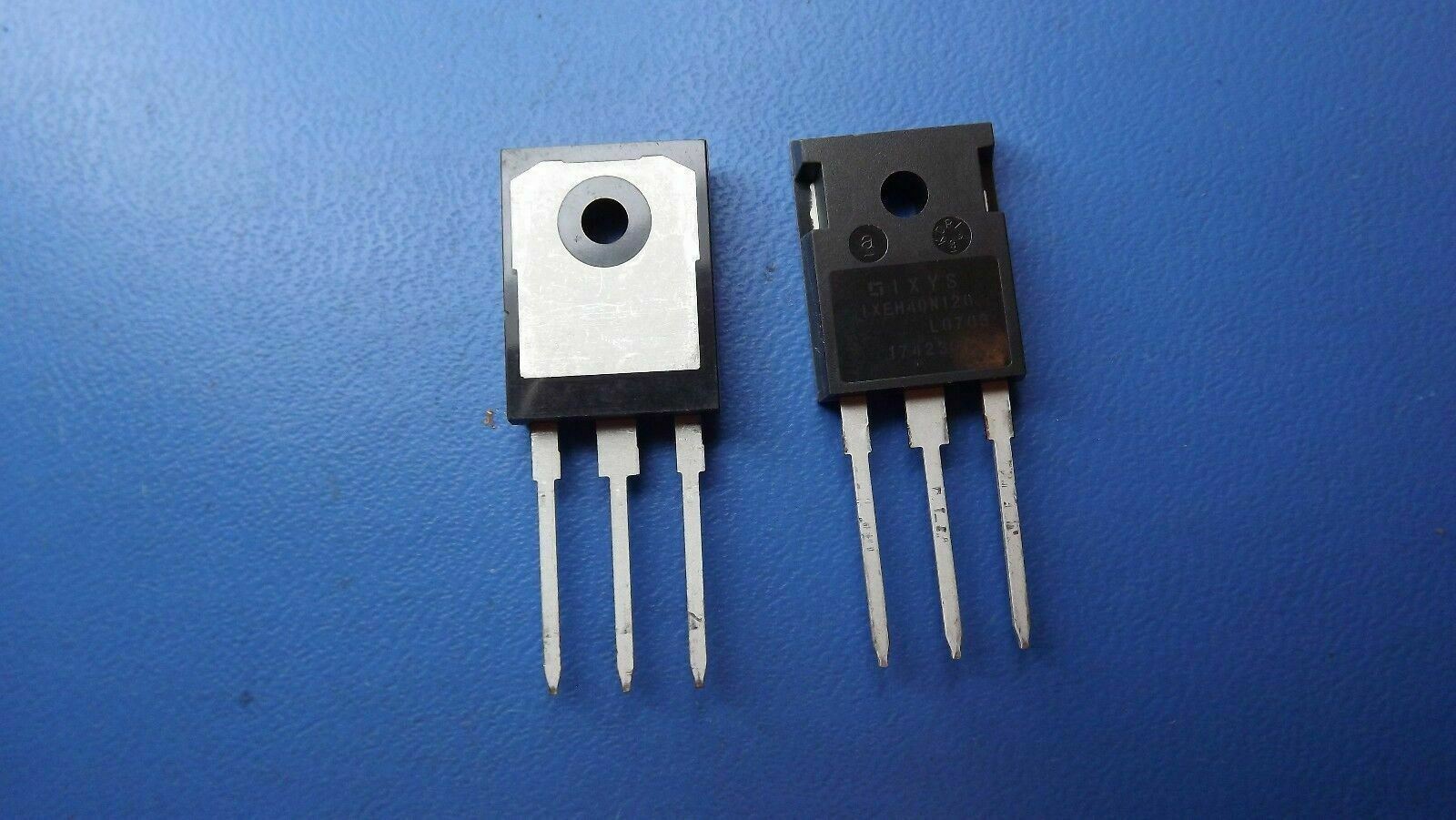

THIS LISTING IS FOR (1PC) OF IXEH40N120 BY IXYS

SPECIFICATIONS

Mfr Package Description PLASTIC PACKAGE-3
REACH Compliant Yes
EU RoHS Compliant Yes
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) 60.0 A
Collector-emitter Voltage-Max 1200.0 V
Configuration SINGLE
Gate-emitter Thr Voltage-Max 6.5 V
Gate-emitter Voltage-Max 20.0 V
JEDEC-95 Code TO-247AD
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 300.0 W
Qualification Status Not Qualified
Sub Category Insulated Gate BIP Transistors
Surface Mount NO
Terminal Finish NOT SPECIFIED
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application POWER CONTROL
Transistor Element Material SILICON
Turn-off Time-Nom (toff) 490.0 ns
Turn-on Time-Nom (ton) 135.0 ns
