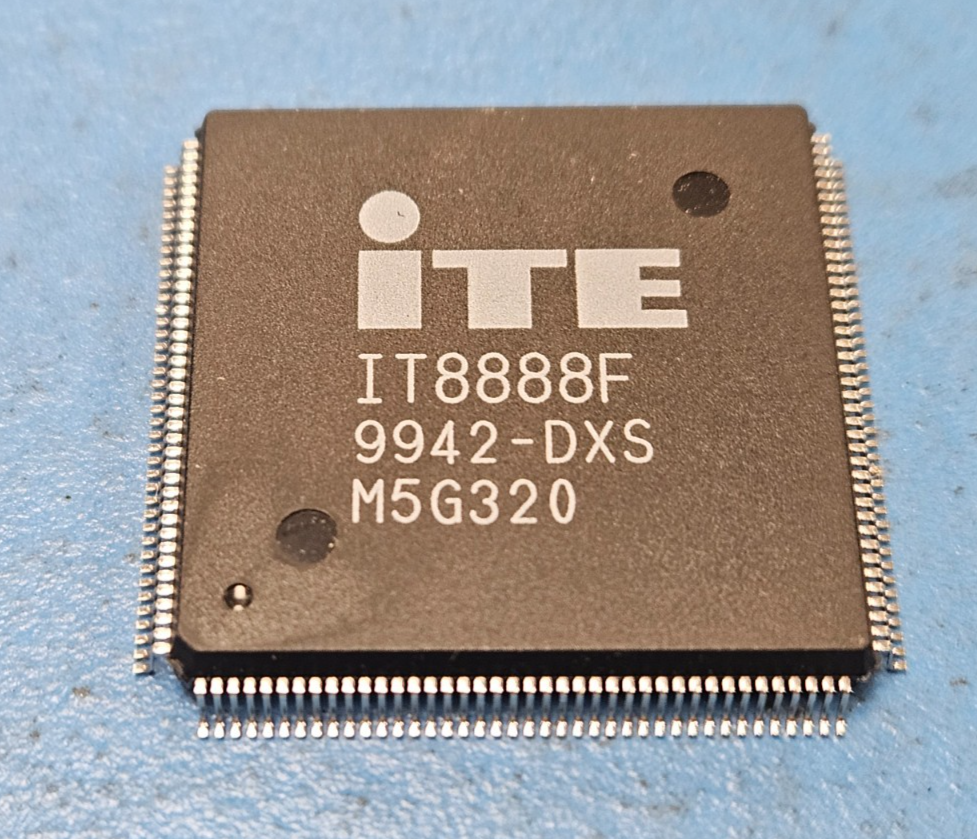

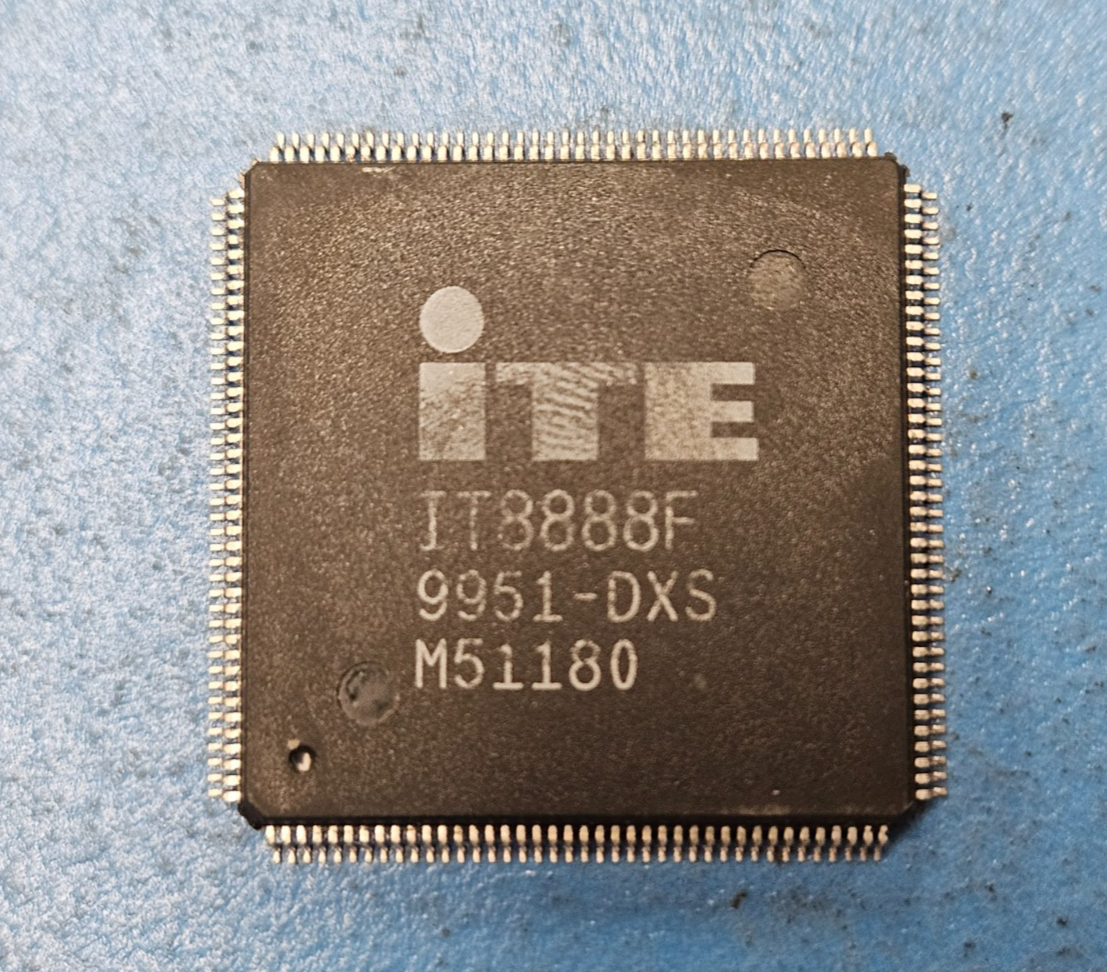

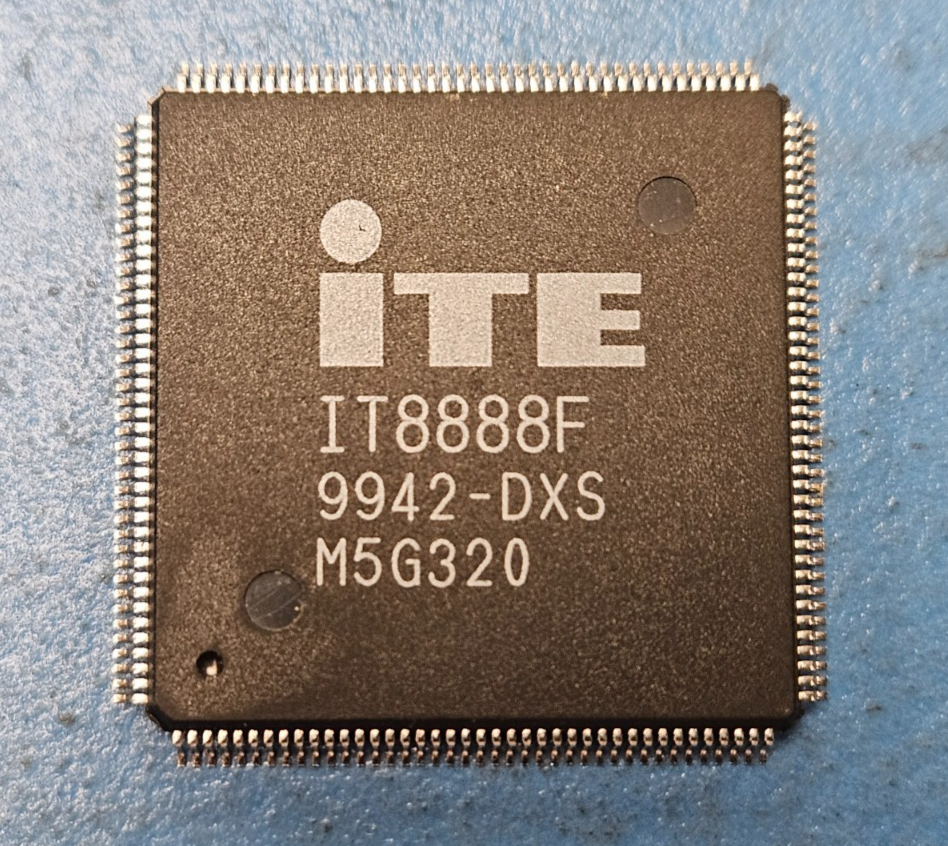

(1PC) IT8888F ITE PCI Bus Controller, CMOS, PQFP160
Tax included.
This listing is for (1PC) of IT8888F by ITE
Status Contact Mfr
Address Bus Width 32
Bus Compatibility I2C; ISA; PCI; SMBUS
Clock Frequency-Max (MHz) 33.0000000000000000
External Data Bus Width 32
JESD-30 Code S-PQFP-G160
Length (mm) 28.0000
Number of Terminals 160
Operating Temperature-Max (Cel) 70.0000
Operating Temperature-Min (Cel) 0.0000
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Shape SQUARE
Package Style FLATPACK
Seated Height-Max (mm) 3.6800
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position QUAD
Width (mm) 28.0000
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, PCI
