(1PC) ISPLSI2096-80LQ Lattice IC CPLD 96MC 15NS 128QFP
Tax included.

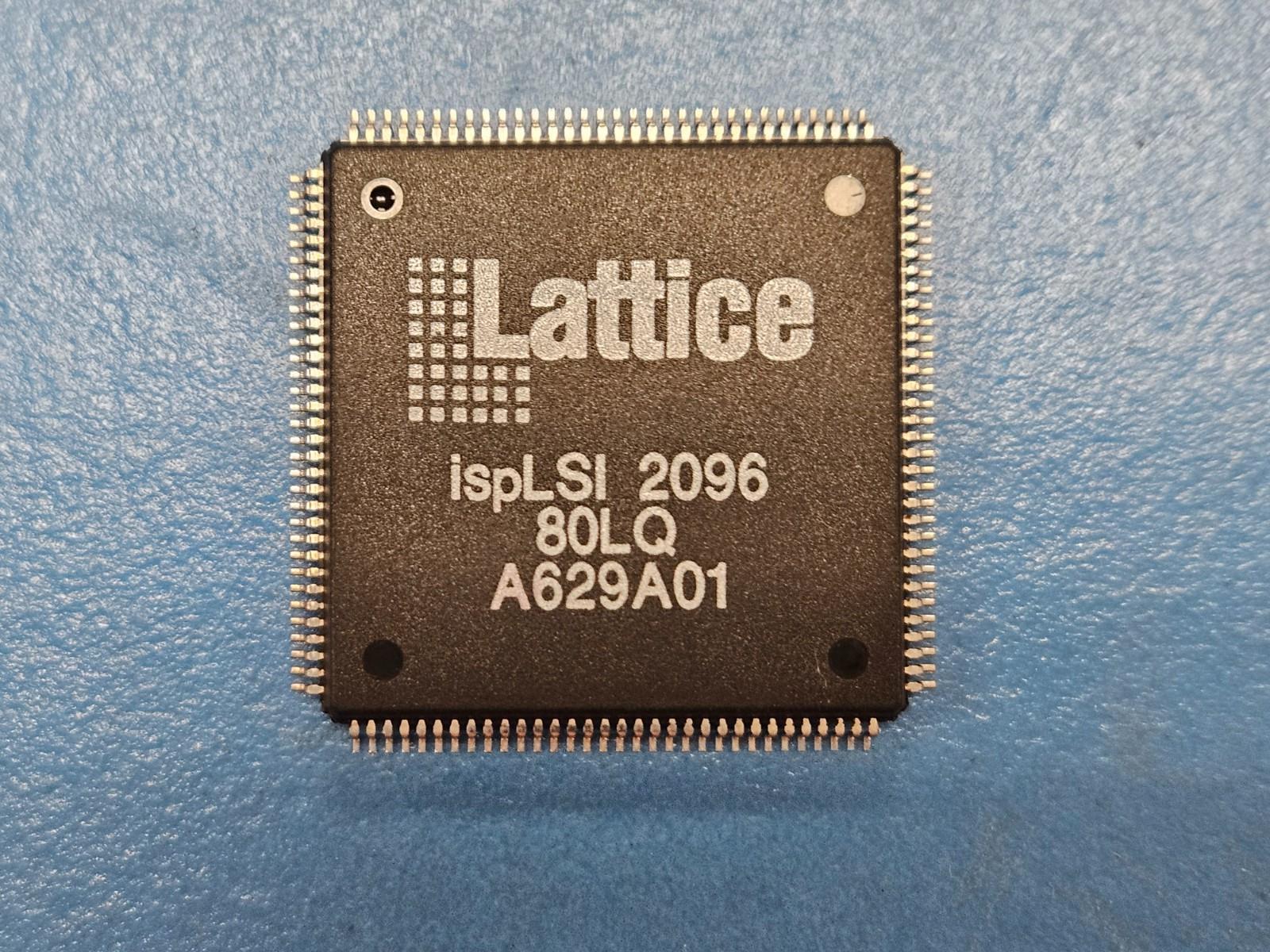

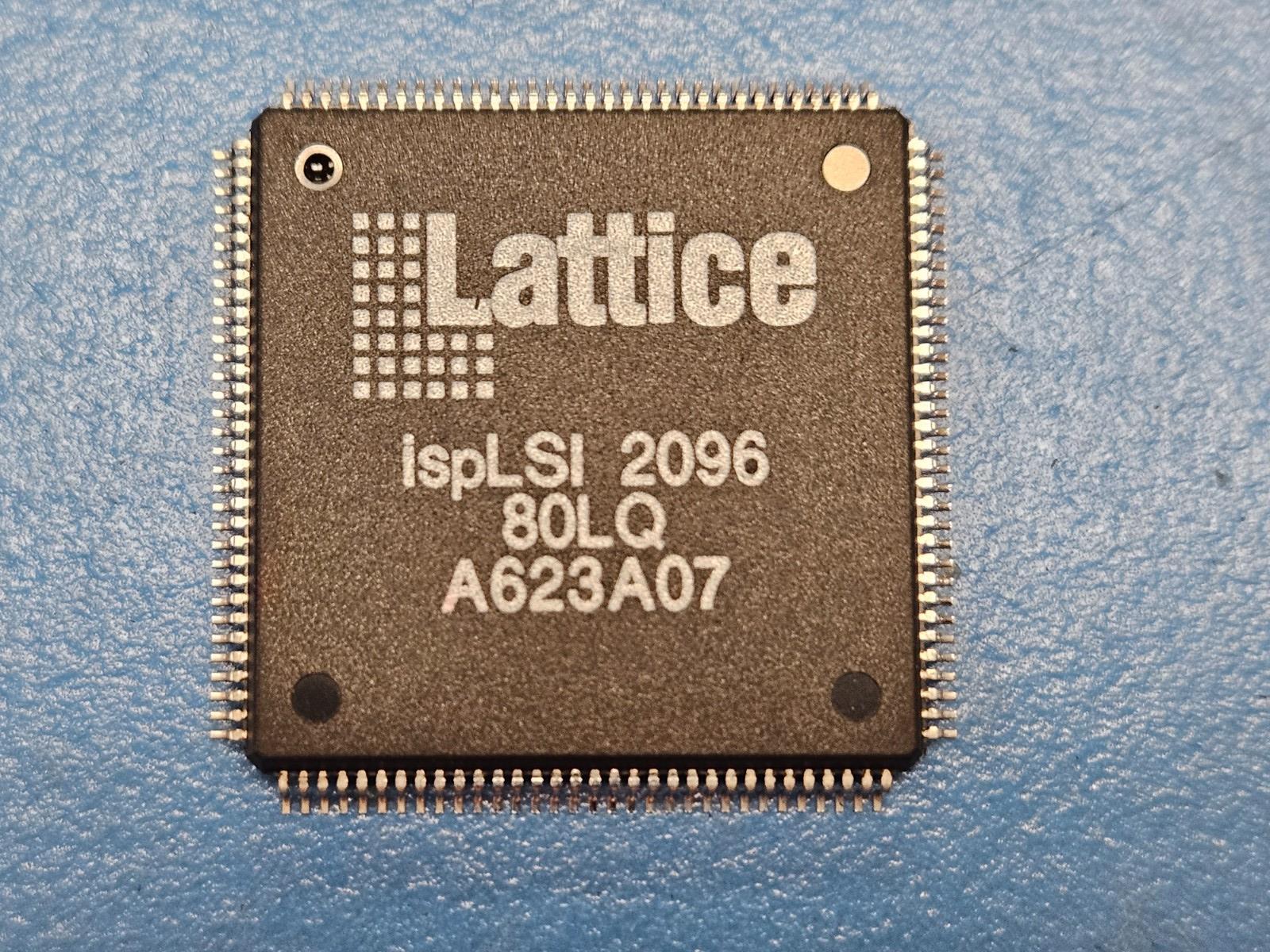

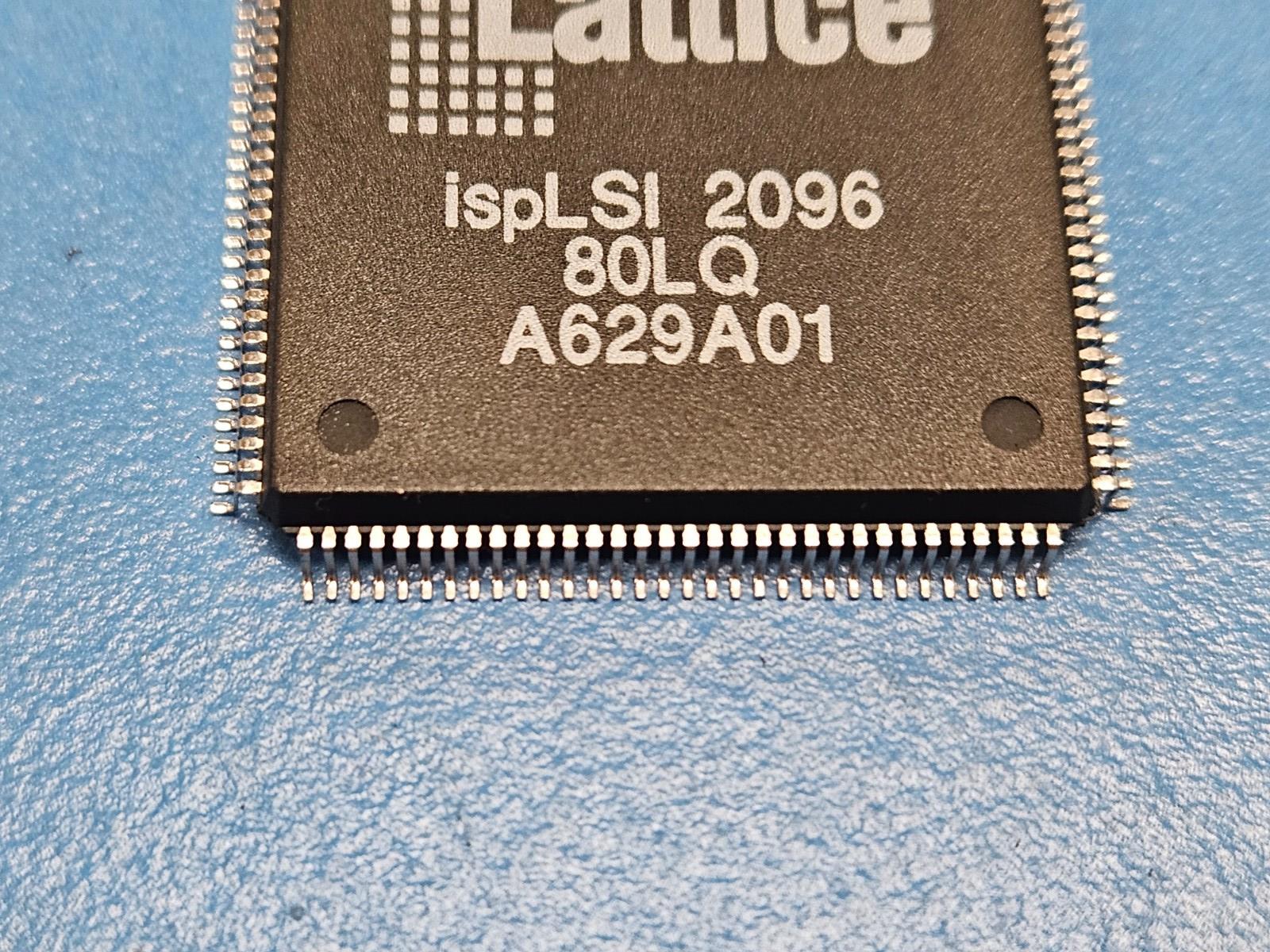

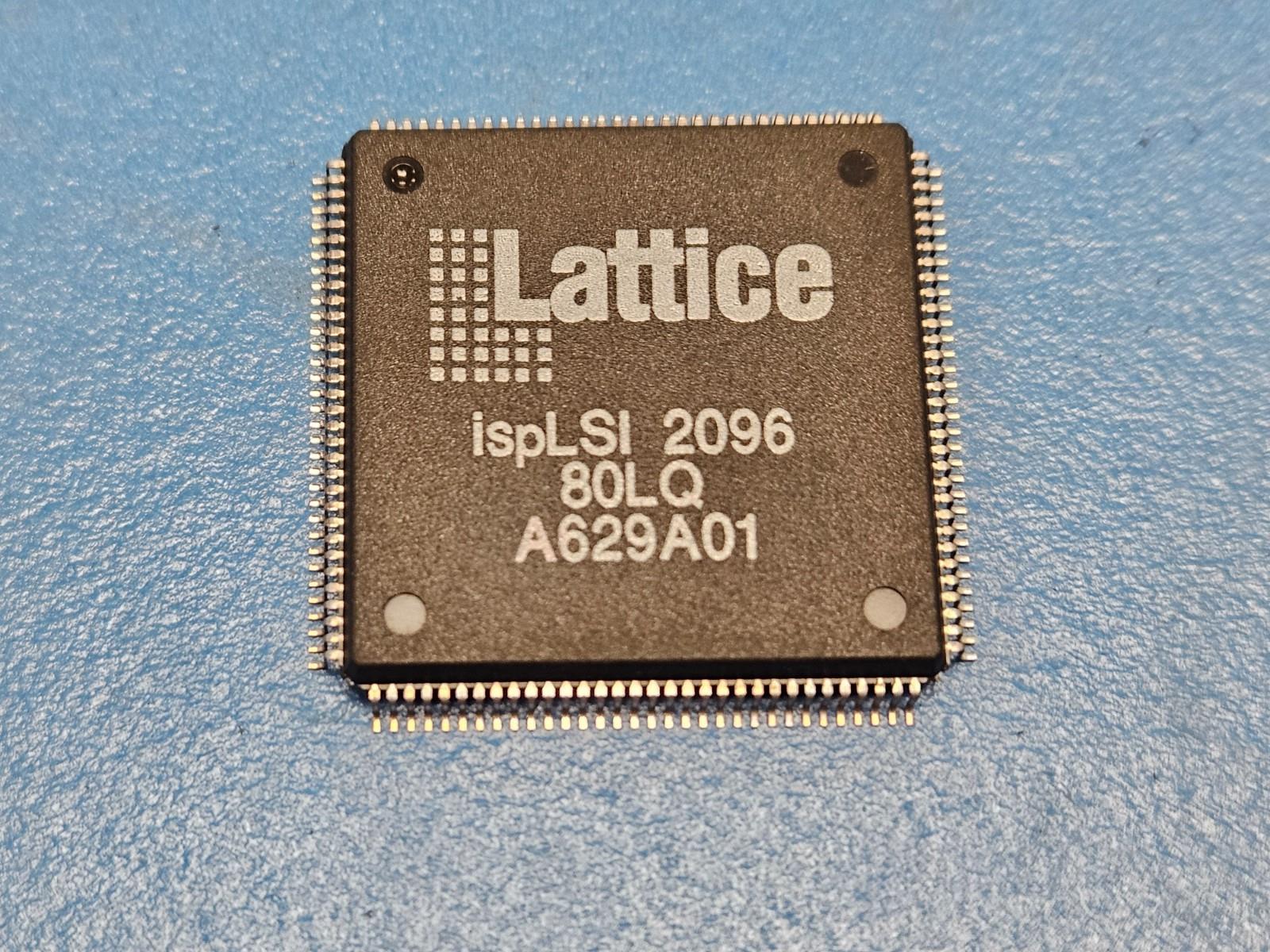

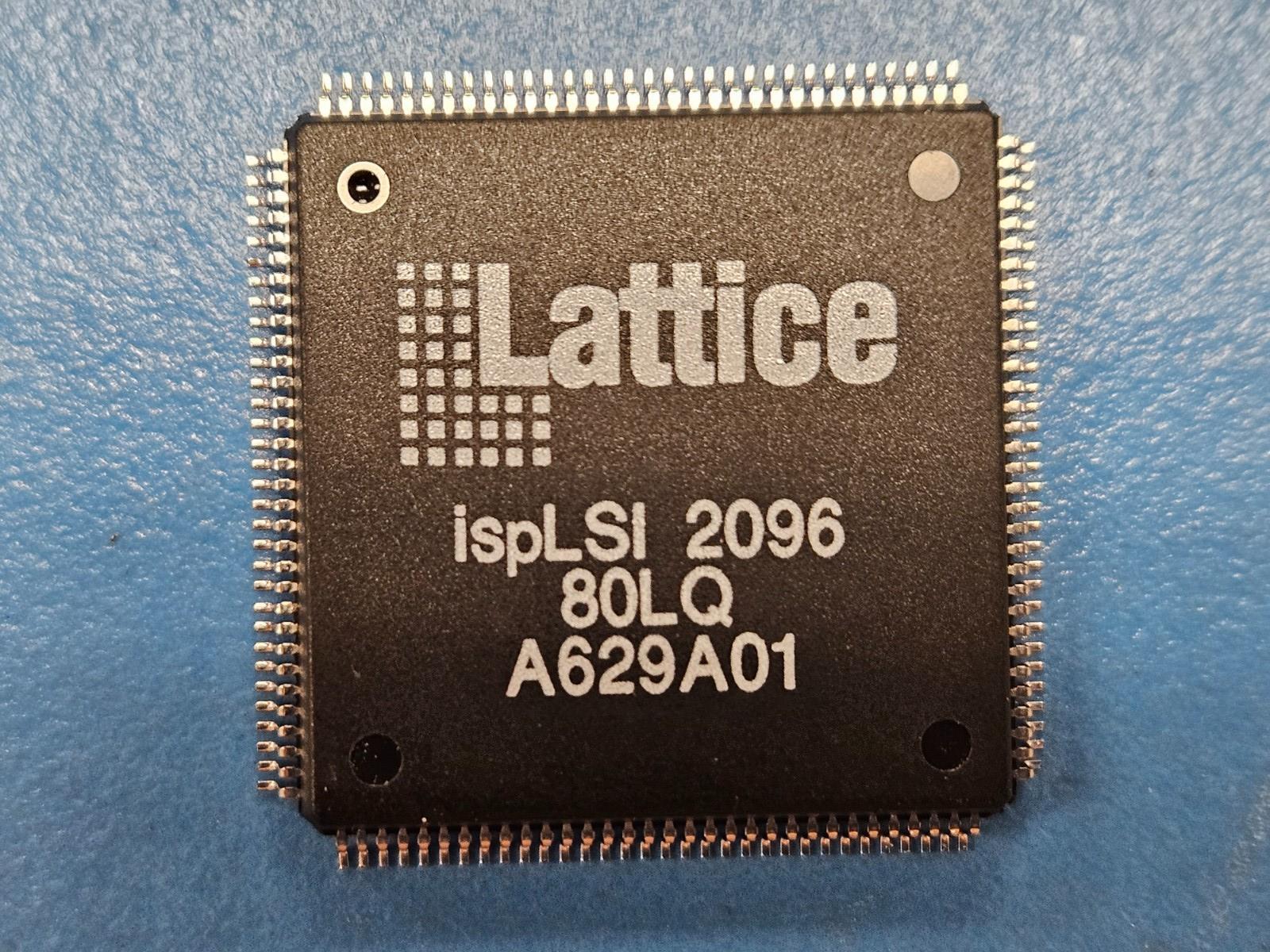

This listing is for (1) ISPLSI2096-80LQ by Lattice
Status Discontinued
Programmable Logic Type EE PLD
Clock Frequency-Max 57.0 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G128
JESD-609 Code e0
JTAG BST NO
Moisture Sensitivity Level 3
Number of Dedicated Inputs 3.0
Number of I/O Lines 96.0
Number of Macro Cells 96.0
Number of Terminals 128
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 3 DEDICATED INPUTS, 96 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP128,1.2SQ,32
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Propagation Delay 18.5 ns
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
