(1PC) ISL6560CB SWITCHING CONTROLLER, 2000kHz SWITCHING FREQ-MAX, SOIC16
Tax included.

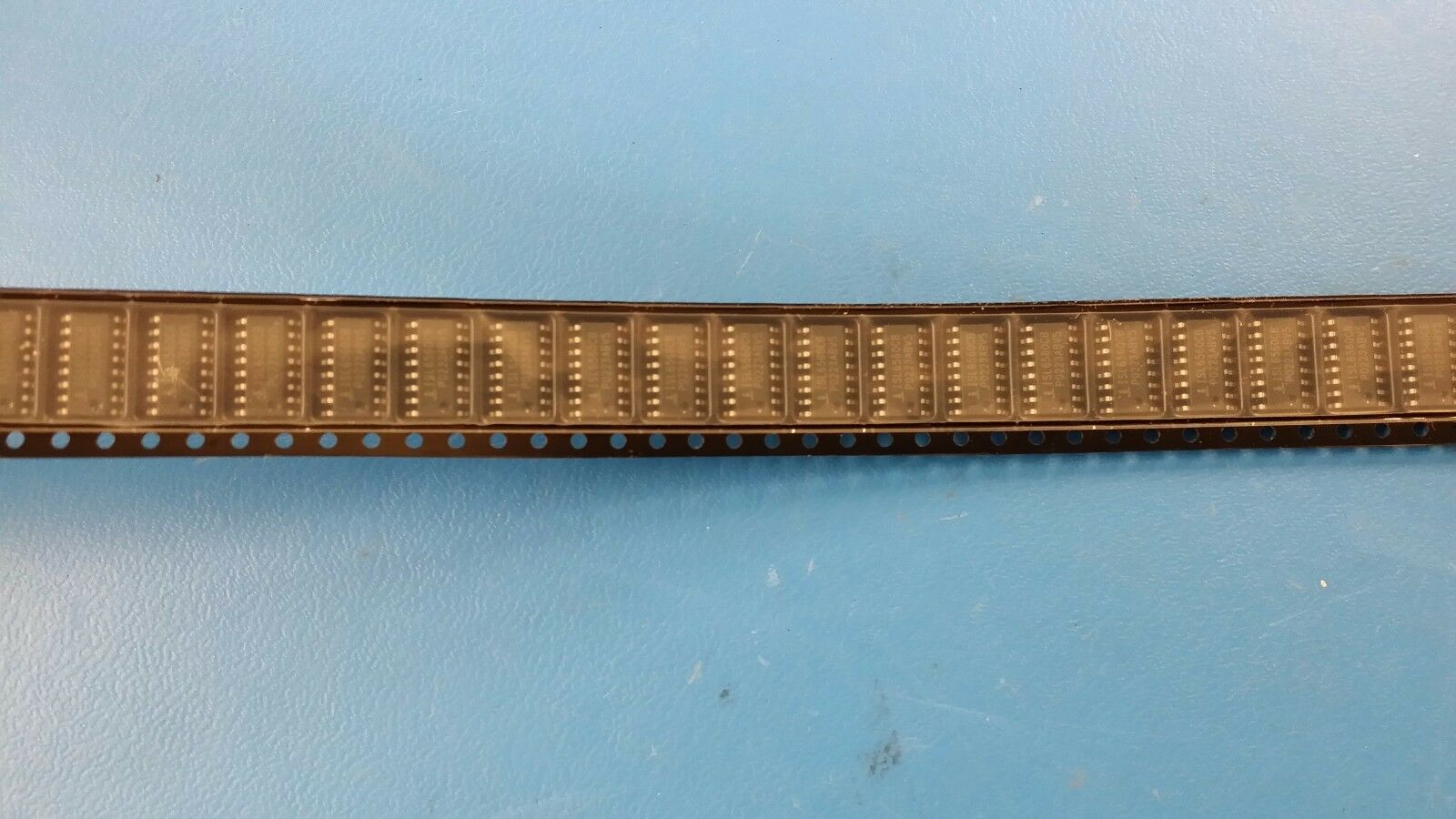

THIS LISTING IS FOR (1PC) OF ISL6560CB BY INTERSIL

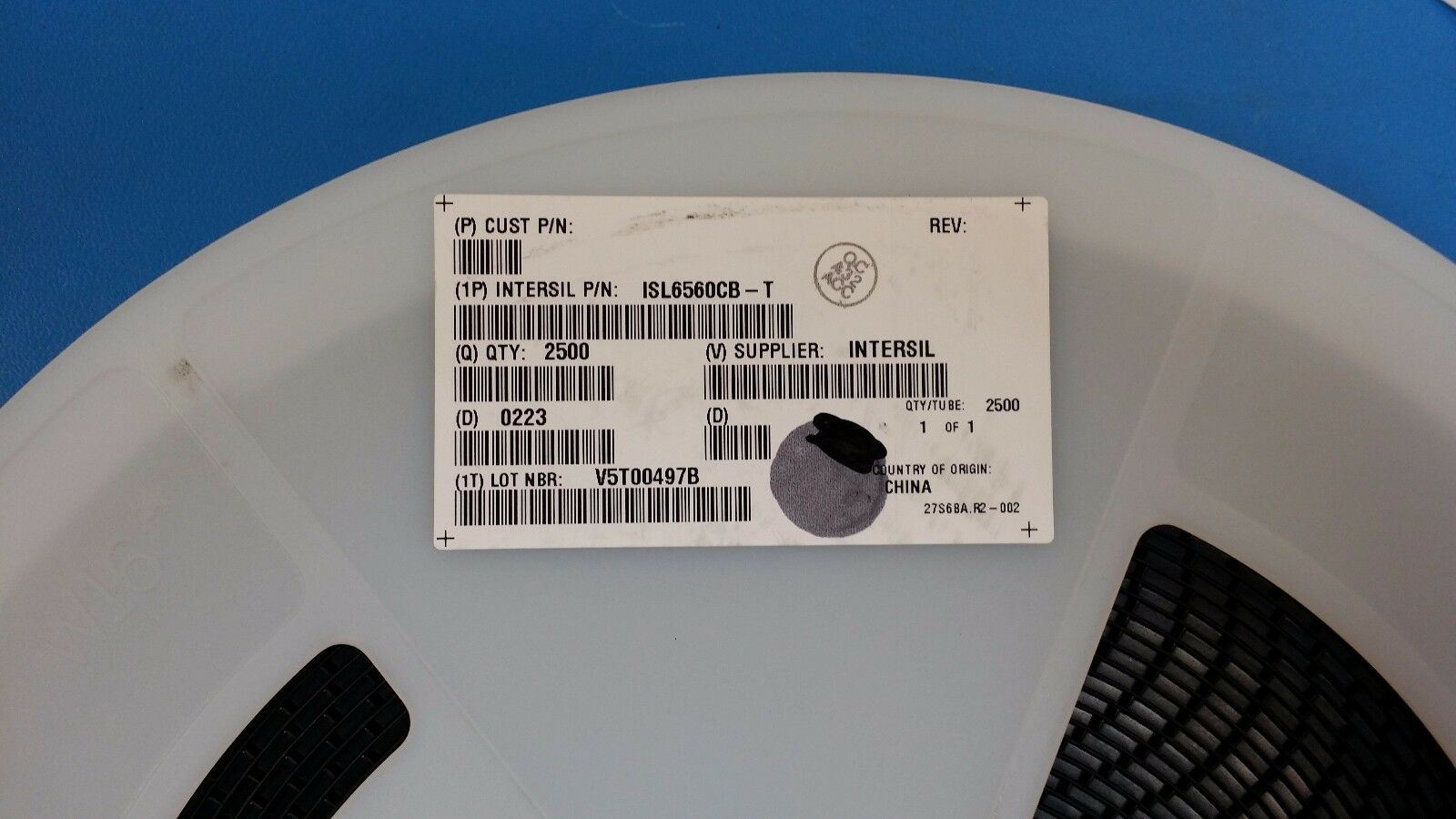

**WE CURRENTLY HAVE 2500PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.**
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MS-012-AC, SOIC-16 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Nom | 12 V |
| Input Voltage-Min | 10.8 V |
| Input Voltage-Max | 13.2 V |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP16,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | PHASE-SHIFT |
| Switching Frequency-Max | 2000 kHz |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 9.9 mm |
| Width | 3.9 mm |
