(1PC) IS61LV256-12T ISSI Standard SRAM, 32KX8, 12ns, CMOS, TSOP-28
(1PC) IS61LV256-12T ISSI Standard SRAM, 32KX8, 12ns, CMOS, TSOP-28
(1PC) IS61LV256-12T ISSI Standard SRAM, 32KX8, 12ns, CMOS, TSOP-28

(1PC) IS61LV256-12T ISSI Standard SRAM, 32KX8, 12ns, CMOS, TSOP-28

Tax included.
Only 10 left!

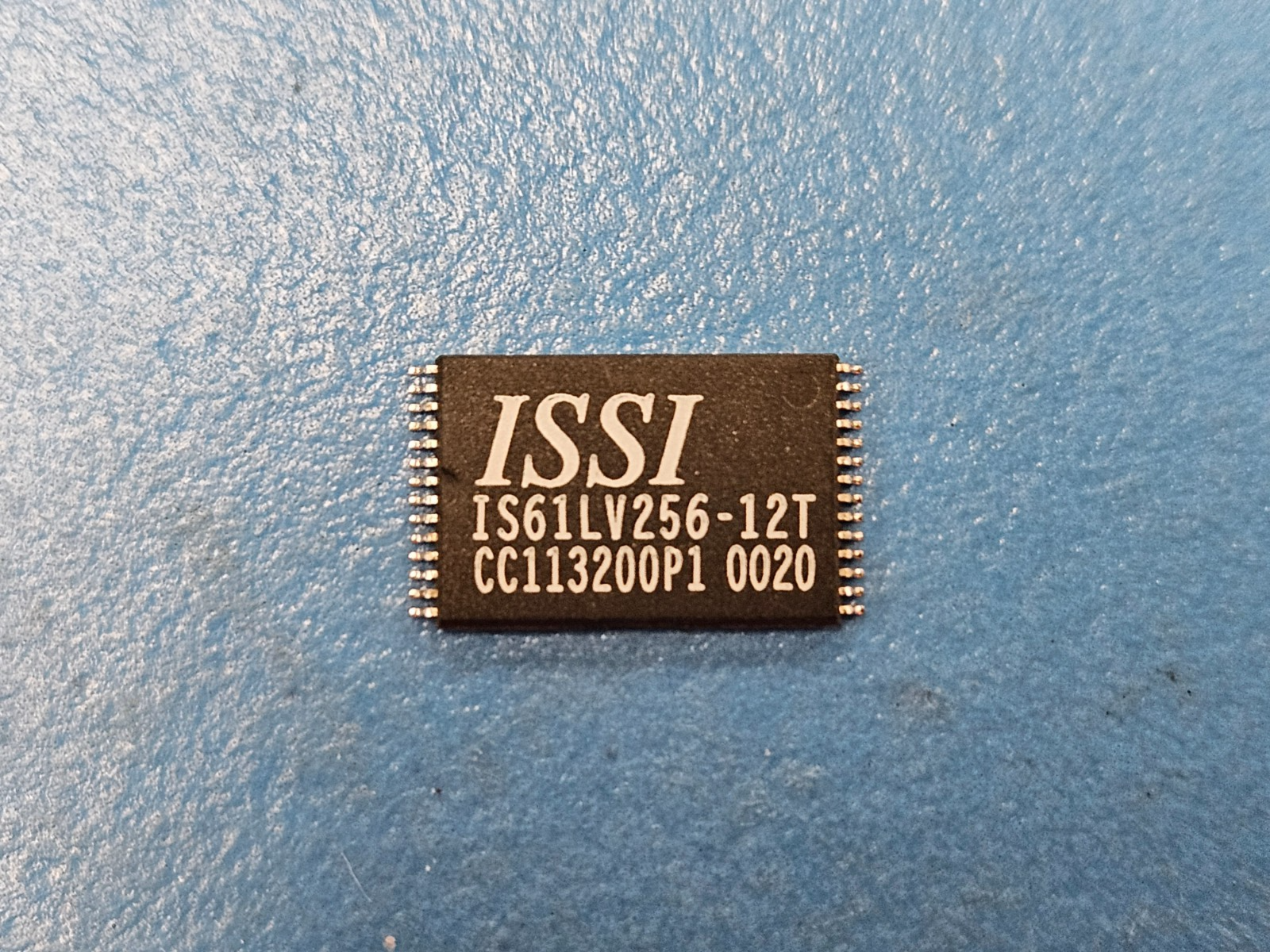

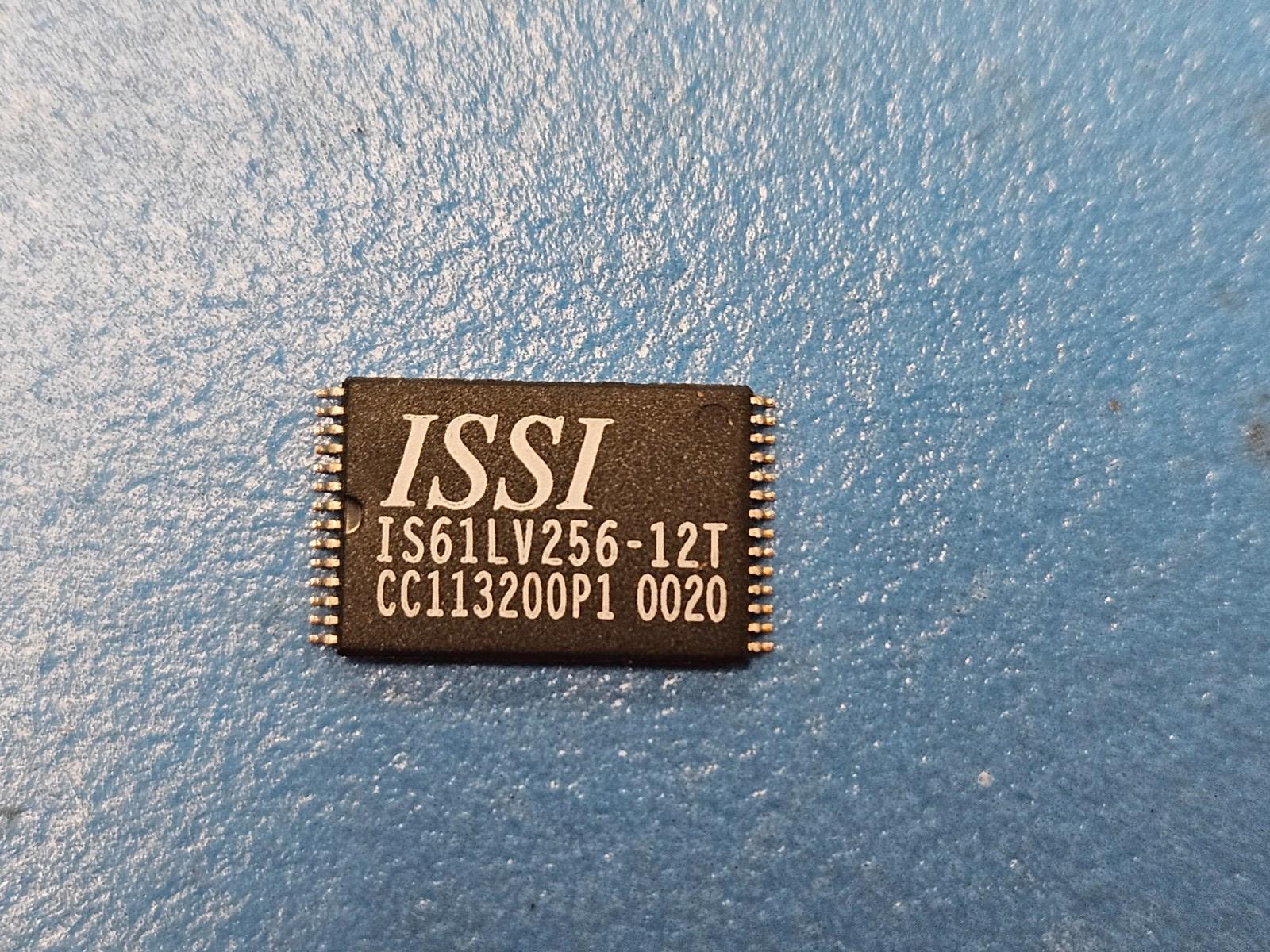

This listing is for (1) IS61LV256-12T by ISSI


Mfr Package Description TSOP1-28
Status Discontinued
Access Time-Max 12.0  ns
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Memory Density 262144.0  bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Number of Words 32768.0  words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 32KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP28,.53,22
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Reverse Pinout NO
Standby Current-Max 0.002  Amp
Supply Current-Max 0.1  Amp
Supply Voltage-Nom (Vsup) 3.3  V
Supply Voltage-Min (Vsup) 3.135  V
Supply Voltage-Max (Vsup) 3.33  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature AUTOMATIC POWER DOWN
