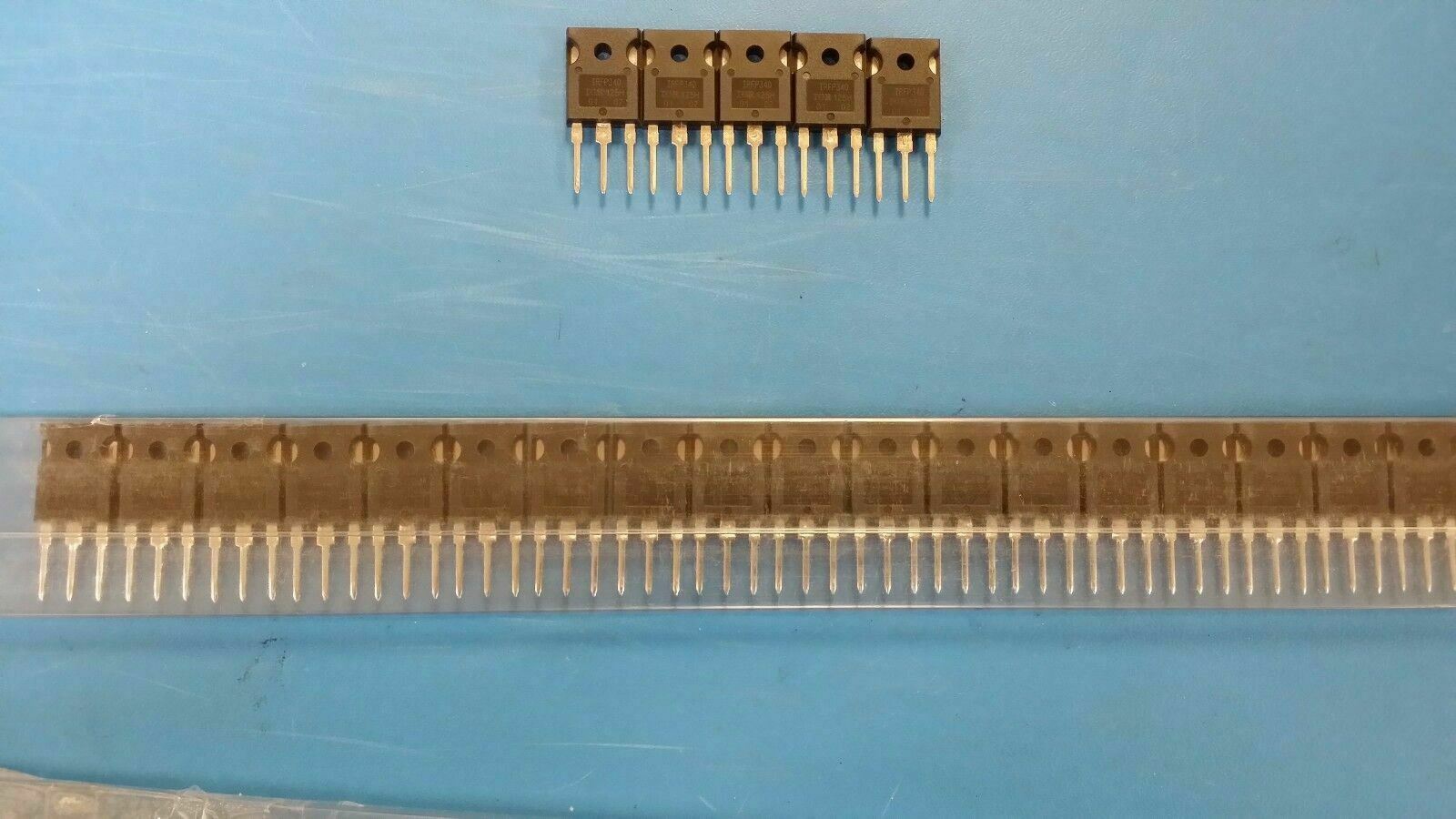

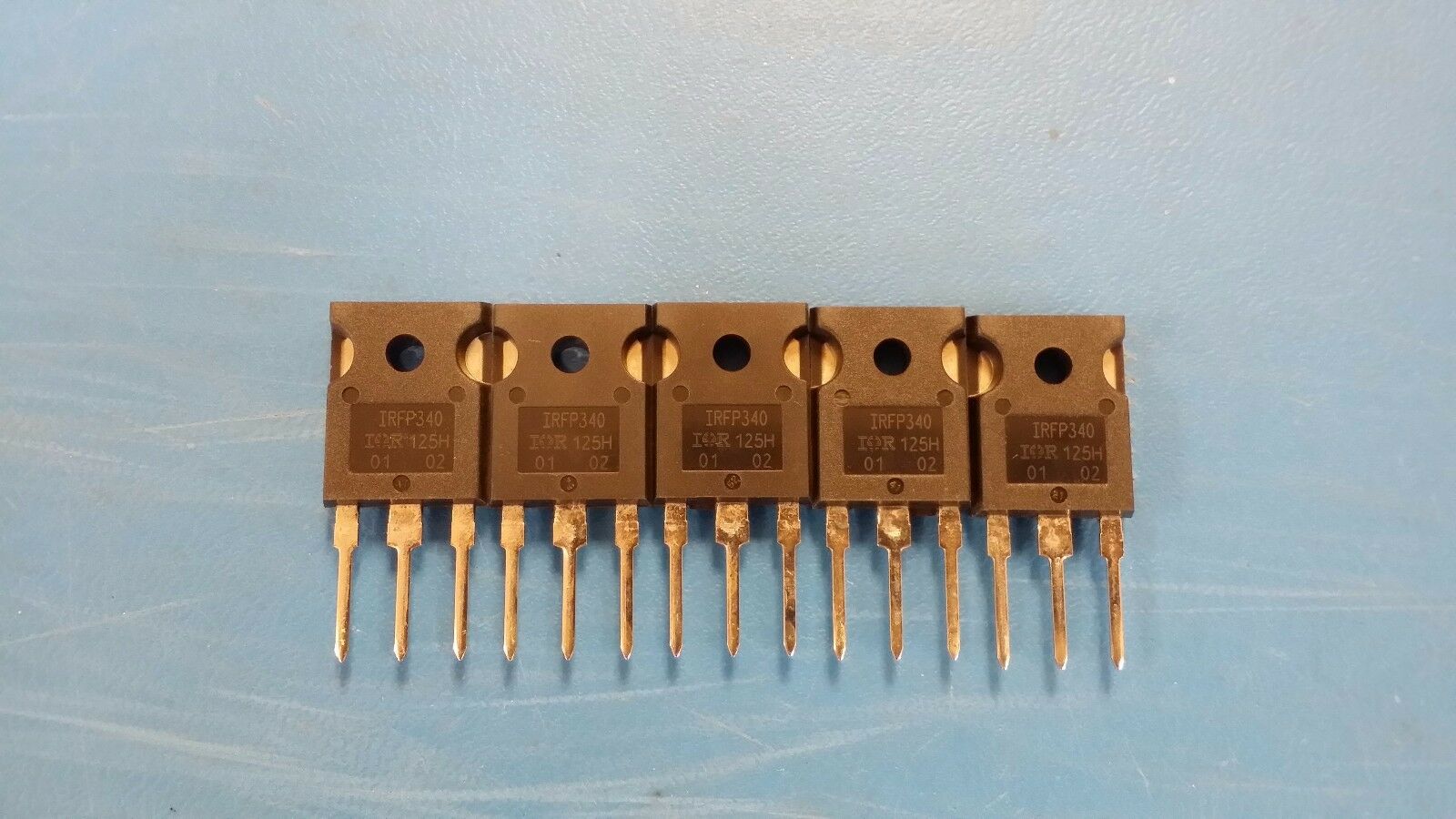

(1PC) IRFP340 Transistor MOSFET N-CH 400V 11A 3-Pin(3+Tab) TO-247AC
Tax included.
THIS LISTING IS FOR (1PC) OF IRFP340 BY INTERNATIONAL RECTIFIER
SPECIFICATIONS
| REACH Compliant | N/A |
| Status | Transferred |
| Avalanche Energy Rating (Eas) | 480 mJ |
| Case Connection | DRAIN |
| Configuration | SINGLE |
| Drain Current-Max (Abs) (ID) | 10 A |
| Drain Current-Max (ID) | 11 A |
| Drain-source On Resistance-Max | 0.5500 ohm |
| DS Breakdown Voltage-Min | 400 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-247AC |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | 225 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 150 W |
| Power Dissipation-Max (Abs) | 150 W |
| Pulsed Drain Current-Max (IDM) | 44 A |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
