(1PC) IRF9230 IR Trans MOSFET P-CH 200V 6.5A 3-Pin(2+Tab) TO-3
Tax included.

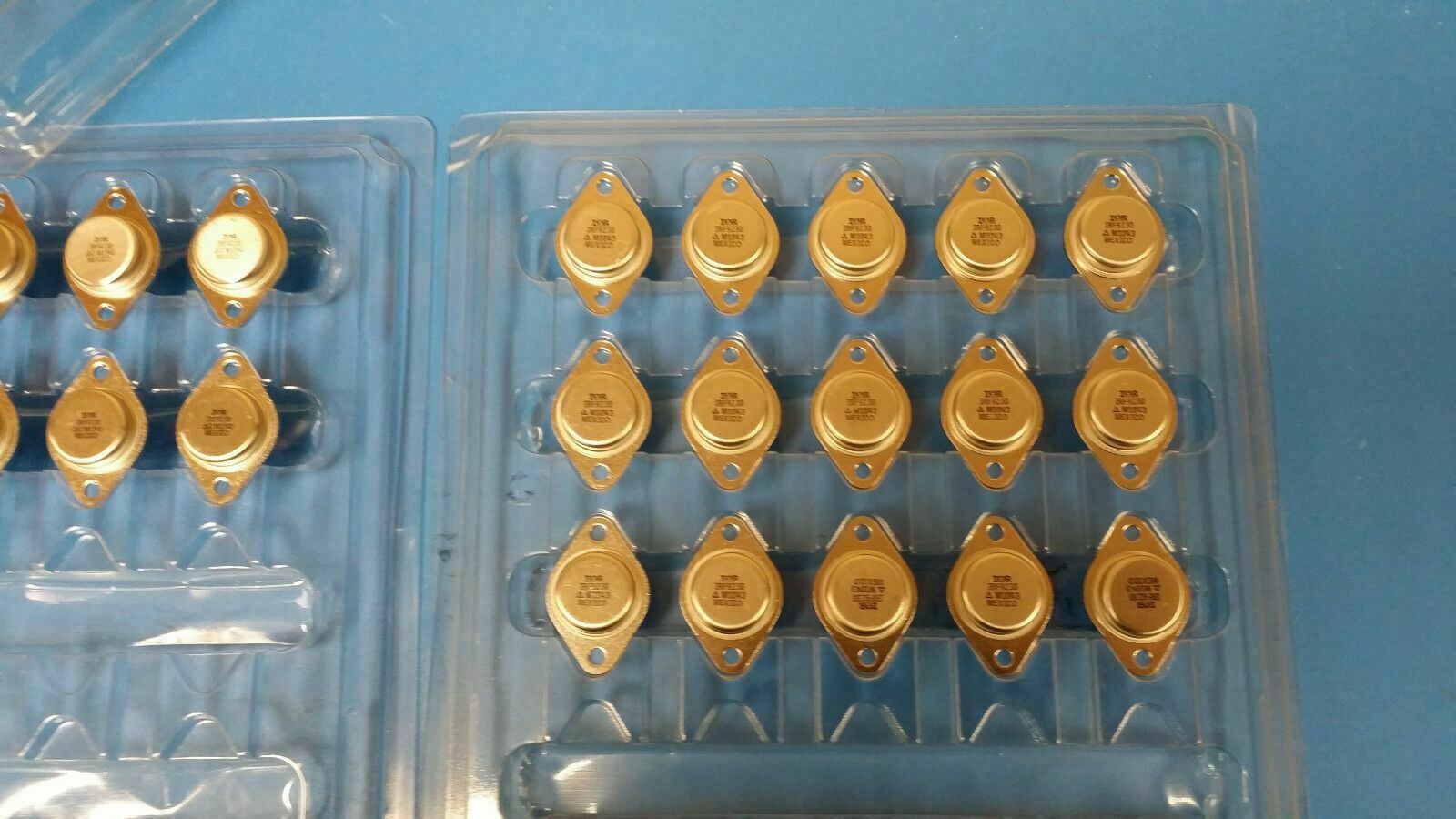

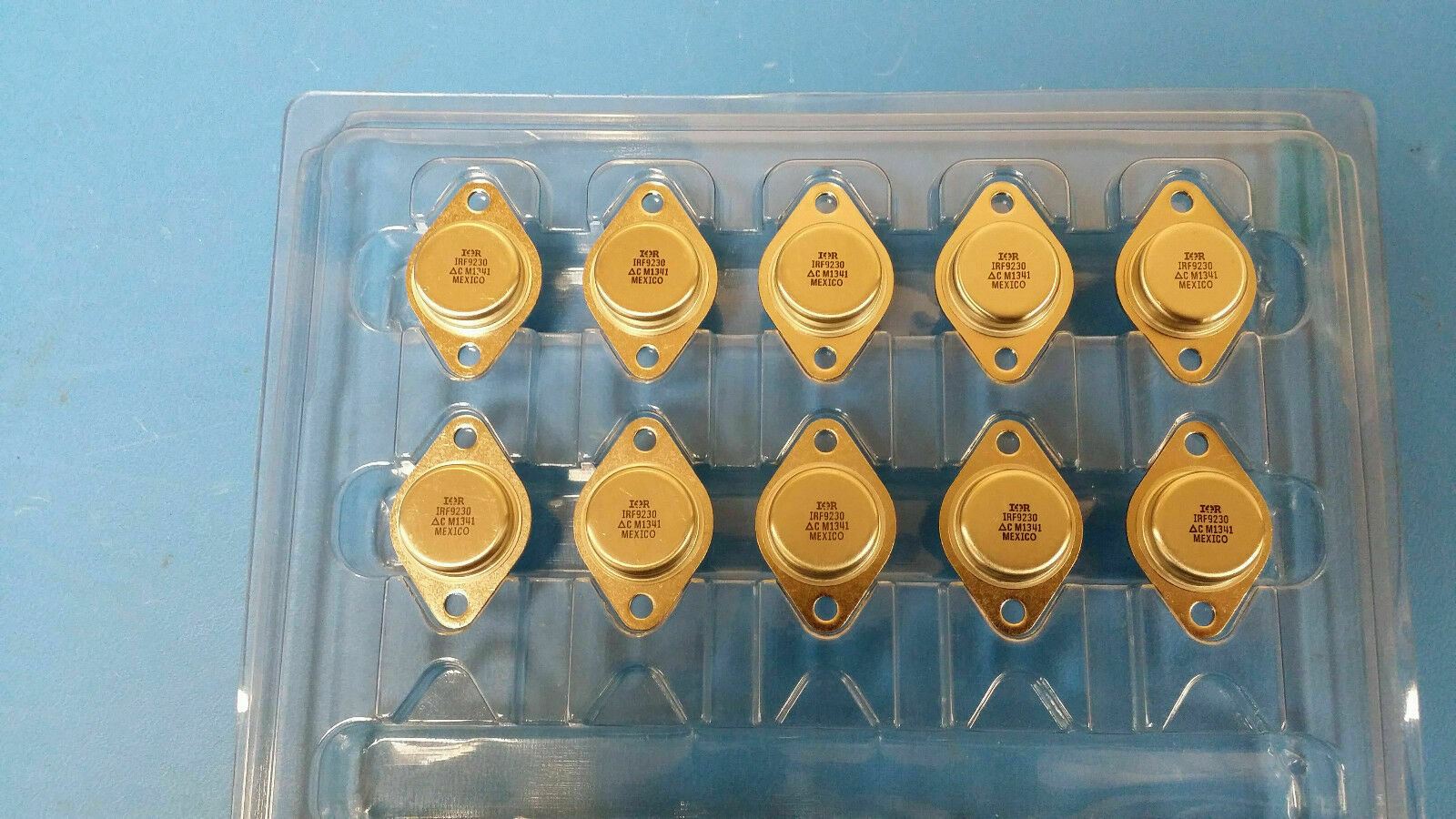

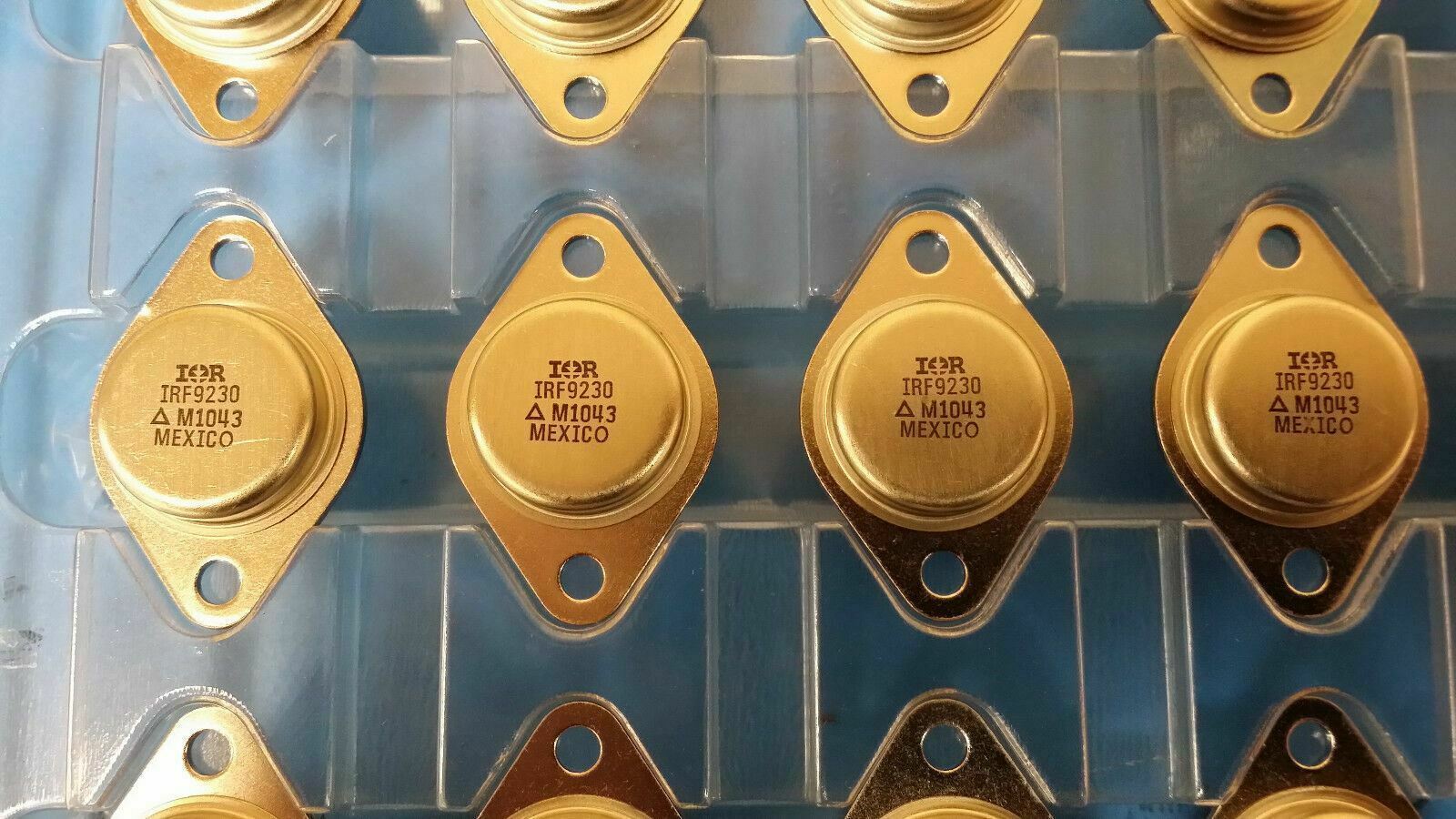

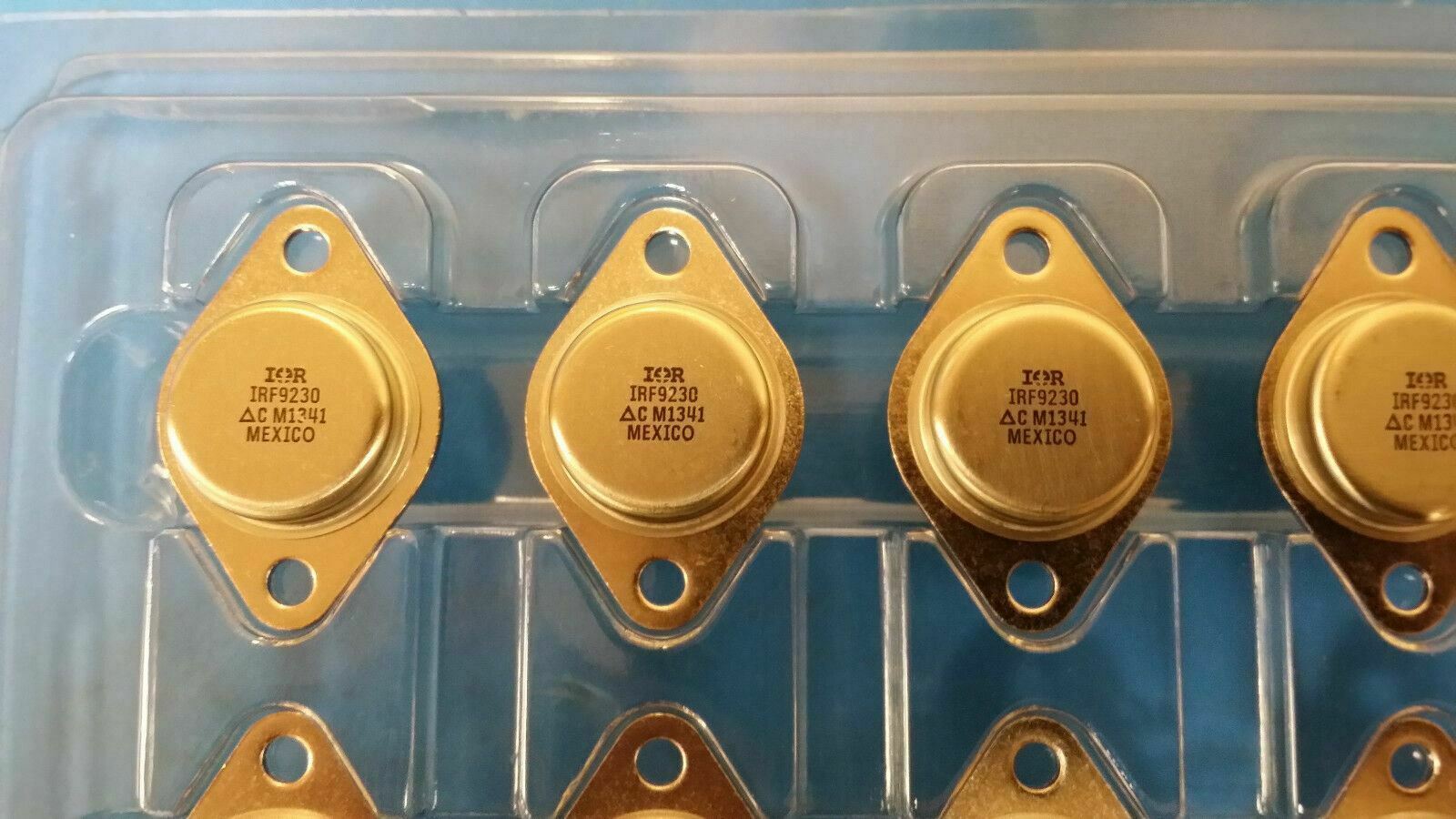

THIS LISTING IS FOR (1 PC) OF IRF9230 BY INTERNATIONAL RECTIFIER
IRF9230 IR Trans MOSFET P-CH 200V 6.5A 3-Pin(2+Tab) TO-3
IRF9230 IR Trans MOSFET P-CH 200V 6.5A 3-Pin(2+Tab) TO-3
IRF9230 Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Maximum Operating Temperature (°C) | 150 |
| Channel Mode | Enhancement |
| Channel Type | P |
| Category | Power MOSFET |
| Maximum Power Dissipation (mW) | 75000 |
| Technology | HEXFET |
| Maximum Drain Source Voltage (V) | 200 |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Gate Charge @ Vgs (nC) | 31(Max)@10V |
| Typical Input Capacitance @ Vds (pF) | 700@25V |
| Maximum Drain Source Resistance (mOhm) | 920@10V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 6.5 |
| Mounting | Through Hole |
| Package Height (mm) | 7.74(Max) |
| Package Length (mm) | 39.37(Max) |
| Package Width (mm) | 25.53(Max) |
| PCB | 2 |
| Tab | Tab |
| Standard Package Name | TO-204-AA |
| Supplier Package | TO-3 |
| Pin Count | 3 |
