(1PC) IDT71502L25J Standard SRAM, 4KX16, 12ns, CMOS, PLCC52
(1PC) IDT71502L25J Standard SRAM, 4KX16, 12ns, CMOS, PLCC52
(1PC) IDT71502L25J Standard SRAM, 4KX16, 12ns, CMOS, PLCC52
(1PC) IDT71502L25J Standard SRAM, 4KX16, 12ns, CMOS, PLCC52

(1PC) IDT71502L25J Standard SRAM, 4KX16, 12ns, CMOS, PLCC52

Tax included.
Only 30 left!

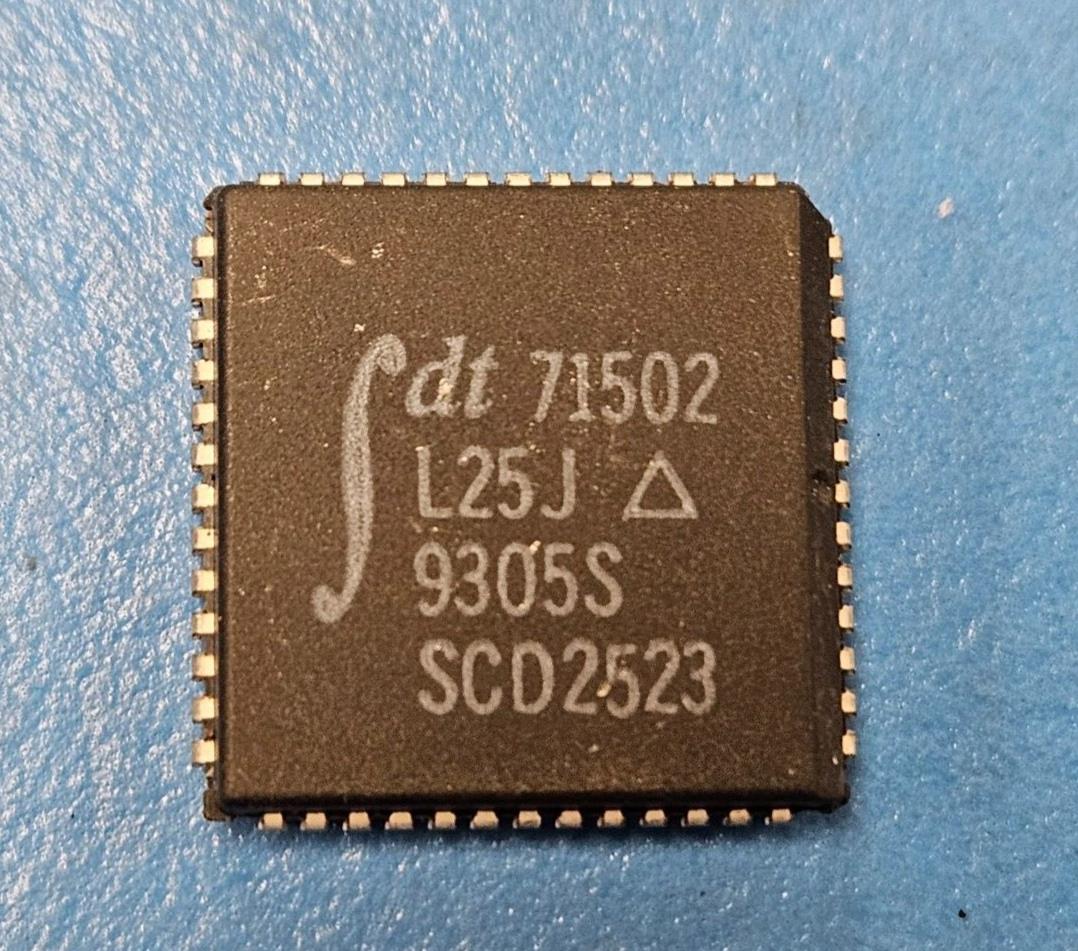

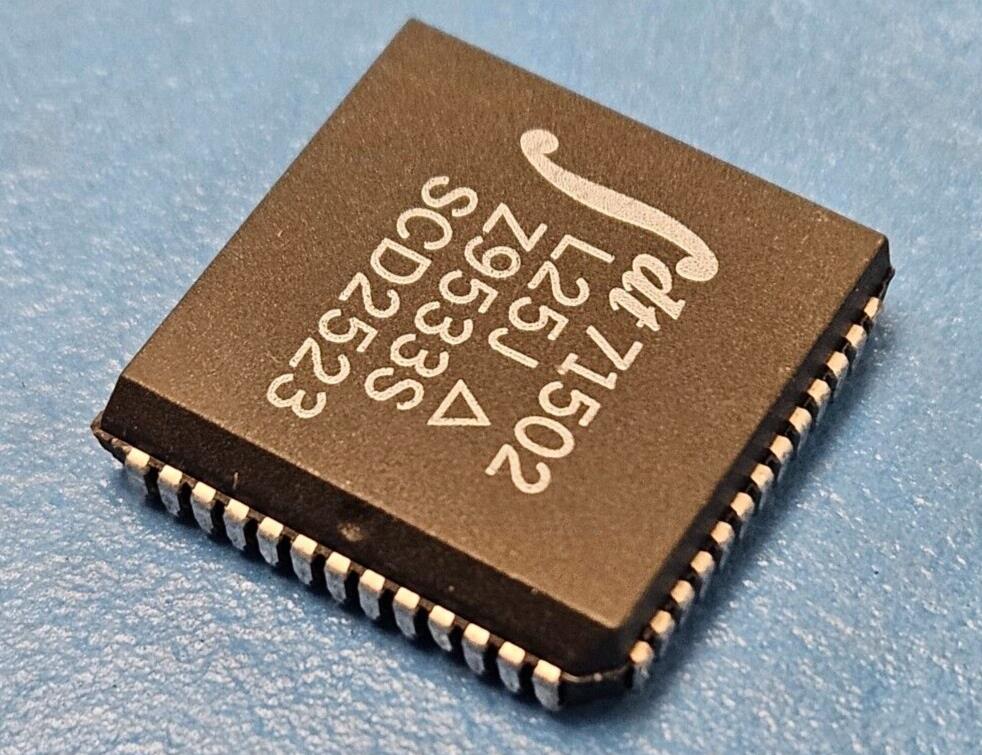

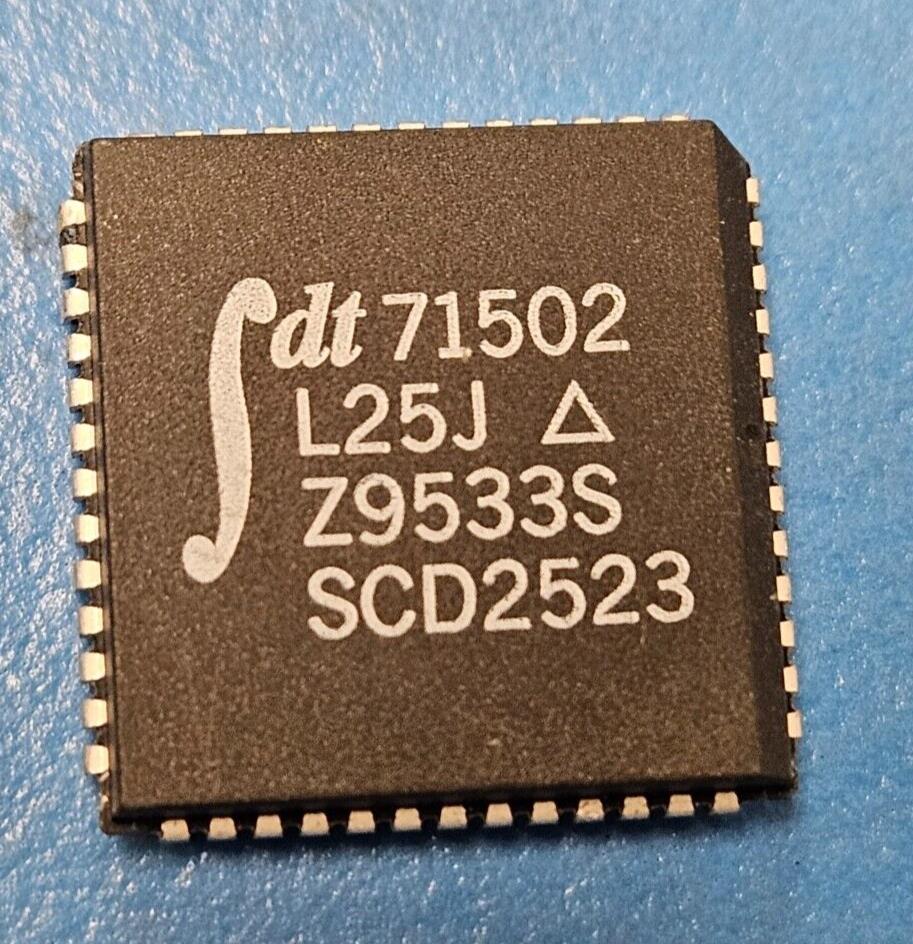

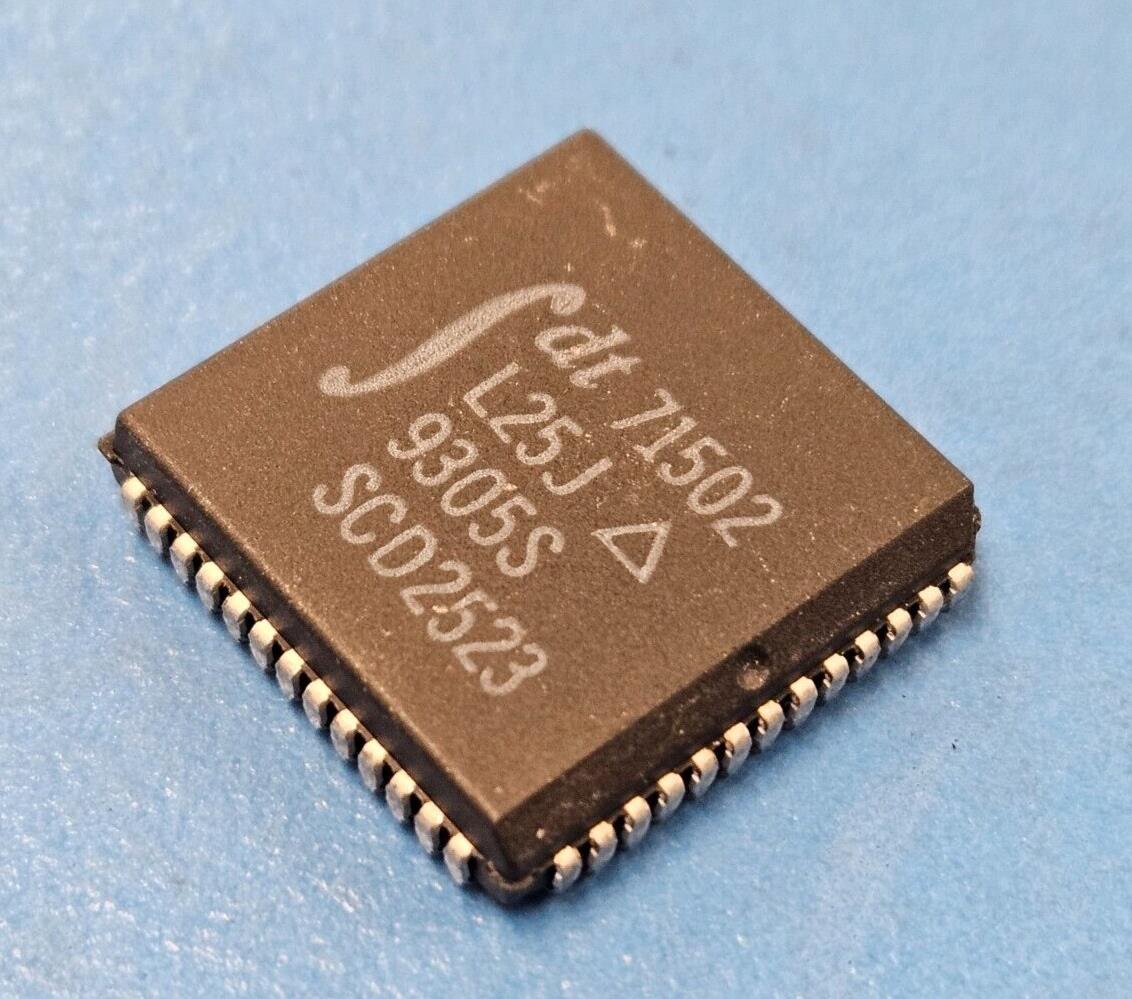

This listing is for (1PC) of IDT71502L25J by IDT


Mfr Package Description PLASTIC, LCC-52
Status Discontinued
Sub Category SRAMs
Access Time-Max 12.0 ns
I/O Type COMMON/SEPARATE
JESD-30 Code S-PQCC-J52
JESD-609 Code e0
Memory Density 65536.0 bit
Memory IC Type STANDARD SRAM
Memory Width 16
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 52
Number of Words 4096.0 words
Number of Words Code 4K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4KX16
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC52,.8SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Standby Current-Max 0.25 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.25 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 19.1262 mm
Width 19.1262 mm
Additional Feature PARITY CHECKER; TTL COMPATIBLE INPUTS/OUTPUTS
