(1PC) ICS580M-01 ICS Clock Multiplexer, Zero Delay Buffer IC 2:2 270 MHz 16-SOIC
(1PC) ICS580M-01 ICS Clock Multiplexer, Zero Delay Buffer IC 2:2 270 MHz 16-SOIC
(1PC) ICS580M-01 ICS Clock Multiplexer, Zero Delay Buffer IC 2:2 270 MHz 16-SOIC

(1PC) ICS580M-01 ICS Clock Multiplexer, Zero Delay Buffer IC 2:2 270 MHz 16-SOIC

Tax included.
Only 50 left!

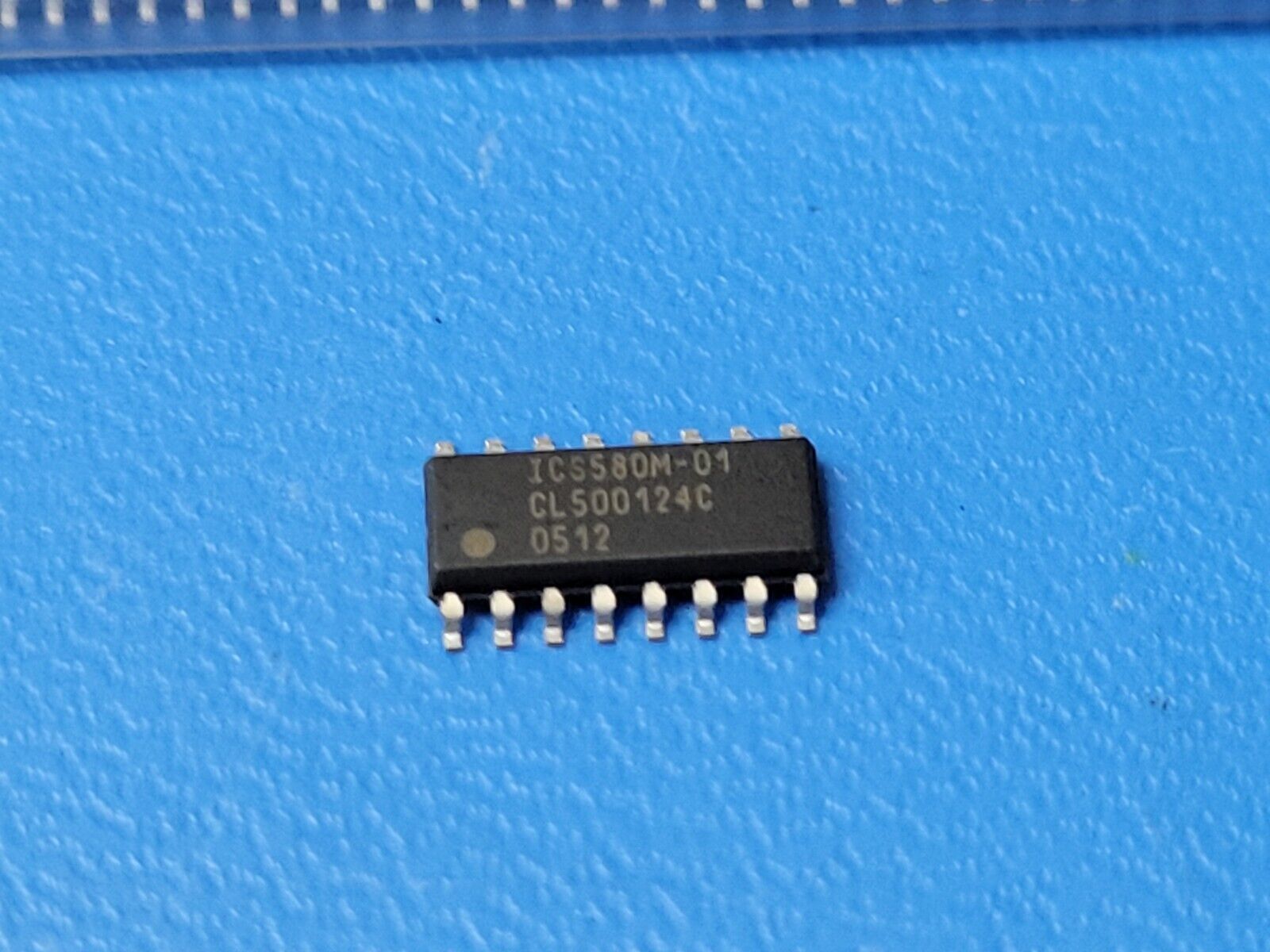

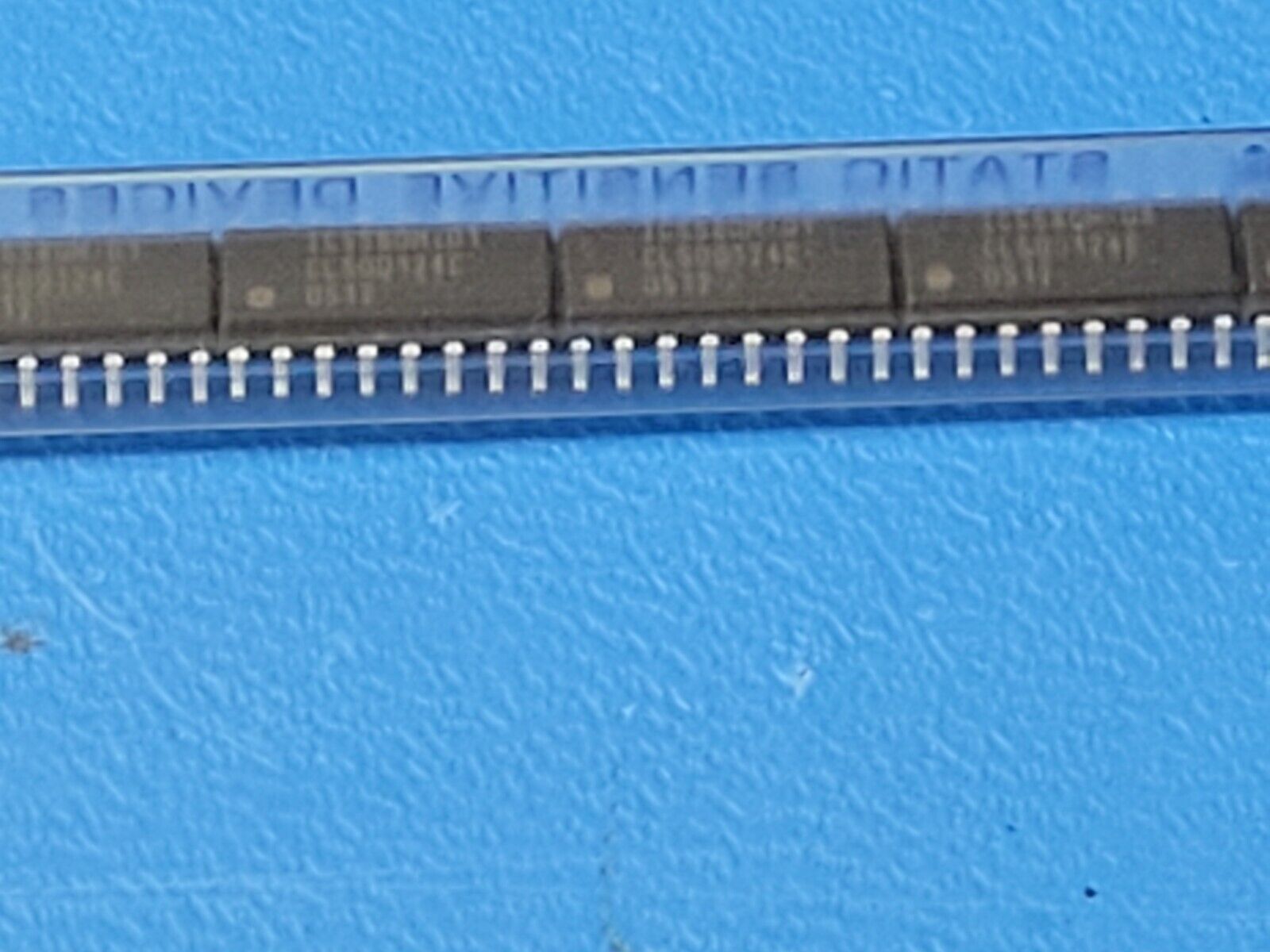

THIS IS FOR (1 PC) OF ICS580M-01 BY ICS/IDT
Clock Multiplexer, Zero Delay Buffer IC 2:2 270 MHz 16-SOIC

Part #: ICS580M-01
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Low Skew Clock Driver, 580 Series, 2 True Output(s), 0 Inverted Output(s), PDSO16

Mfr Package Description 0.150 INCH, SOIC-16
Status Discontinued
Logic IC Type LOW SKEW CLOCK DRIVER
Sub Category Clock Drivers
Family 580
Input Conditioning MUX
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Max I(ol) 0.012  Amp
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 16
Number of True Outputs 2.0
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Propagation Delay (tpd) 12.0  ns
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.25  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 2.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 9.9  mm
Width 3.9  mm
