(1pc) ICS570A ICS PLL Based Clock Driver, 2 True Output(s), CMOS, SOIC-8
(1pc) ICS570A ICS PLL Based Clock Driver, 2 True Output(s), CMOS, SOIC-8

(1pc) ICS570A ICS PLL Based Clock Driver, 2 True Output(s), CMOS, SOIC-8

Tax included.
Only 78 left!

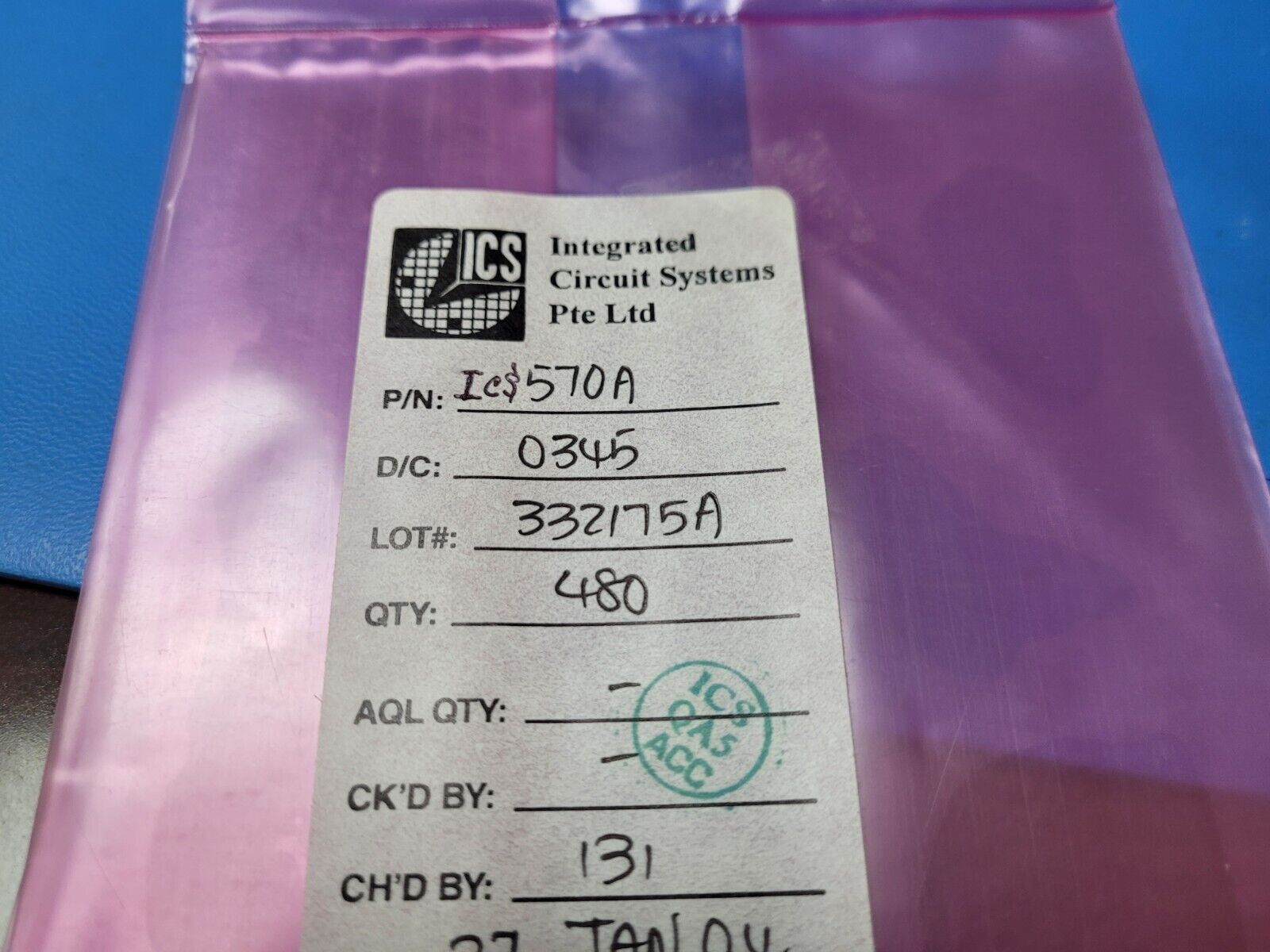

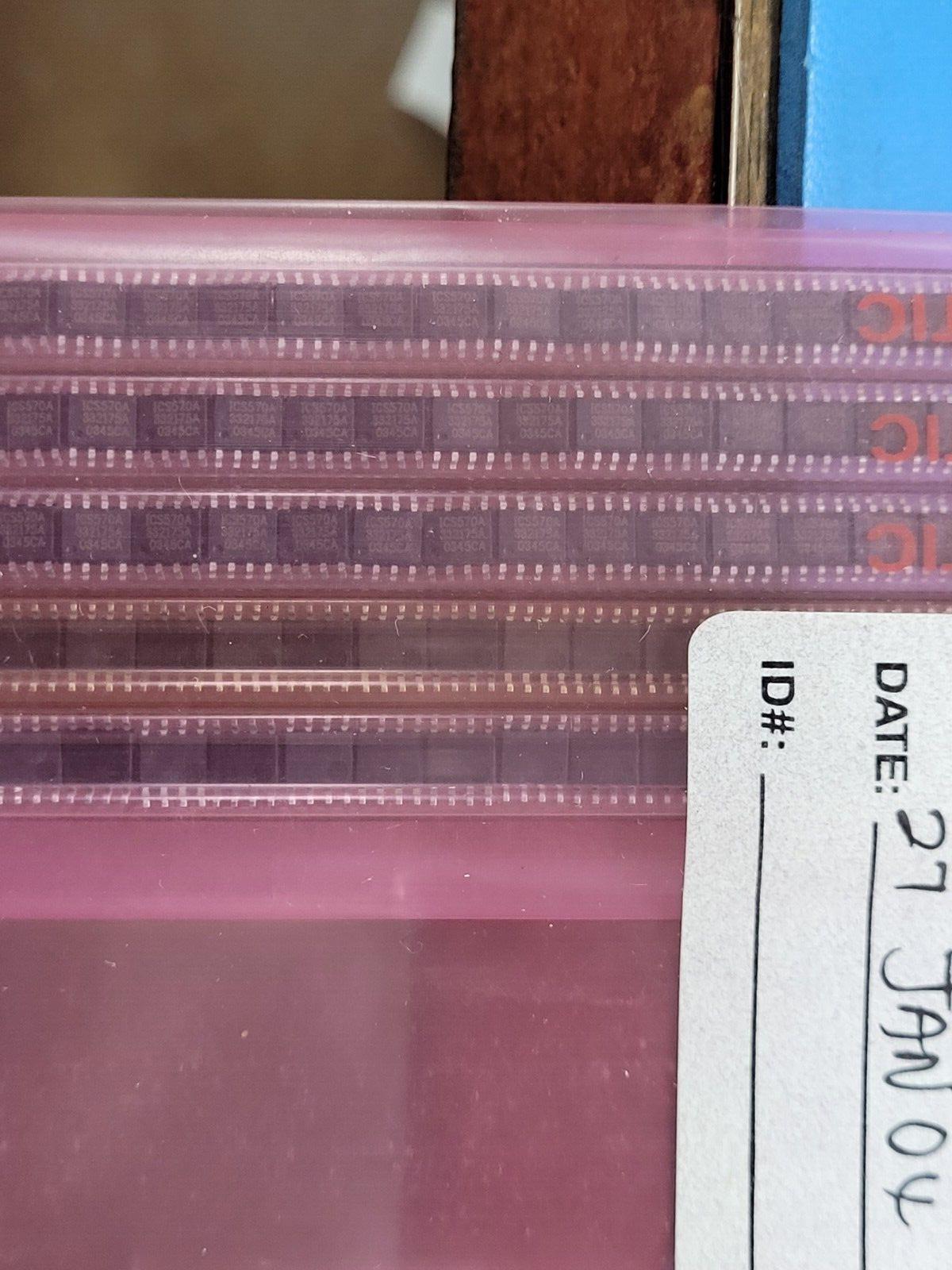

THIS IS FOR (1 PC) OF ICS570A BY ICS/IDT
PLL Based Clock Driver, 2 True Output(s), CMOS, SOIC-8

Part #: ICS570A
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: PLL Based Clock Driver, 570 Series, 2 True Output(s), 0 Inverted Output(s), CMOS, PDSO8

Mfr Package Description 0.150 INCH, SOIC-8
Status Transferred
Logic IC Type PLL BASED CLOCK DRIVER
Sub Category Clock Drivers
Family 570
fmax-Min 168.0  MHz
Input Conditioning STANDARD
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Max I(ol) 0.012  Amp
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 8
Number of True Outputs 2.0
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Same Edge Skew-Max (tskwd) 0.2  ns
Seated Height-Max 1.75  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75  V
Supply Voltage-Max (Vsup) 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 4.9  mm
Width 3.9  mm
