(1PC) ICM7218CIPI LED Driver, 8-Segment, CMOS, PDIP28
Tax included.

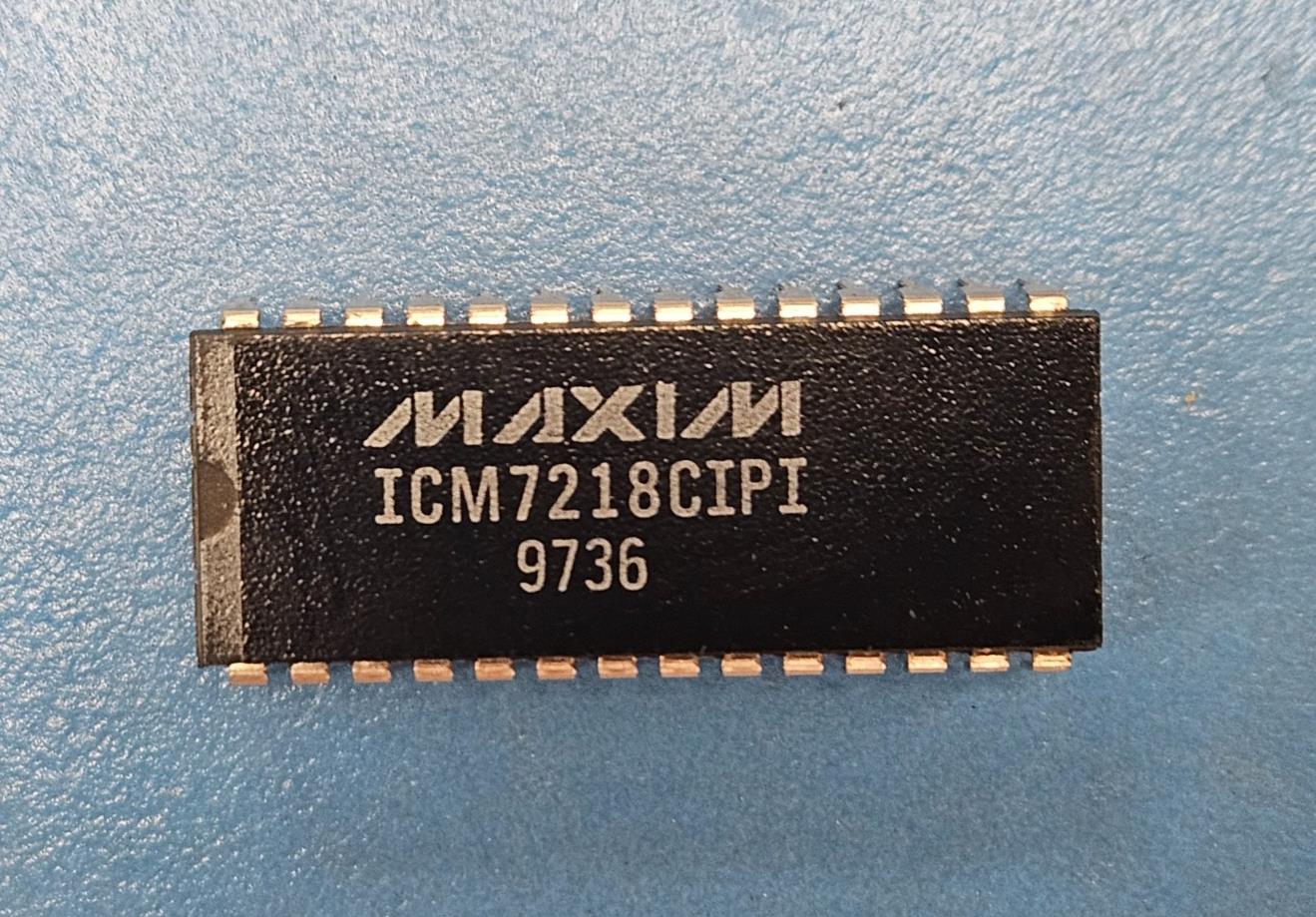

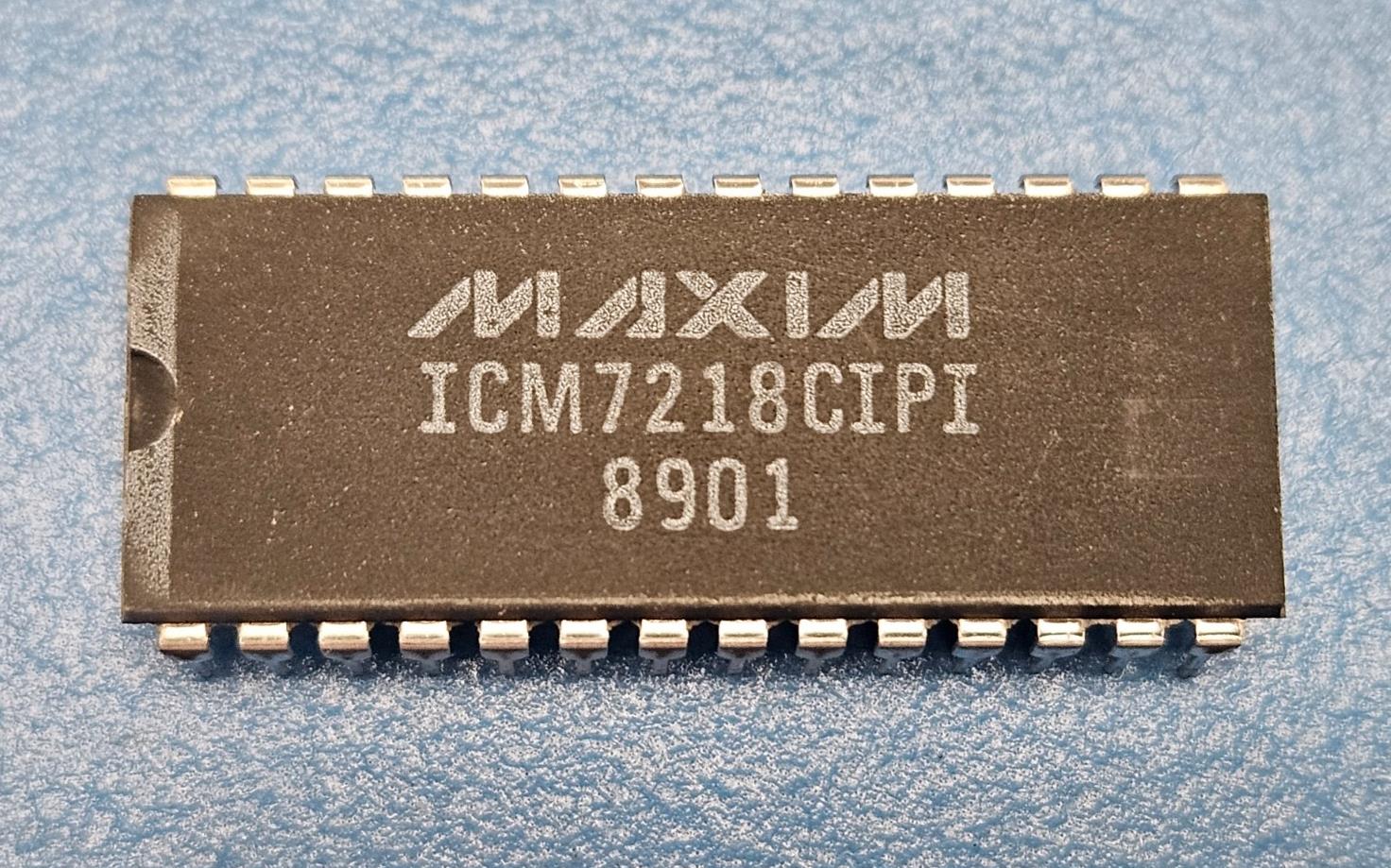

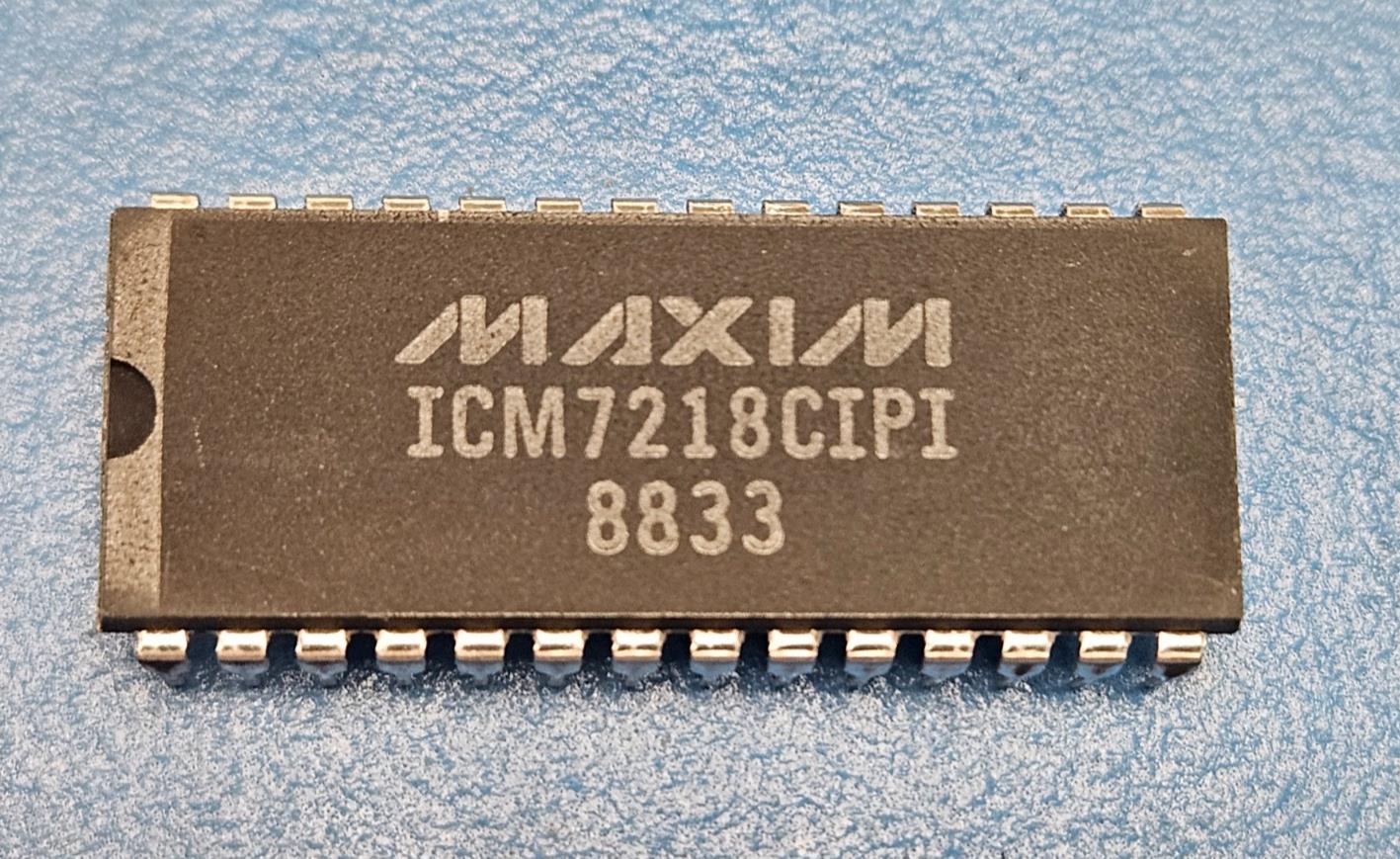

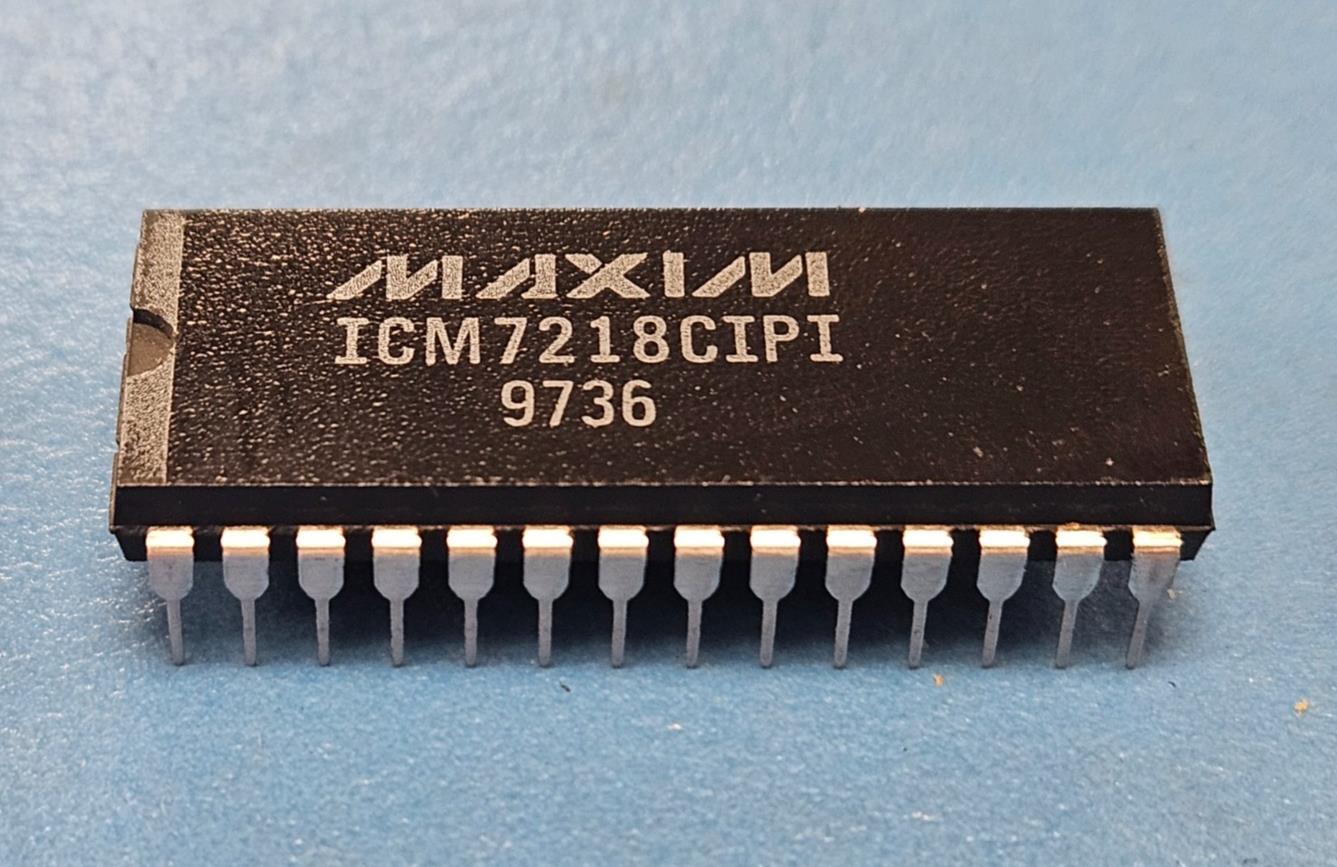

This listing is for (1PC) of ICM7218CIPI by Maxim
Mfr Package Description PLASTIC, DIP-28
Status Discontinued
Interface IC Type LED DISPLAY DRIVER
Data Input Mode PARALLEL
Display Mode SEGMENT
Input Characteristics STANDARD
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Moisture Sensitivity Level 1
Multiplexed Display Capability YES
Number of Digits/Characters 8-DIGIT
Number of Functions 1
Number of Segments 8.0
Number of Terminals 28
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics TOTEM-POLE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 4.445 mm
Sub Category Display Drivers
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
