(1PC) ICL7135CP ADC, Dual-Slope, 1 Func, 1 Channel, Parallel, CMOS, PDIP28
Tax included.

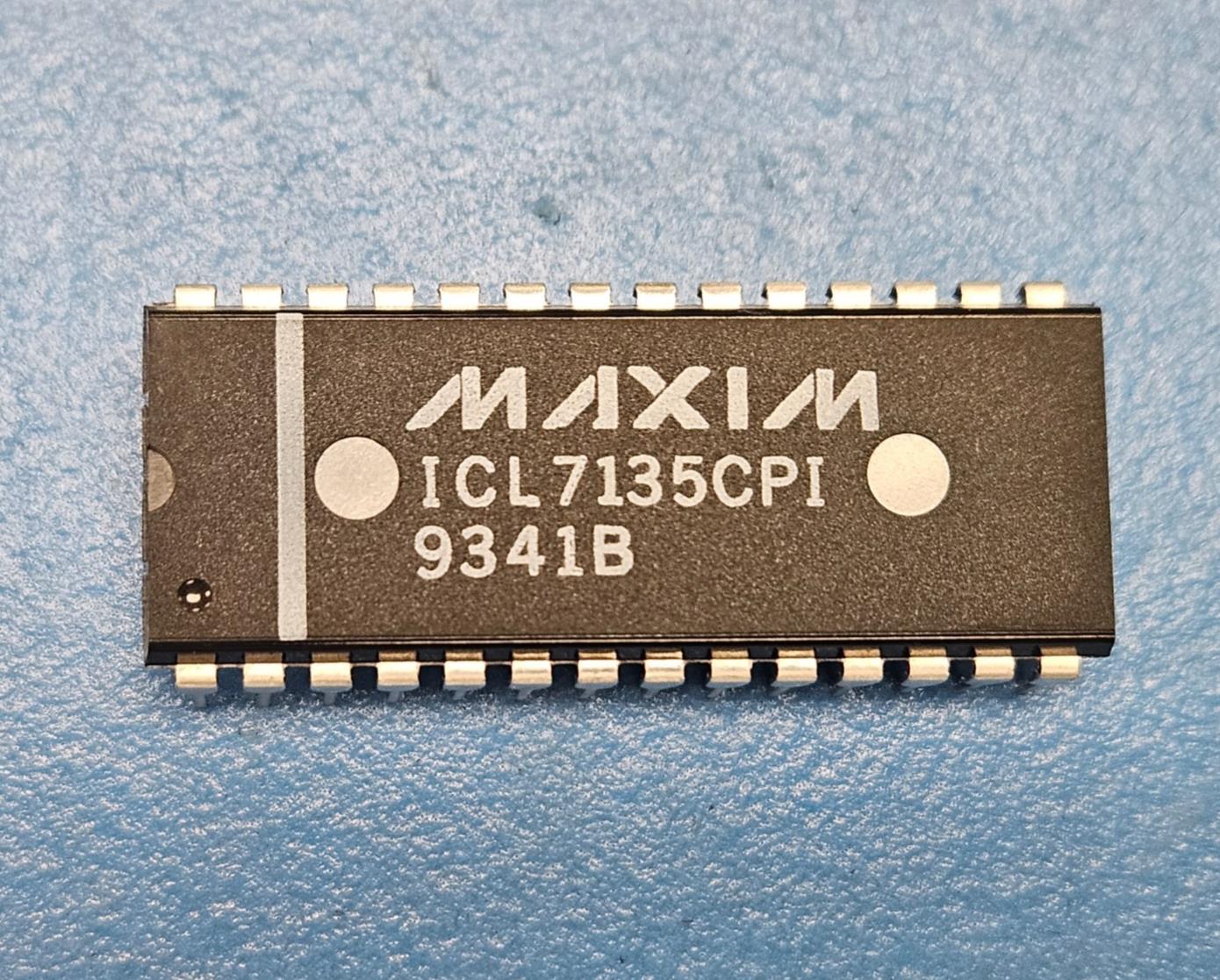

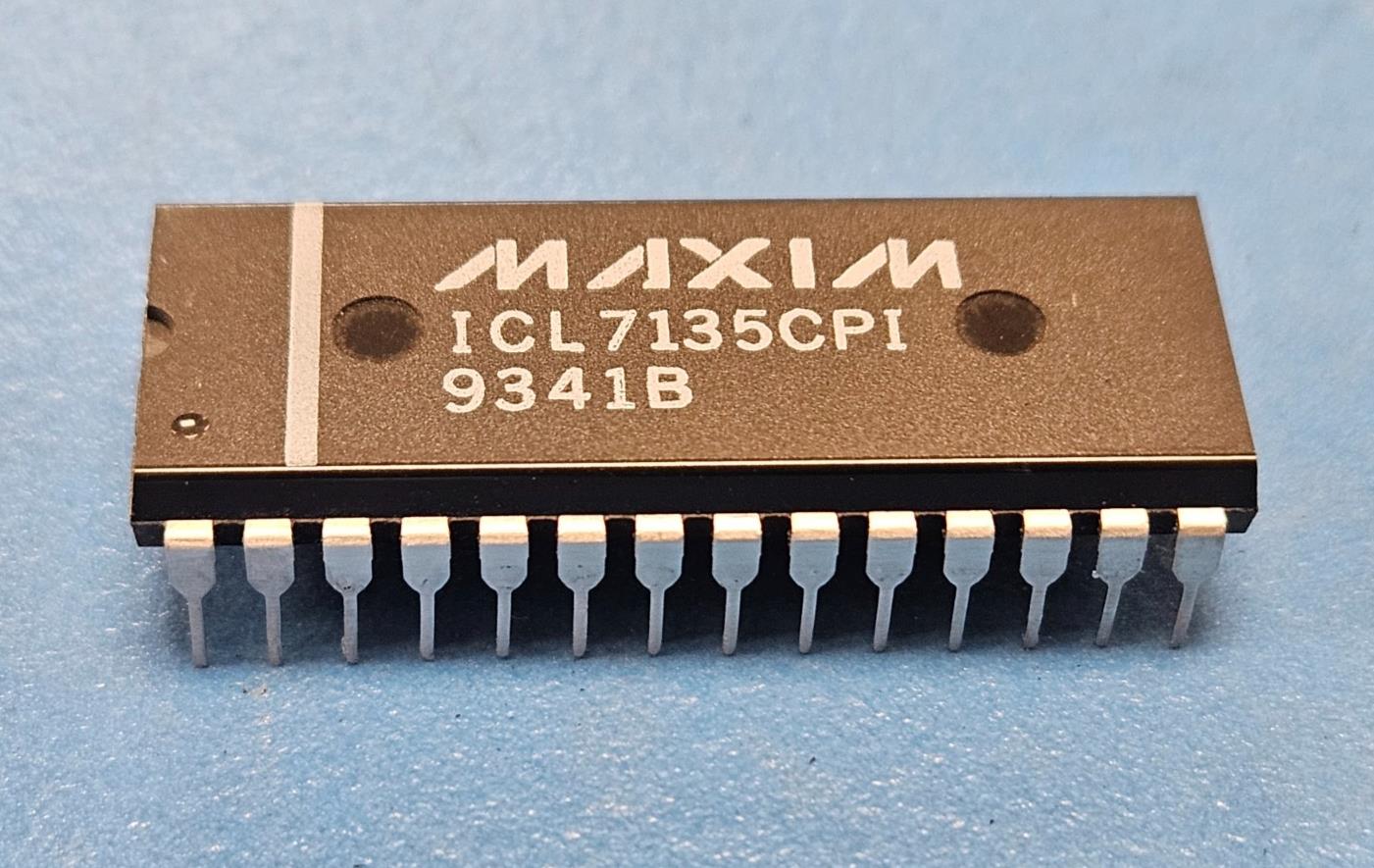

This listing is for (1PC) of ICL7135CPI by Maxim
Status Transferred
Converter Type ADC, DUAL-SLOPE
Analog Input Voltage-Min -9.0 V
Analog Input Voltage-Max 6.0 V
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.005 %
Negative Supply Voltage-Nom -5.0 V
Number of Analog In Channels 1.0
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Bit Code BINARY CODED DECIMAL
Output Format PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Sub Category Analog to Digital Converters
Supply Current-Max 3.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
