(1PC) HY5PS1G431CFP-S5C Hynix DDR2 DRAM, 256MX4, 0.45ns, CMOS, PBGA60
Tax included.

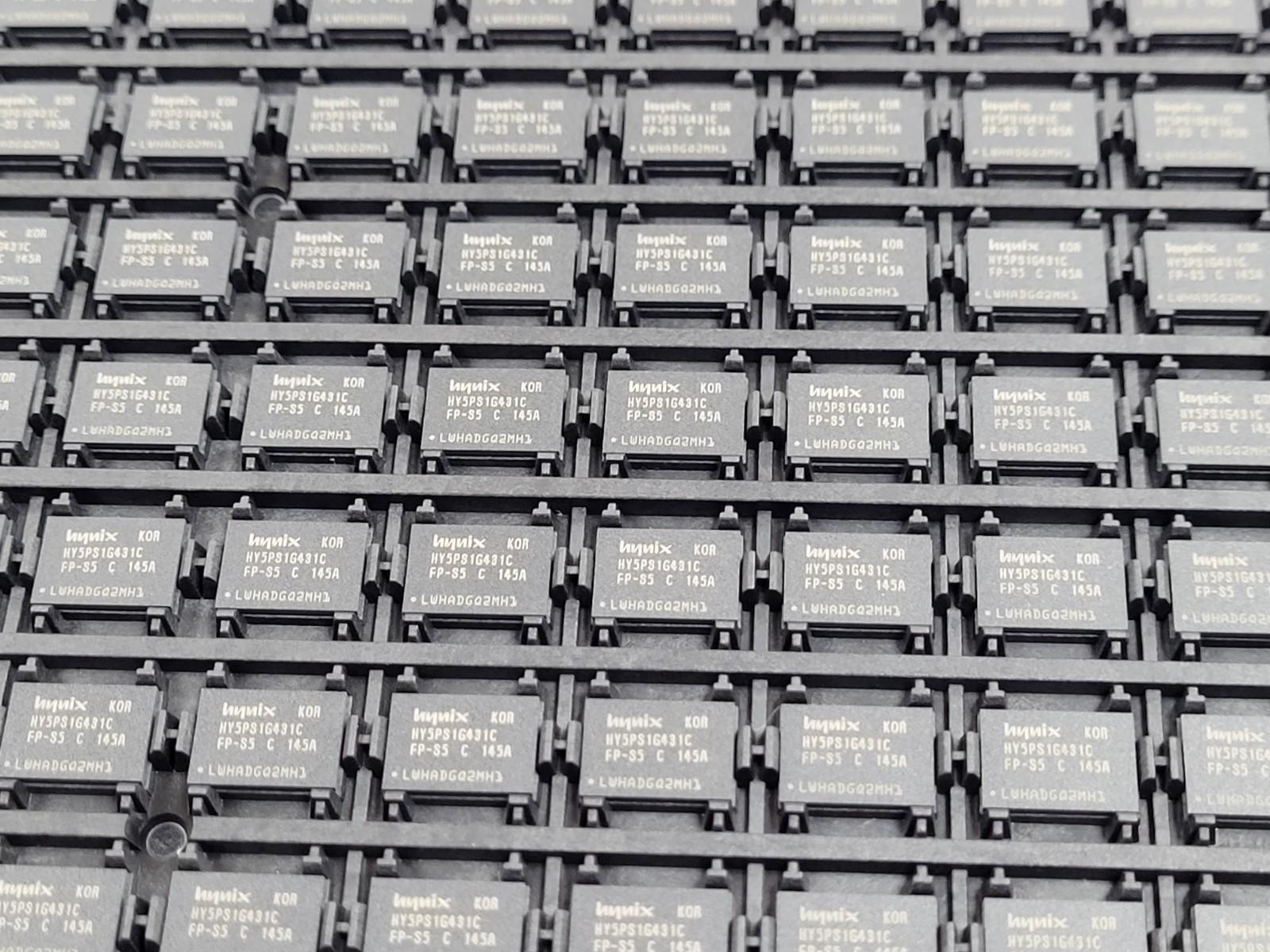

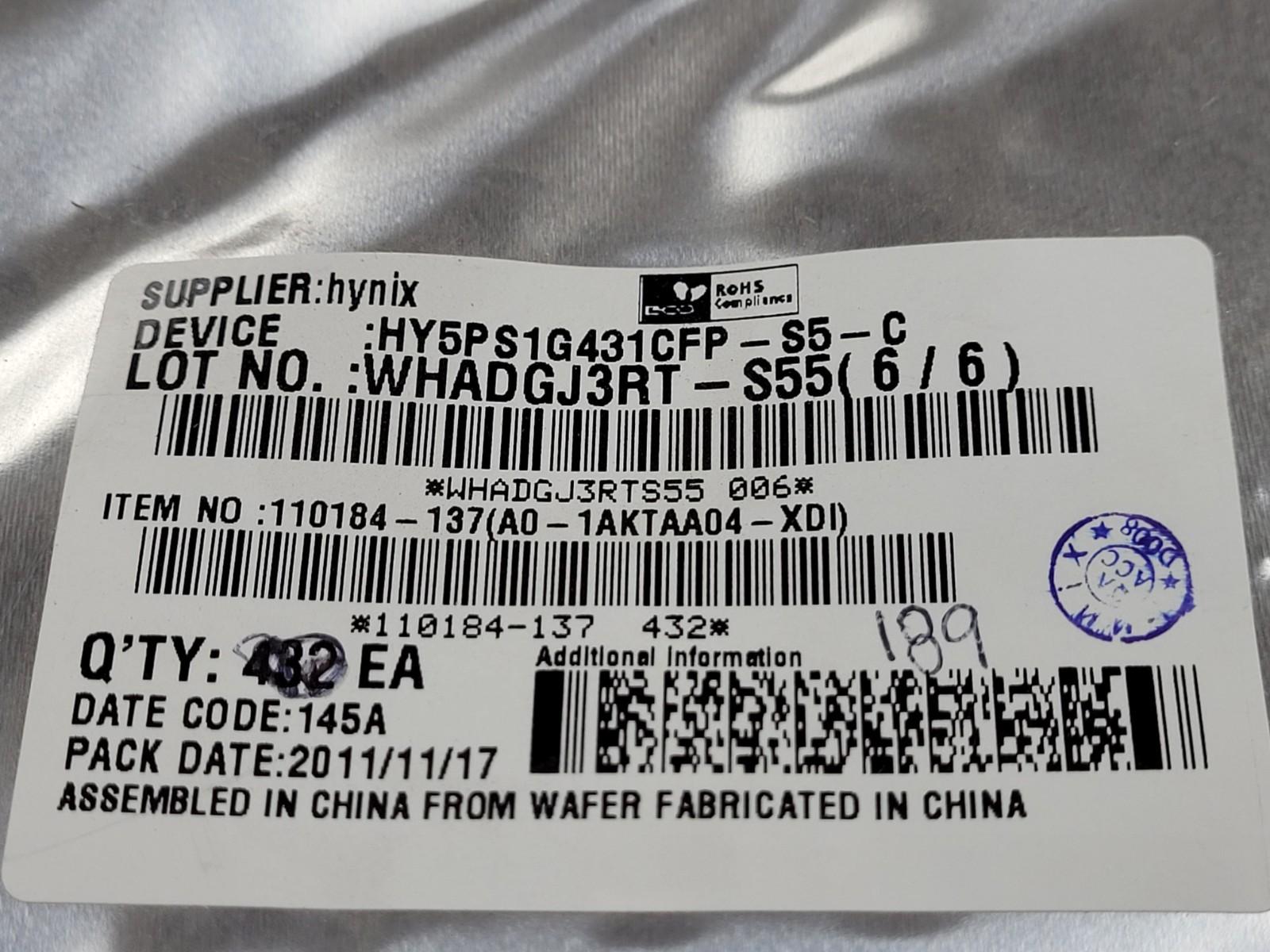

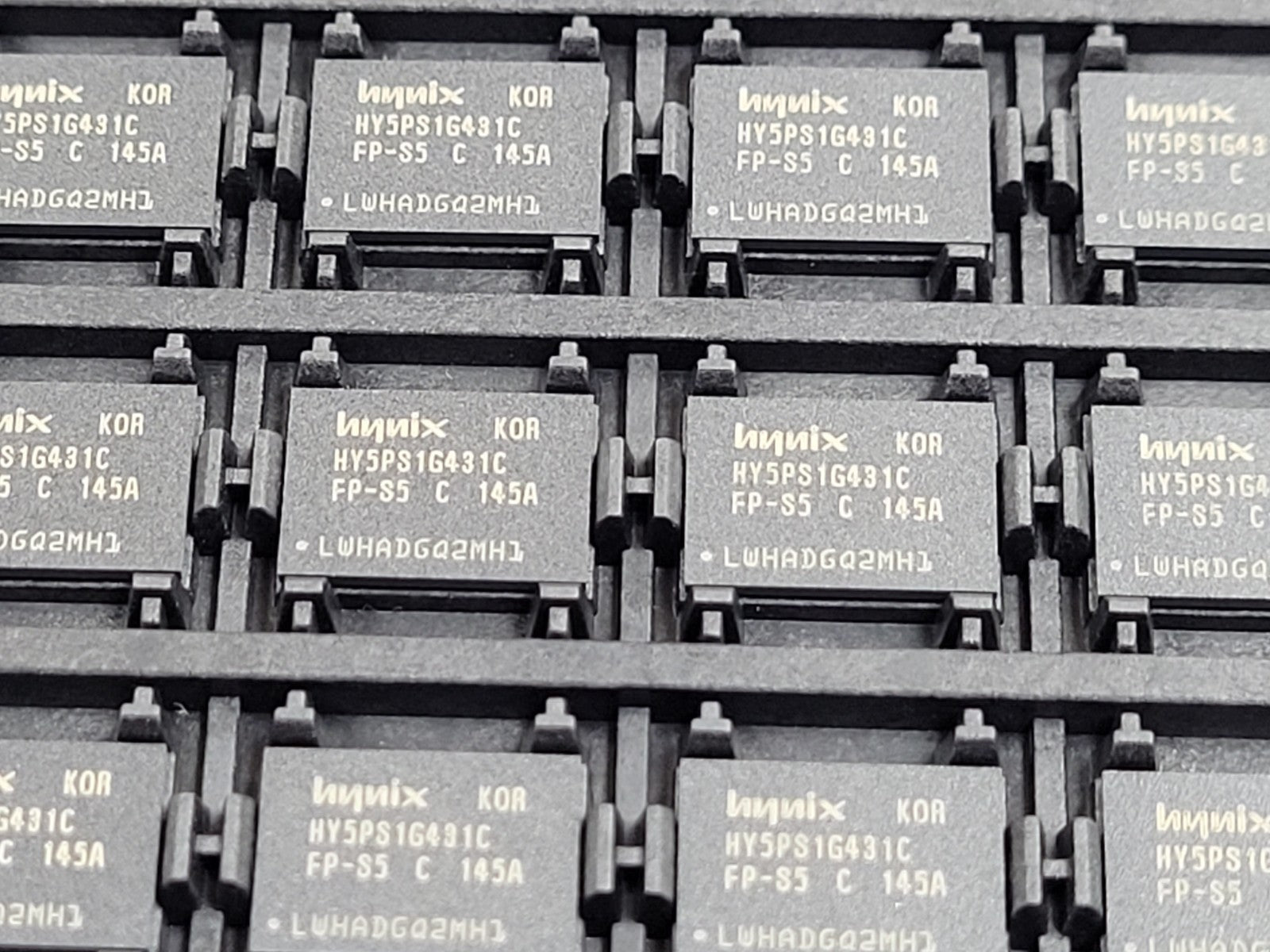

This listing is for (1PC) of HY5PS1G431CFP-S5C by Hynix
Status Discontinued
Access Mode MULTI BANK PAGE BURST
Access Time-Max (ns) 0.4500000000000000
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (MHz) 400.00000
I/O Type COMMON
Interleaved Burst Length 4,8
JESD-30 Code R-PBGA-B60
J-STD-609 Code e1
Length (mm) 11.4000
Memory Density (bits) 1073741824.0000000000000000
Memory IC Type DDR2 DRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 60
Number of Words (words) 268435456.0000000000000000
Number of Words Code 256M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 95.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 256MX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Equivalence Code BGA60,9X11,32
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
DLA Qualification Not Qualified
Refresh Cycles 8192
Seated Height-Max (mm) 1.2000
Self Refresh YES
Sequential Burst Length 4,8
Supply Current-Max (mA) 185.000000000000000
Supply Voltage-Max (V) 1.90000
Supply Voltage-Min (V) 1.70000
Supply Voltage-Nom (V) 1.8
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Width (mm) 8.0000
