(1PC) HY5DU12822DTP-D43-C Hynix DDR1 DRAM, 64MX8, 0.7ns, CMOS, PDSO66
Tax included.

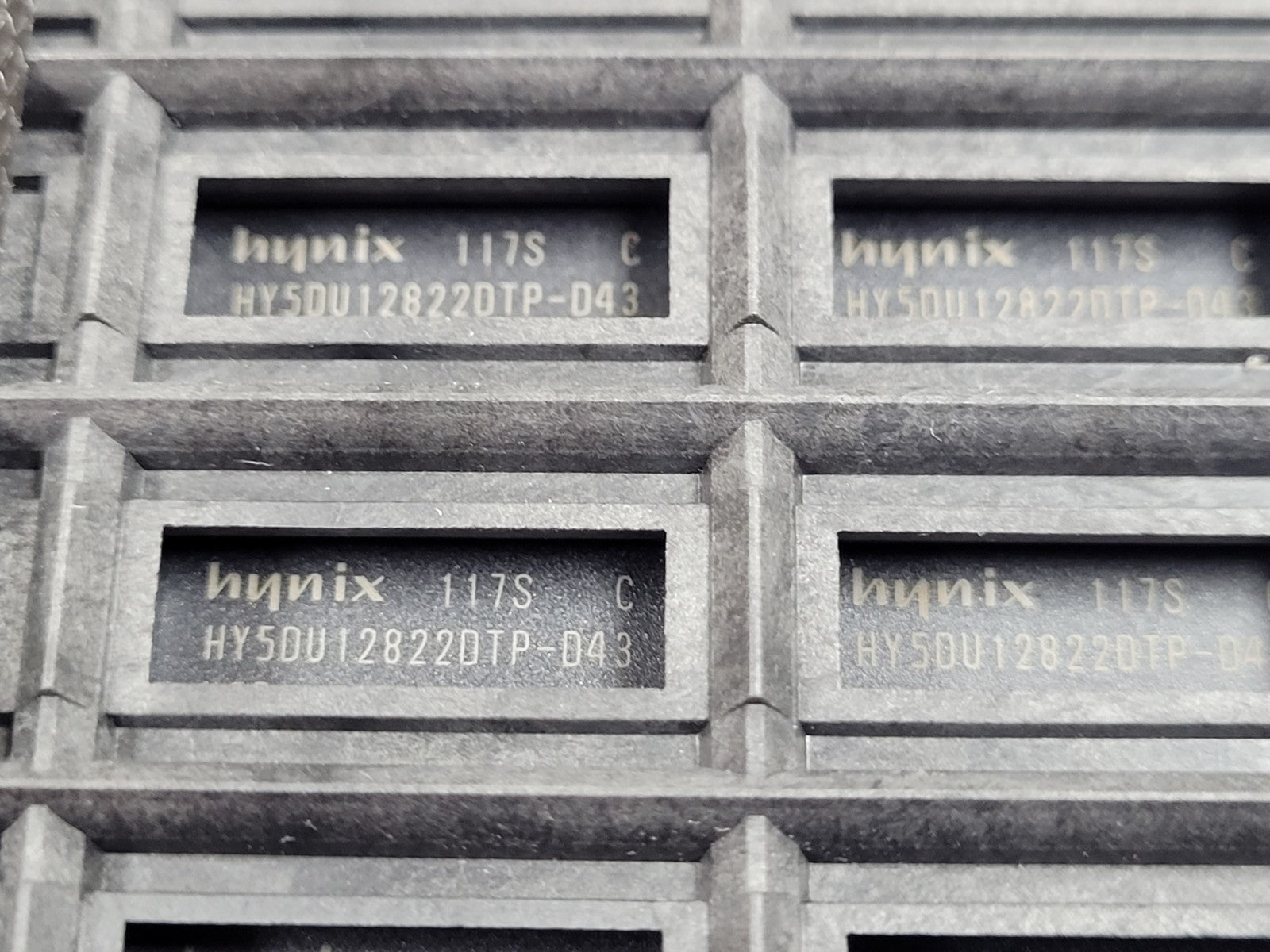

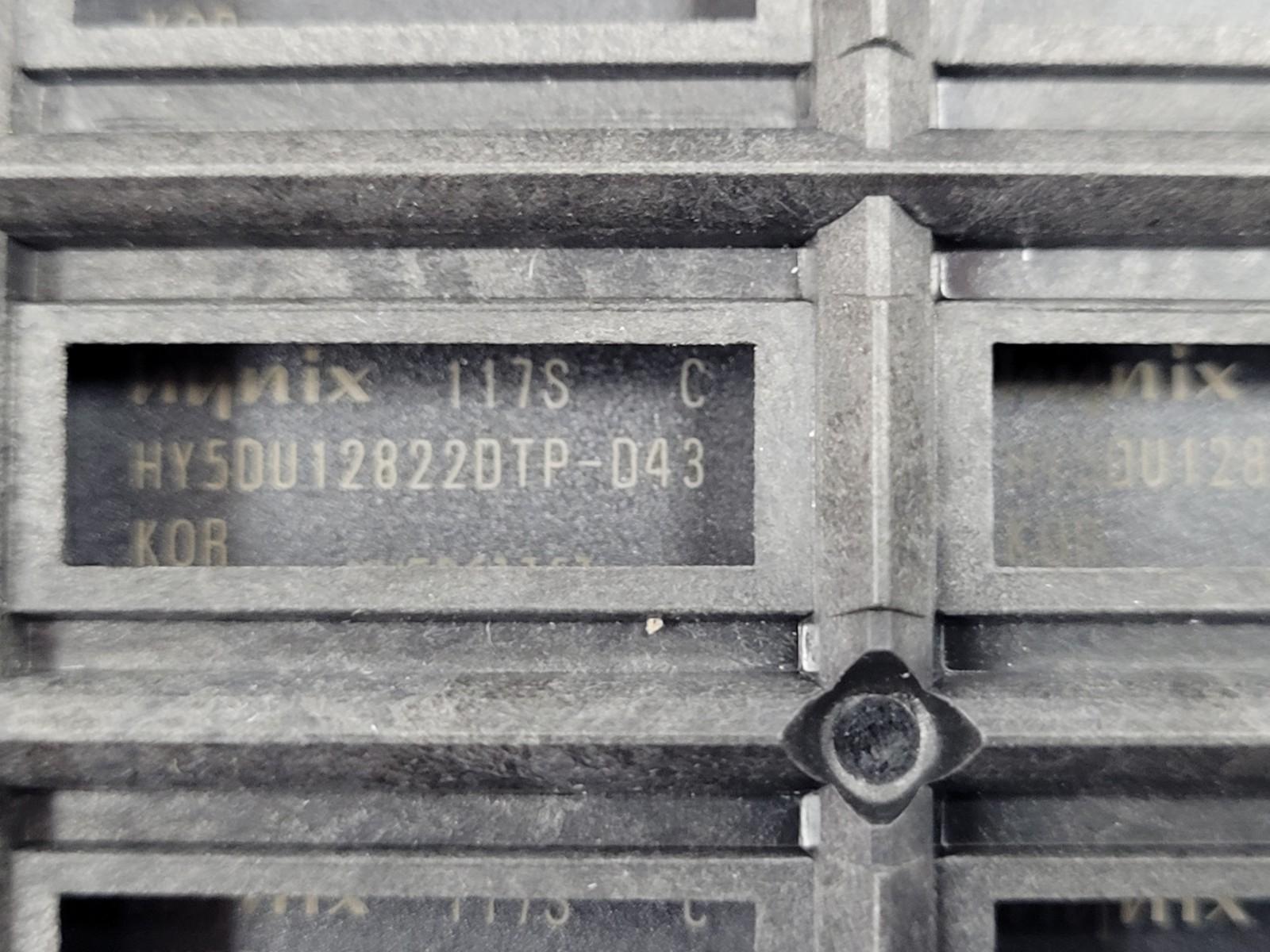

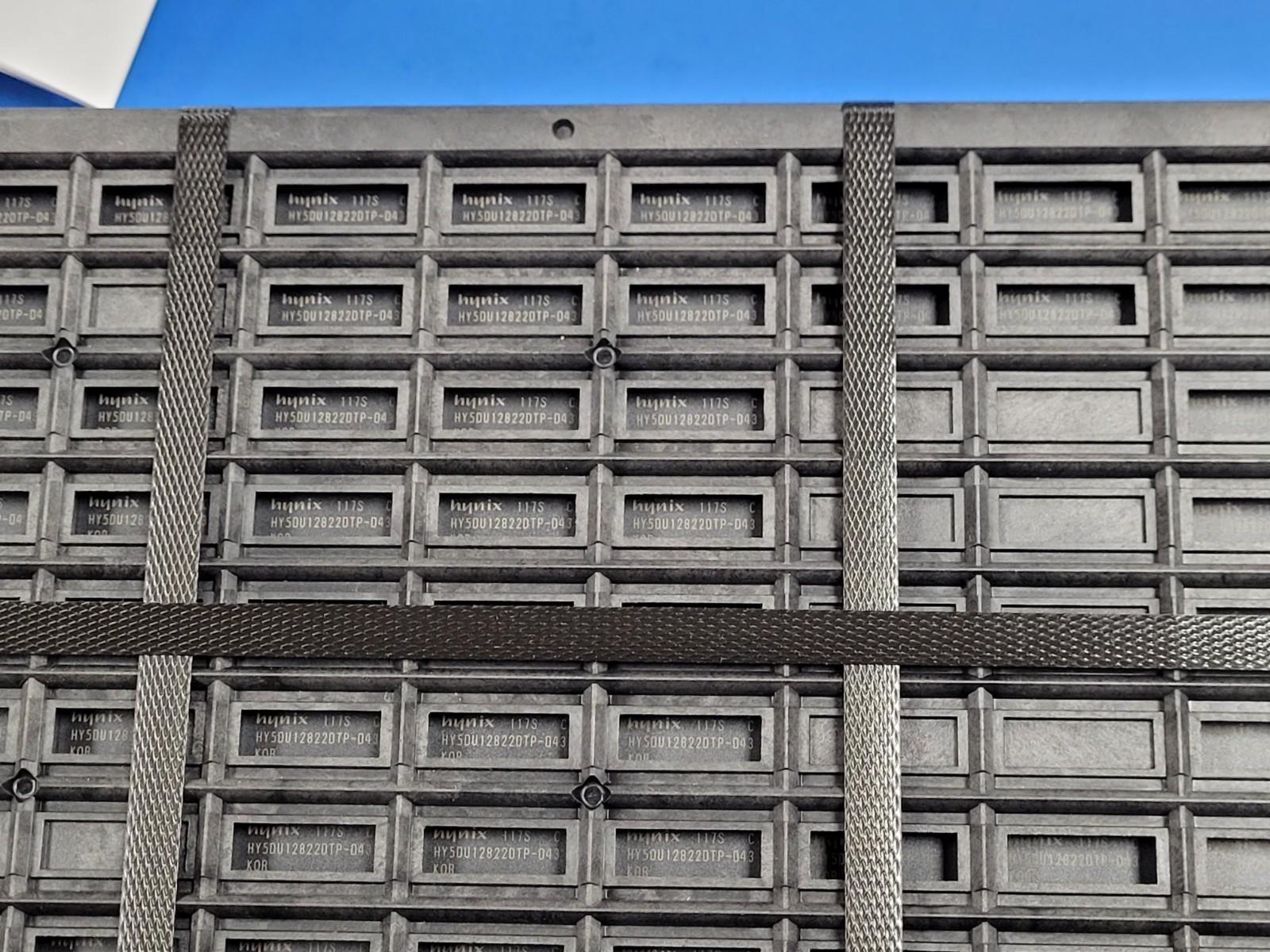

This listing is for (1PC) of HY5DU12822DTP-D43-C by Hynix
Status Discontinued
Access Mode FOUR BANK PAGE BURST
Access Time-Max (ns) 0.7000000000000000
Additional Feature AUTO/SELF REFRESH
Clock Frequency-Max (MHz) 200.00000
I/O Type COMMON
Interleaved Burst Length 2,4,8
JESD-30 Code R-PDSO-G66
J-STD-609 Code e6
Length (mm) 22.2200
Memory Density (bits) 536870912.0000000000000000
Memory IC Type DDR1 DRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 66
Number of Words (words) 67108864.0000000000000000
Number of Words Code 64M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 64MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP66,.46
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
DLA Qualification Not Qualified
Refresh Cycles 8192
Seated Height-Max (mm) 1.1940
Self Refresh YES
Sequential Burst Length 2,4,8
Standby Current-Max (A) 0.010000000000000
Supply Current-Max (mA) 360.000000000000000
Supply Voltage-Max (V) 2.70000
Supply Voltage-Min (V) 2.40000
Supply Voltage-Nom (V) 2.6
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN BISMUTH
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position DUAL
Width (mm) 10.1600
