(1PC) HN58C1001FP-15 Hitachi 32P SOIC CMOS 150ns EEPROM 128K X 8
Tax included.

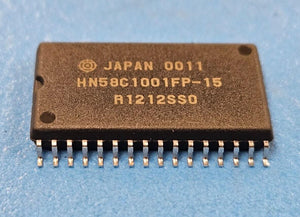

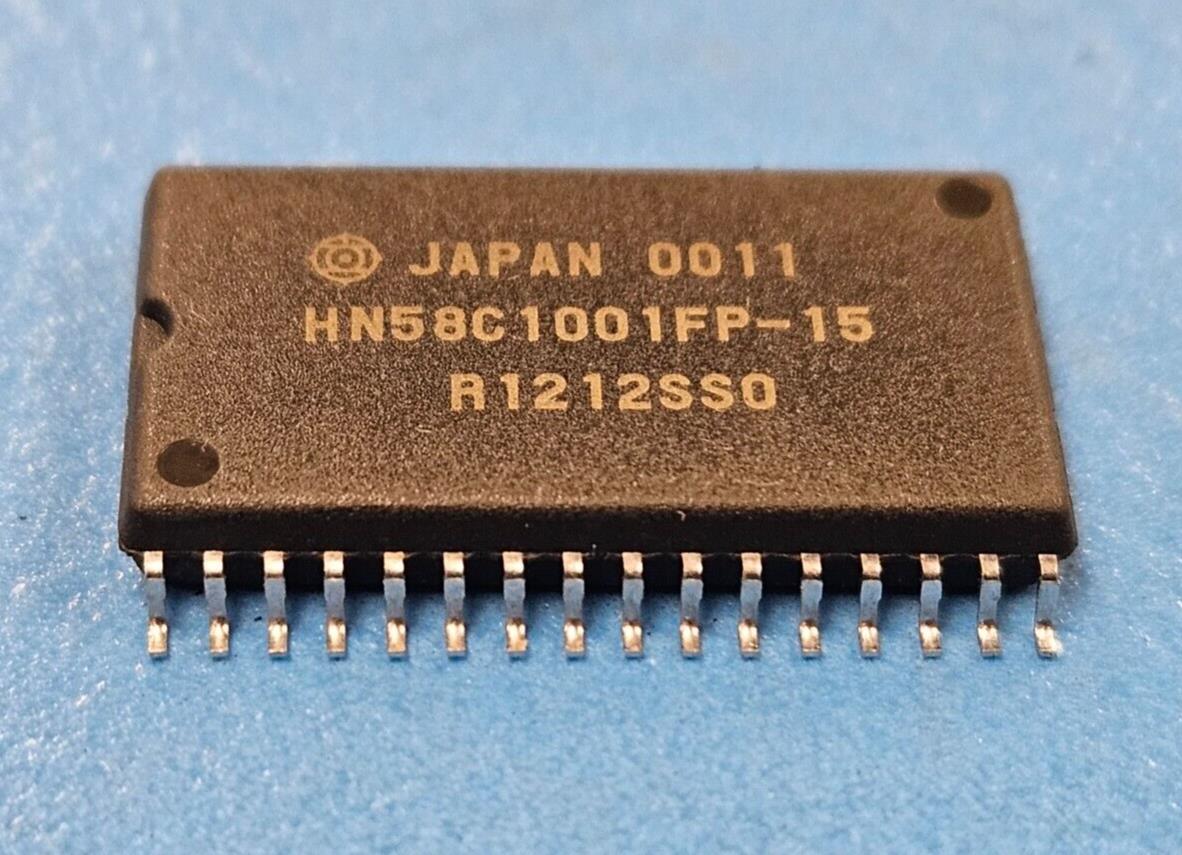

This listing is for (1pc) of HN58C1001FP-15 by Hitachi

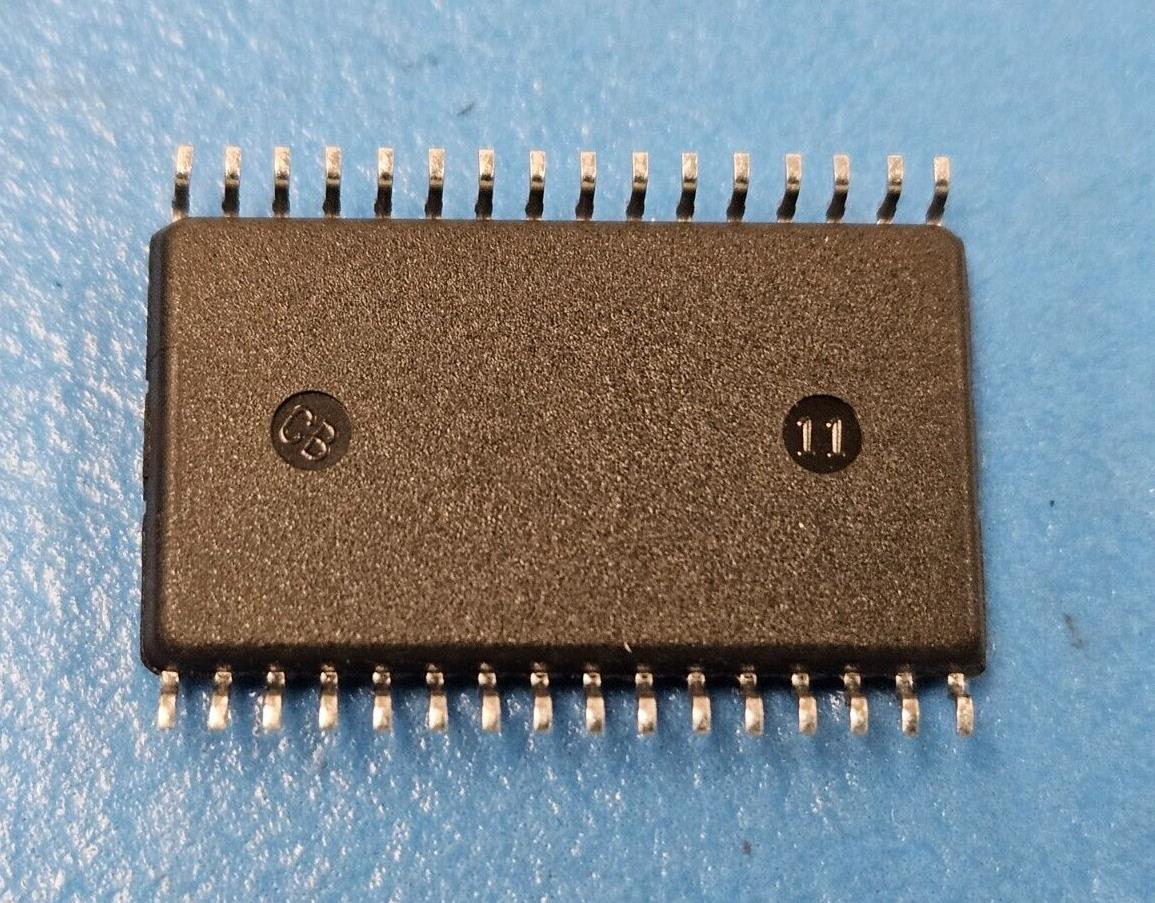

We have some different date codes available. May not receive same as in picture.
Mfr Package Description 0.525 INCH, PLASTIC, SOP-32
Status Transferred
Sub Category EEPROMs
Access Time-Max 150.0 ns
Command User Interface NO
Data Polling YES
Data Retention Time-Min 10
JESD-30 Code R-PDSO-G32
Memory Density 1048576.0 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 3.0 mm
Standby Current-Max 2.0E-5 Amp
Supply Current-Max 0.05 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Toggle Bit YES
Write Cycle Time-Max (tWC) 10.0 ms
Length 20.45 mm
Width 11.3 mm
