(1PC) HM628128BLFP-8 Hitachi Standard SRAM, 128KX8, 85ns, CMOS, SOIC32
Tax included.

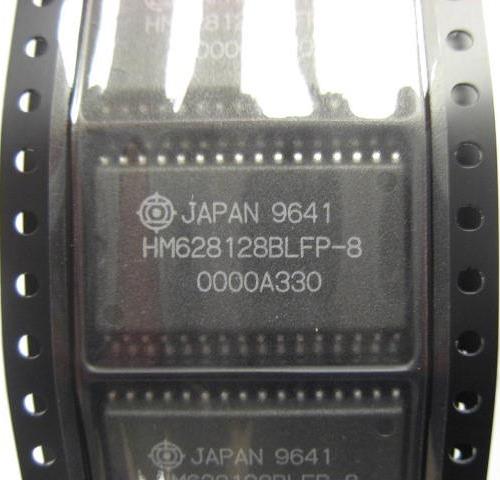

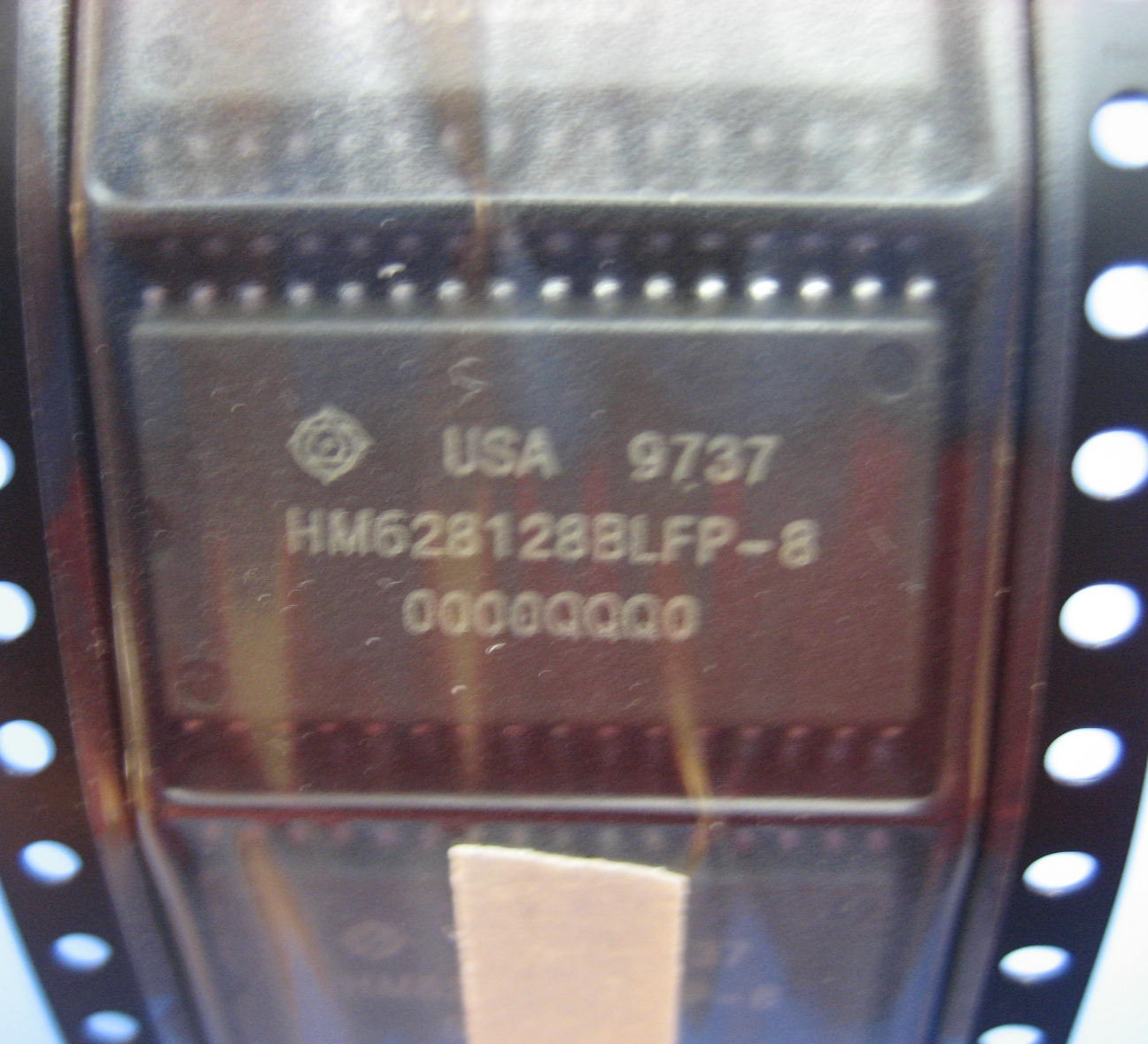

This listing is for (1PC) of HM628128BLFP-8 by Hitachi
Status Discontinued
Access Time-Max (ns) 85.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-G32
J-STD-609 Code e0
Length (mm) 20.4500
Memory Density (bits) 1048576.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words (words) 131072.0000000000000000
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 128KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.0000
Standby Current-Max (A) 0.000050000000000
Standby Voltage-Min (V) 2.000000
Supply Current-Max (mA) 70.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 11.3000
