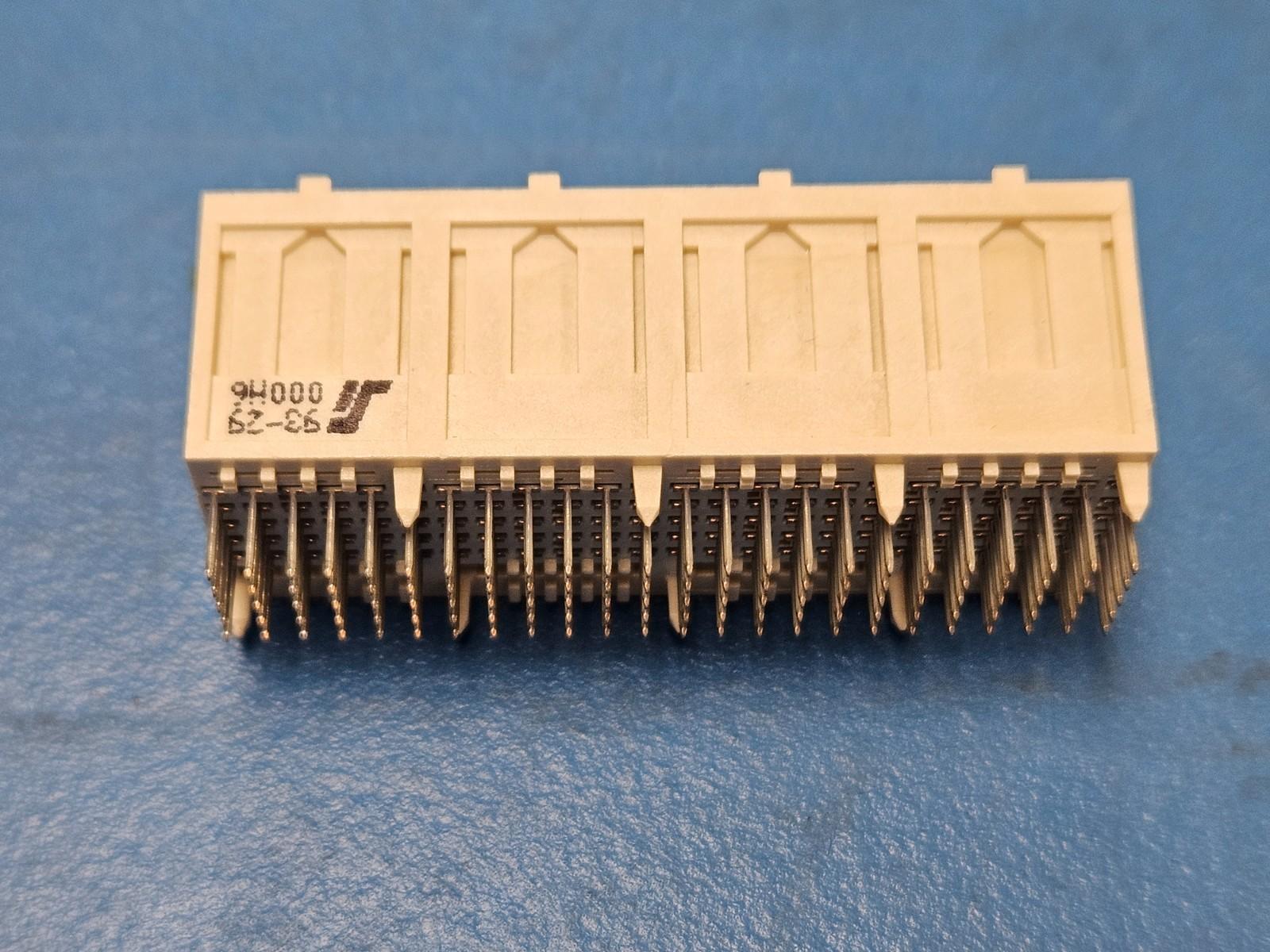

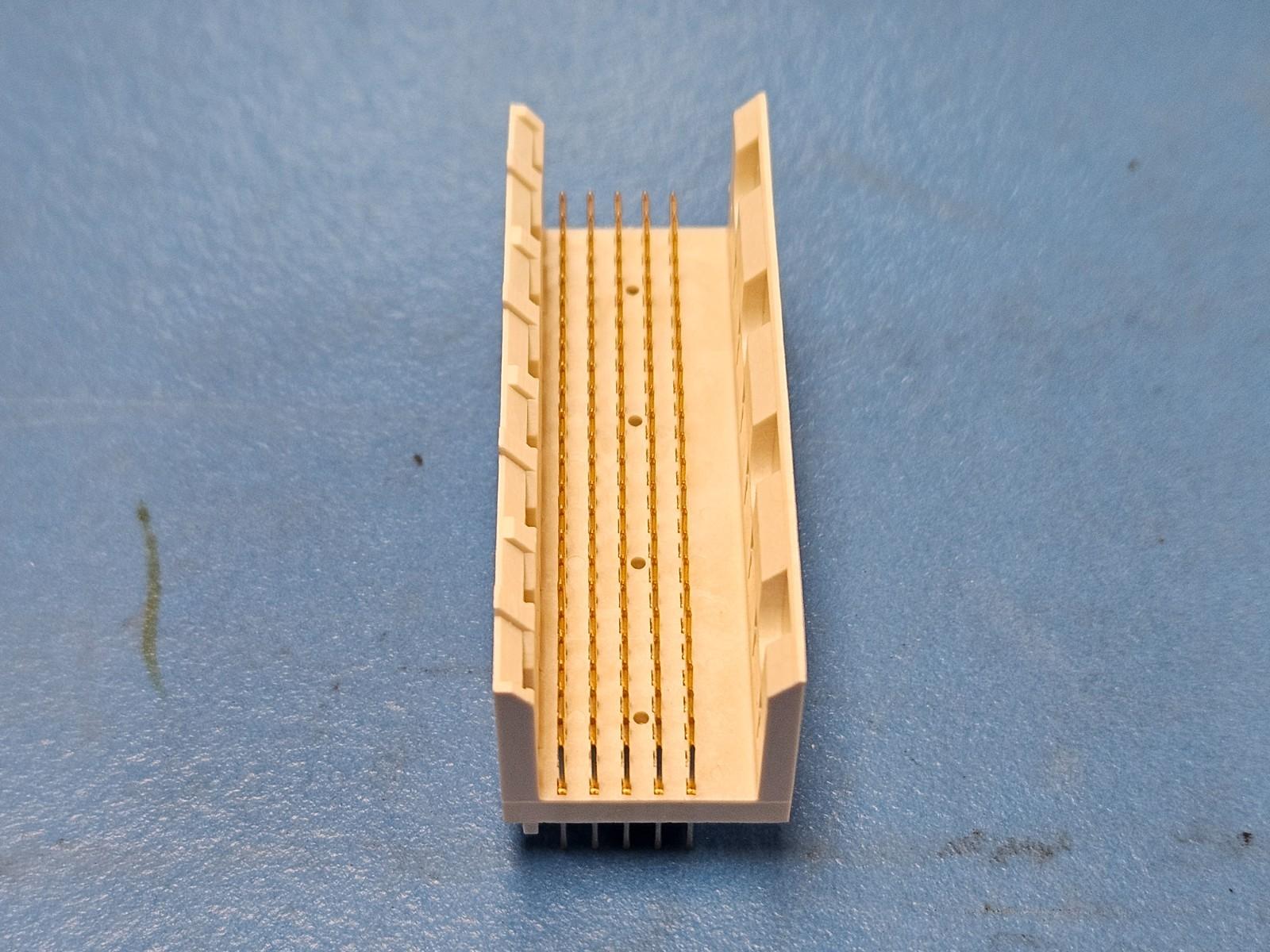

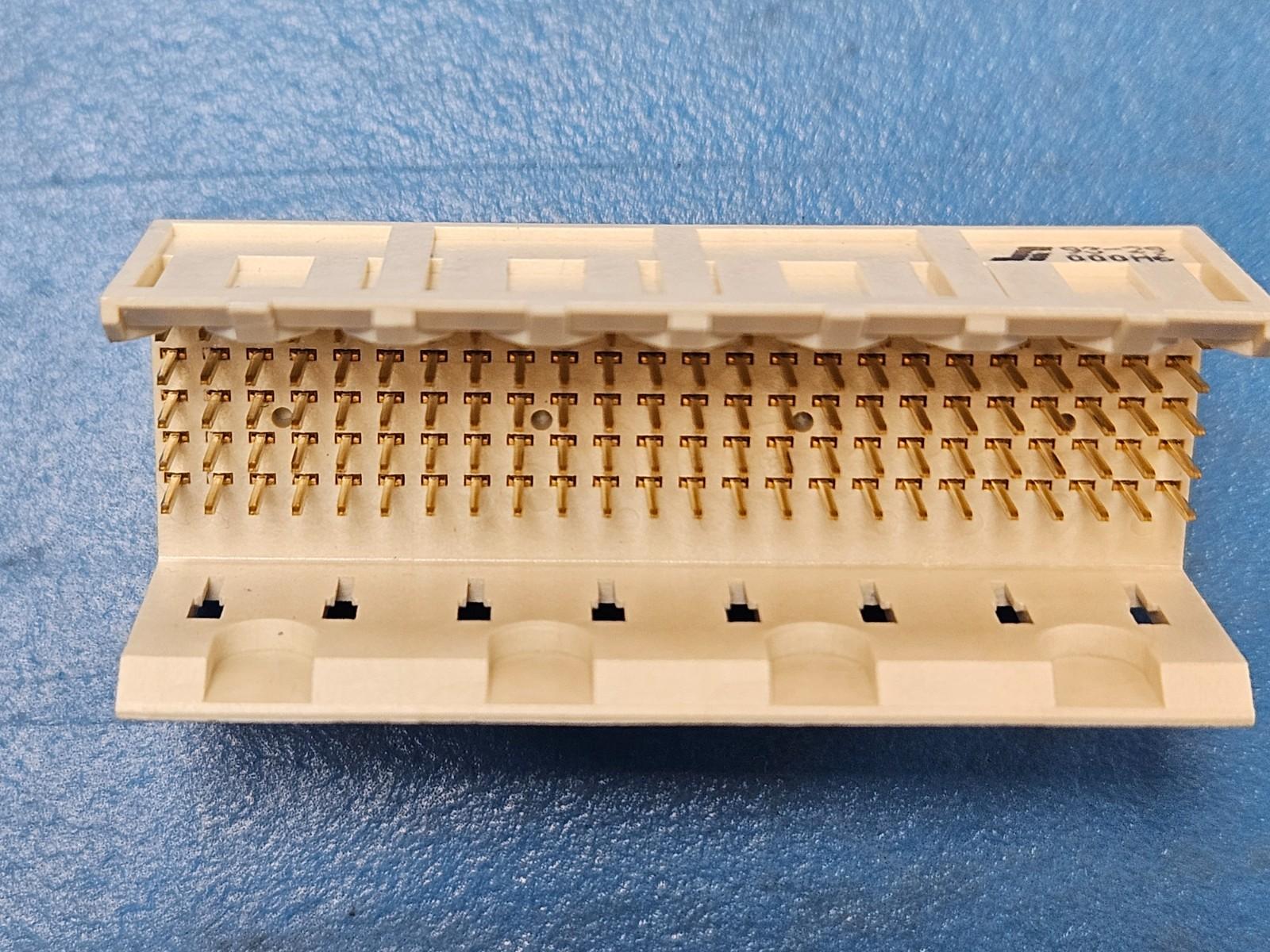

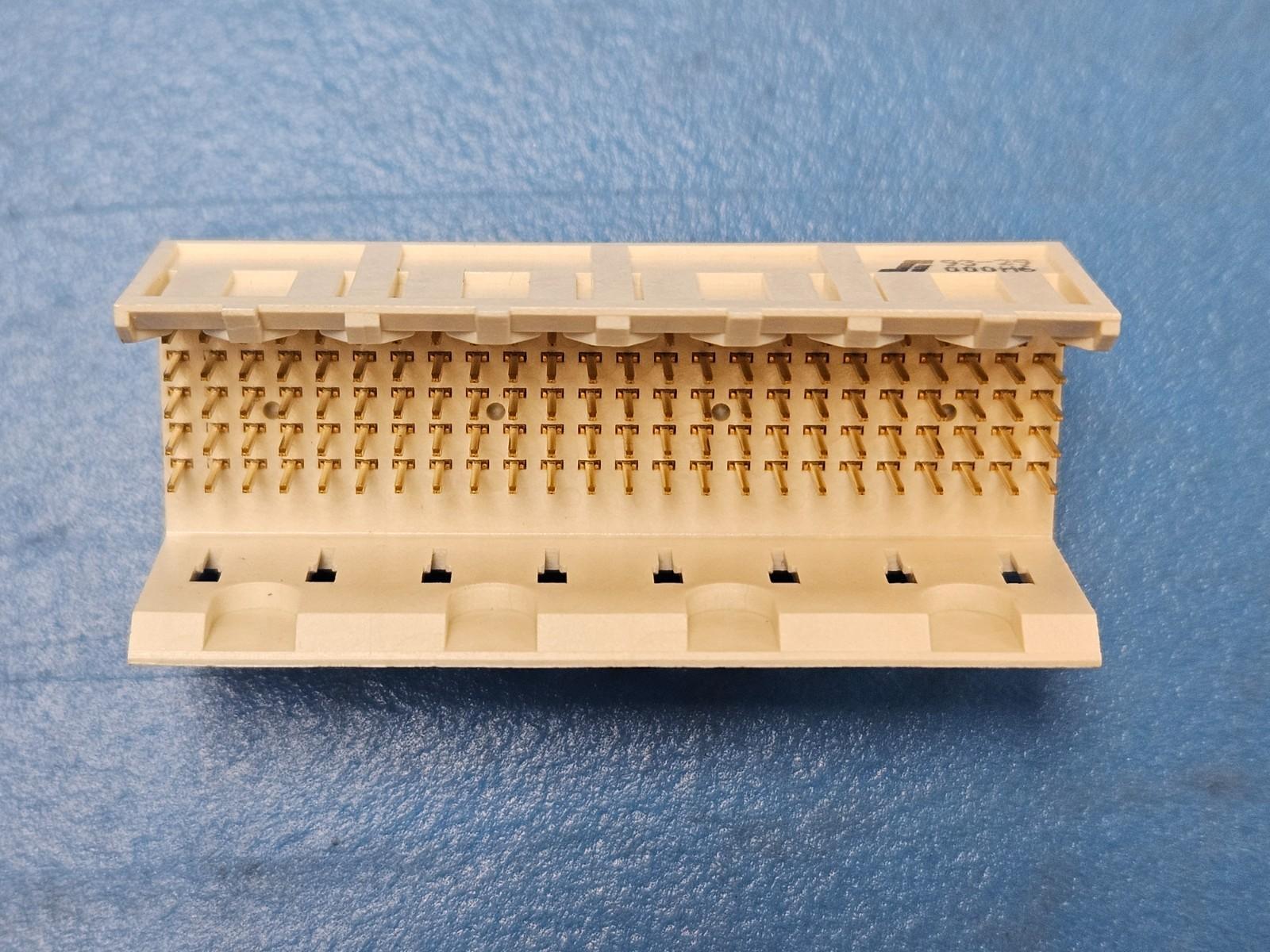

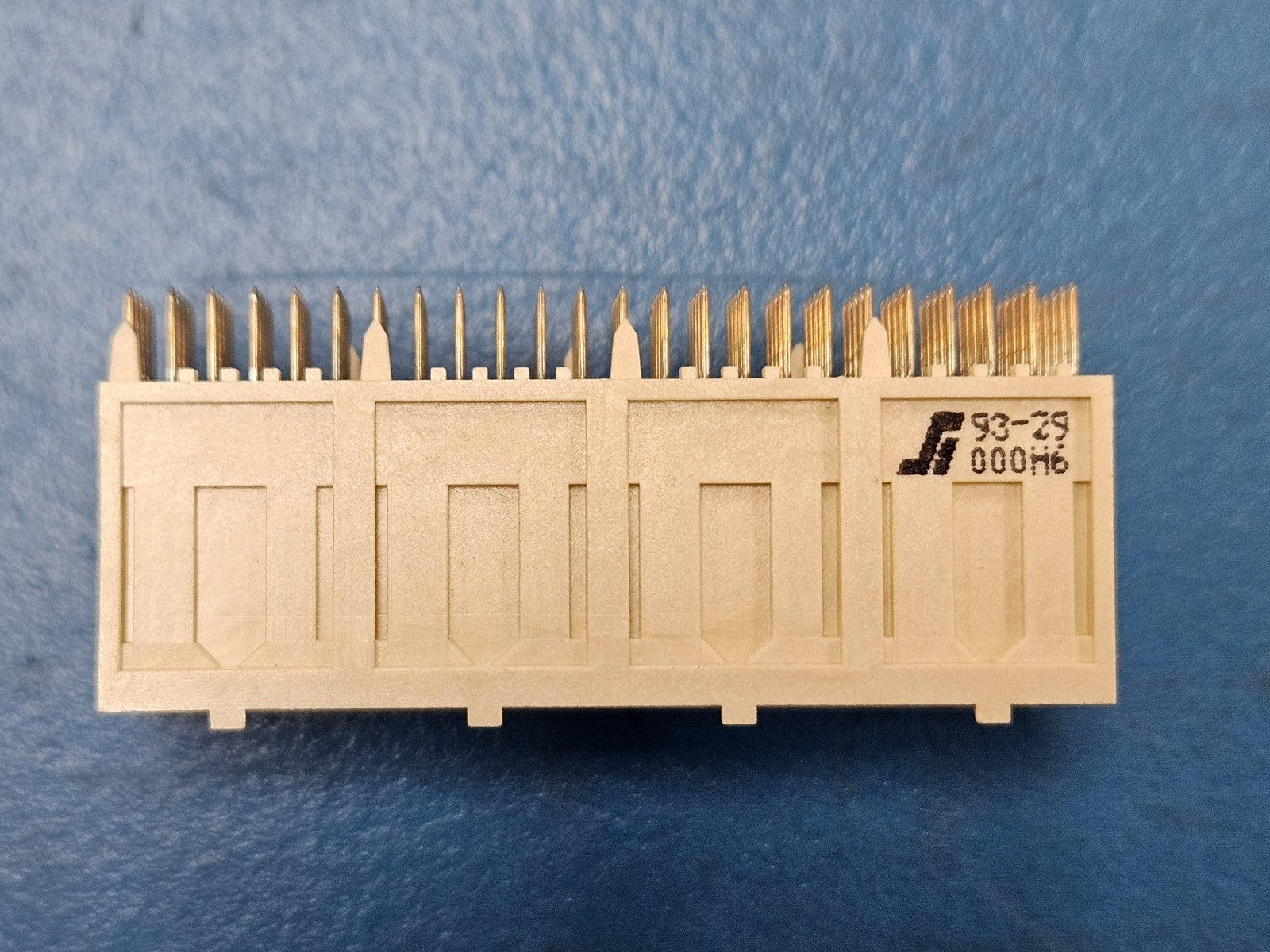

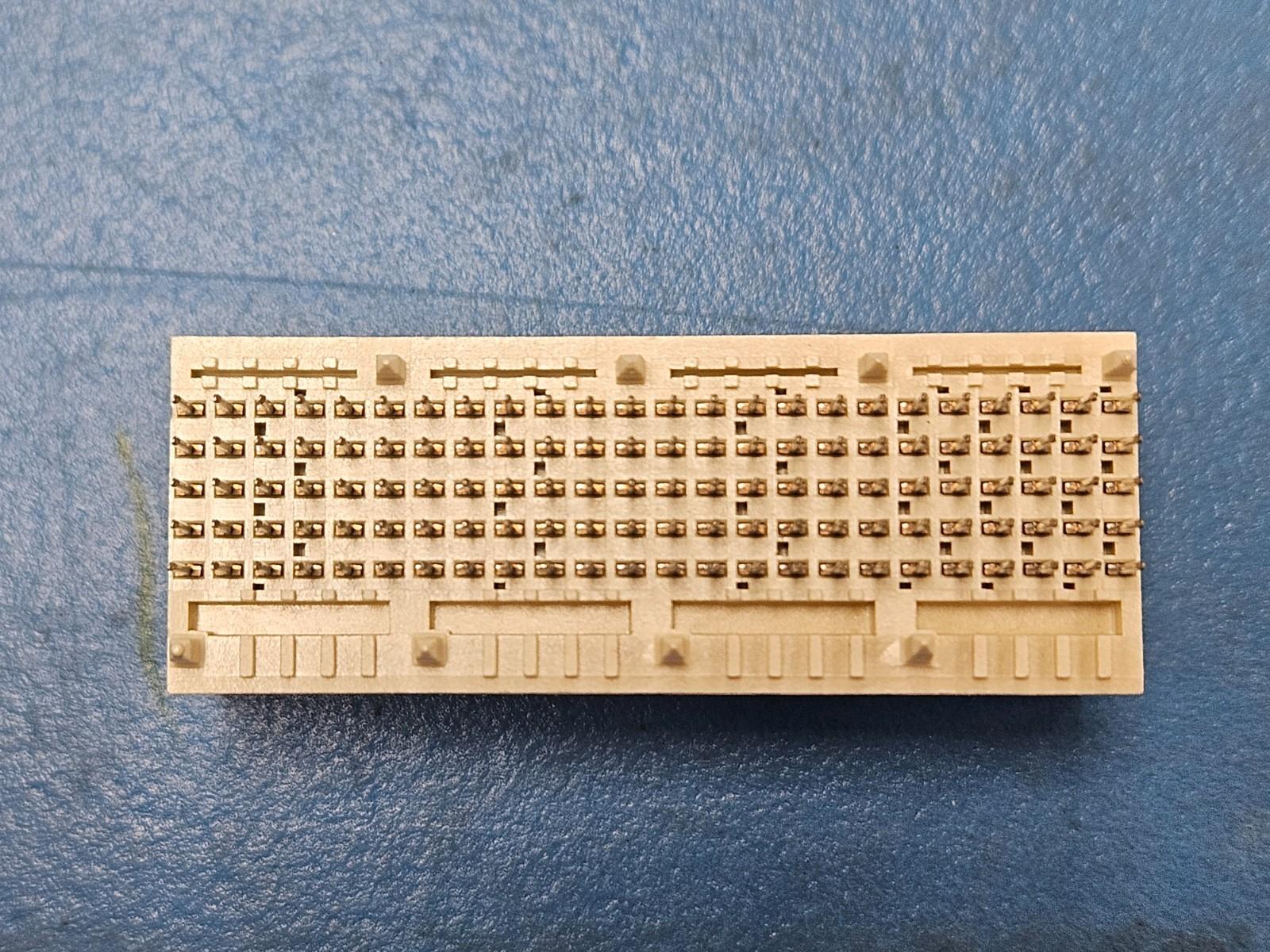

(1PC) HM1W53ATR000H6 Board Connector, 120 Contact, 5 Row, Male, Straight
Tax included.
This listing is for (1PC) of HM1W53ATR000H6 by Amphenol
Status Active
Additional Feature POLARIZED
Board Mounting Option PEG
Body Breadth (inch) 0.701000
Body Depth (inch) 0.669000
Body Length (inch) 1.888000
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage (V) 1000VAC
Durability (Cycles) 250
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .4448
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Material POLYETHYLENE
MIL Conformance NO
Mating Contact Pitch (inch) 0.079
Mating Contact Row Spacing (inch) 0.079
Mixed Contacts NO
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 5
Number of Rows Loaded 5
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 2
Polarization Key HOUSING SIDE
Terminal Length (inch) 0.167000
Terminal Pitch (mm) 2
Termination Type SOLDER
Number of Contacts 120
