(1PC) G6E-134P-US-12VDC Power/Signal Relay, 0.017A, 12VDC, 200mW, 3A, 220VDC, DC
Tax included.

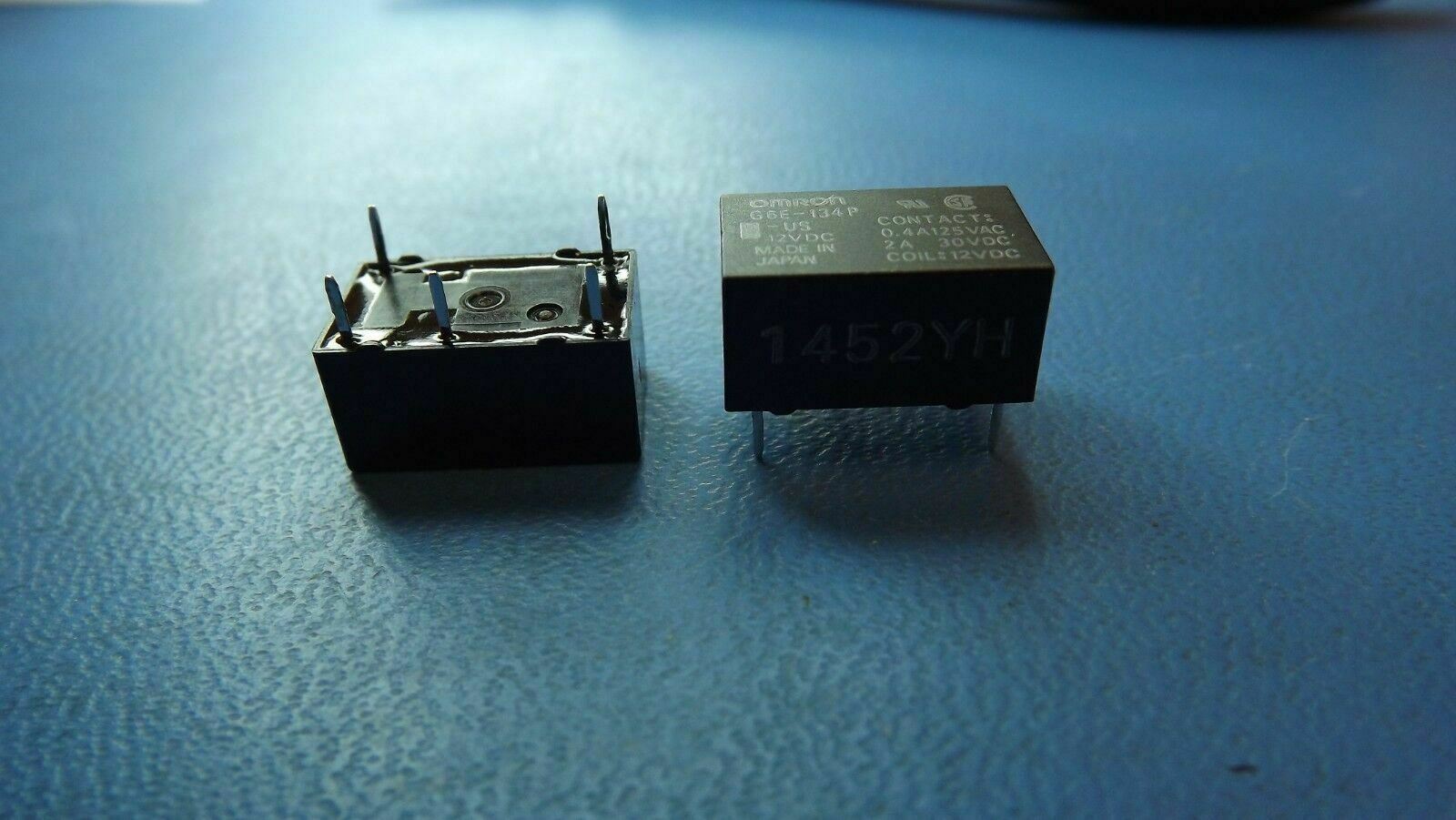

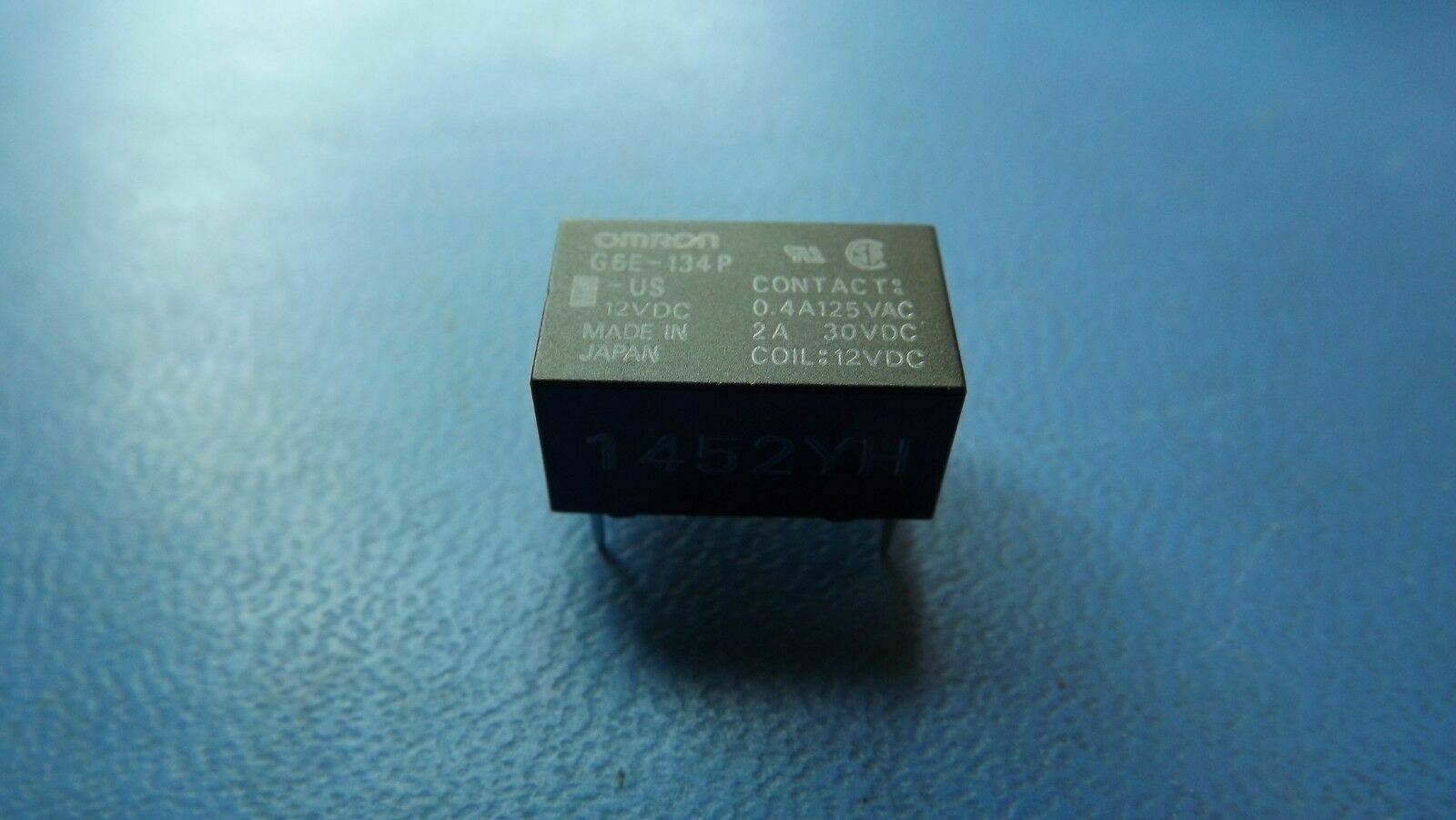

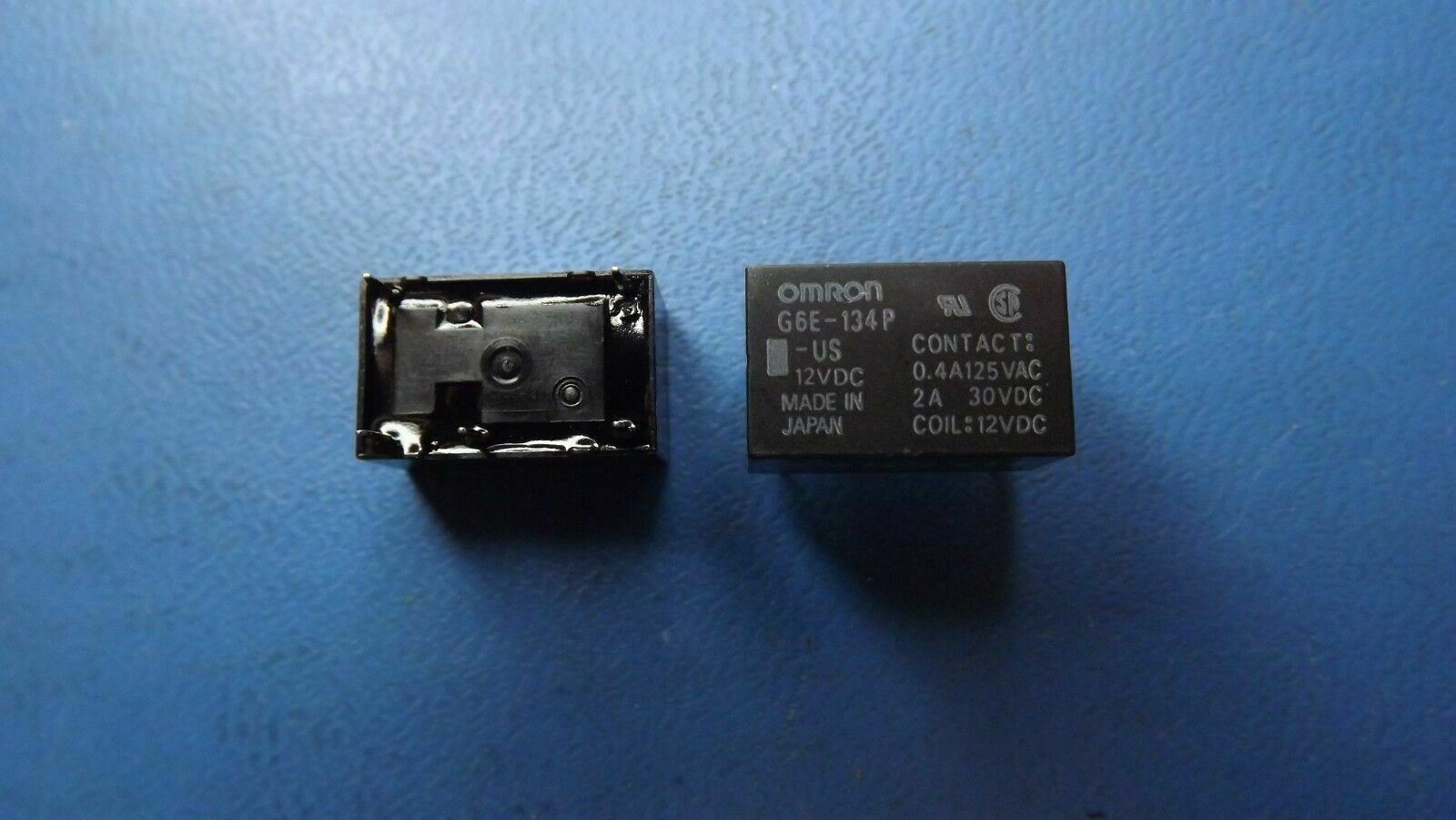

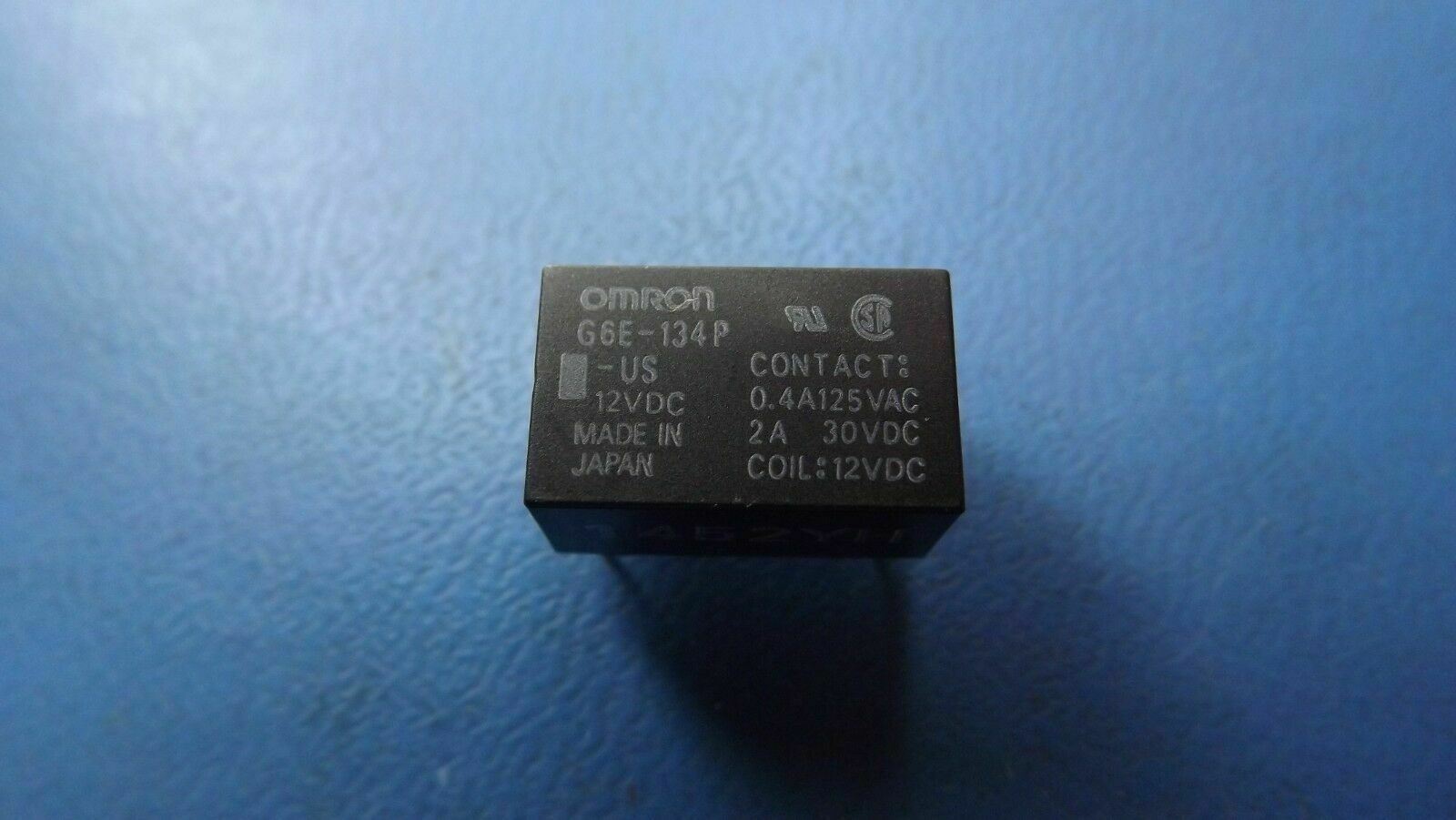

THIS LISTING IS FOR (1PC) OF G6E-134P-US-12VDC BY OMRON
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT |
| EU RoHS Compliant | Yes |
| Status | Active |
| Relay Type | POWER/SIGNAL RELAY |
| Body Breadth | 10.0 mm |
| Body Height | 8.0 mm |
| Body Length or Diameter | 16.0 mm |
| Coil Current(DC)-Max | 0.017 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 8.4 V |
| Coil Power (mW) | 200 |
| Coil Release Voltage(DC) | 1.2 V |
| Coil Resistance | 720.0 ohm |
| Coil Voltage(DC)-Max | 12.0 V |
| Contact AC Max Rating R Load | 3A@250VAC |
| Contact Current(AC)-Max | 3.0 A |
| Contact Current(DC)-Max | 3.0 A |
| Contact DC Max Rating R Load | 3A@220VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 250.0 V |
| Contact Voltage(DC)-Max | 220.0 V |
| Electrical Life | 100000.0 Cycle(s) |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Operate Time | 5.0 ms |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE |
| Physical Dimension | 16mm x 10mm x 8mm |
| Reference Standard | CSA; UL |
| Relay Action | MOMENTARY |
| Relay Function | SPDT |
| Release Time | 5.0 ms |
| Termination Type | SOLDER |
