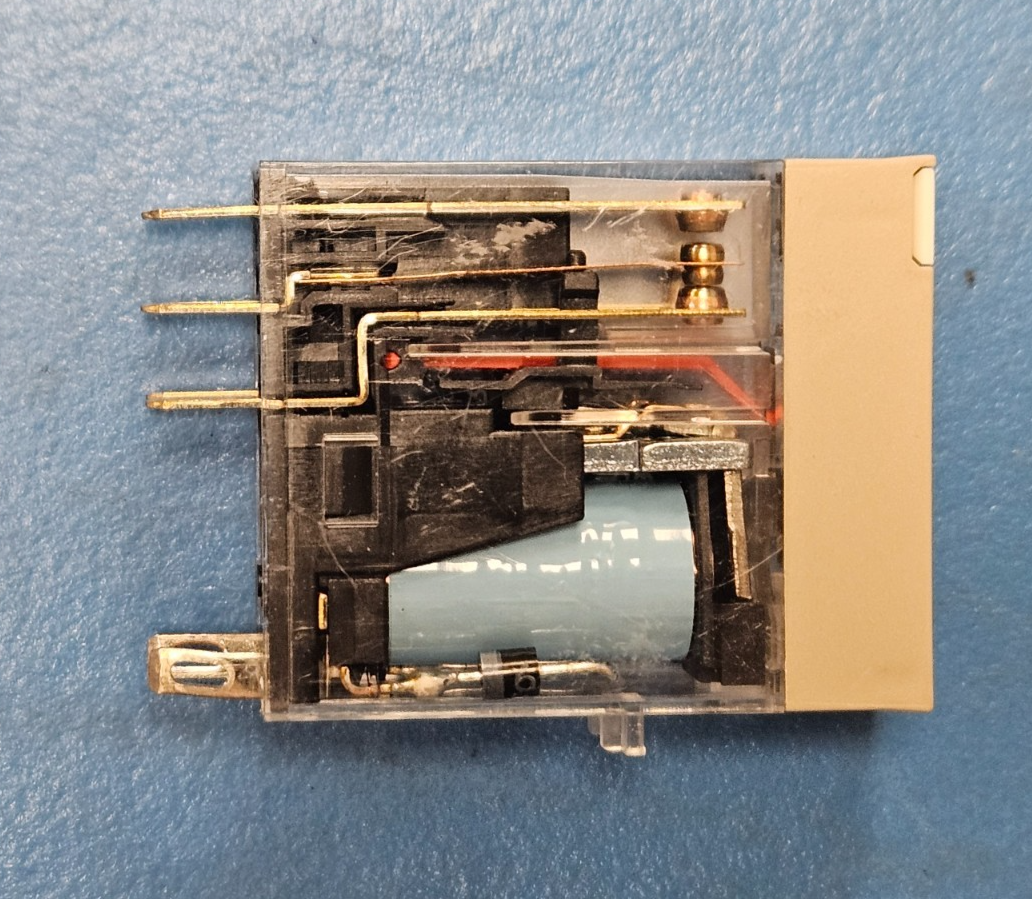

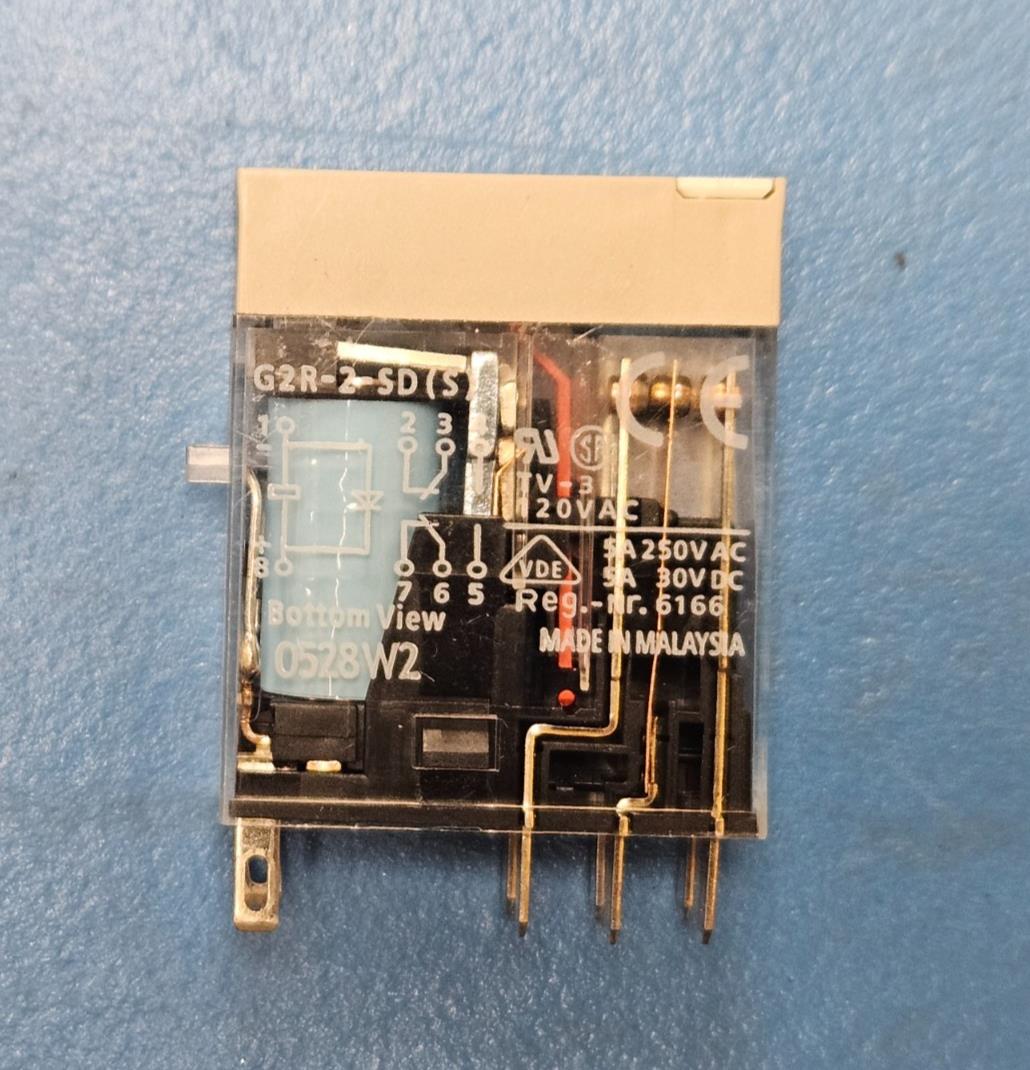

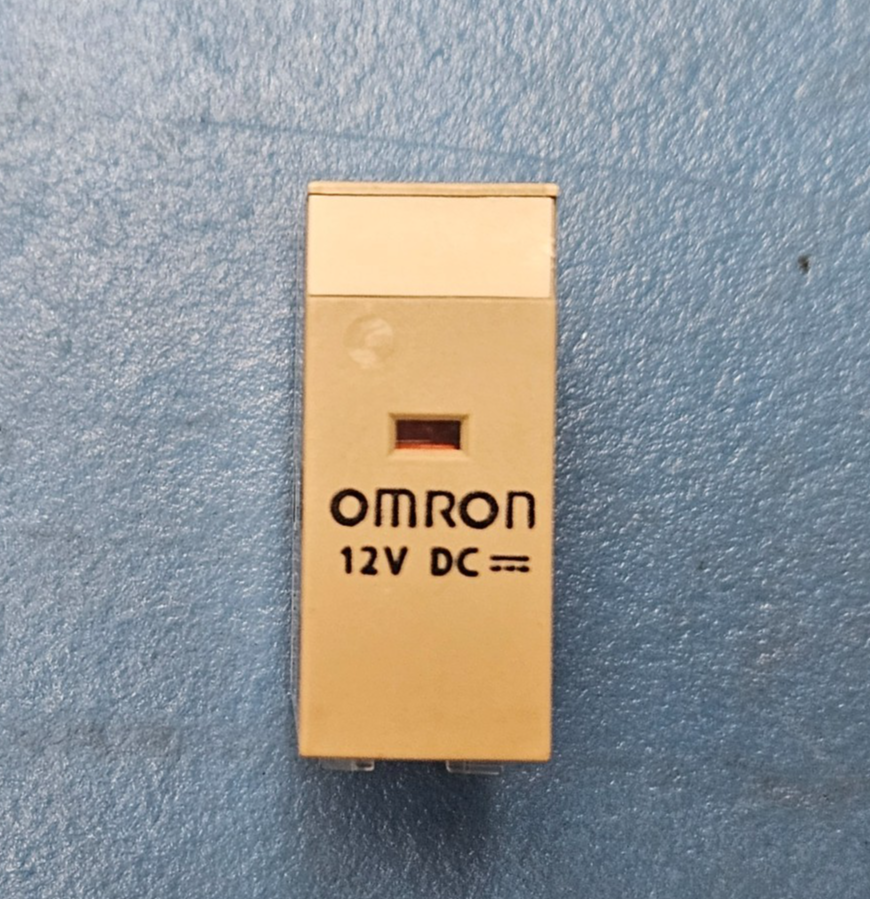

(1PC) G2R-2-SD DC12(S) OMRON Relay DPDT 5A 12VDC 275Ohm
Tax included.

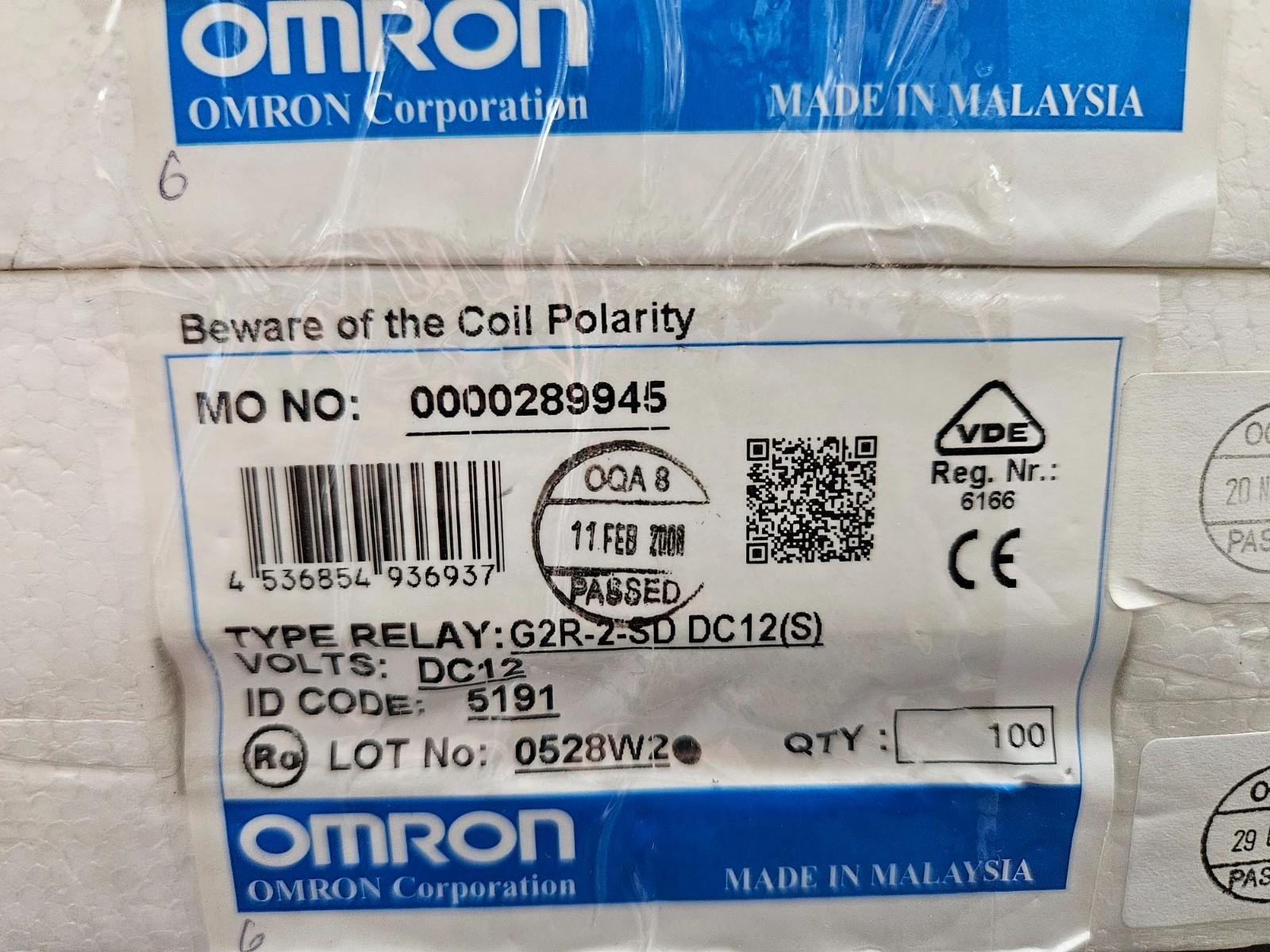

This listing is for (1PC) of G2R-2-SD DC12(S) by OMRON
Status Active
Additional Feature WITH DIODE
Body Breadth (mm) 13.0000
Body Height (mm) 35.5000
Body Length or Diameter (mm) 29.0000
Coil Current(DC)-Max (A) 0.04300000
Coil Operate Voltage(DC) (V) 8.40000000
Coil Power (mW) 530
Coil Release Voltage(DC) (V) 1.80000000
Coil Resistance (ohm) 278.0000
Coil Voltage(DC)-Max (V) 12.00000000
Coil/Input Supply Type DC
Contact AC Max Rating R Load 5A@380VAC
Contact Current(AC)-Max (A) 5.00000000
Contact Current(DC)-Max (A) 5.00000000
Contact DC Max Rating R Load 5A@125VDC
Contact Voltage(AC)-Max (V) 380.00000000
Contact Voltage(DC)-Max (V) 125.00000000
Contact/Output Supply Type AC/DC
Electrical Life (Cycle(s)) 100000
Mounting Feature SOCKET MOUNT
Operate Time (ms) 15.0000
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -40
Physical Dimension 29mm x 13mm x 35.5mm
Screening Level / Reference Standard CE; CSA; IEC; LR; UL; VDE
Relay Action MOMENTARY
Relay Function SPDT
Relay Type POWER/SIGNAL RELAY
Release Time (ms) 10.0000
Termination Type SNAP ON
