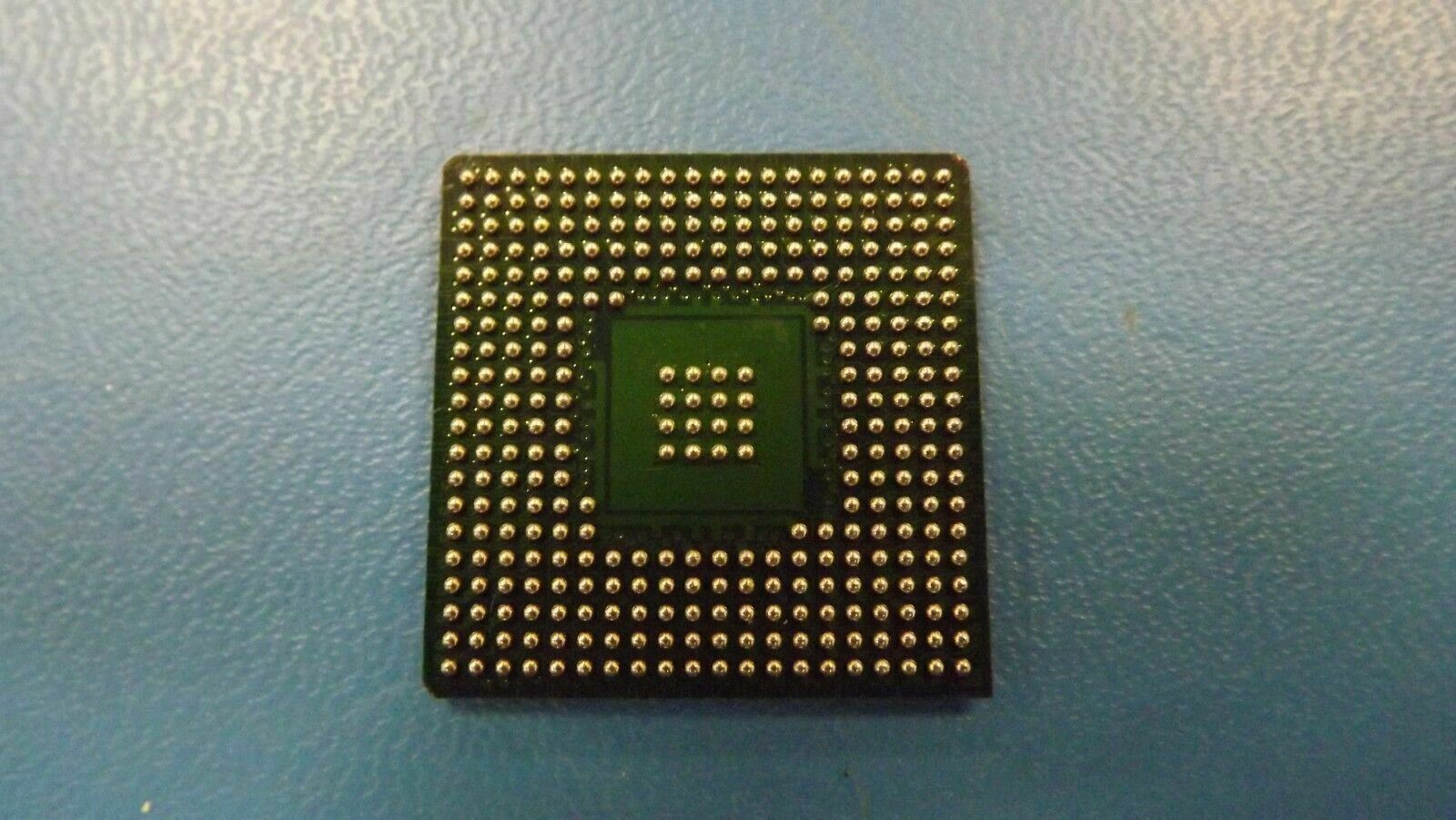

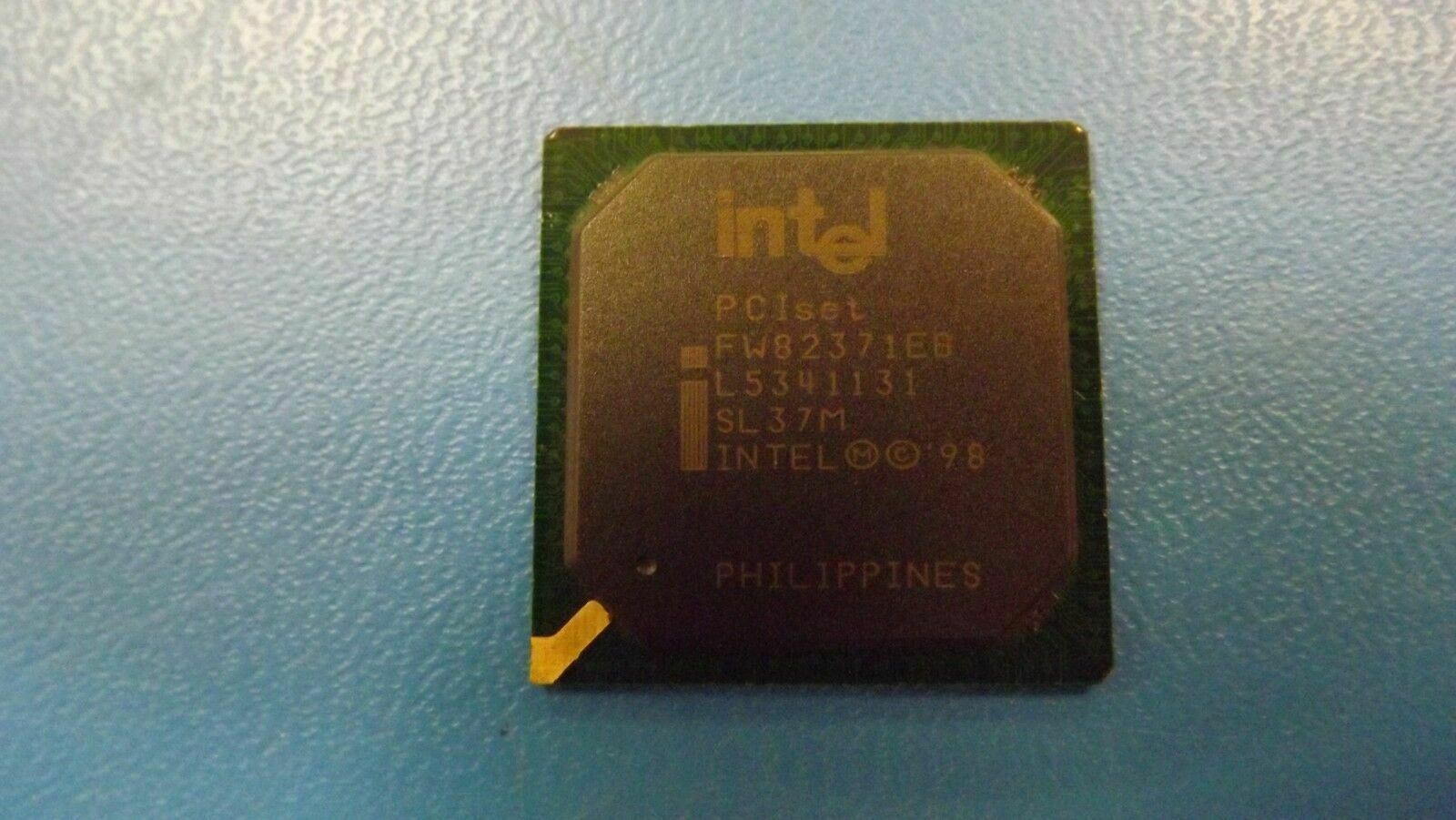

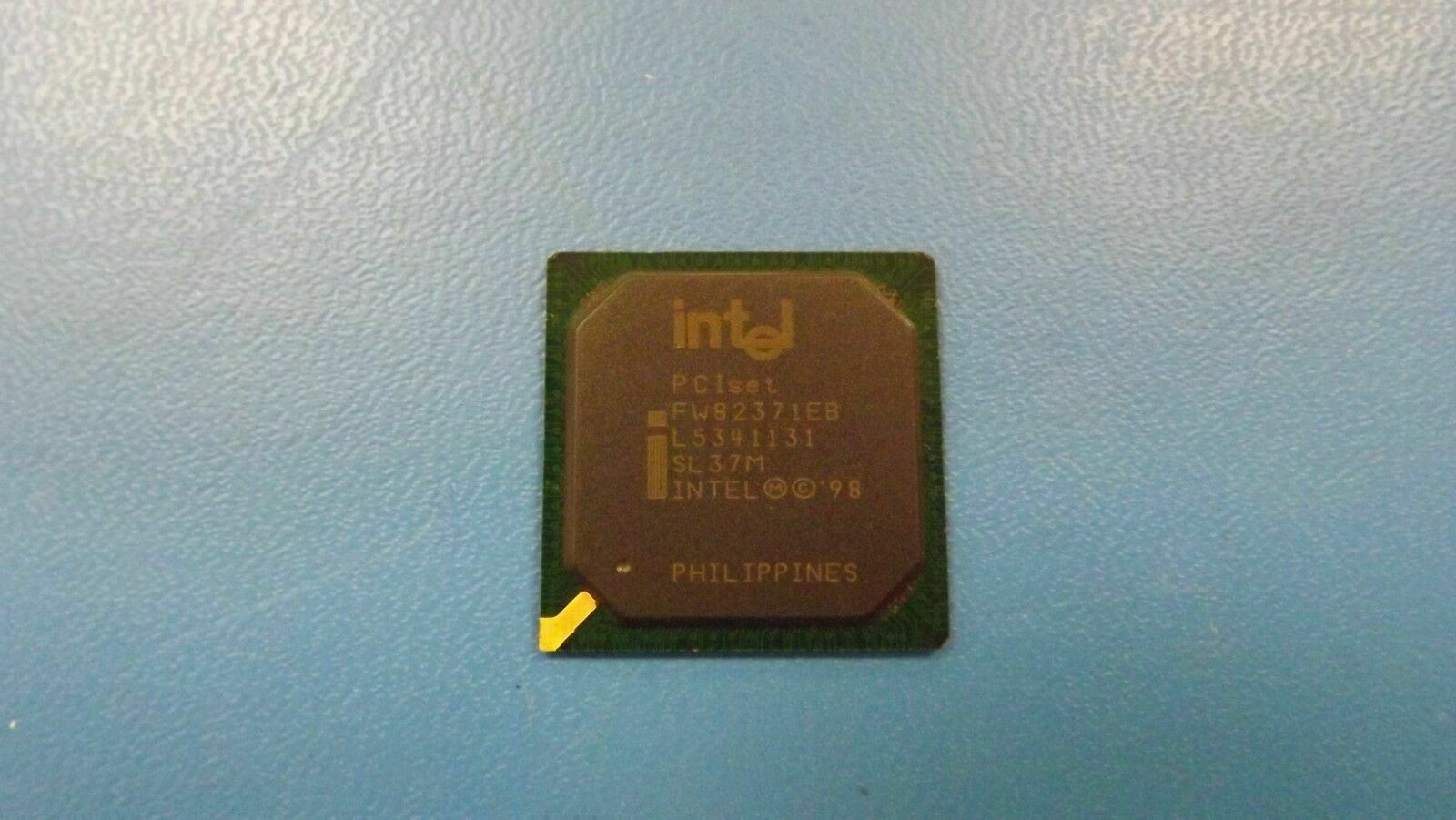

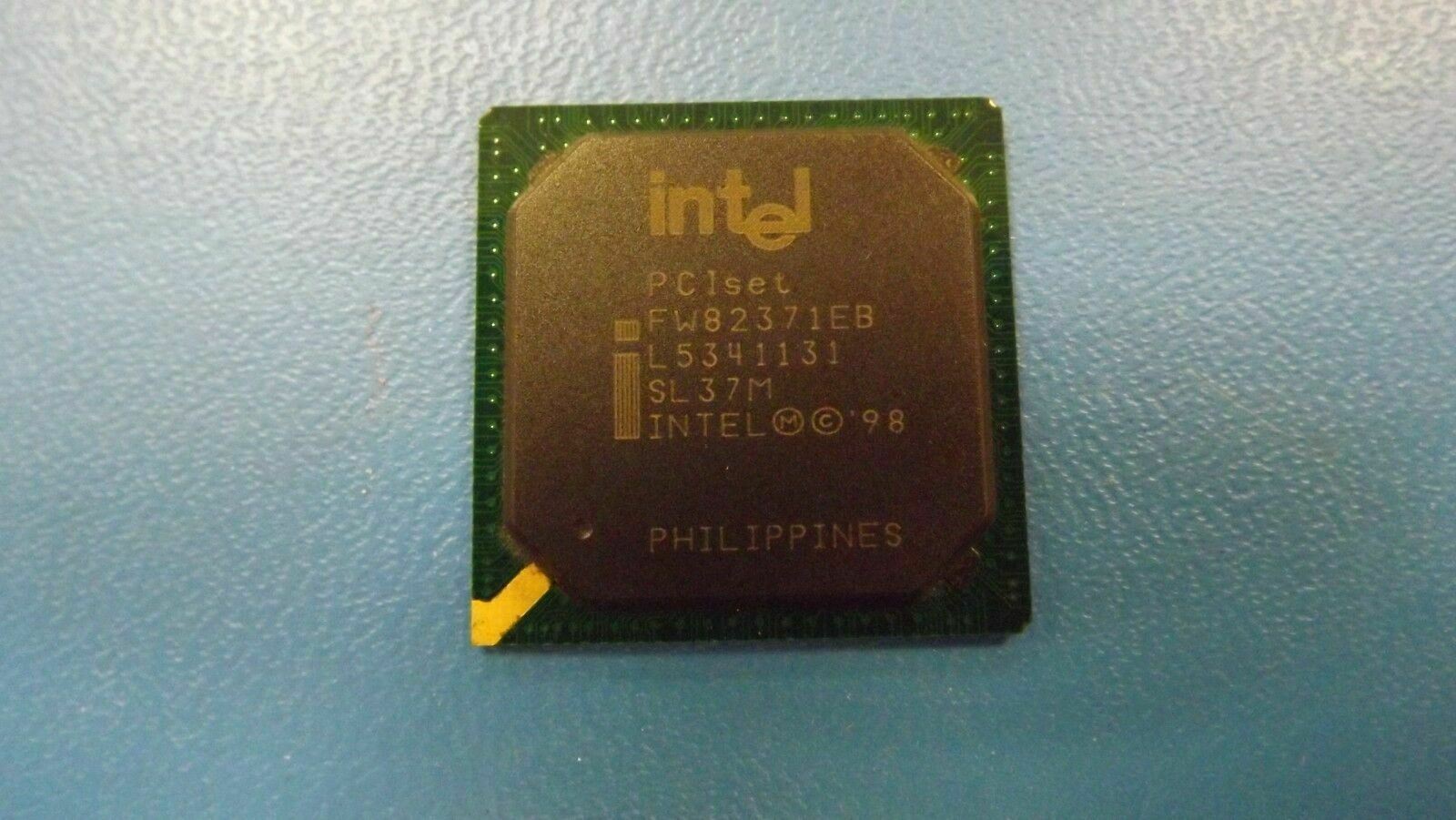

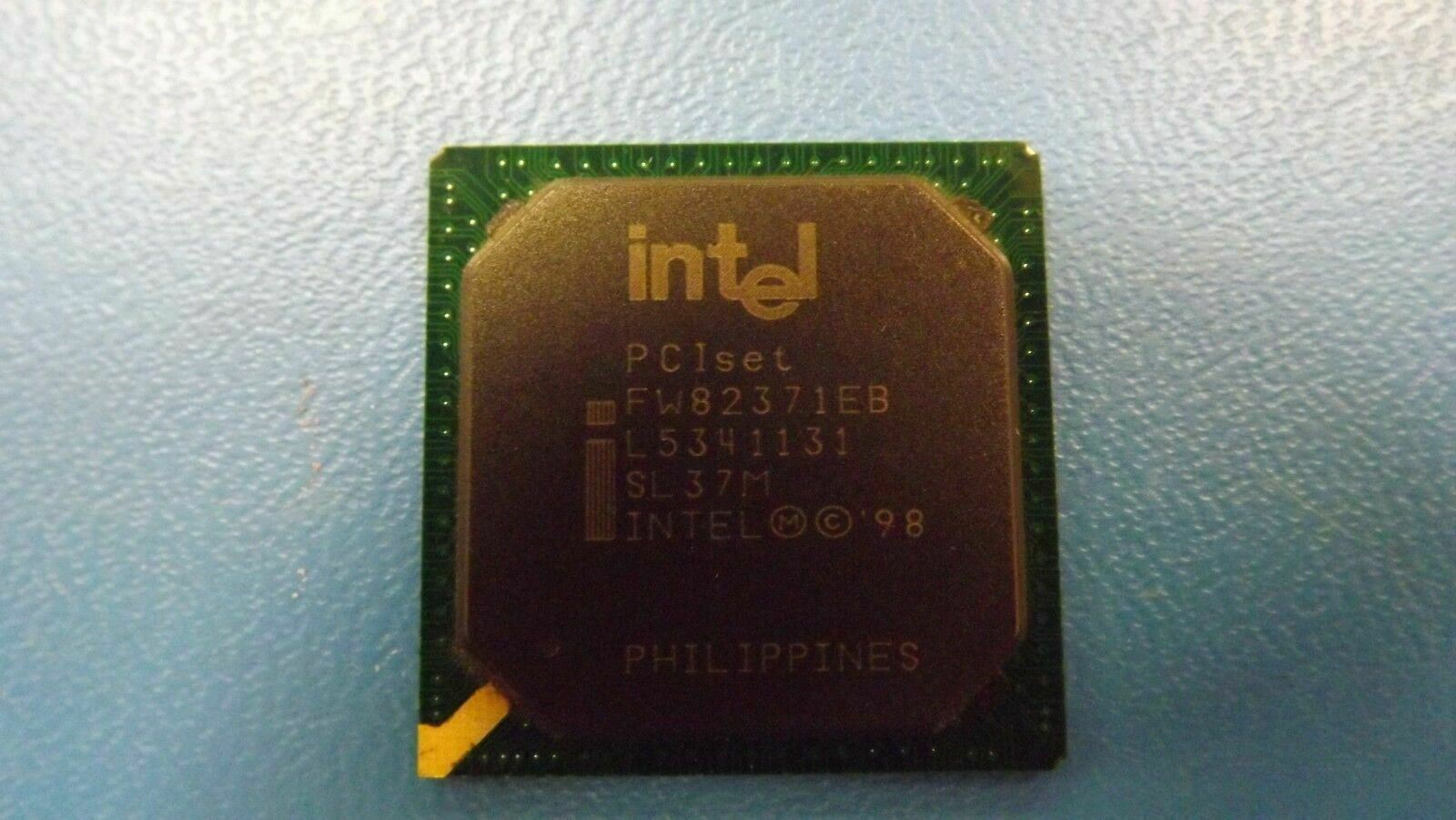

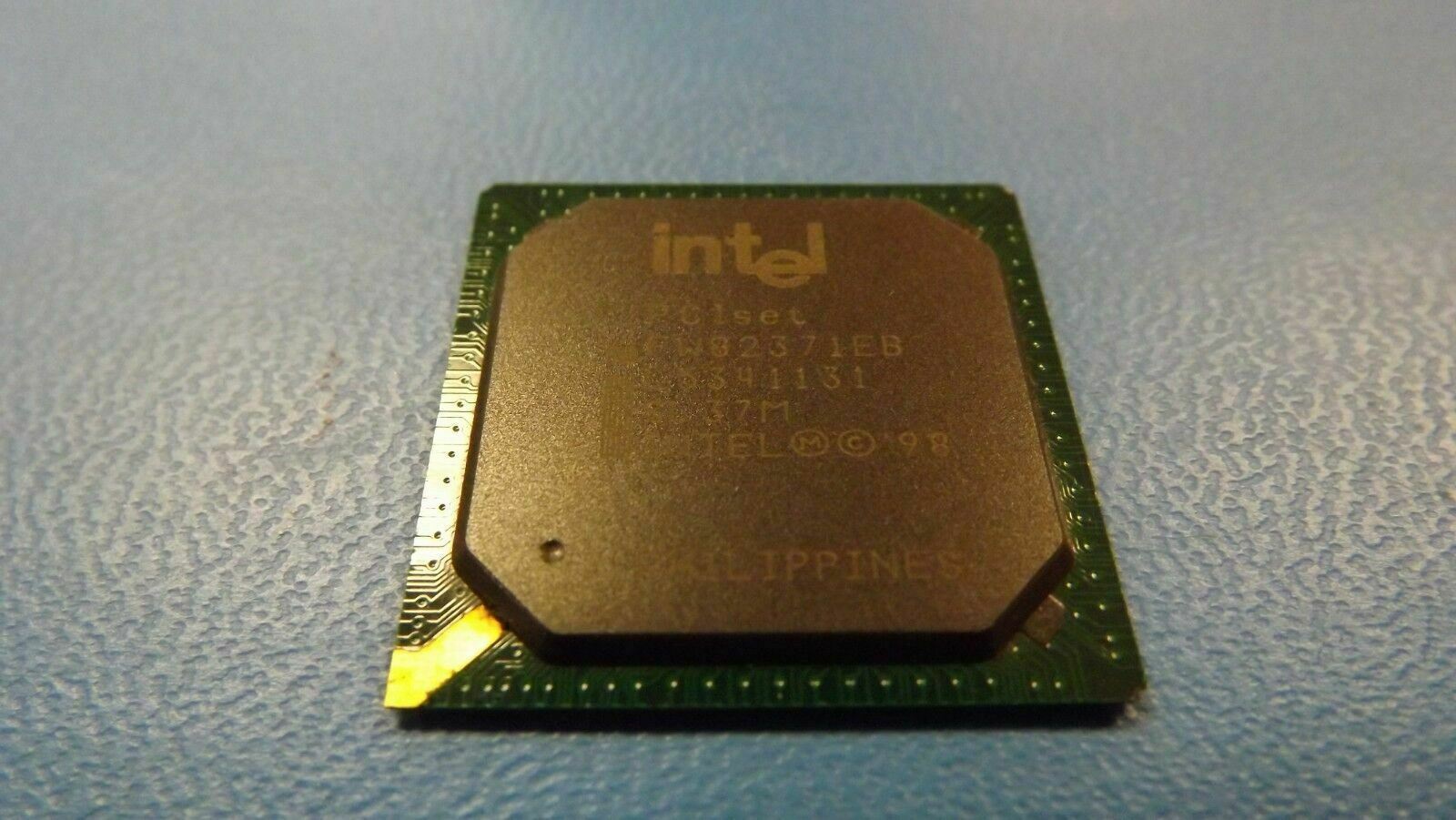

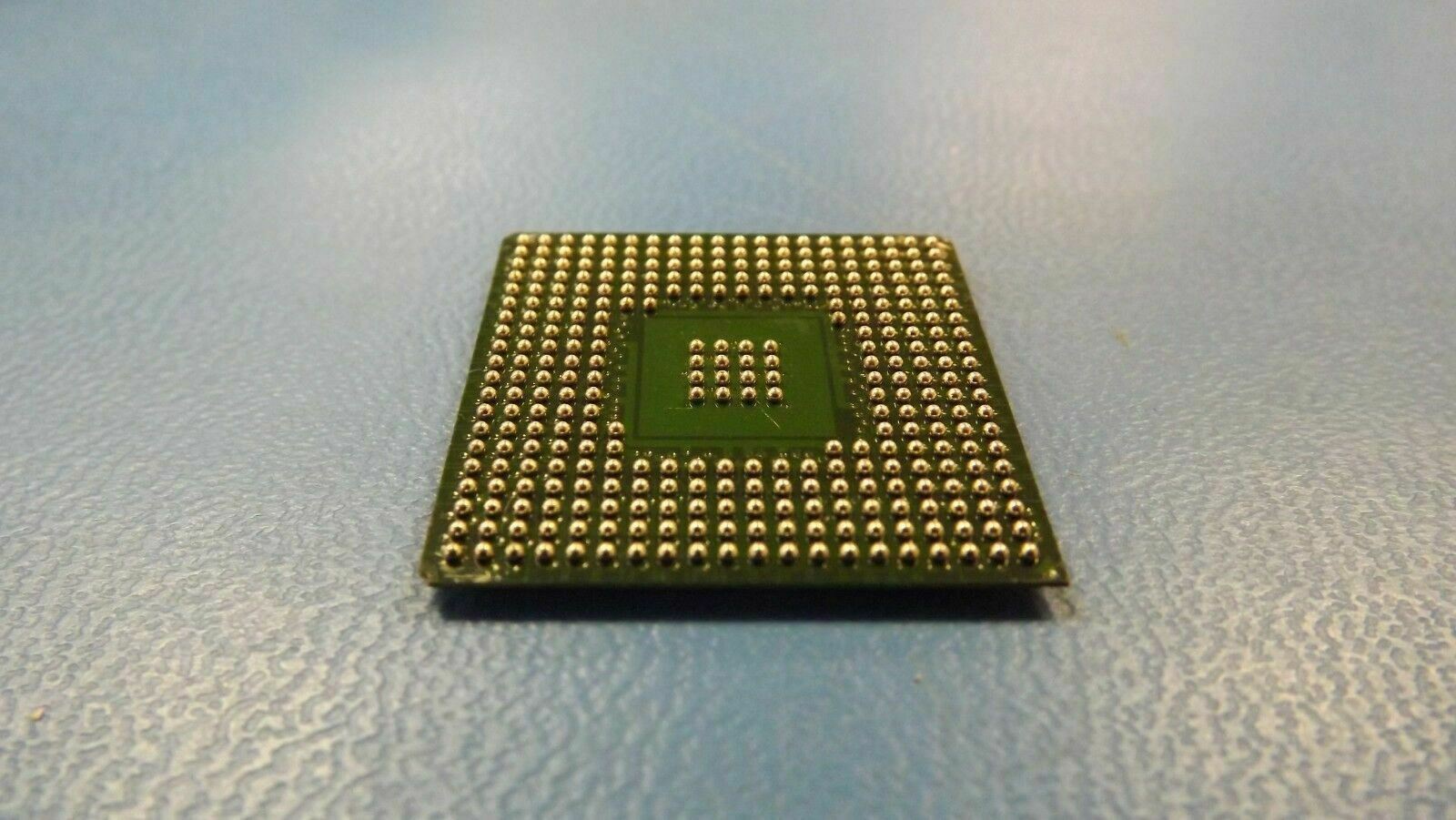

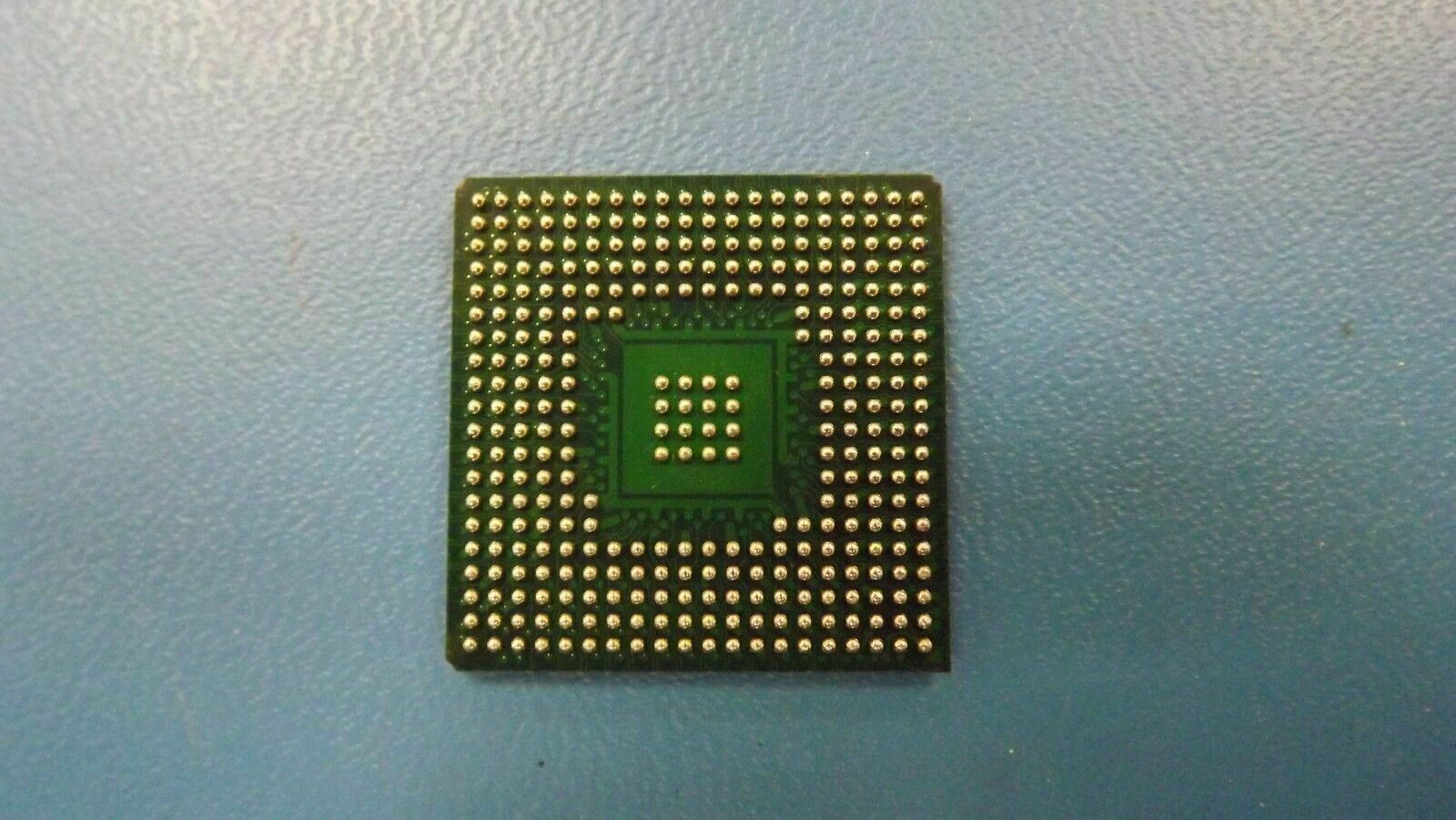

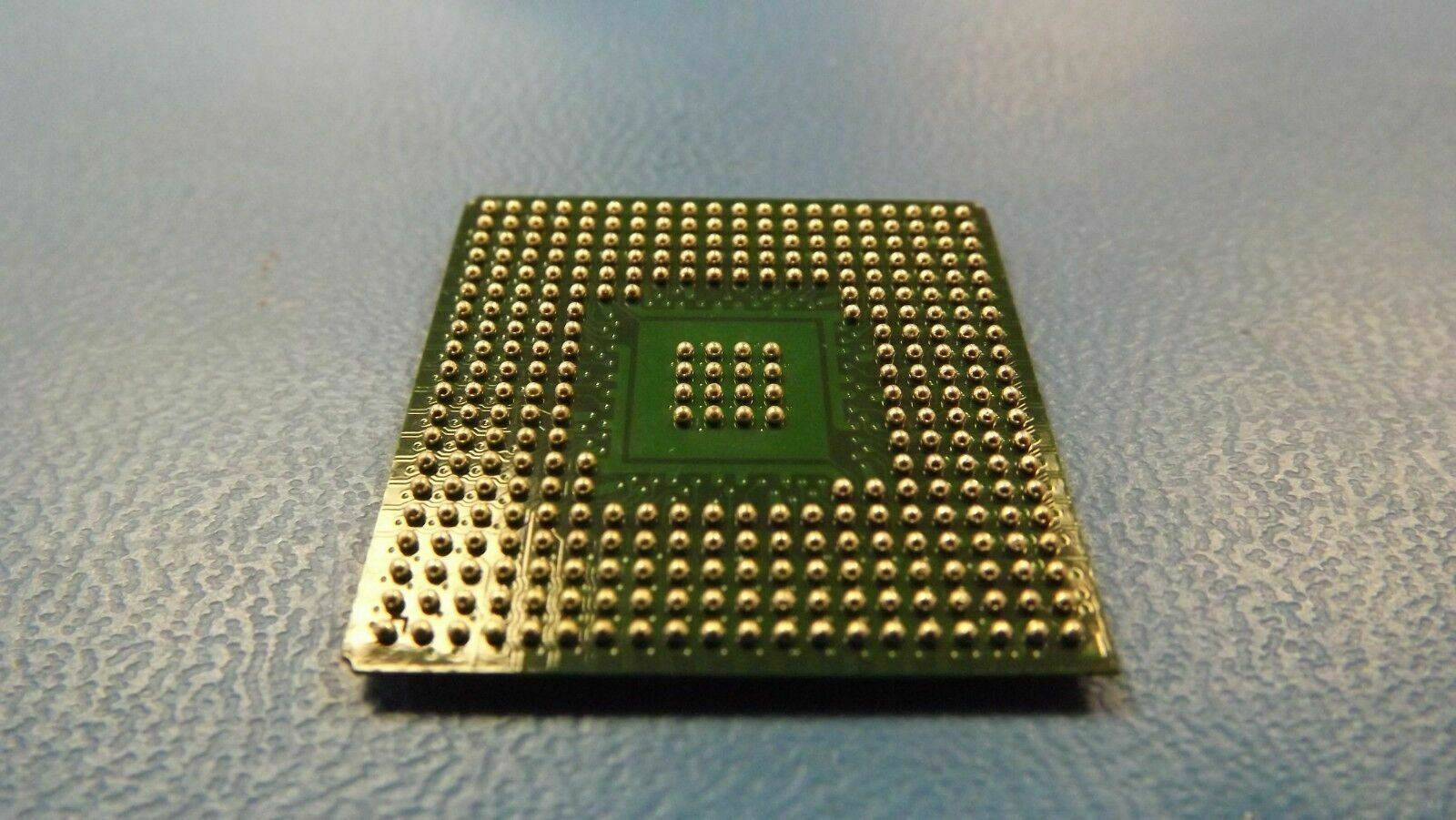

(1PC) FW82371EB INTEL IC INTEL 82371EB 352BGA
Tax included.
THIS LISTING IS FOR (1PC) OF FW82371EB BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | MBGA-324 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Address Bus Width | 32.0 |
| Boundary Scan | NO |
| Bus Compatibility | PENTIUM II; PENTIUM III |
| Clock Frequency-Max | 14.318 MHz |
| External Data Bus Width | 32.0 |
| JESD-30 Code | S-PBGA-B324 |
| JESD-609 Code | e0 |
| Number of I/O Lines | 53.0 |
| Number of Terminals | 324 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | BGA |
| Package Equivalence Code | BGA324,20X20,50 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 3.3,5 |
| Qualification Status | Not Qualified |
| RAM (words) | 256 |
| Seated Height-Max | 2.3 mm |
| Sub Category | Bus Controllers |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 3.0 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | BALL |
| Terminal Pitch | 1.27 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 27.0 mm |
| Width | 27.0 mm |
| Additional Feature | ALSO OPERATES AT 5V; PCI BUS COMPATIBILITY |
