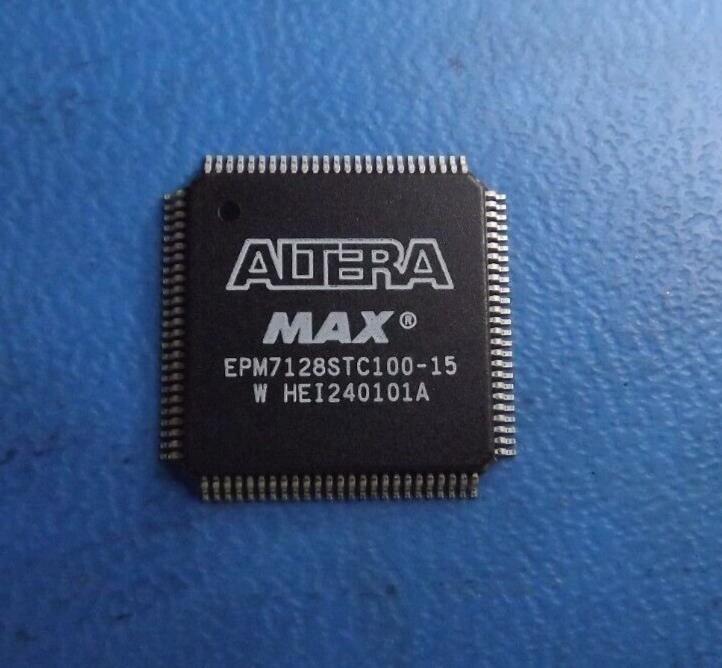

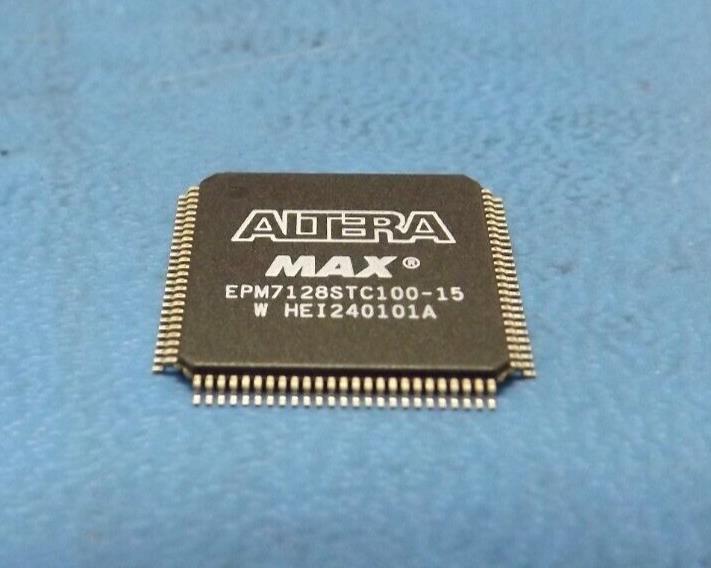

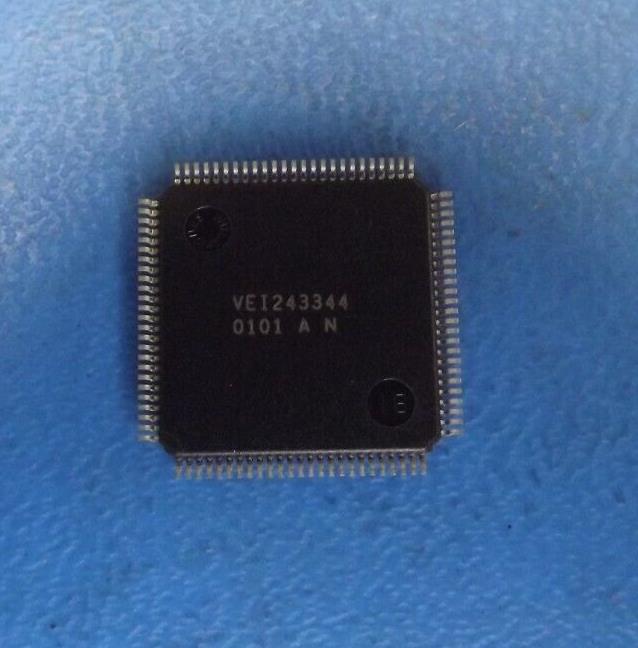

(1PC) EPM7128STC100-15 2.5K Gates 128 Macro Cells 76.9MHz 5V 100-Pin TQFP
Tax included.
THIS LISTING IS FOR (1PC) OF EPM7128STC100-15 BY ALTERA
Mfr Package Description TQFP-100
REACH Compliant Yes
Status Discontinued
Programmable Logic Type EE PLD
Clock Frequency-Max 100.0 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 84.0
Number of Macro Cells 128.0
Number of Terminals 100
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 84 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code TQFP100,.63SQ
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Power Supplies 3.3/5,5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.27 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Length 14.0 mm
Width 14.0 mm
Additional Feature CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
