(1PC) EPM7064QC100-15 EE PLD, 15ns, 64-Cell, CMOS, PQFP100
Tax included.

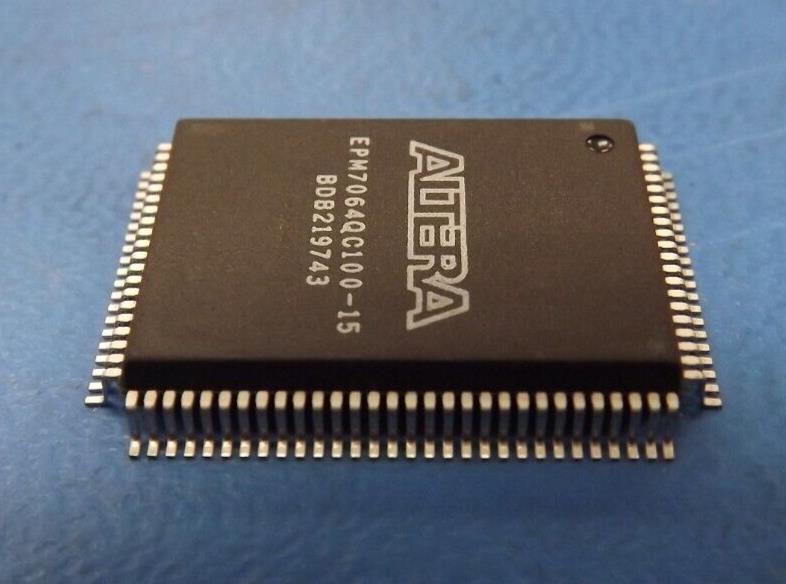

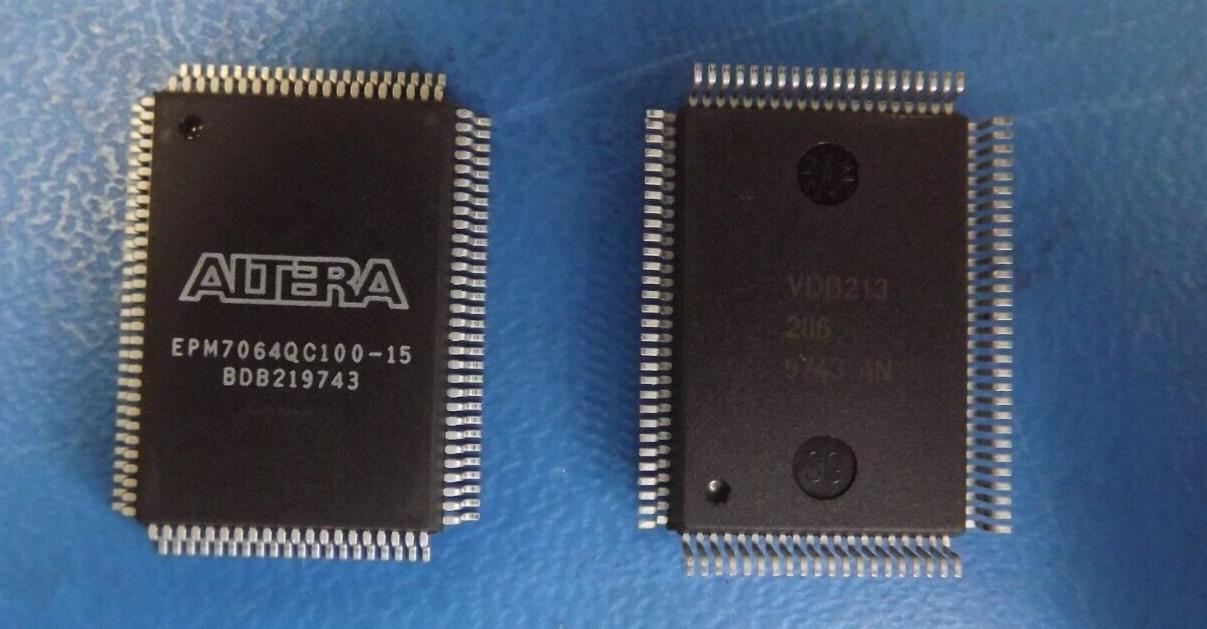

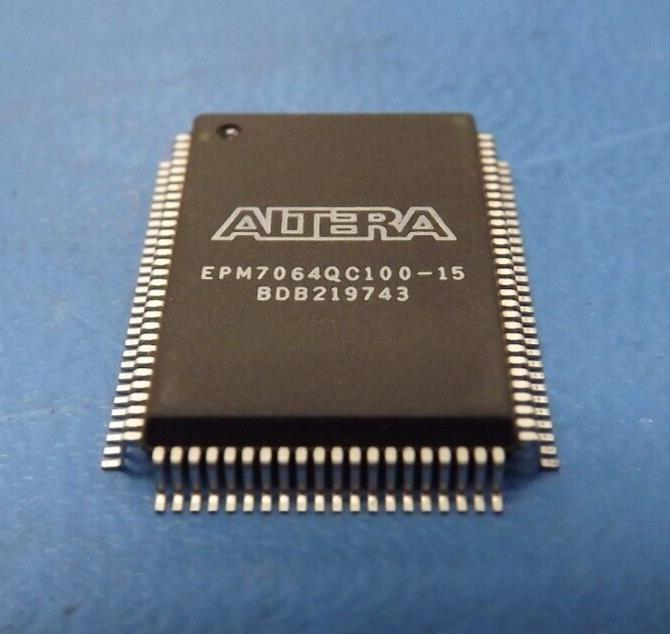

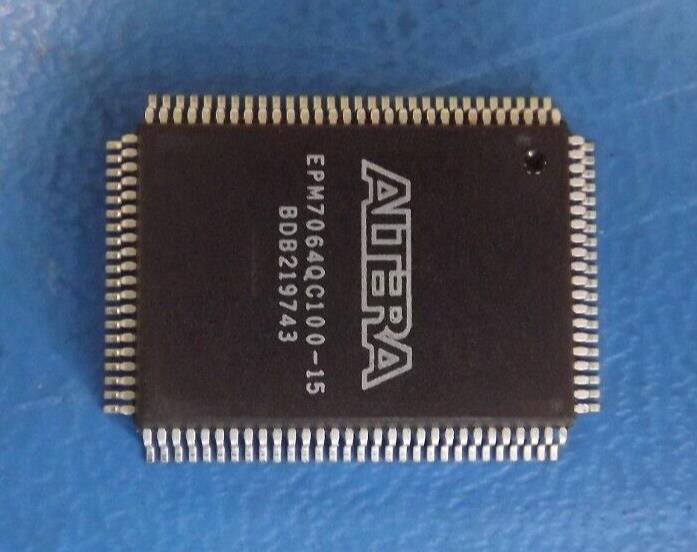

THIS LISTING IS FOR (1PC) OF EPM7064QC100-15 BY ALTERA
Mfr Package Description PLASTIC, QFP-100
REACH Compliant Yes
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 100.0 MHz
In-System Programmable NO
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
JTAG BST NO
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 68.0
Number of Macro Cells 64.0
Number of Terminals 100
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 68 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP100,.7X.9
Package Shape RECTANGULAR
Package Style FLATPACK
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 3.65 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
Additional Feature CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
