(1PC) EPM7064AELC44-10 EE PLD, 10ns, 64-Cell, CMOS, 100MHz CMOS, 3.3V PLCC44
Tax included.

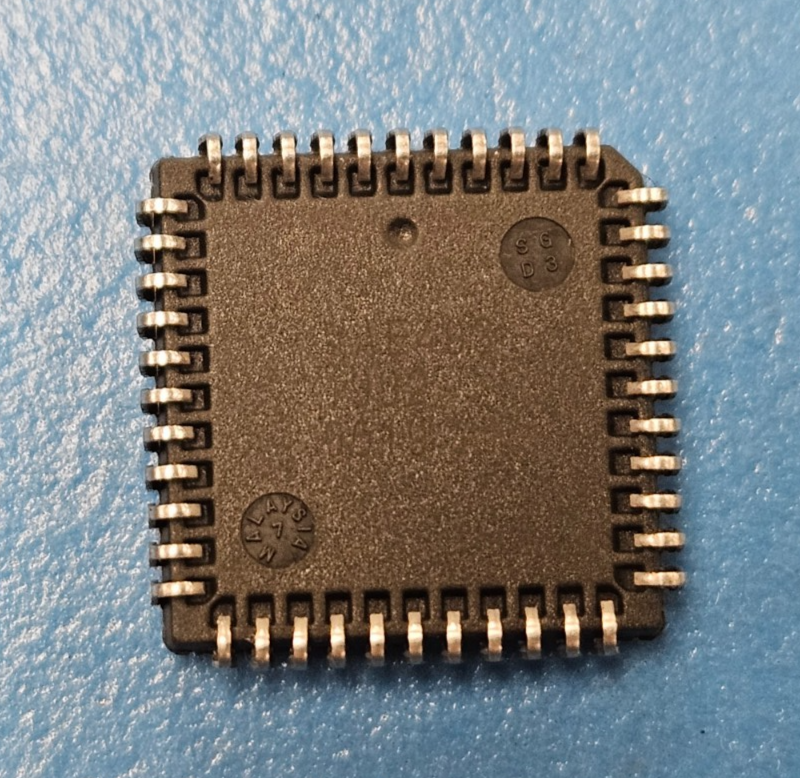

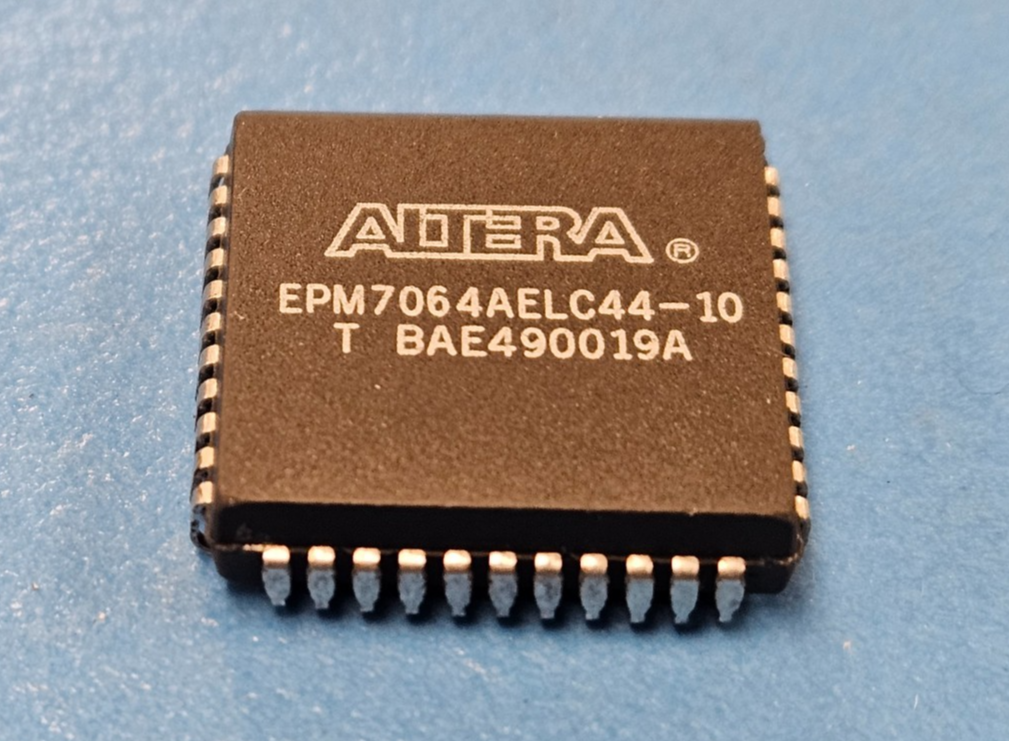

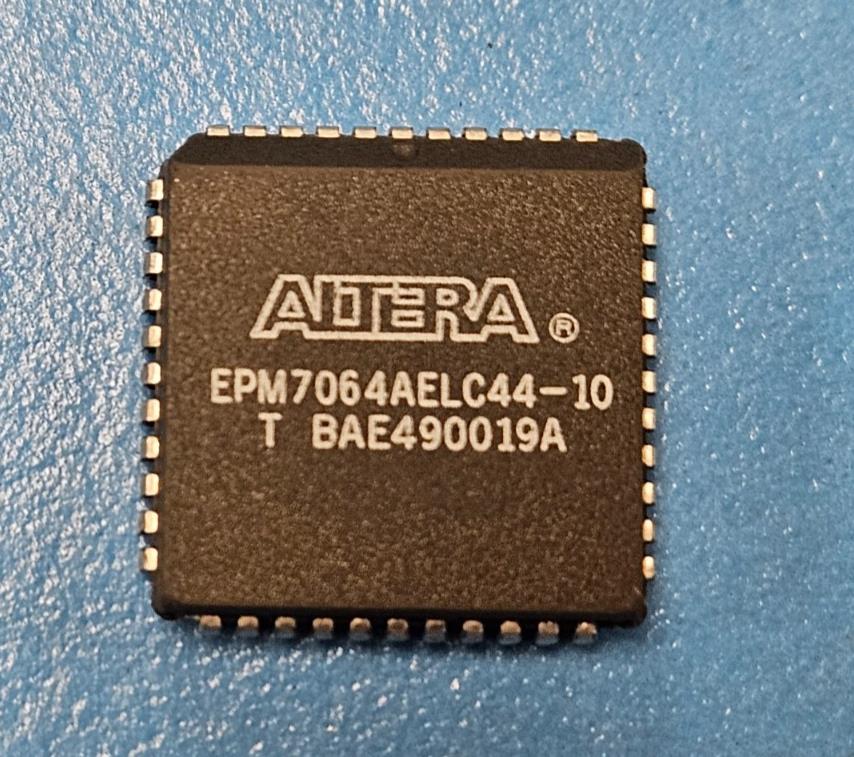

This listing is for (1PC) of EPM7064AELC44-10 by Altera
Status Discontinued
Additional Feature 64 MICROCELLS; 4 LABS; CONFIGURABLE I/O OPERATION WITH 2.5 OR 3.3
Clock Frequency-Max (MHz) 100.00000
In-System Programmable YES
JESD-30 Code S-PQCC-J44
J-STD-609 Code e0
JTAG BST YES
Length (mm) 16.5862
Moisture Sensitivity Level 1
Number of Dedicated Inputs 4
Number of I/O Lines 36
Number of Inputs 40
Number of Macro Cells 64
Number of Outputs 36
Number of Terminals 44
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 36 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Programmable Logic Type EE PLD
Propagation Delay (ns) 10.000
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.5700
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Width (mm) 16.5862
