(1PC) EPM7032AETC44-10 IC CPLD 32MC 10NS 44TQFP
Tax included.

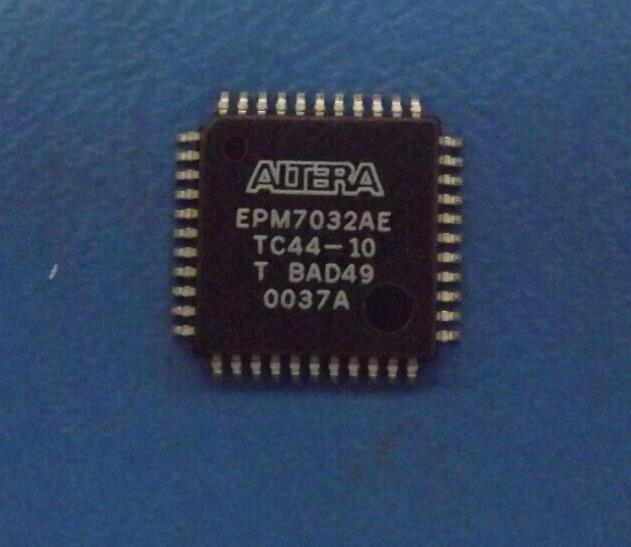

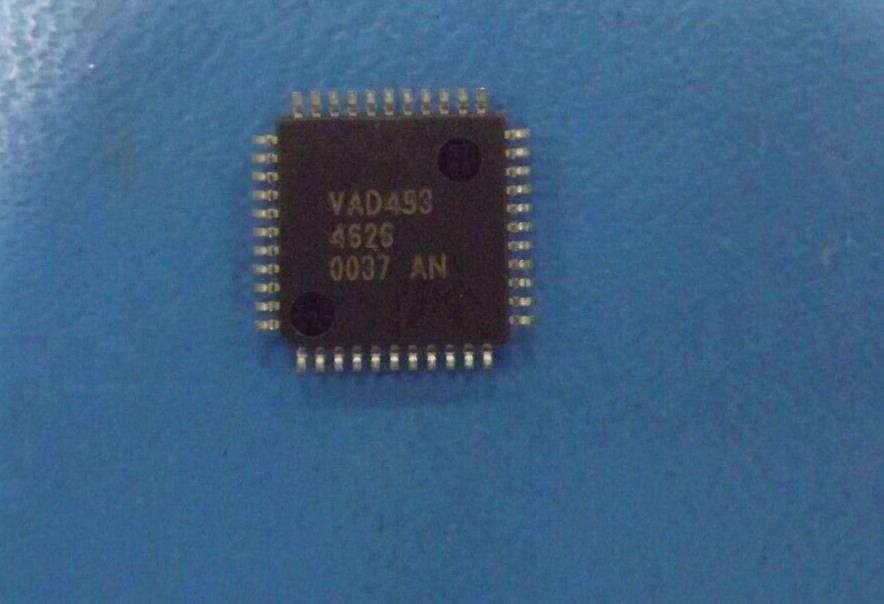

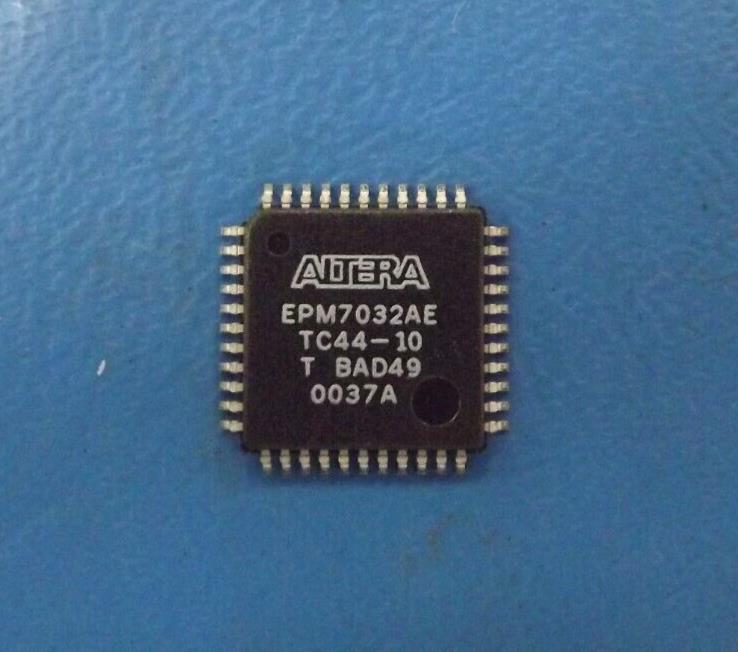

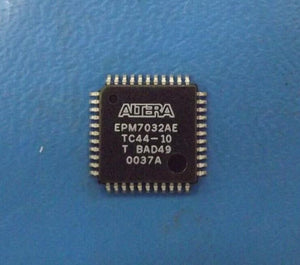

THIS LISTING IS FOR (1PC) OF EPM7032AETC44-10 BY ALTERA
Mfr Package Description TQFP-44
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 103.1 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G44
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 36.0
Number of Macro Cells 32.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 36 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code TQFP44,.47SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 235
Power Supplies 2.5/3.3,3.3
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.27 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 10.0 mm
Width 10.0 mm
Additional Feature YES
