(1PC) EPF8820RC208-3 (PLD) Low-cost, high-density, register-rich 208P QFP
Tax included.

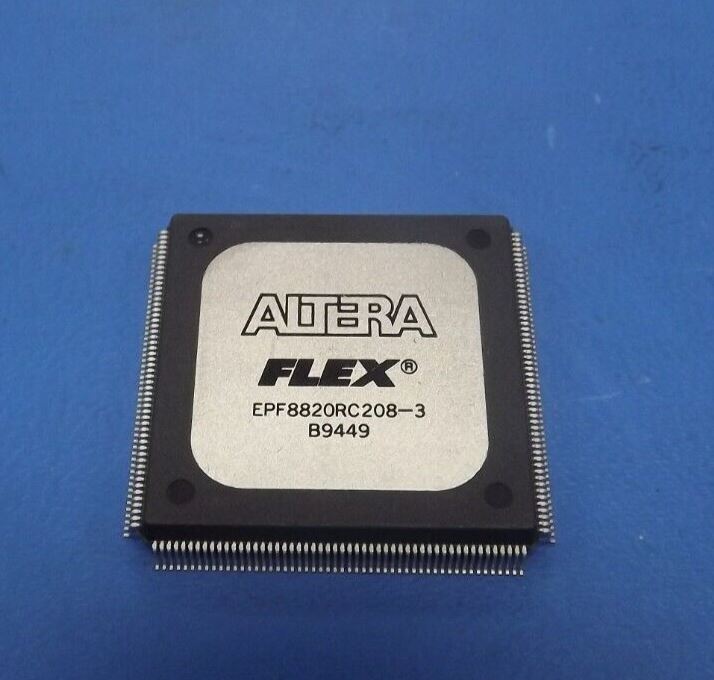

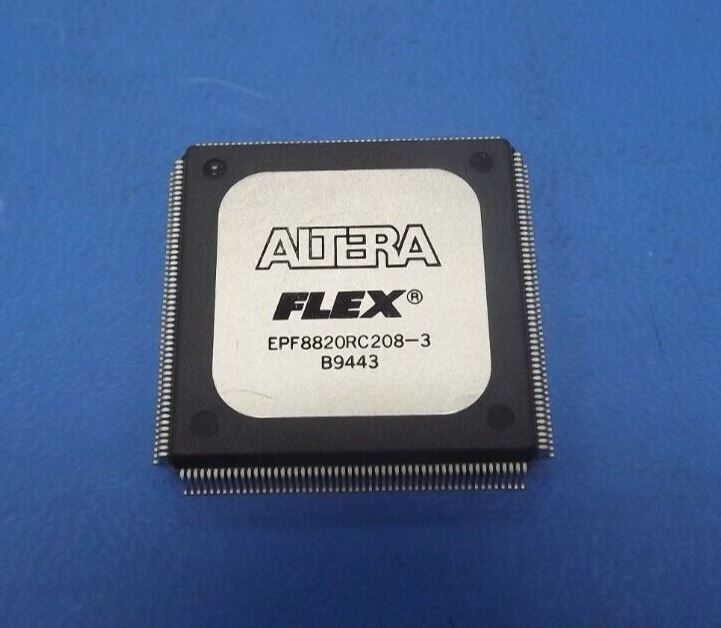

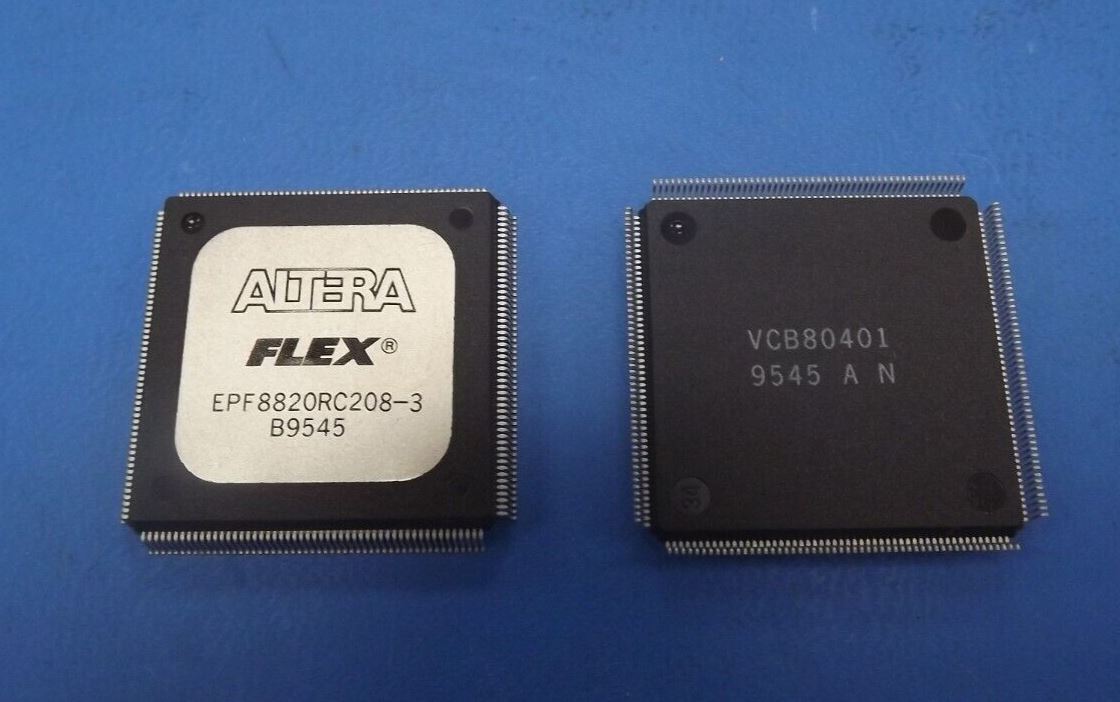

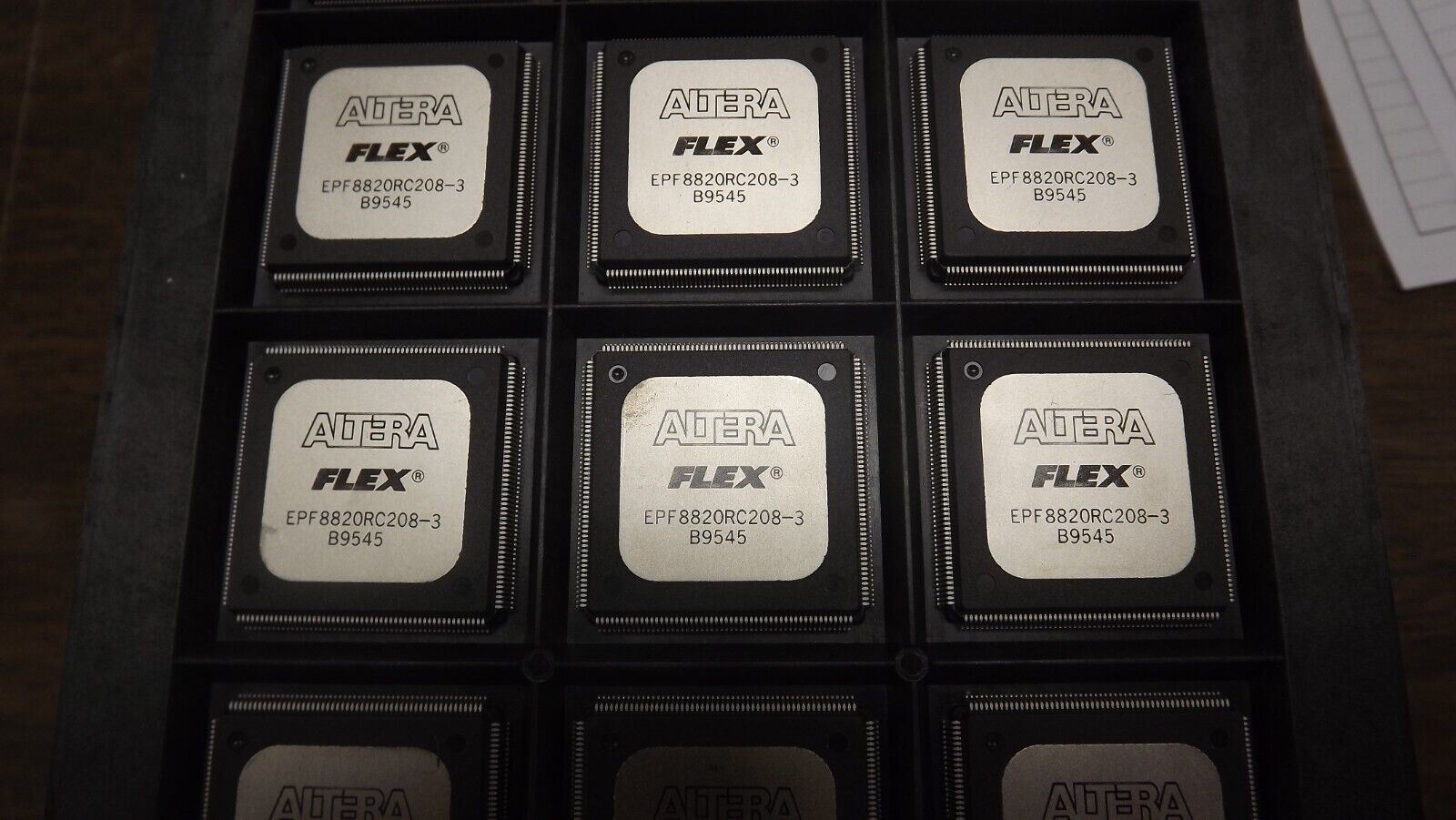

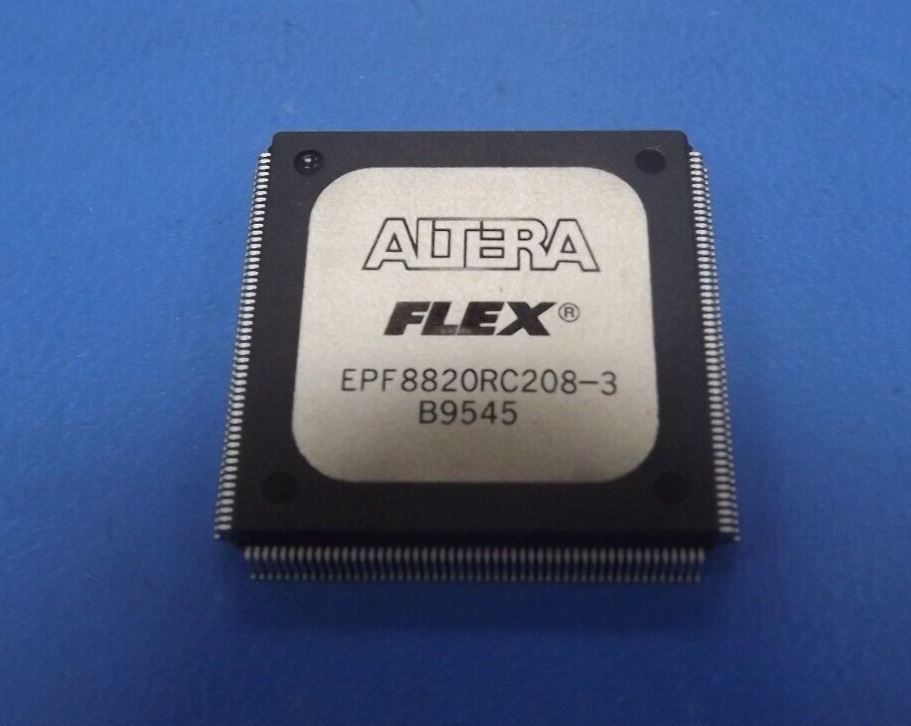

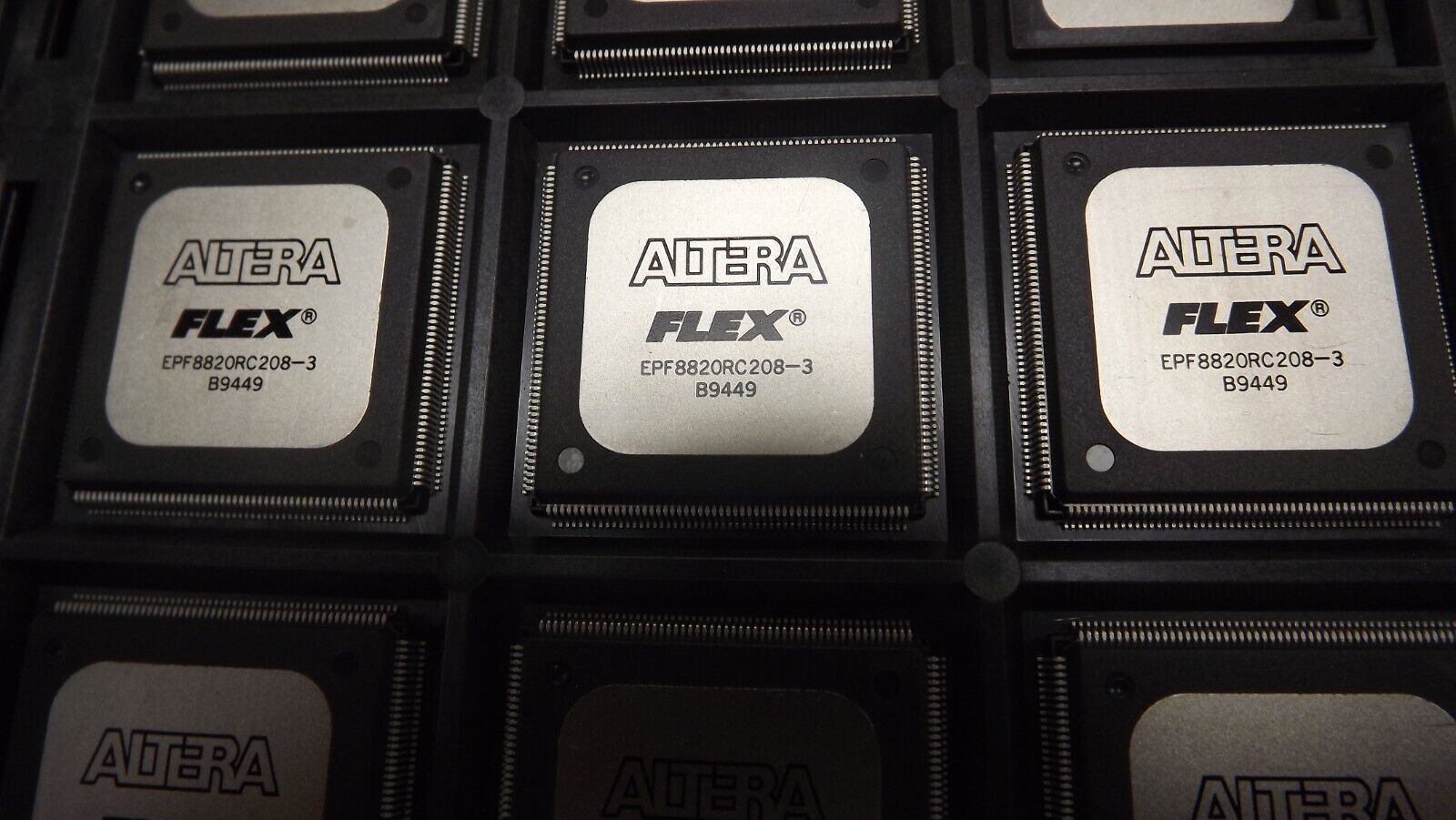

THIS LISTING IS FOR (1PC) OF EPF8820RC208-3 BY ALTERA
Mfr Package Description POWER, QFP-208
Status Discontinued
Programmable Logic Type LOADABLE PLD
JESD-30 Code S-PQFP-G208
JESD-609 Code e0
Number of Dedicated Inputs 4.0
Number of I/O Lines 148.0
Number of Inputs 152.0
Number of Logic Cells 672.0
Number of Outputs 148.0
Number of Terminals 208
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4 DEDICATED INPUTS, 148 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Qualification Status Not Qualified
Seated Height-Max 4.07 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Length 28.0 mm
Width 28.0 mm
Additional Feature 820 FLIP FLOPS; 672 LOGIC ELEMENTS; CONFIGURABLE I/O OPERATION (3.3V OR 5V)
