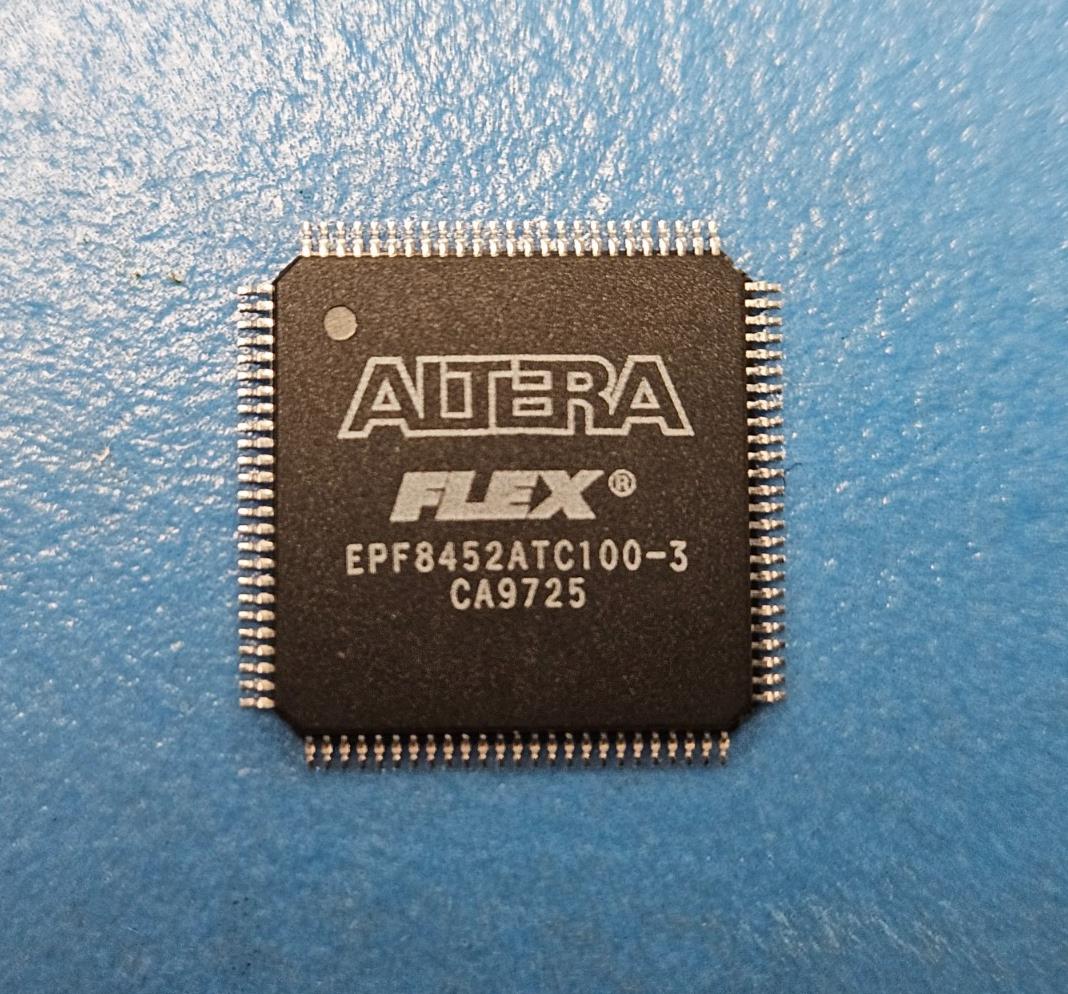

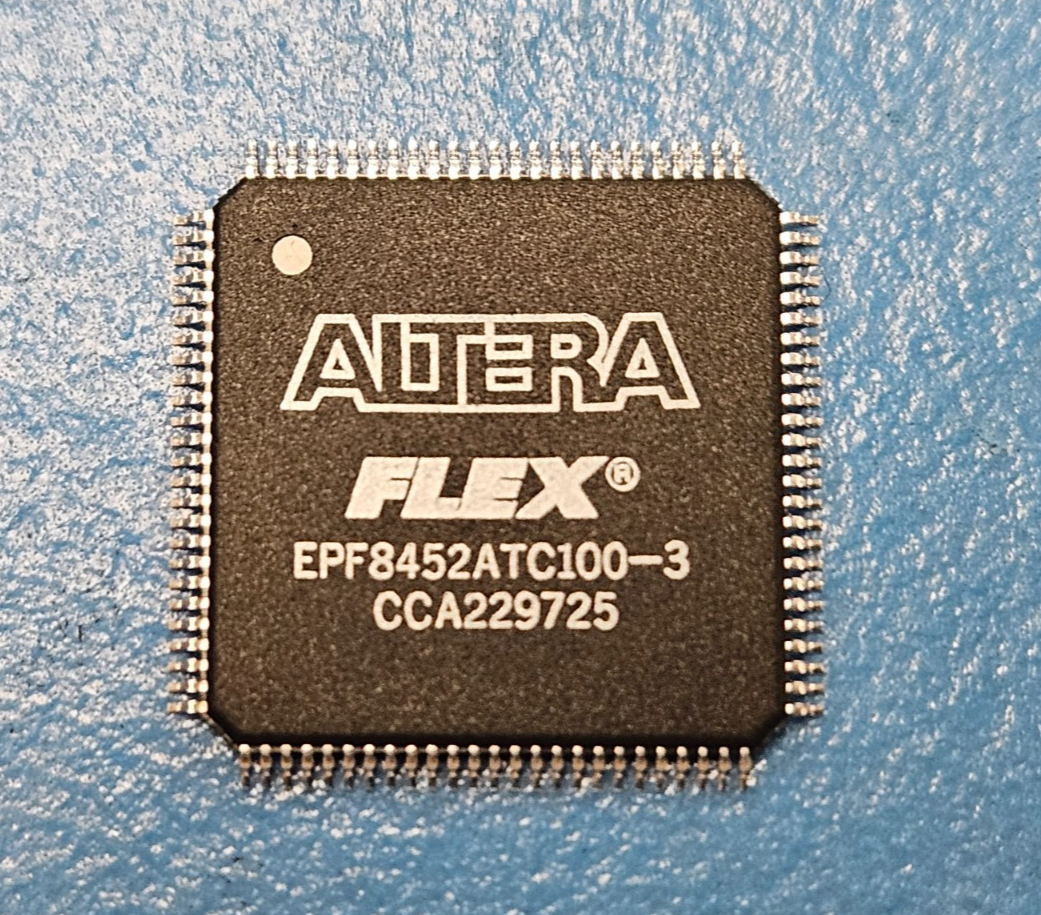

(1PC) EPF8452ATC100-3 Altera Loadable PLD, 5ns, CMOS, PQFP100
Tax included.
This listing is for (1PC) of EPF8452ATC100-3 by Altera
Status Discontinued
Additional Feature 336 LOGIC ELEMENTS
Clock Frequency-Max (MHz) 385.00000
JESD-30 Code S-PQFP-G100
J-STD-609 Code e0
Length (mm) 14.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 78
Number of Inputs 68
Number of Logic Cells 336
Number of Outputs 64
Number of Terminals 100
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 78 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code TQFP100,.63SQ
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Programmable Logic Type LOADABLE PLD
Propagation Delay (ns) 5.000
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2700
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.75000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
