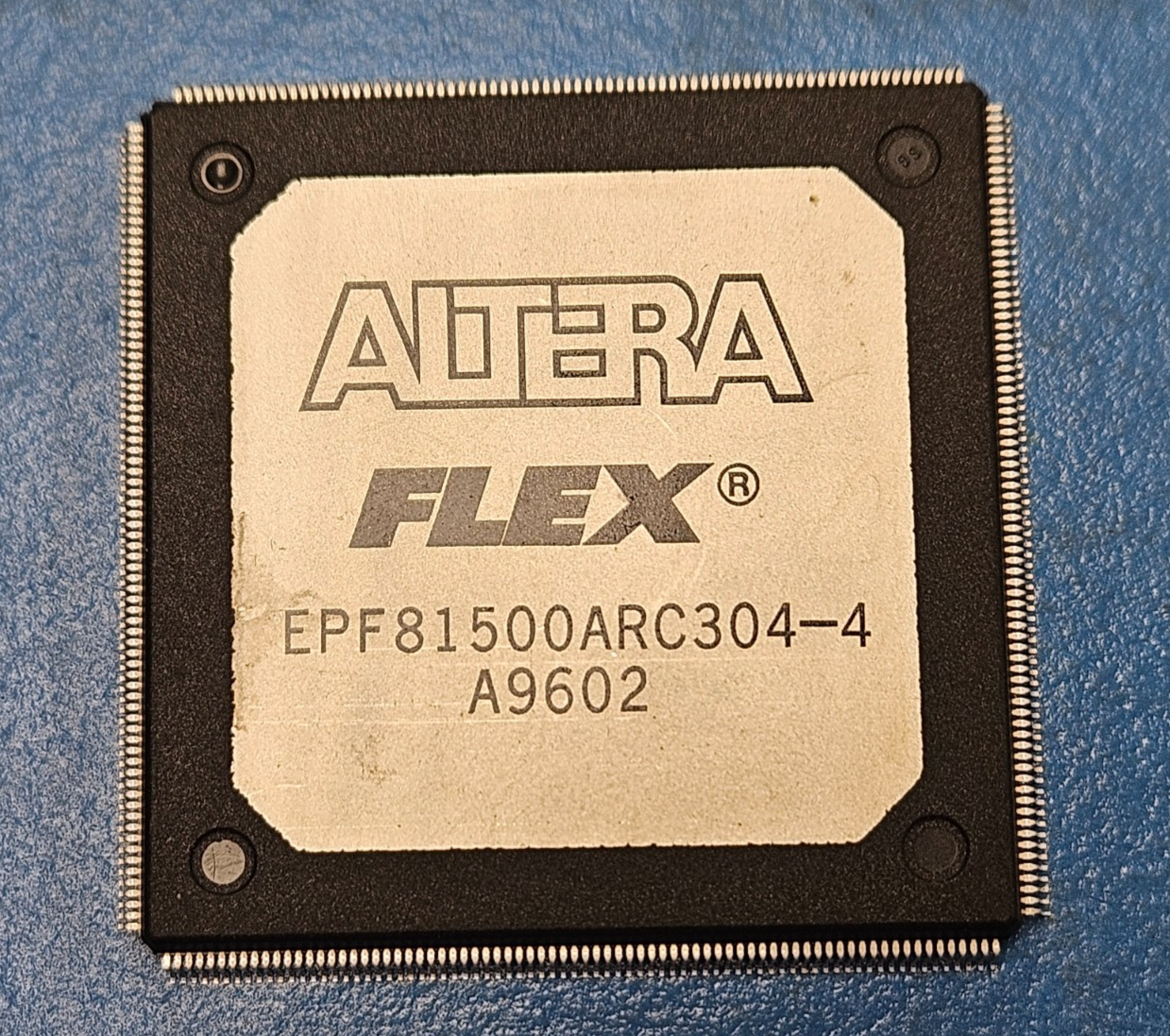

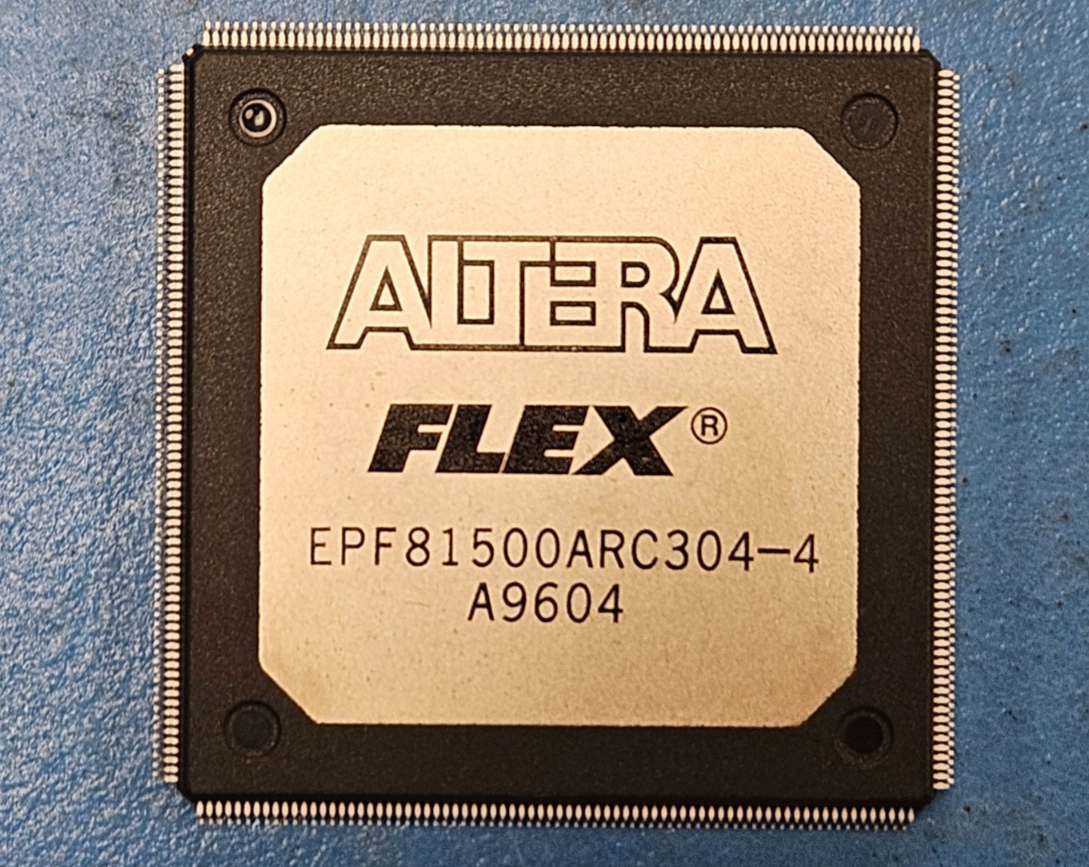

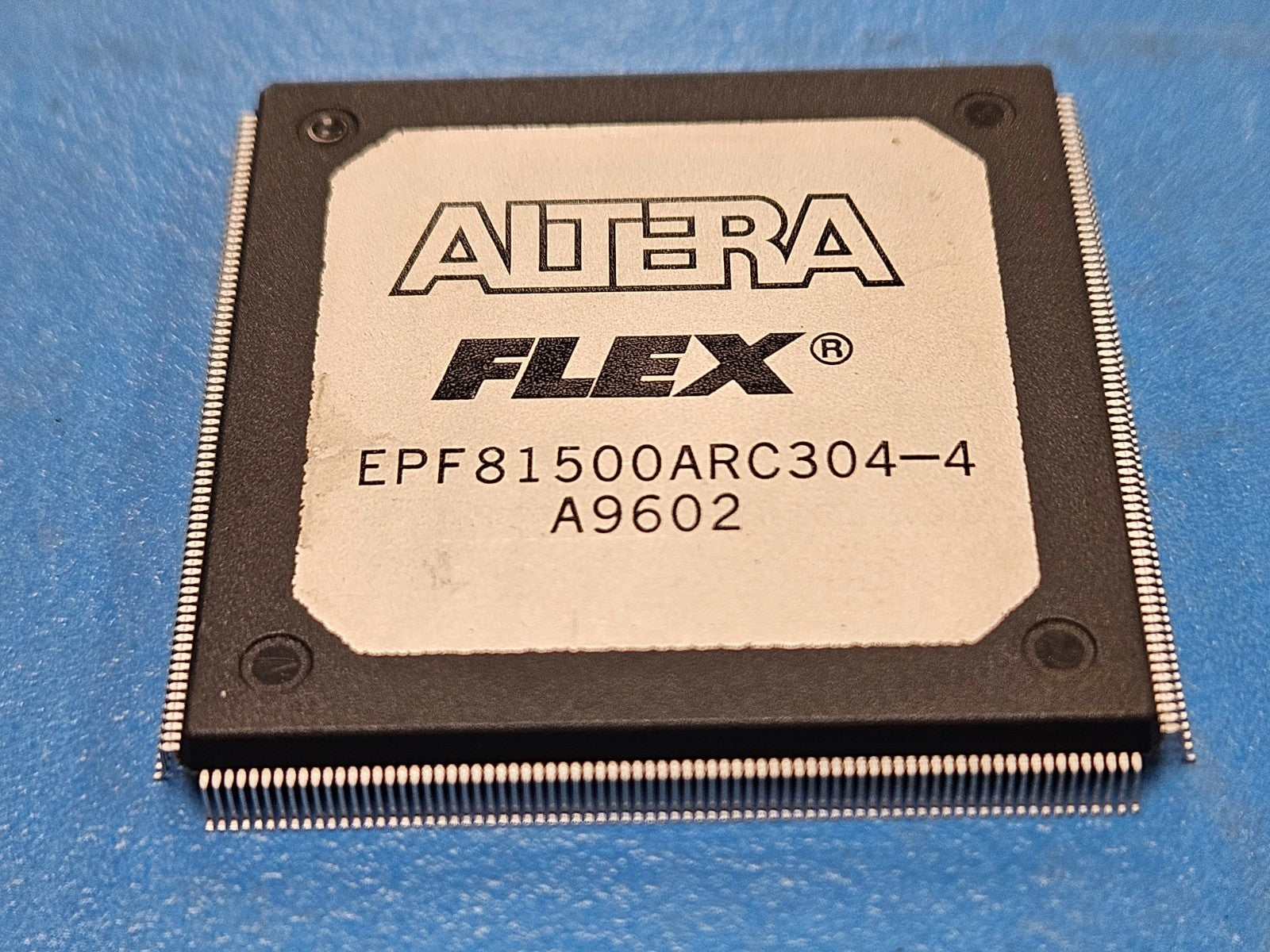

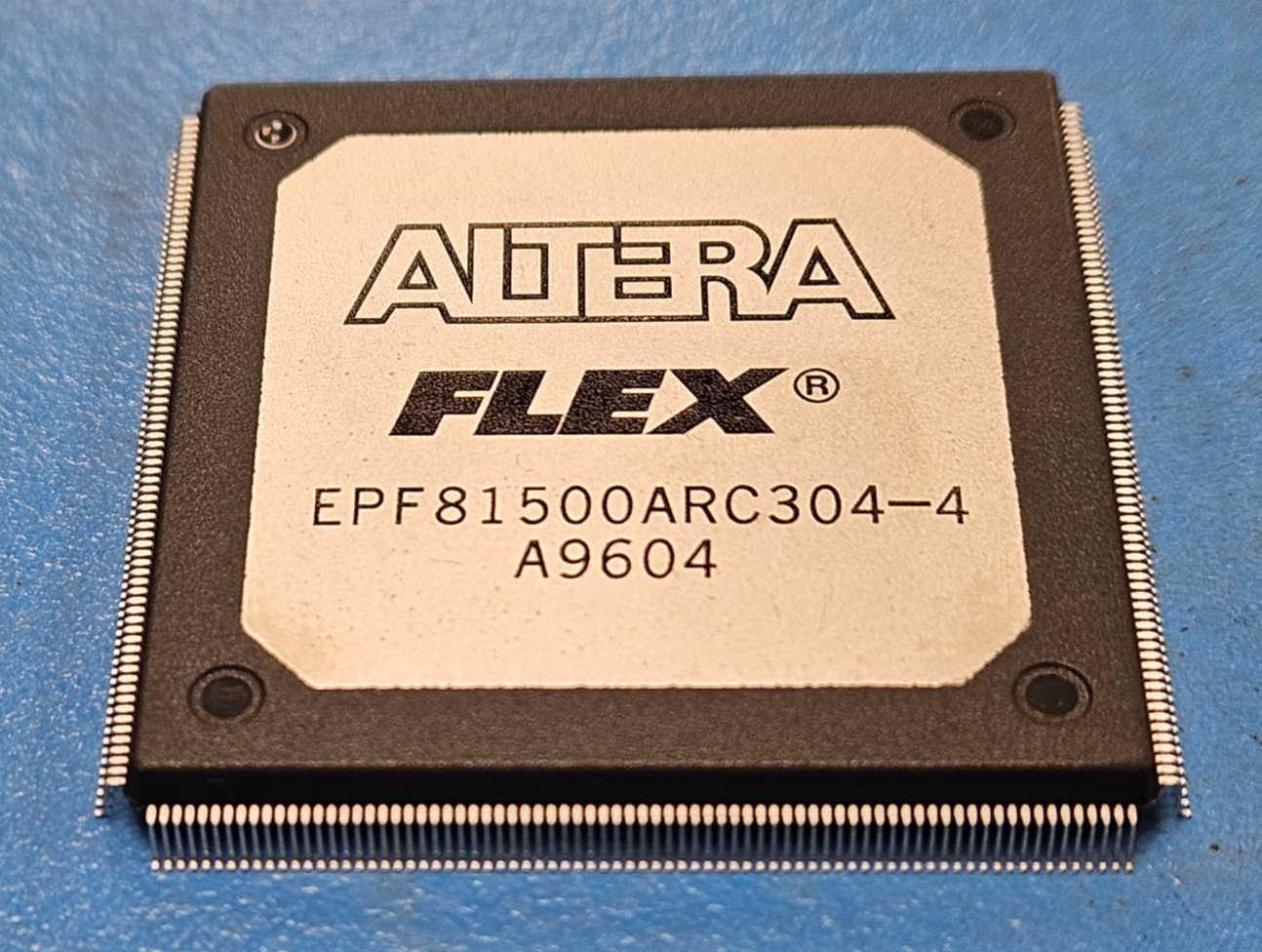

(1PC) EPF81500ARC304-4 Altera Loadable PLD, 1.9ns, CMOS, PQFP304
Tax included.
This listing is for (1PC) of EPF81500ARC304-4 by Altera
Status Discontinued
Additional Feature CAN ALSO OPERATE AT 5V SUPPLY
Clock Frequency-Max (MHz) 357.00000
JESD-30 Code S-PQFP-G304
J-STD-609 Code e0
Length (mm) 40.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 208
Number of Inputs 208
Number of Logic Cells 1296
Number of Outputs 204
Number of Terminals 304
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 208 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code HQFP304,1.7SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Programmable Logic Type LOADABLE PLD
Propagation Delay (ns) 1.900
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.5000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 40.0000
