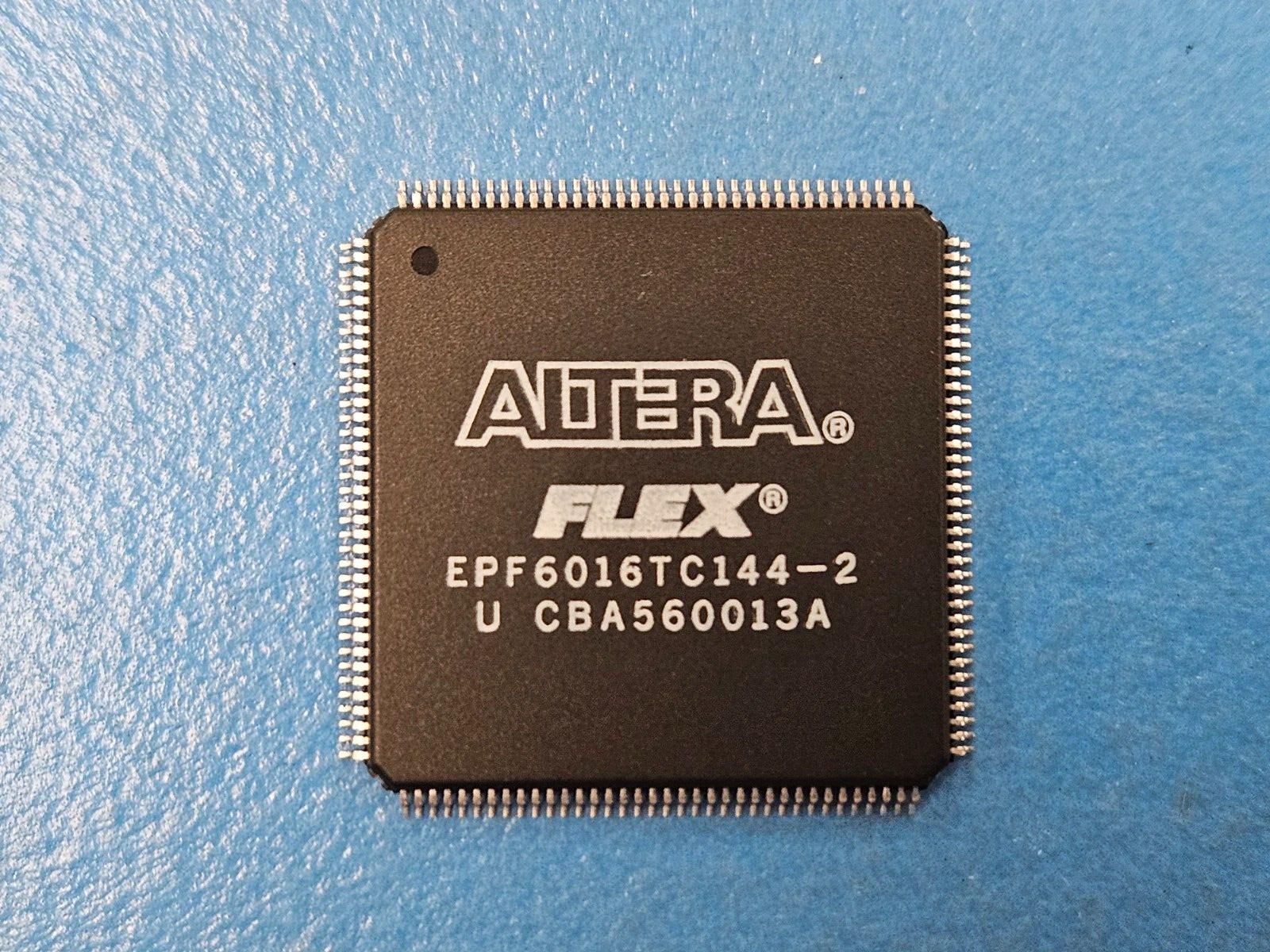

(1PC) EPF6016TC144-2 FPGA IC 117 1320 144-LQFP
Tax included.
The listing is for (1PC) of EPF6016TC144-2 by Altera
Mfr Package Description TQFP-144
Status Transferred
Programmable Logic Type LOADABLE PLD
Clock Frequency-Max 153.0 MHz
JESD-30 Code S-PQFP-G144
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4.0
Number of I/O Lines 117.0
Number of Inputs 117.0
Number of Logic Cells 1320.0
Number of Outputs 117.0
Number of Terminals 144
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 4 DEDICATED INPUTS, 117 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 20.0 mm
Width 20.0 mm
Additional Feature CAN ALSO BE USED 16000 LOGIC GATES
