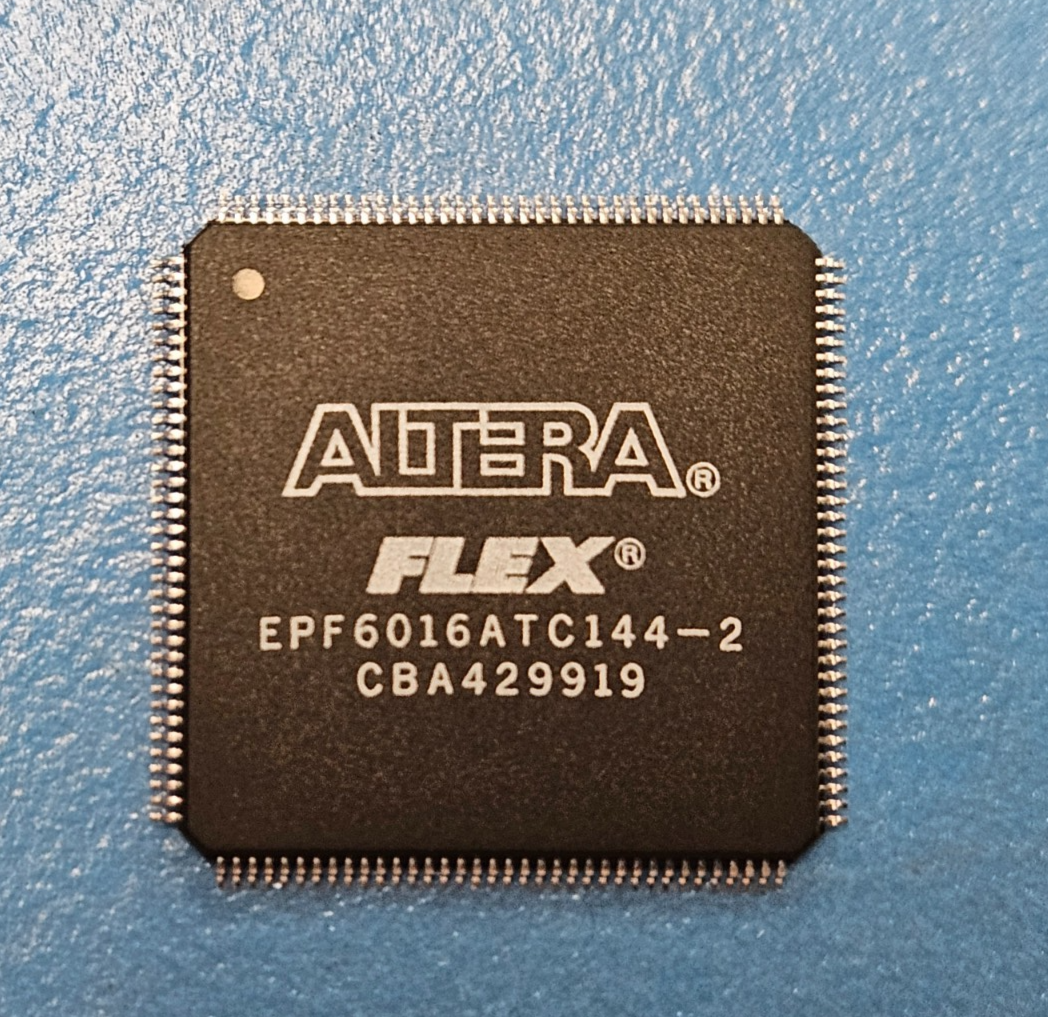

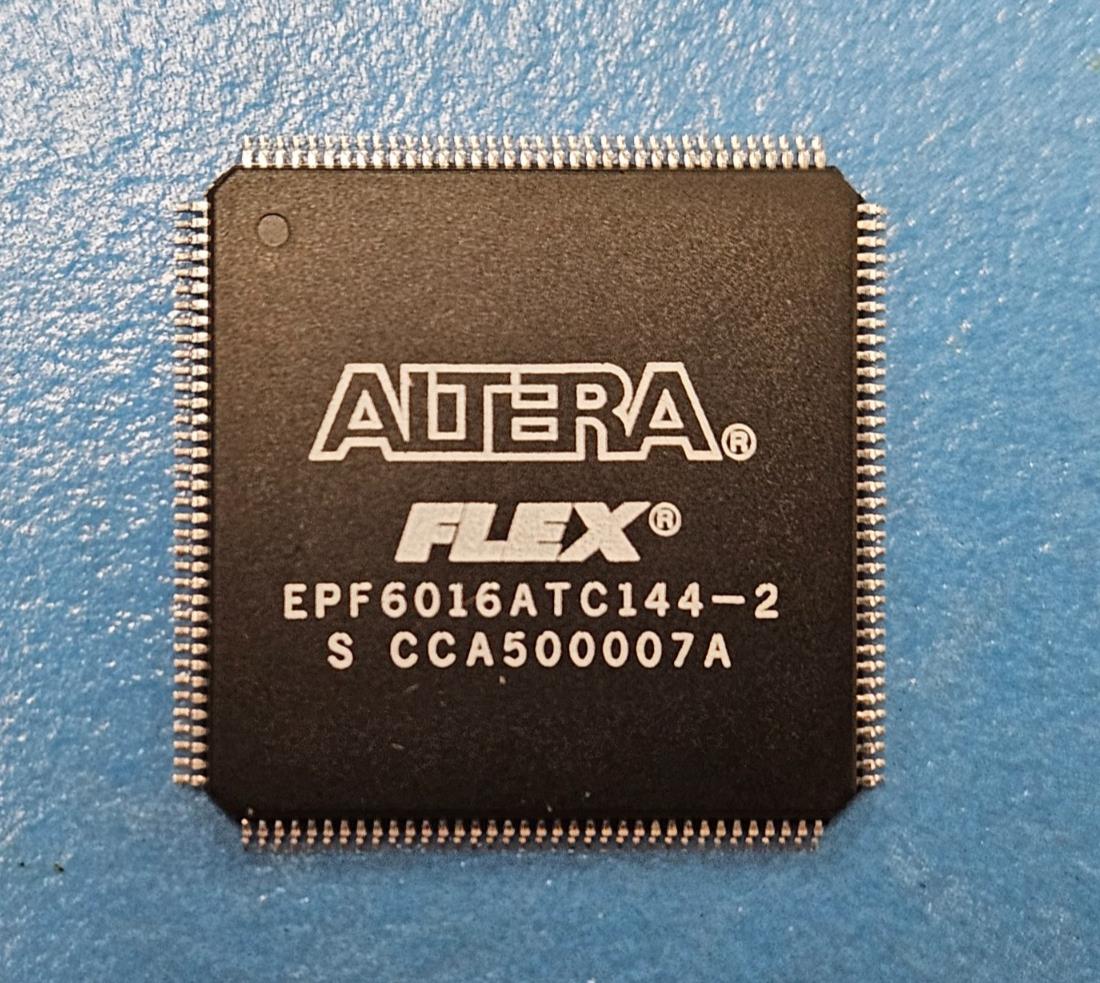

(1PC) EPF6016ATC144-2 Altera Loadable PLD, CMOS, PQFP144
Tax included.
This listing is for (1PC) of EPF6016ATC144-2 by Altera
Status Discontinued
Additional Feature CAN ALSO BE USED 16000 LOGIC GATES
Clock Frequency-Max (MHz) 153.00000
JESD-30 Code S-PQFP-G144
J-STD-609 Code e0
Length (mm) 20.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 117
Number of Inputs 117
Number of Logic Cells 1320
Number of Outputs 117
Number of Terminals 144
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 117 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Programmable Logic Type LOADABLE PLD
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form GULL WING
