(1PC) EPF10K70RC240-3 Altera FLEX-10K FPGA, 0.5ns, CMOS, PQFP240
(1PC) EPF10K70RC240-3 Altera FLEX-10K FPGA, 0.5ns, CMOS, PQFP240
(1PC) EPF10K70RC240-3 Altera FLEX-10K FPGA, 0.5ns, CMOS, PQFP240

(1PC) EPF10K70RC240-3 Altera FLEX-10K FPGA, 0.5ns, CMOS, PQFP240

Tax included.
Only 20 left!

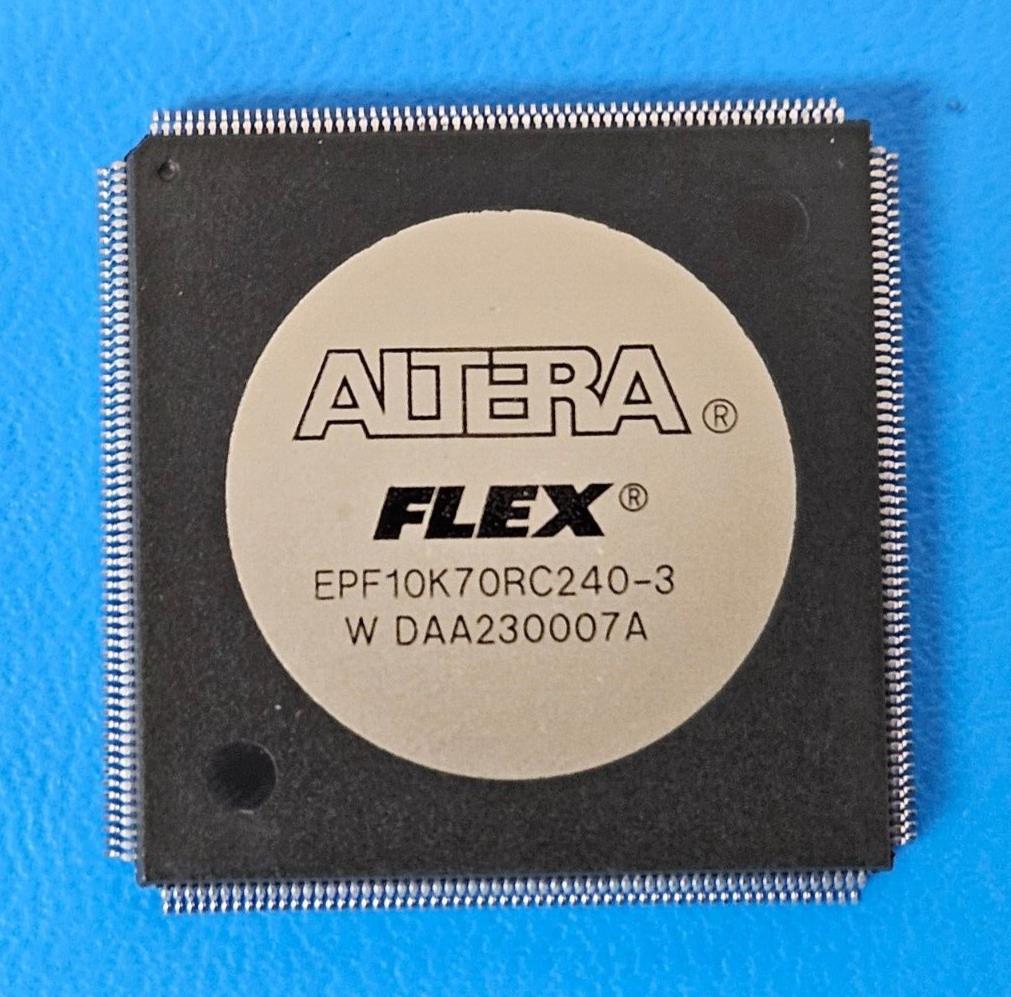

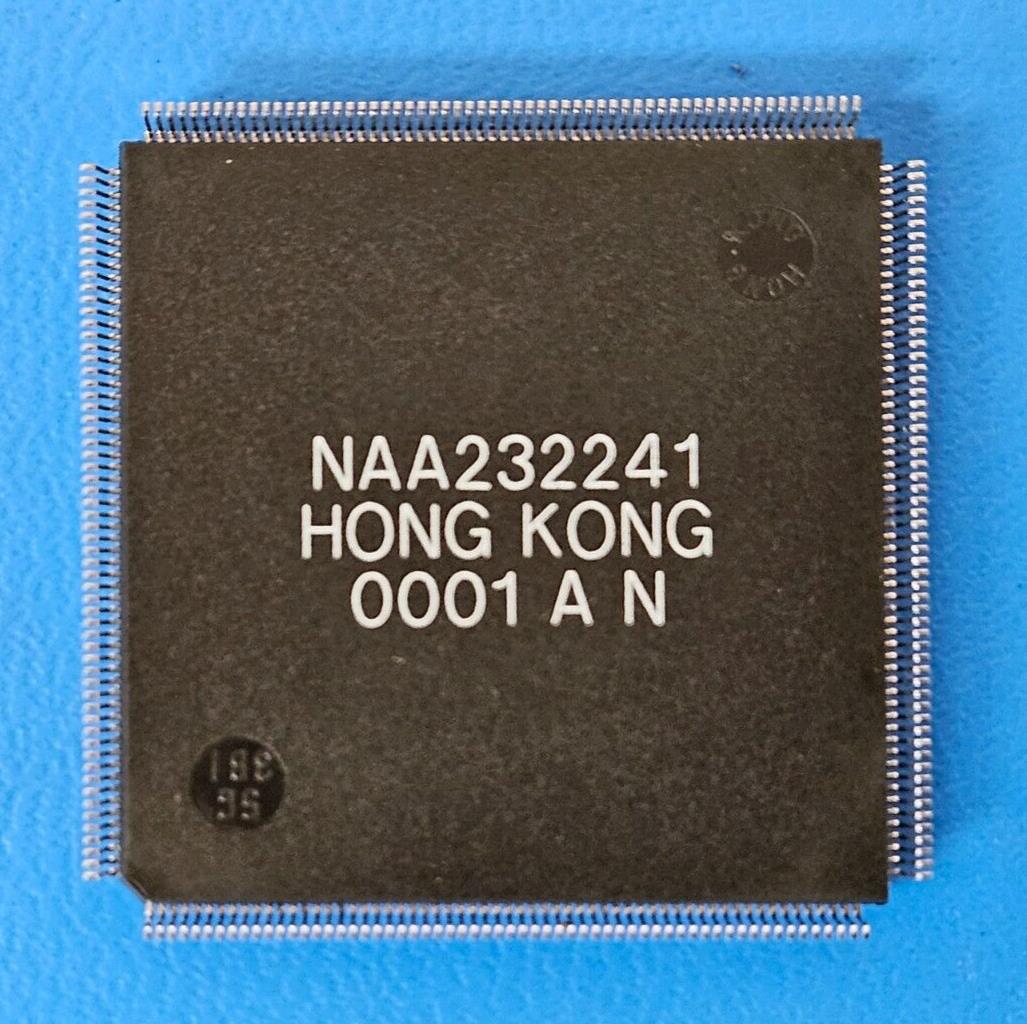

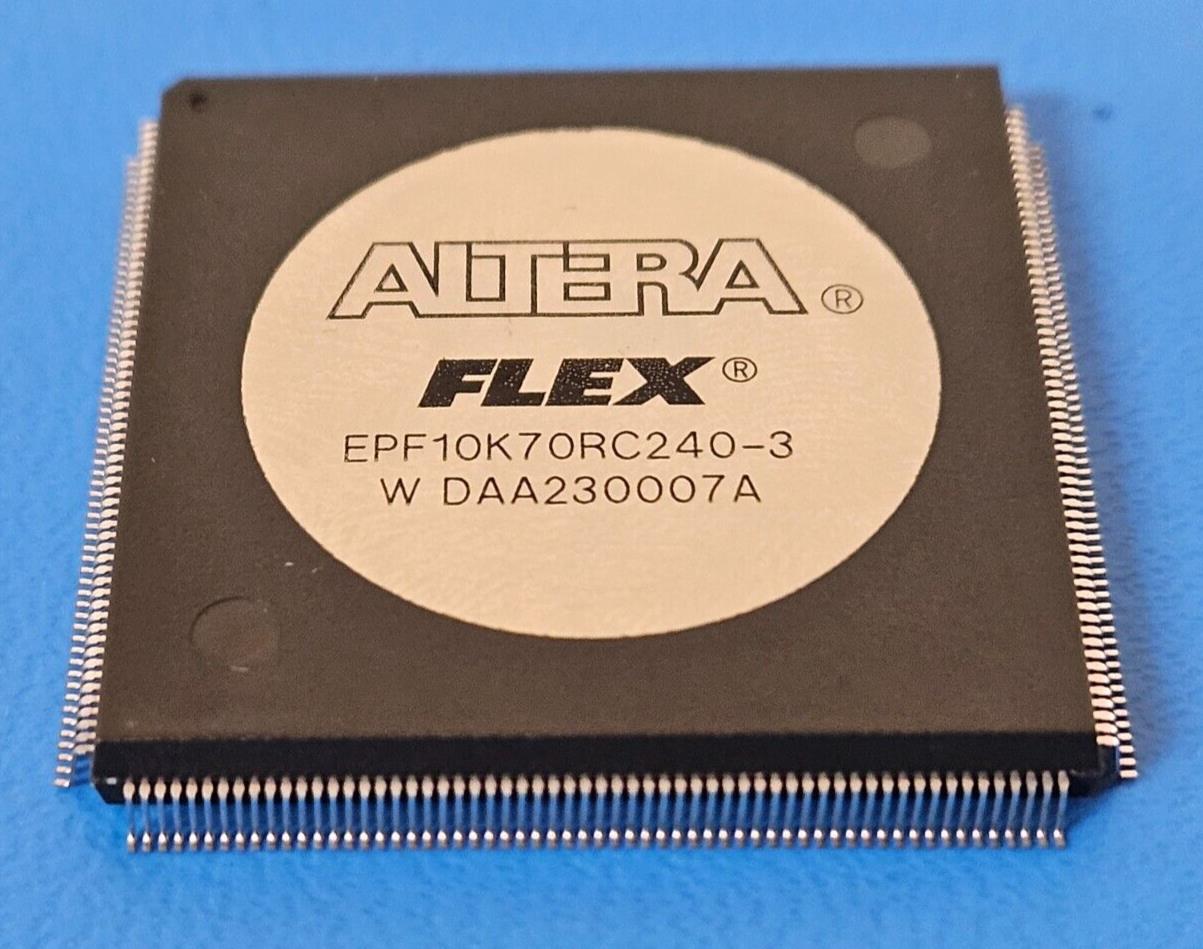

This listing is for (1PC) of EPF10K70RC240-3 by Altera


Mfr Package Description RQFP-240
Status Transferred
Programmable Logic Type LOADABLE PLD
Clock Frequency-Max 54.1  MHz
JESD-30 Code S-PQFP-G240
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4.0
Number of I/O Lines 189.0
Number of Inputs 358.0
Number of Logic Cells 3744.0
Number of Outputs 354.0
Number of Terminals 240
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 4 DEDICATED INPUTS, 189 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code HFQFP
Package Equivalence Code HQFP240,1.37SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Propagation Delay 0.5  ns
Qualification Status Not Qualified
Seated Height-Max 4.1  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 32.0  mm
Width 32.0  mm
Additional Feature 3744 LOGIC ELEMENTS
