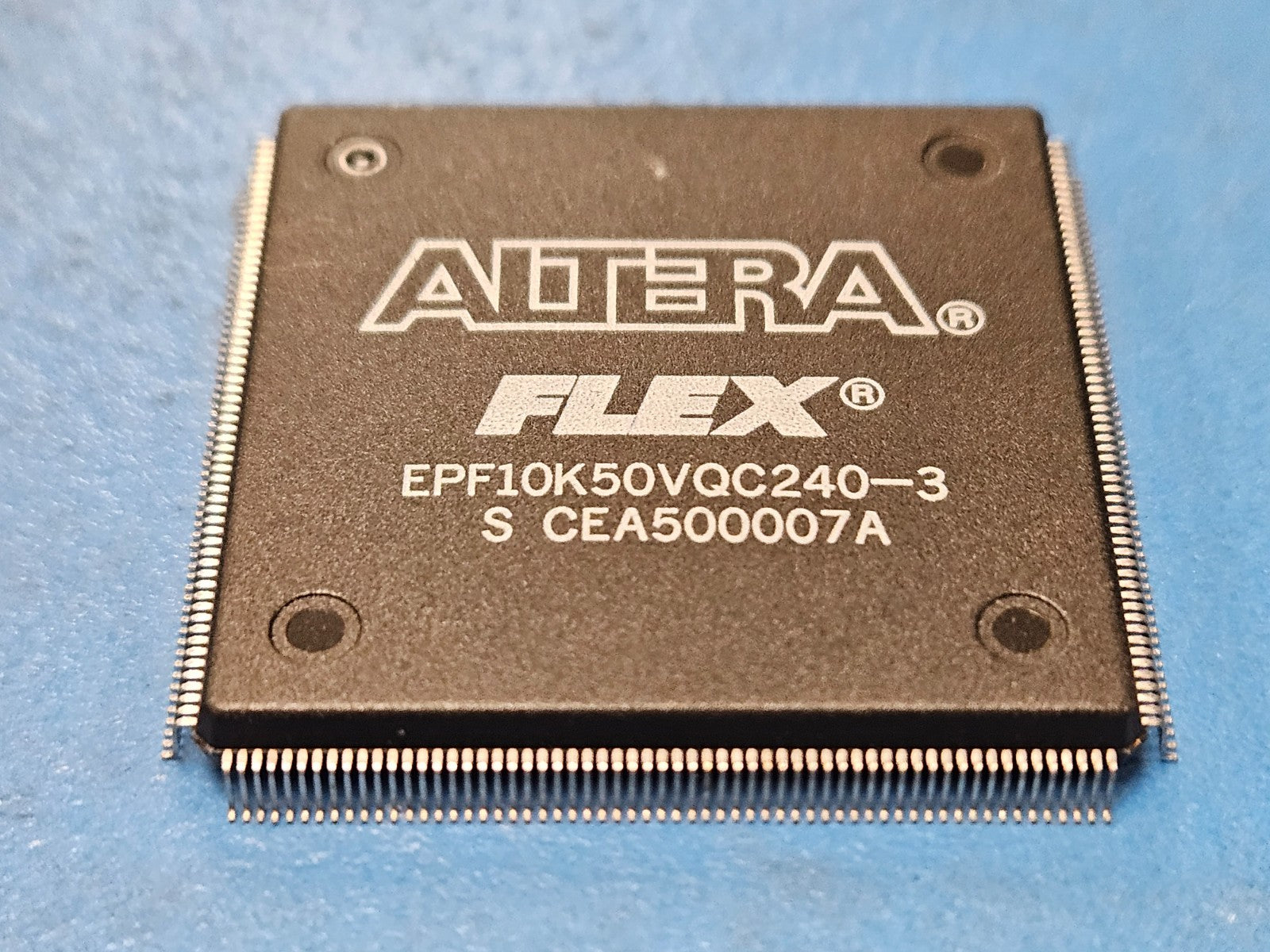

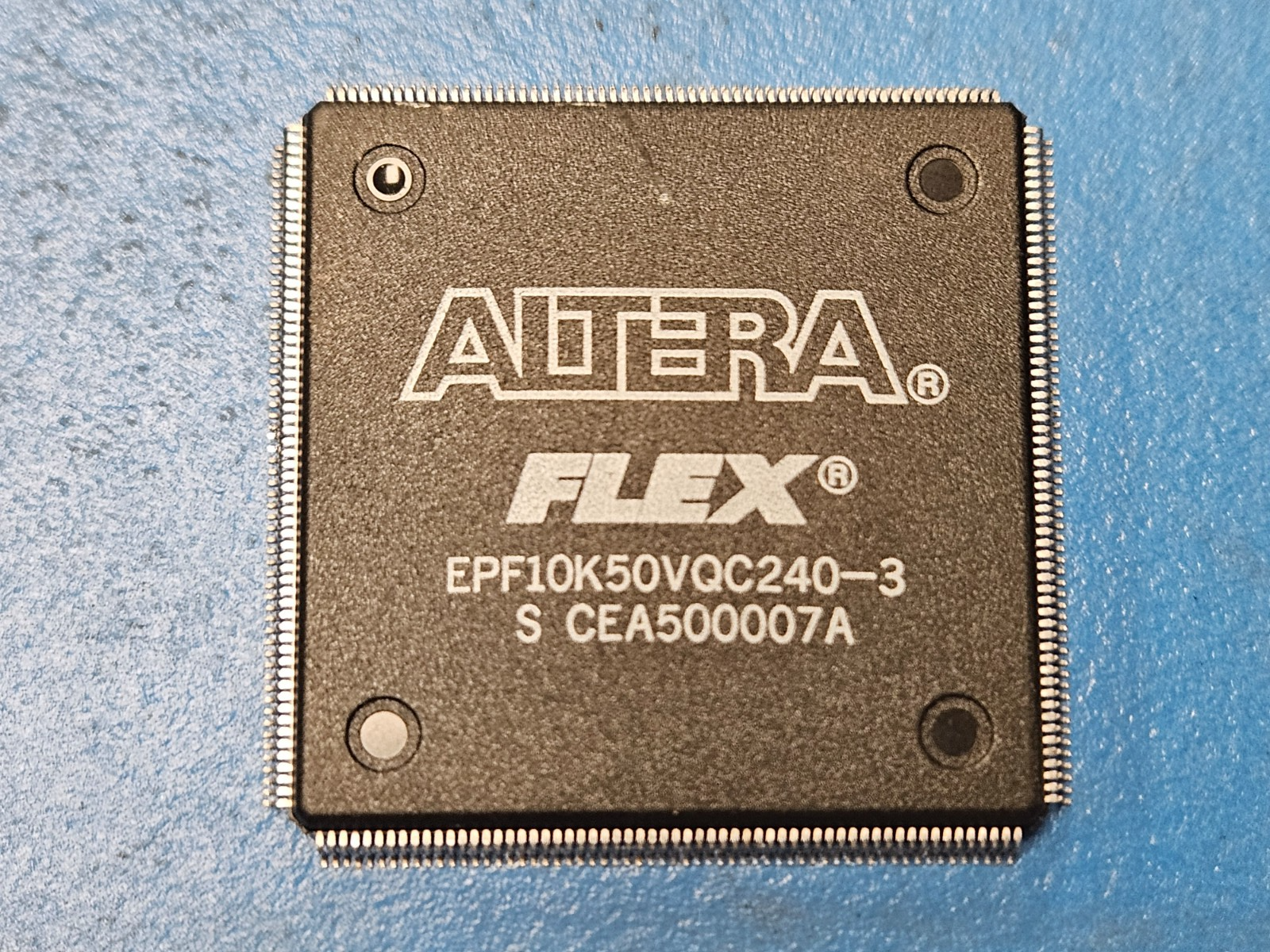

(1PC) EPF10K50VQC240-3 Altera Loadable PLD, 0.5ns, CMOS, PQFP240
Tax included.
This listing is for (1PC) of EPF10K50VQC240-3 by Altera
Status Discontinued
Clock Frequency-Max (MHz) 434.70000
JESD-30 Code S-PQFP-G240
J-STD-609 Code e0
Length (mm) 32.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 185
Number of Inputs 189
Number of Logic Cells 2880
Number of Outputs 185
Number of Terminals 240
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 4 DEDICATED INPUTS, 181 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP240,1.3SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Programmable Logic Type LOADABLE PLD
Propagation Delay (ns) 0.500
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.1000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Width (mm) 32.0000
