(1PC) EPF10K30AQI240-3 Altera Loadable PLD, 0.9ns, CMOS, PQFP240
Tax included.

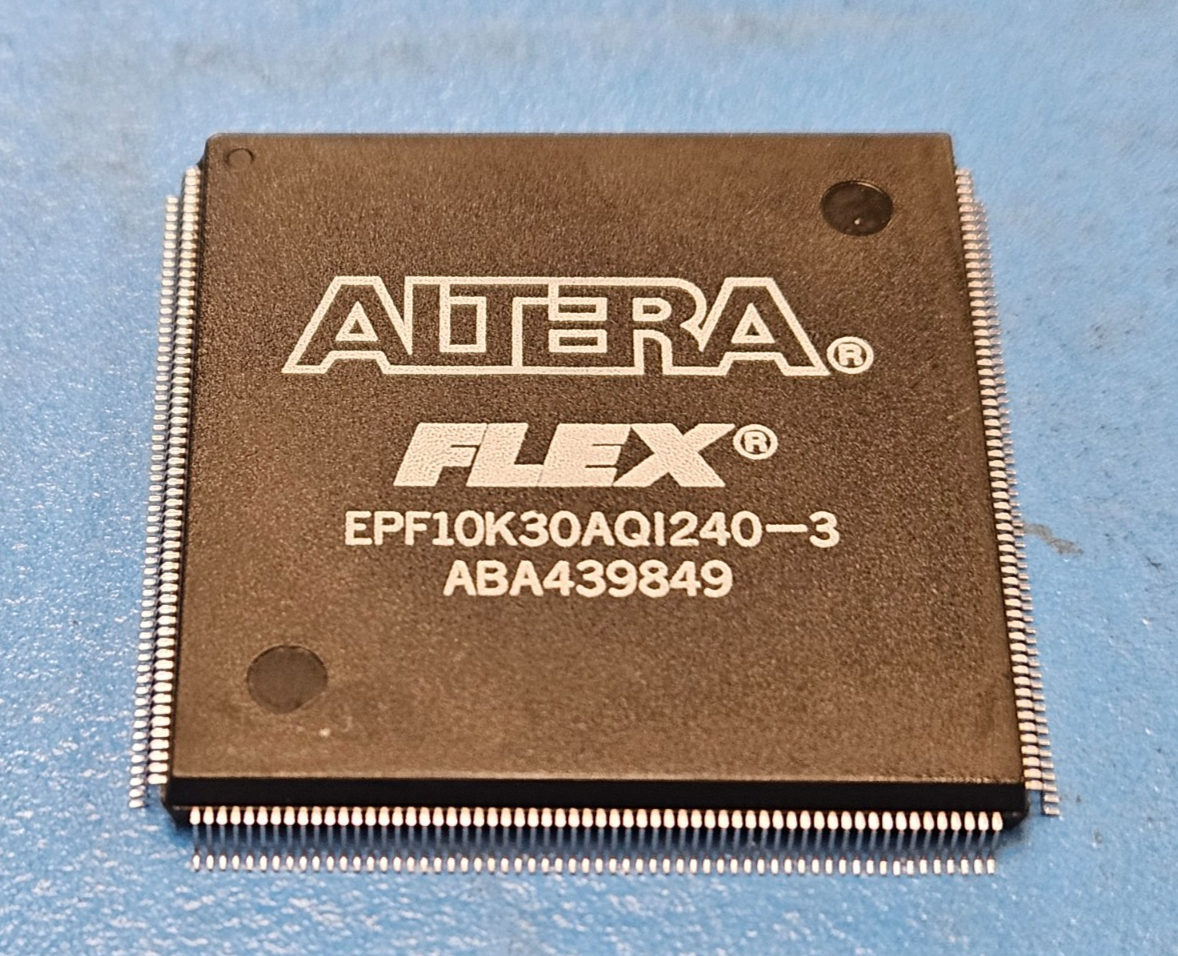

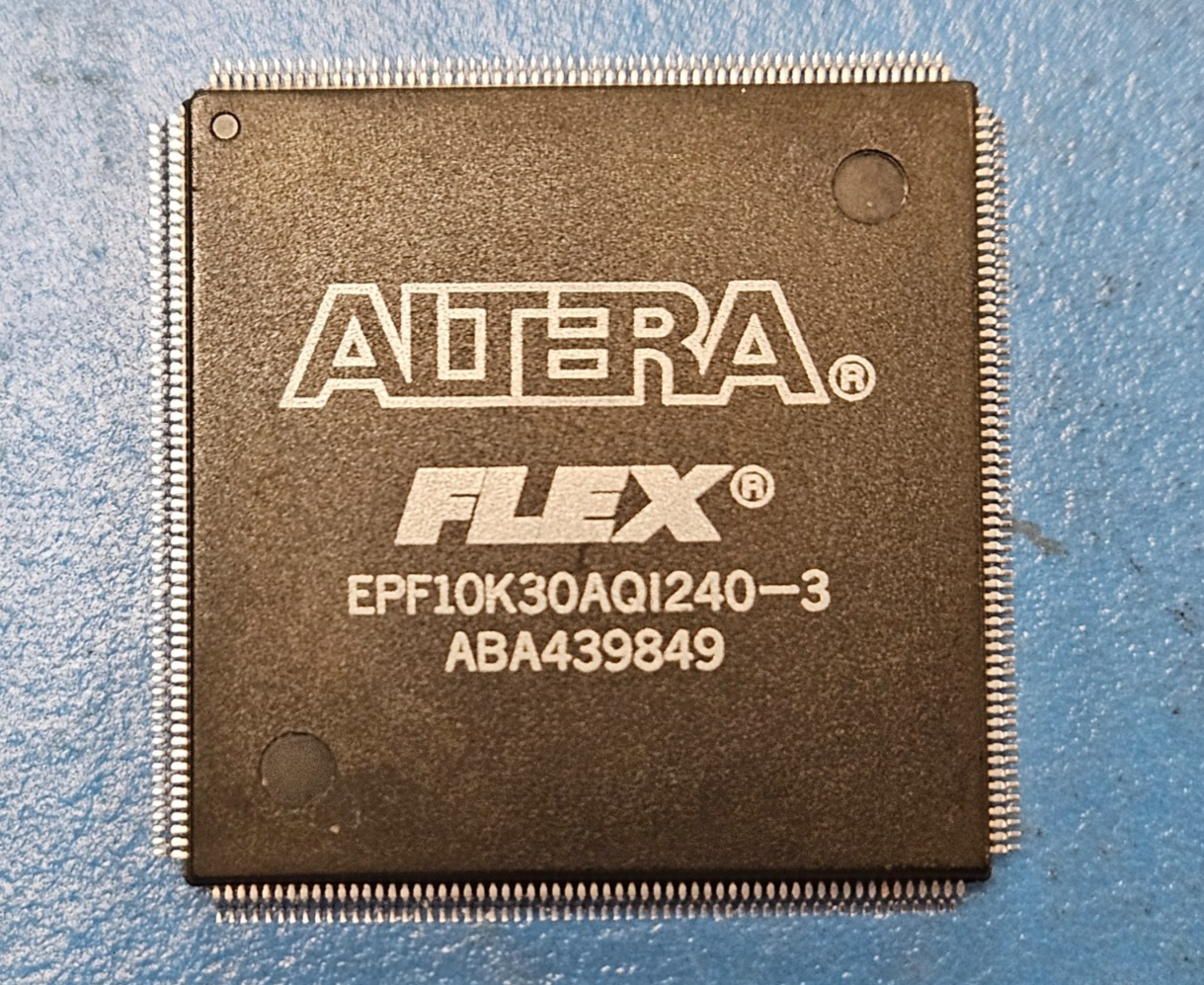

This listing is for (1PC) of EPF10K30AQI240-3 by Altera
Status Transferred
Additional Feature 1728 LOGIC ELEMENTS; 216 LABS
Clock Frequency-Max (MHz) 80.00000
JESD-30 Code S-PQFP-G240
J-STD-609 Code e0
Length (mm) 32.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4
Number of I/O Lines 189
Number of Inputs 246
Number of Logic Cells 1728
Number of Outputs 246
Number of Terminals 240
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -40.0
Organization 4 DEDICATED INPUTS, 189 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP240,1.3SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Programmable Logic Type LOADABLE PLD
Propagation Delay (ns) 0.900
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.1000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Width (mm) 32.0000
