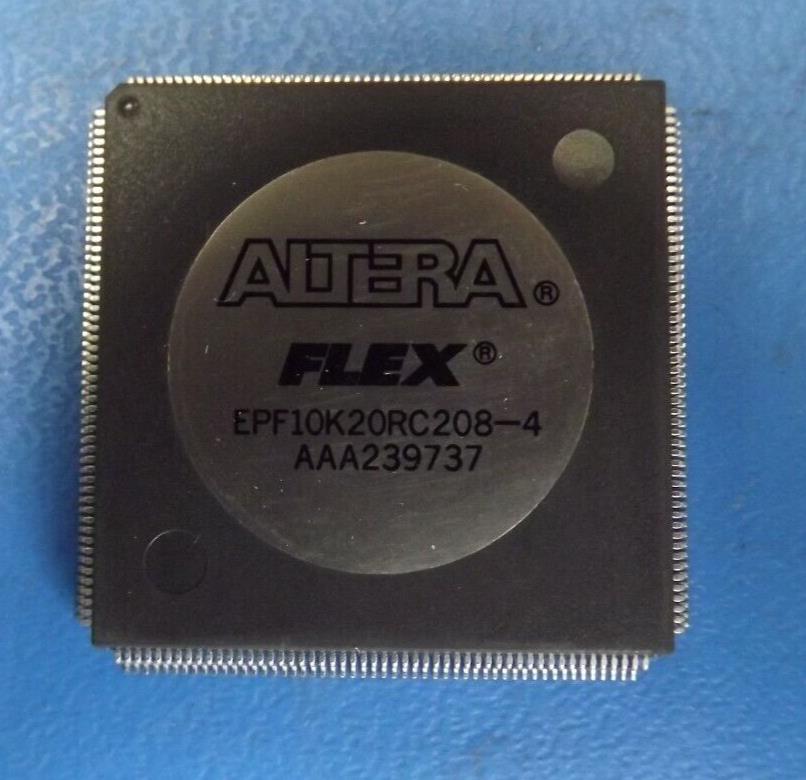

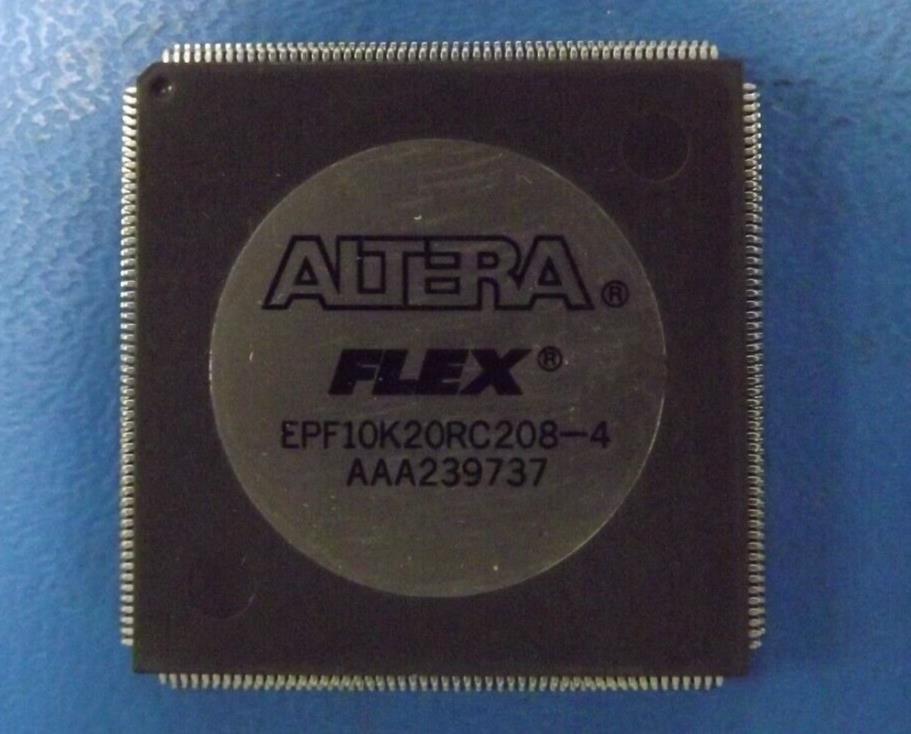

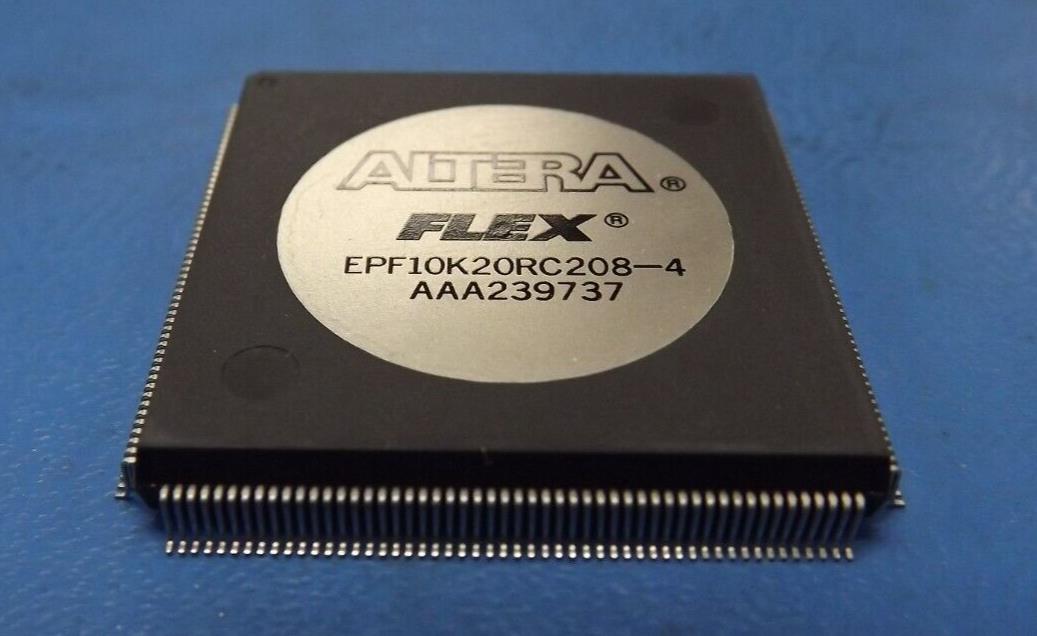

(1PC) EPF10K20RC208-4 ALTERA Loadable PLD, 0.6ns, CMOS, PQFP208
Tax included.
THIS LISTING IS FOR (1PC) OF EPF10K20RC208-4 BY ALTERA
Mfr Package Description RQFP-208
Status Transferred
Programmable Logic Type LOADABLE PLD
Clock Frequency-Max 67.11 MHz
JESD-30 Code S-PQFP-G208
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of Dedicated Inputs 4.0
Number of I/O Lines 147.0
Number of Inputs 147.0
Number of Logic Cells 1152.0
Number of Outputs 147.0
Number of Terminals 208
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4 DEDICATED INPUTS, 147 I/O
Output Function REGISTERED
Package Body Material PLASTIC/EPOXY
Package Code HFQFP
Package Equivalence Code HQFP208,1.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 3.3/5,5
Propagation Delay 0.6 ns
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 28.0 mm
Width 28.0 mm
Additional Feature 1152 LOGIC ELEMENTS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
