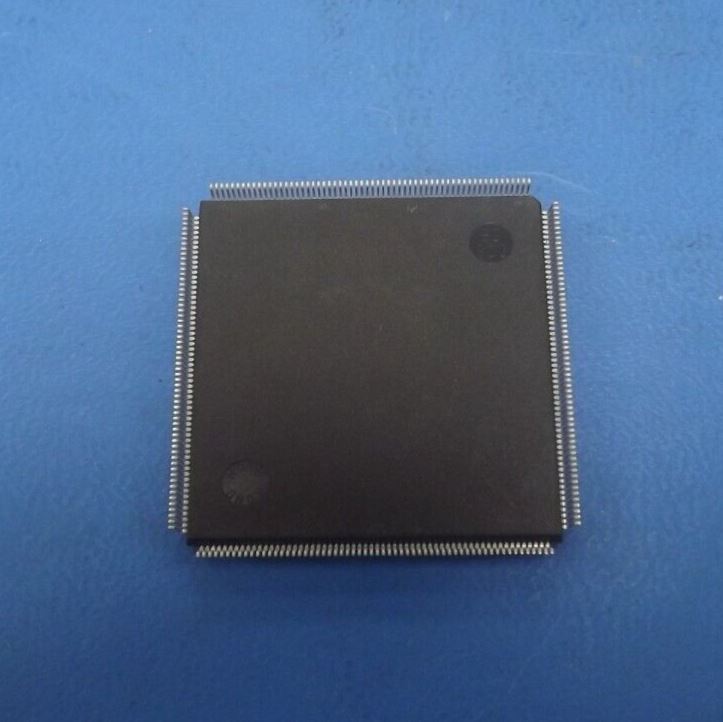

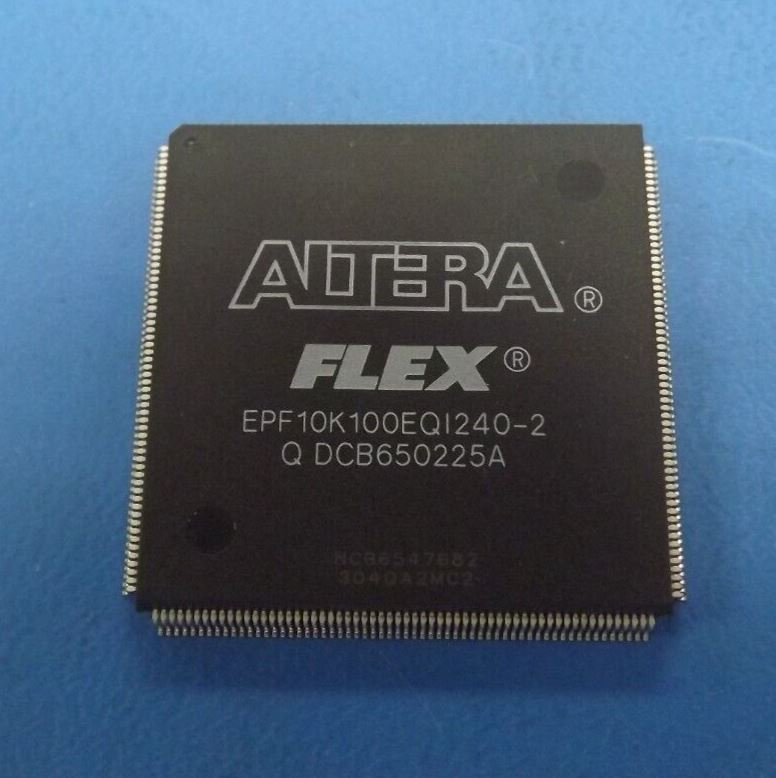

(1PC) EPF10K100EQI240-2 FPGA 250MHz CMOS 2.5V 240-Pin PQFP
Tax included.
THIS LISTING IS FOR (1PC) OF EPF10K100EQI240-2 BY ALTERA
Mfr Package Description 34.60 X 34.60 MM, 0.50 MM PITCH, PLASTIC, QFP-240
Status Discontinued
Programmable Logic Type LOADABLE PLD
JESD-30 Code S-PQFP-G240
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of I/O Lines 189.0
Number of Inputs 189.0
Number of Logic Cells 4992.0
Number of Outputs 189.0
Number of Terminals 240
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 189 I/O
Output Function MIXED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP240,1.3SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 2.5,2.5/3.3
Propagation Delay 0.5 ns
Qualification Status Not Qualified
Seated Height-Max 4.1 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 2.5 V
Supply Voltage-Min 2.375 V
Supply Voltage-Max 2.625 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Length 32.0 mm
Width 32.0 mm
