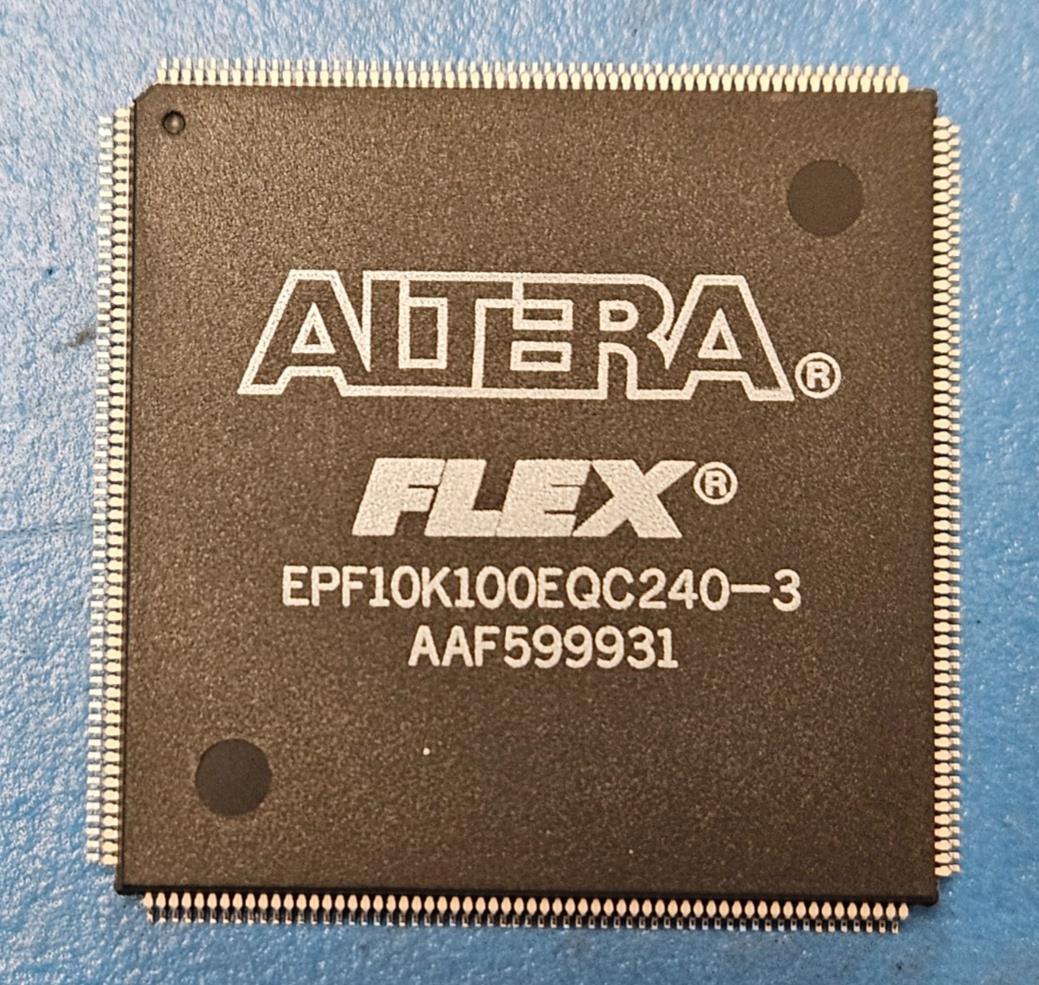

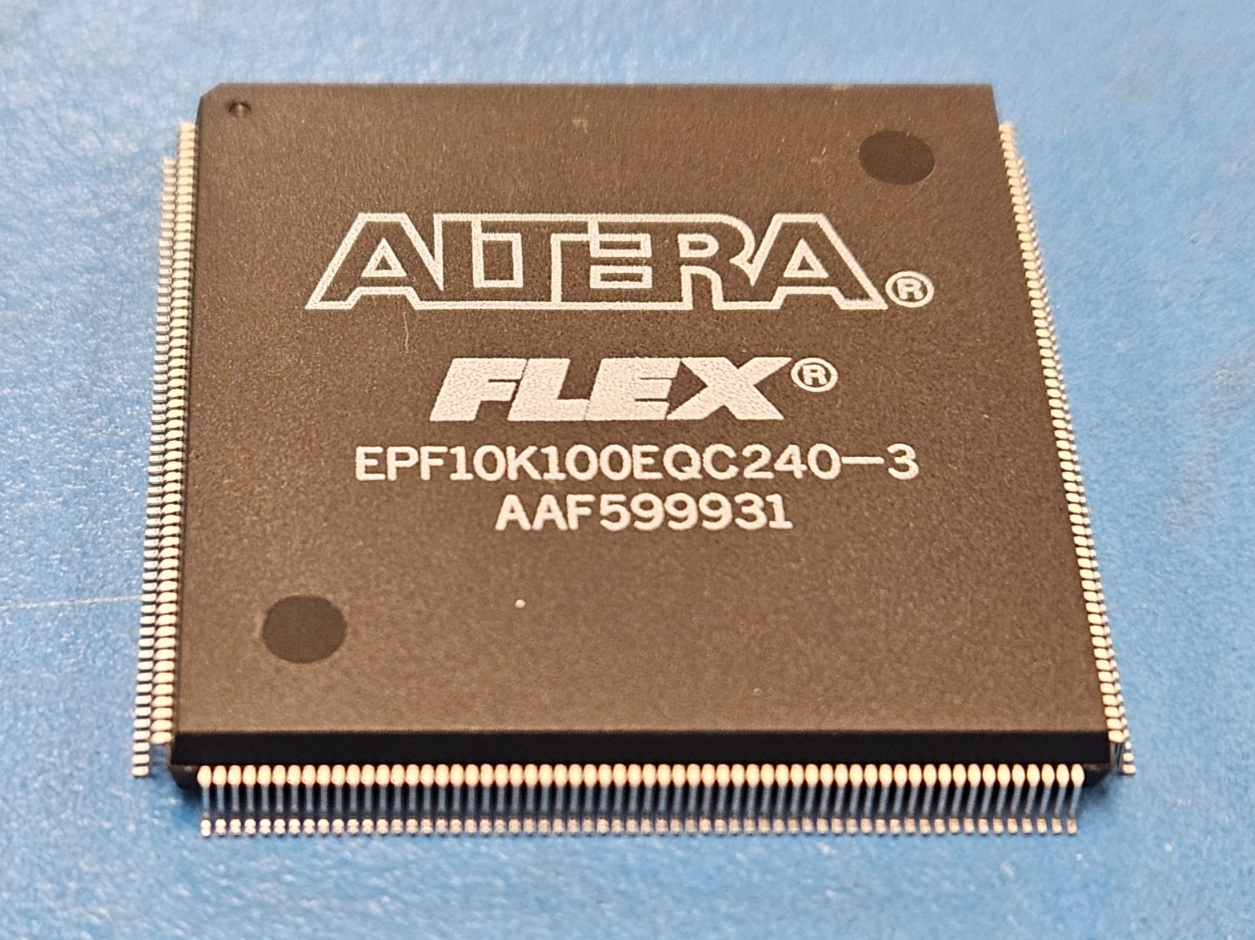

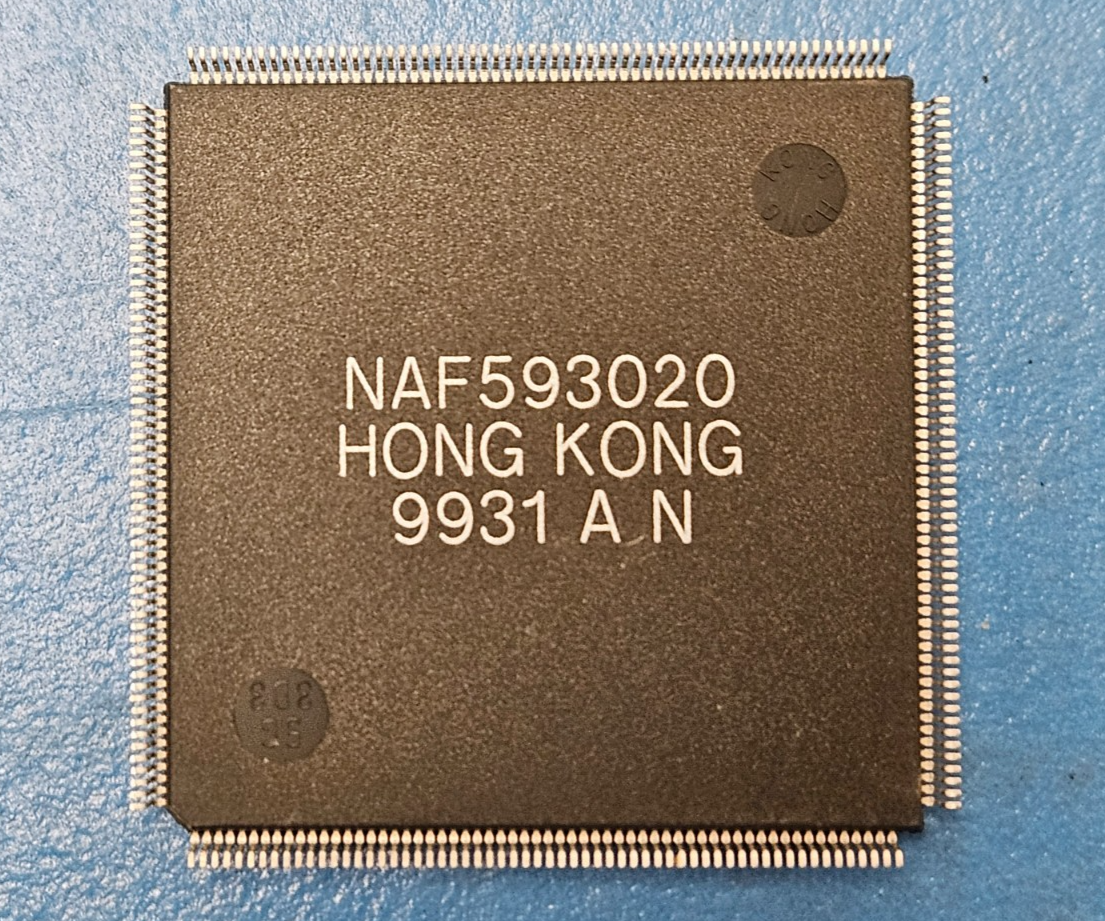

(1PC) EPF10K100EQC240-3 FPGA FLEX 100K Gates 4992 Cells 200MHz CMOS 2.5V 240QFP
Tax included.
This listing is for (1PC) of EPF10K100EQC240-3 by Altera
Status Discontinued
Additional Feature 4992 LOGIC ELEMENTS
Clock Frequency-Max (MHz) 555.00000
JESD-30 Code S-PQFP-G240
J-STD-609 Code e0
Length (mm) 32.0000
Moisture Sensitivity Level 3
Number of Dedicated Inputs 6
Number of I/O Lines 189
Number of Inputs 189
Number of Logic Cells 4992
Number of Outputs 189
Number of Terminals 240
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 6 DEDICATED INPUTS, 189 I/O
Output Function MIXED
Package Body Material PLASTIC/EPOXY
Package Code FQFP
Package Equivalence Code QFP240,1.3SQ,20
Package Shape SQUARE
Package Style FLATPACK, FINE PITCH
Programmable Logic Type LOADABLE PLD
Propagation Delay (ns) 0.700
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.1000
Supply Voltage-Max (V) 2.62500
Supply Voltage-Min (V) 2.37500
Supply Voltage-Nom (V) 2.5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Width (mm) 32.0000
