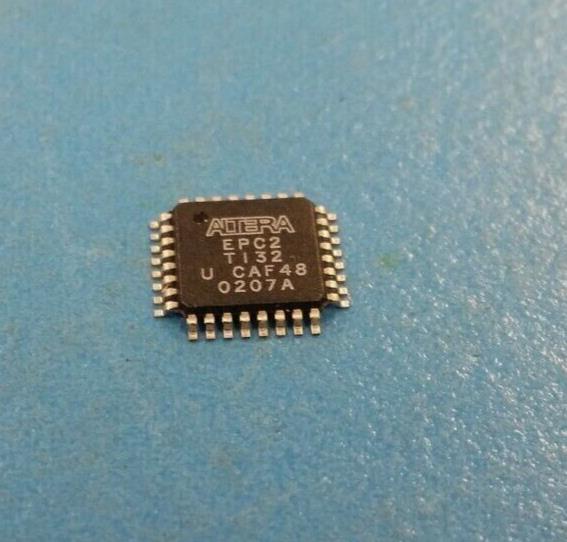

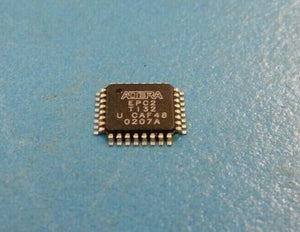

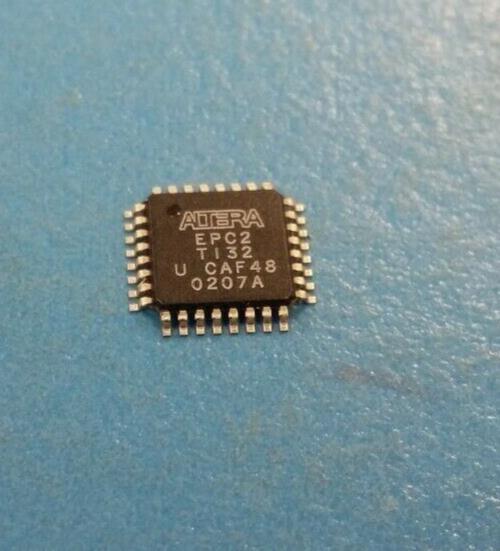

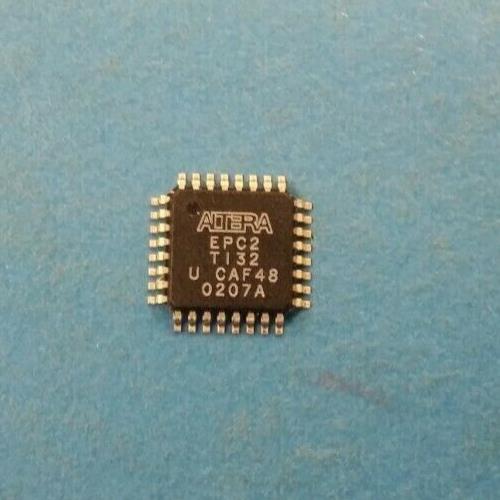

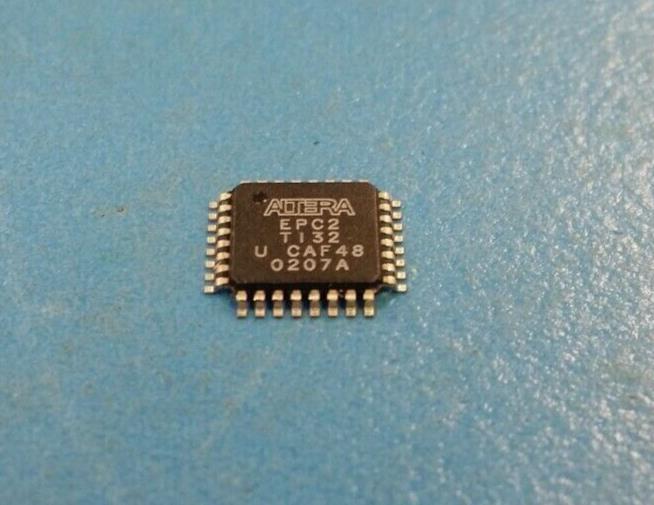

(1pc) EPC2TI32 SRAM Chip Sync 3.3V/5V 1.6M-bit 32-Pin TQFP
Tax included.
THIS LISTING IS FOR (1PC) OF EPC2TI32 BY ALTERA
Mfr Package Description TQFP-32
Status Transferred
Sub Category Flash Memories
I/O Type COMMON
JESD-30 Code S-PQFP-G32
JESD-609 Code e0
Memory Density 1695680.0 bit
Memory IC Type CONFIGURATION MEMORY
Memory Width 1
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words 1695680.0 words
Number of Words Code 1695680
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 1695680X1
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.05 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 7.0 mm
Width 7.0 mm
Additional Feature IT CAN ALSO OPERATE AT 5V SUPPLY
