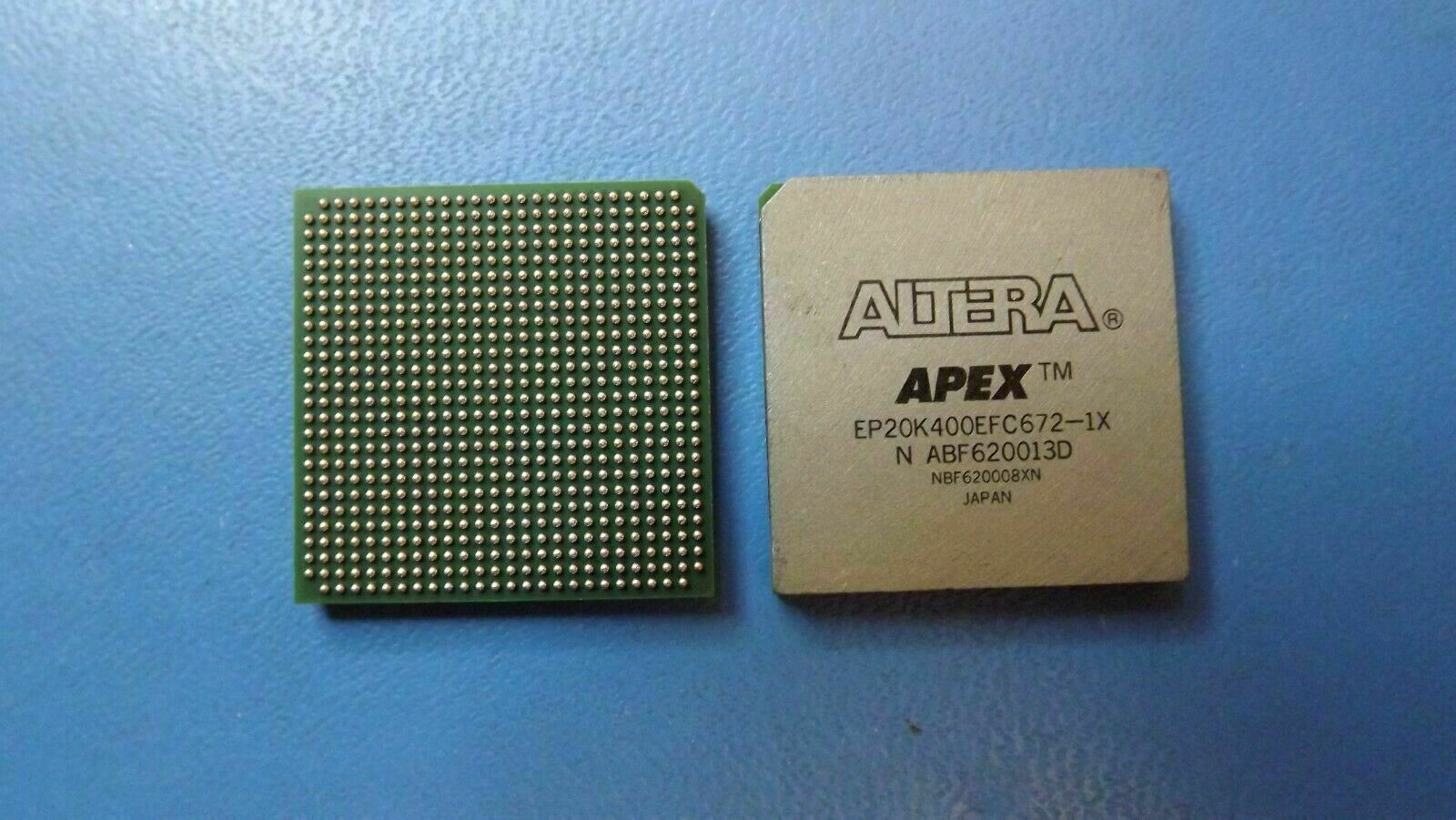

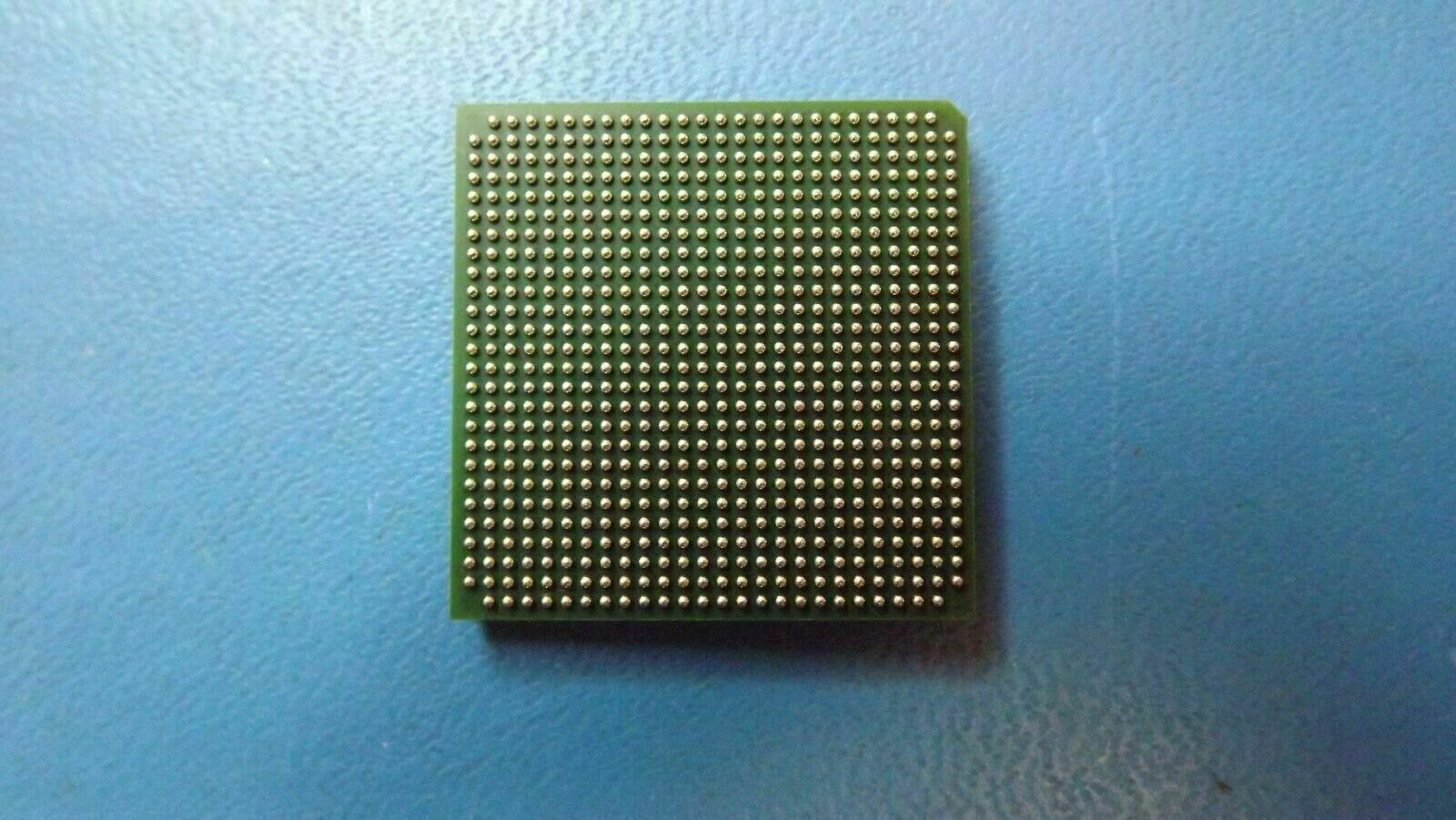

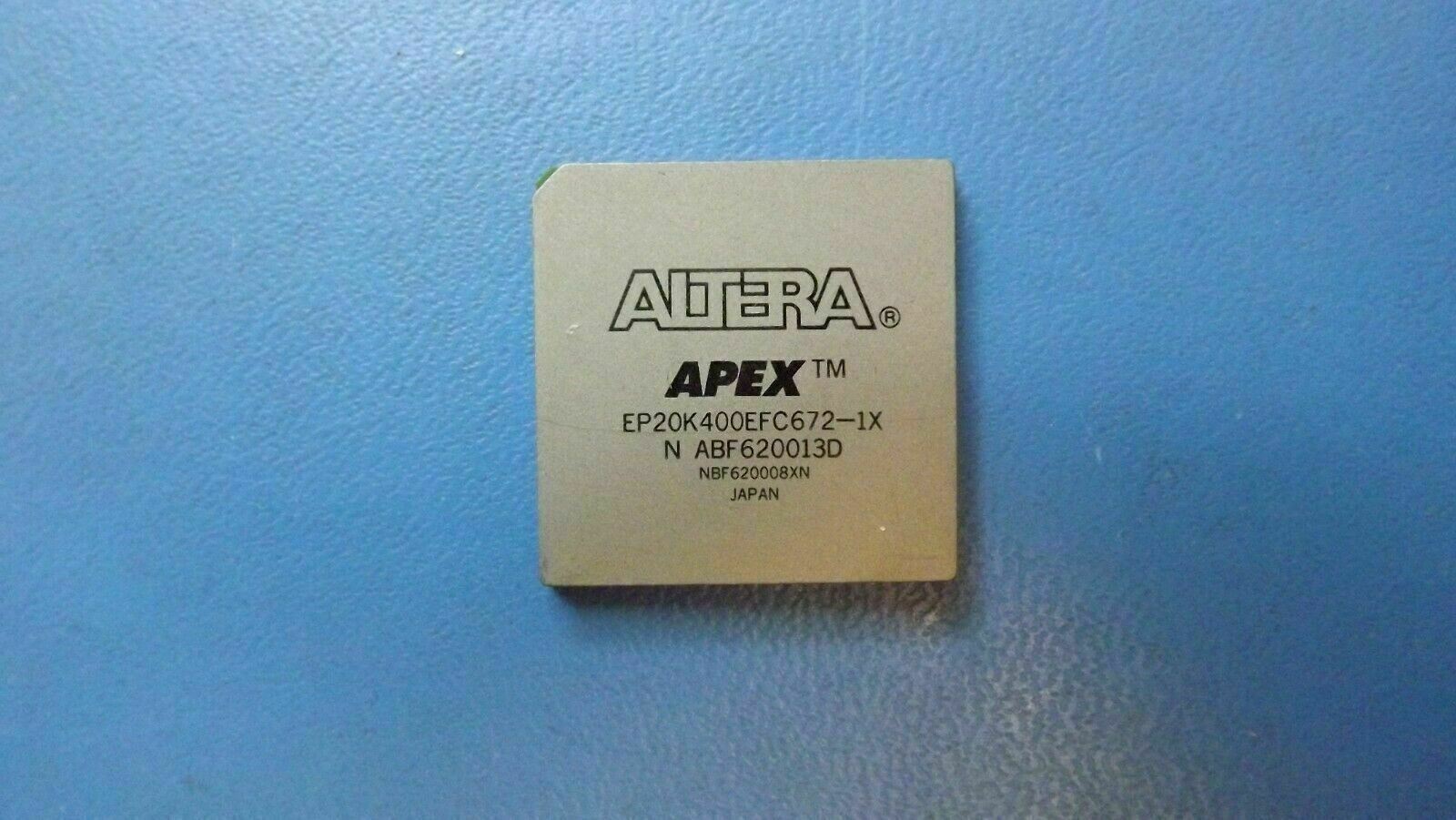

(1PC) EP20K400EFC672-1X ALTERA FPGA-CPLD-APEX 20K 1664 Macros 488 IO PBGA672
Tax included.
THIS LISTING IS FOR (1PC) OF EP20K400EFC672-1X BY ALTERA
SPECIFICATIONS
| Mfr Package Description | FINE LINE, BGA-672 |
| Status | Transferred |
| Programmable Logic Type | LOADABLE PLD |
| Clock Frequency-Max | 160.0 MHz |
| JESD-30 Code | S-PBGA-B672 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 3 |
| Number of Dedicated Inputs | 4.0 |
| Number of I/O Lines | 488.0 |
| Number of Inputs | 480.0 |
| Number of Logic Cells | 16640.0 |
| Number of Outputs | 480.0 |
| Number of Terminals | 672 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 4 DEDICATED INPUTS, 488 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | BGA |
| Package Equivalence Code | BGA672,26X26,40 |
| Package Shape | SQUARE |
| Package Style | GRID ARRAY |
| Peak Reflow Temperature (Cel) | 220 |
| Power Supplies | 1.8,1.8/3.3 |
| Propagation Delay | 1.57 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.5 mm |
| Sub Category | Field Programmable Gate Arrays |
| Supply Voltage-Nom | 1.8 V |
| Supply Voltage-Min | 1.71 V |
| Supply Voltage-Max | 1.89 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Finish | Tin/Lead (Sn63Pb37) |
| Terminal Form | BALL |
| Terminal Pitch | 1.0 mm |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 27.0 mm |
| Width | 27.0 mm |
