(1PC) EP1K100FC484-2 ALTERA FPGA IC 624 LABs 333 IOs
Tax included.

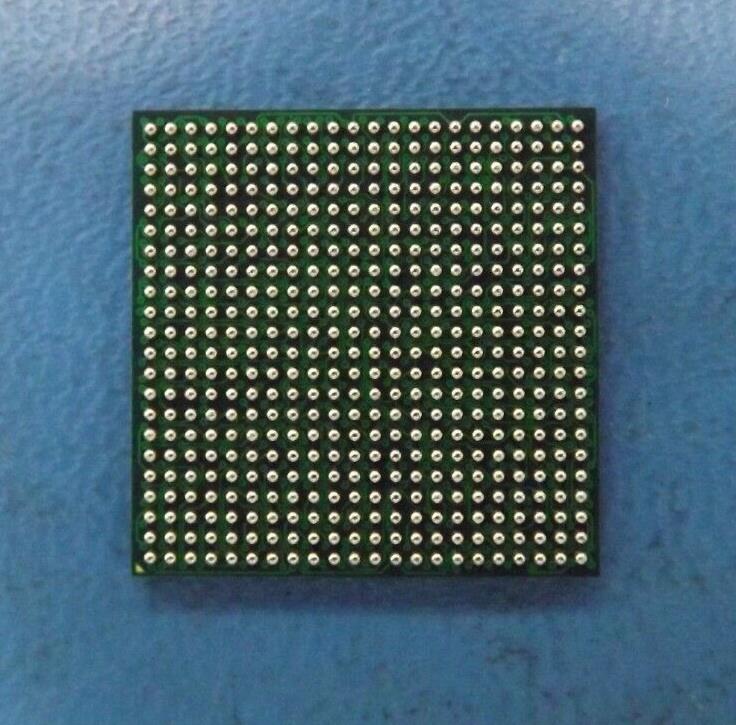

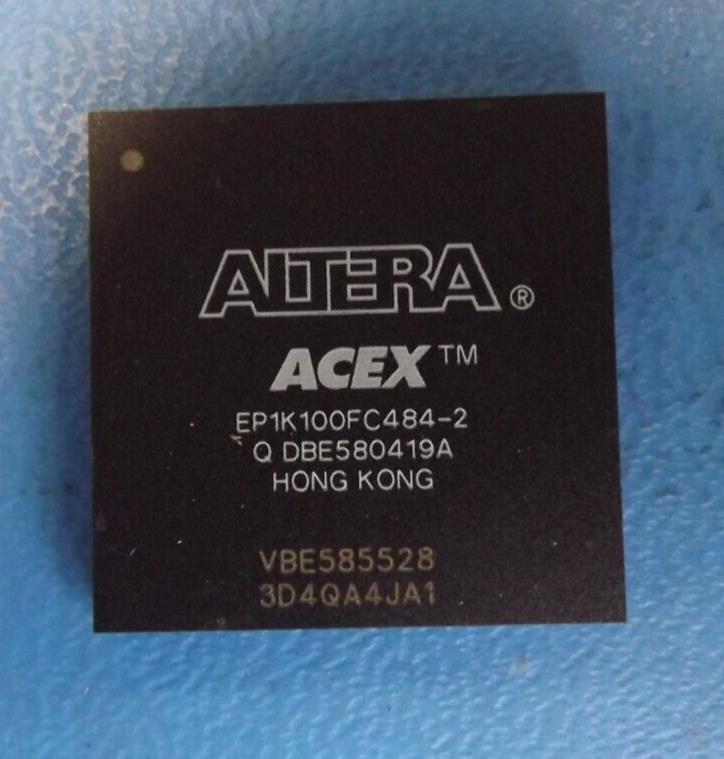

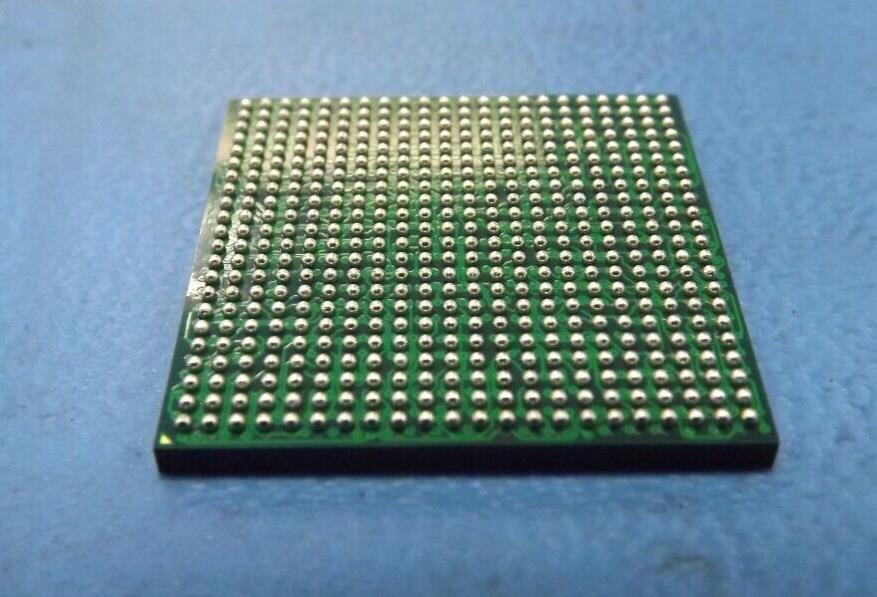

THIS LISTING IS FOR (1PC) OF EP1K100FC484-2 BY ALTERA
Mfr Package Description FINE LINE, BGA-484
Status Transferred
Programmable Logic Type LOADABLE PLD
Clock Frequency-Max 37.5 MHz
JESD-30 Code S-PBGA-B484
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of I/O Lines 333.0
Number of Inputs 333.0
Number of Logic Cells 4992.0
Number of Outputs 333.0
Number of Terminals 484
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 333 I/O
Output Function MIXED
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA484,22X22,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 220
Power Supplies 2.5,2.5/3.3
Propagation Delay 0.5 ns
Qualification Status Not Qualified
Seated Height-Max 2.1 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 2.5 V
Supply Voltage-Min 2.375 V
Supply Voltage-Max 2.625 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch 1.0 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 20
Length 23.0 mm
Width 23.0 mm
