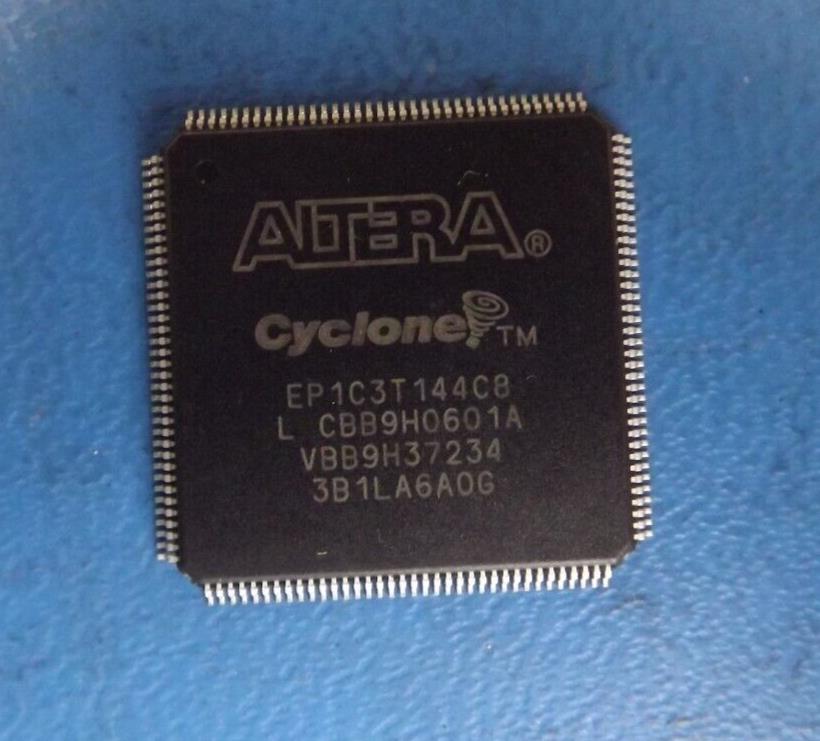

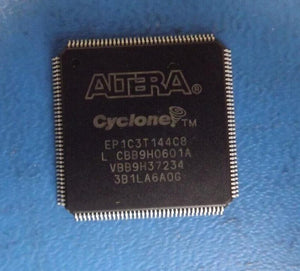

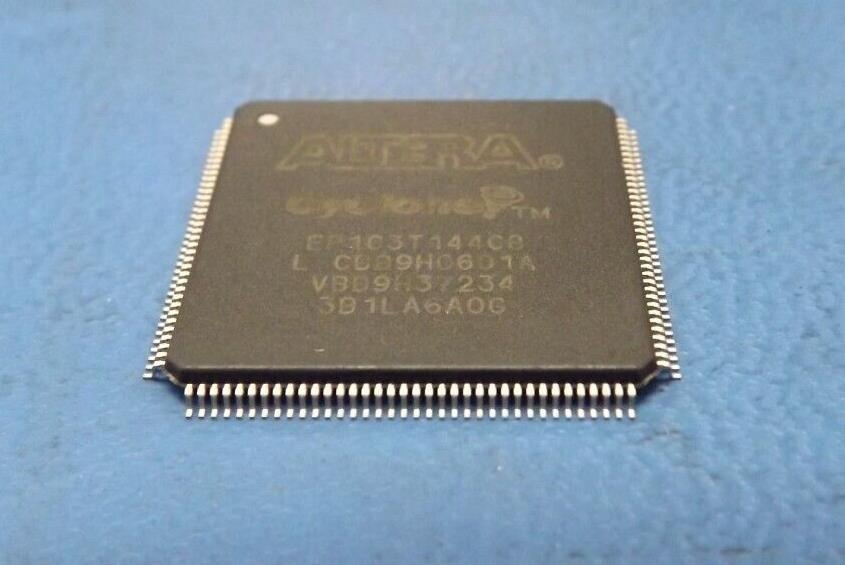

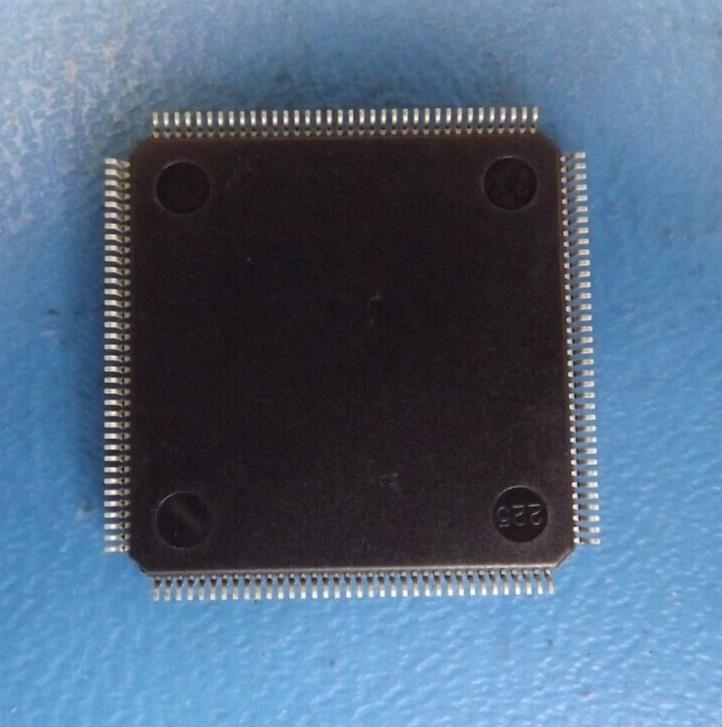

(1PC) EP1C3T144C8 CYCLONE ALTERA FPGA 275MHz, 2910-Cell, PQFP144
(1PC) EP1C3T144C8 CYCLONE ALTERA FPGA 275MHz, 2910-Cell, PQFP144
(1PC) EP1C3T144C8 CYCLONE ALTERA FPGA 275MHz, 2910-Cell, PQFP144

(1PC) EP1C3T144C8 CYCLONE ALTERA FPGA 275MHz, 2910-Cell, PQFP144

Tax included.
Only 18 left!
THIS LISTING IS FOR (1PC) OF EP1C3T144C8 BY ALTERA

Mfr Package Description TQFP-144
Status Transferred
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 275.0 MHz
JESD-30 Code S-PQFP-G144
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 291.0
Number of Inputs 104.0
Number of Logic Cells 2910.0
Number of Outputs 104.0
Number of Terminals 144
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 291 CLBS
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 220
Power Supplies 1.5,1.5/3.3
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 1.5 V
Supply Voltage-Min 1.425 V
Supply Voltage-Max 1.575 V
Surface Mount YES
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 20.0 mm
Width 20.0 mm
