(1PC) DS21354GN Dallas PCM Transceiver, 1-Func, CMOS, PQFP100
Tax included.

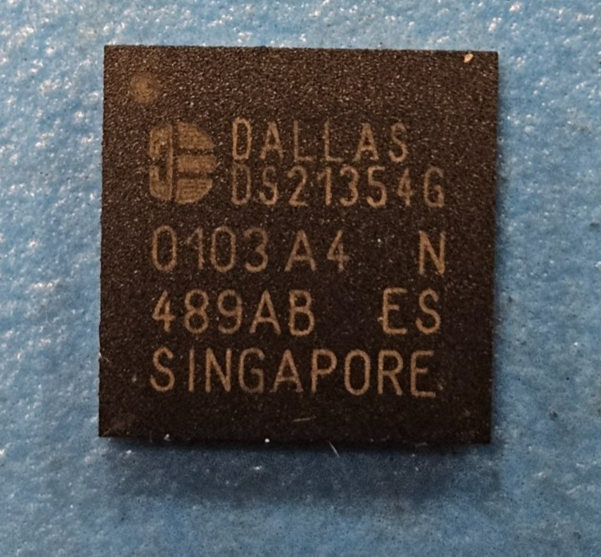

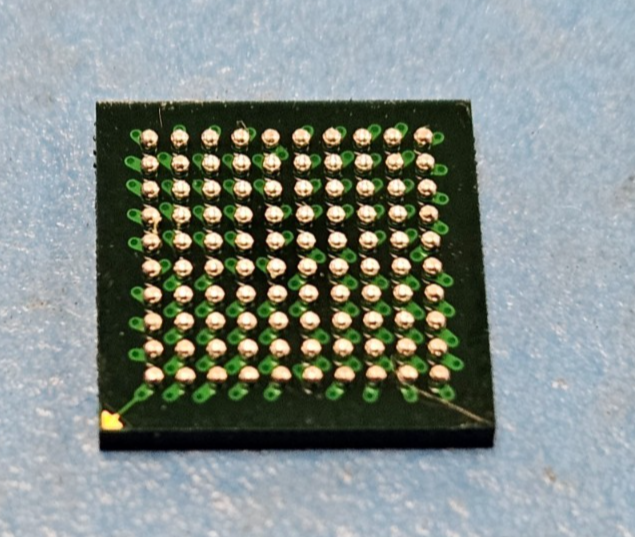

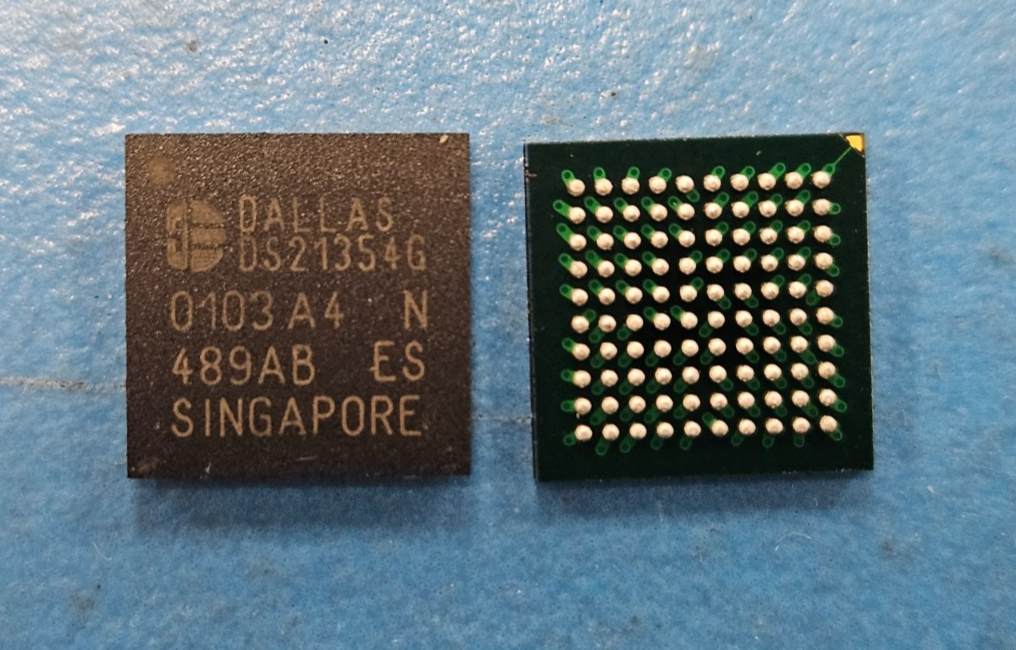

This listing is for (1PC) of DS21354GN by Dallas Semiconductor
Status Discontinued
JESD-30 Code S-PQFP-G100
J-STD-609 Code e0
Length (mm) 14.0000
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Supply Voltage-Nom (V) 3.3000000000000000
Surface Mount YES
Technology CMOS
Telecom IC Type PCM TRANSCEIVER
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Width (mm) 14.0000
