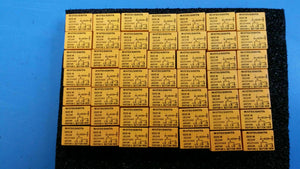

(1PC) DS1E-M-DC24V Relay 24VDC 1.44KOhm 3A SPDT (15x9.9x9.9)mm THT
Tax included.
THIS LISTING IS FOR (1PC) OF DS1E-M-DC24V BY MATSUSHITA
Relay 24VDC 1.44KOhm 3A SPDT (15x9.9x9.9)mm THT General Purpose Relay
DS1E-M-DC24V Part Details & Parametric
|
|
|
| Maximum AC Voltage Rating (V) | 250 |
| Maximum DC Voltage Rating (V) | 220 |
| Relay Construction | Non-Latching |
| Product Height (mm) | 9.9 |
| Product Depth (mm) | 9.9 |
| Product Length (mm) | 15 |
| Seal | Sealed |
| Contact Form | 1 Form C |
| Coil Suppression Diode | No |
| LED Indicator | No |
| Push to Test Button | No |
| Maximum Switching Current (A) | 3 |
| Termination Style | PC Pin |
| DC Coil Voltage (V) | 24 |
| Coil Current (mA) | 16.7 |
| Coil Resistance (Ohm) | 1.44K |
| Maximum Switching Power | 60W|125VA |
| Mounting | Through Hole |
| Contact Arrangement | SPDT |
| Contact Material | Silver/Gold Clad |
| Minimum Dropout Voltage | 2.4VDC |
| Operate Time (ms) | 10 |
| Type | General Purpose Relay |
| Number of Terminals | 5 |
| Packaging | Tube|Case |
| Maximum Pick-Up Voltage | 16.8VDC |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | -40 |
