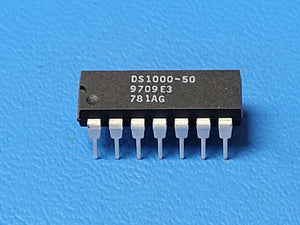

(1PC) DS1000-50 DALLAS SEMI Delay Line IC Nonprogrammable 5 Tap 50ns 14-DIP
Tax included.
THIS IS FOR (1PC) OF DS1000-50 BY DALLAS SEMI
Delay Line IC Nonprogrammable 5 Tap 50ns 14-DIP
Mfr Package Description 0.300 INCH, DIP-14
Status Discontinued
Logic IC Type SILICON DELAY LINE
Sub Category Delay Lines
Family CMOS/TTL
Input Frequency-Max (fmax) 12.5 MHz
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Number of Functions 1
Number of Taps/Steps 5.0
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supply Current-Max (ICC) 75.0 mA
Programmable Delay Line NO
Prop. Delay@Nom-Sup 50.0 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Total Delay-Nom (td) 50.0 ns
Additional Feature BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 74LS LOAD PER OUTPUT
