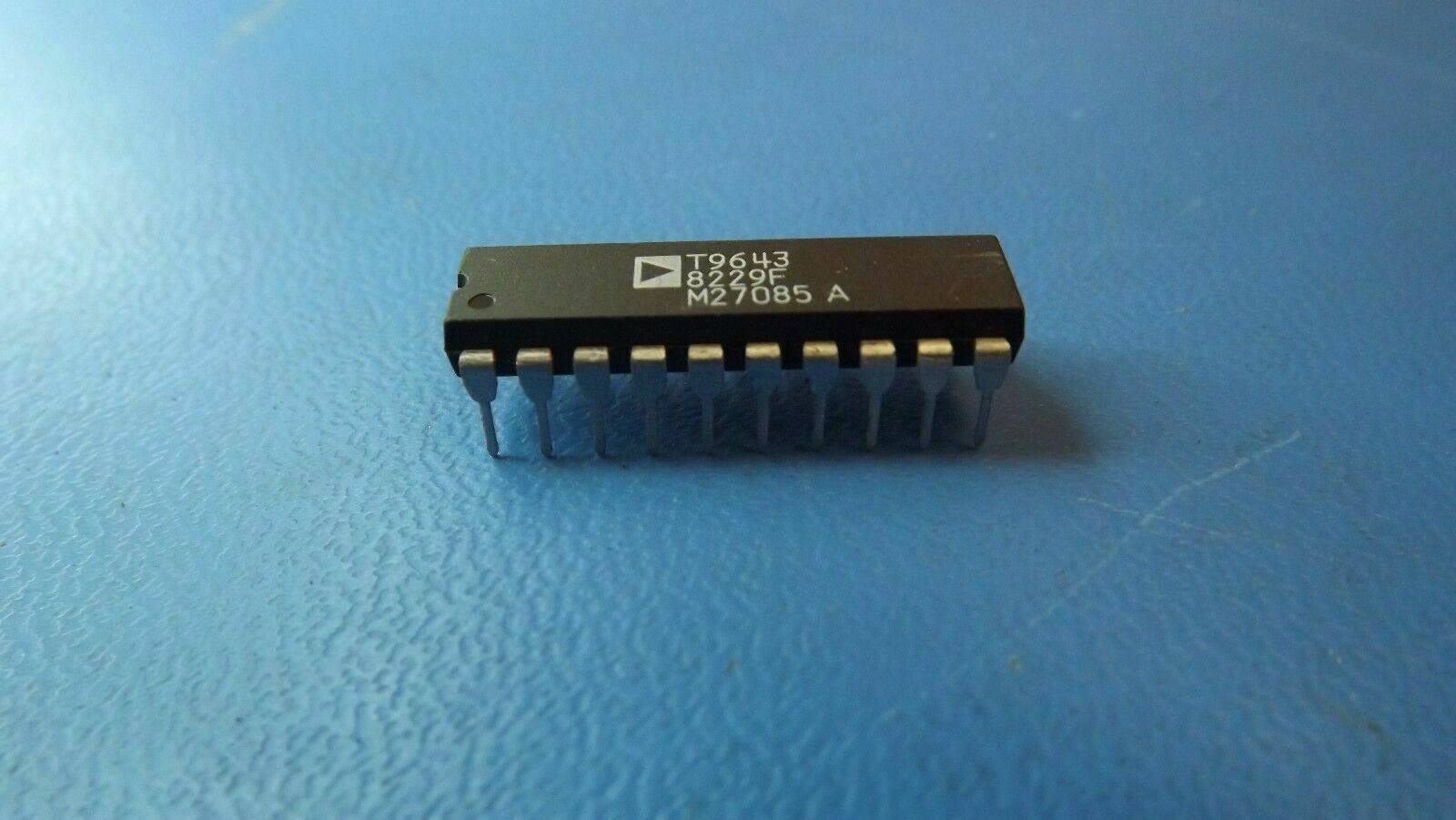

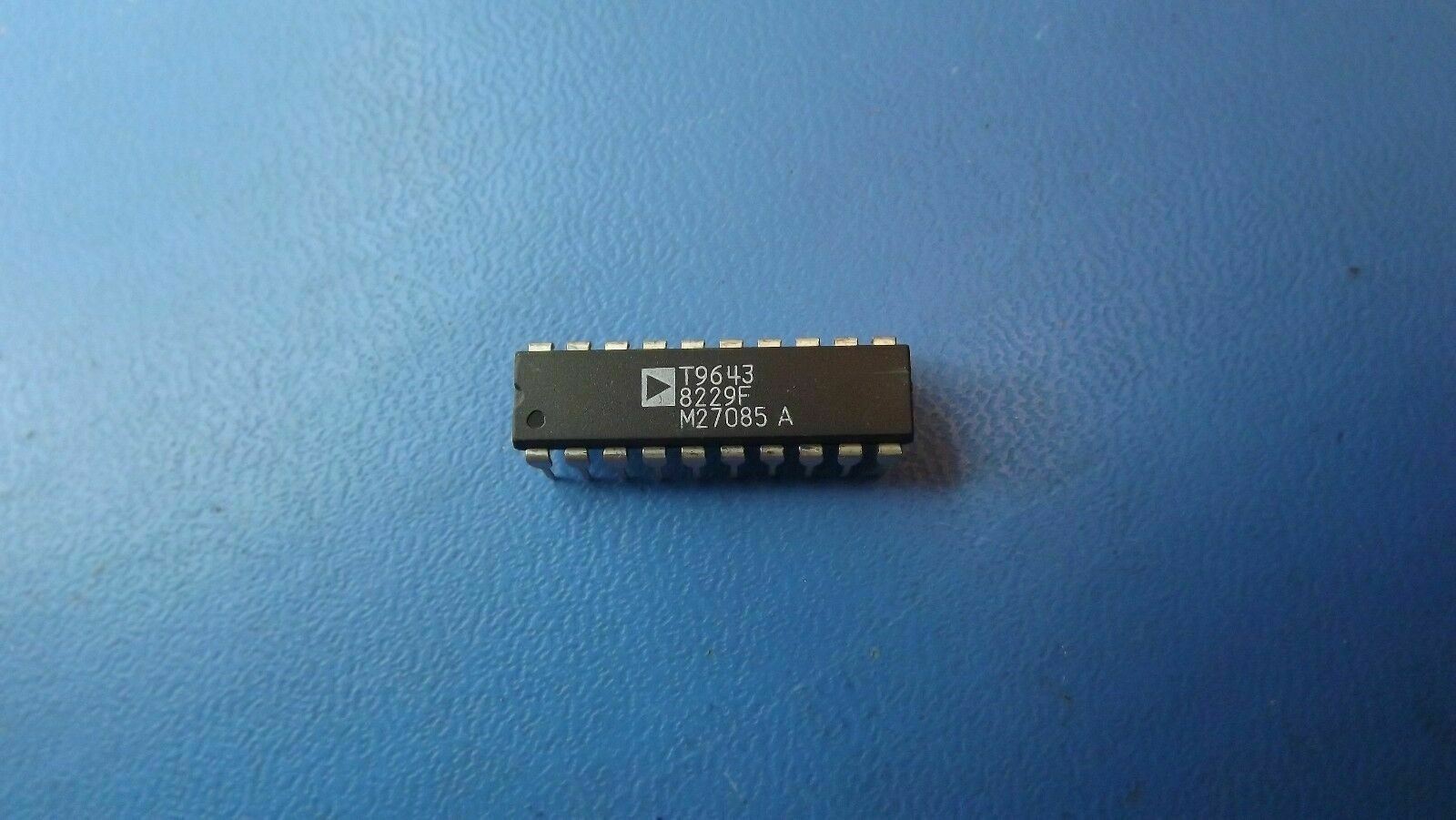

(1PC) DAC8229FP ANALOG DEVICES DUAL, PARALLEL, 8 BITS INPUT LOADING, DAC 20P-DIP
Tax included.
THIS LISTING IS FOR (1PC) OF DAC8229FP BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-20 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Converter Type | D/A CONVERTER |
| Analog Output Voltage-Min | -2.5 V |
| Analog Output Voltage-Max | 2.5 V |
| Input Bit Code | BINARY |
| Input Format | PARALLEL, 8 BITS |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Linearity Error-Max (EL) | 0.1953 % |
| Negative Supply Voltage-Nom | -5.0 V |
| Number of Bits | 8 |
| Number of Functions | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 12/15,-5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Settling Time-Max | 5.0 µs |
| Settling Time-Nom (tstl) | 2.0 µs |
| Sub Category | Other Converters |
| Supply Current-Max | 6.0 mA |
| Supply Voltage-Nom | 15.75 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 24.51 mm |
| Width | 7.62 mm |
