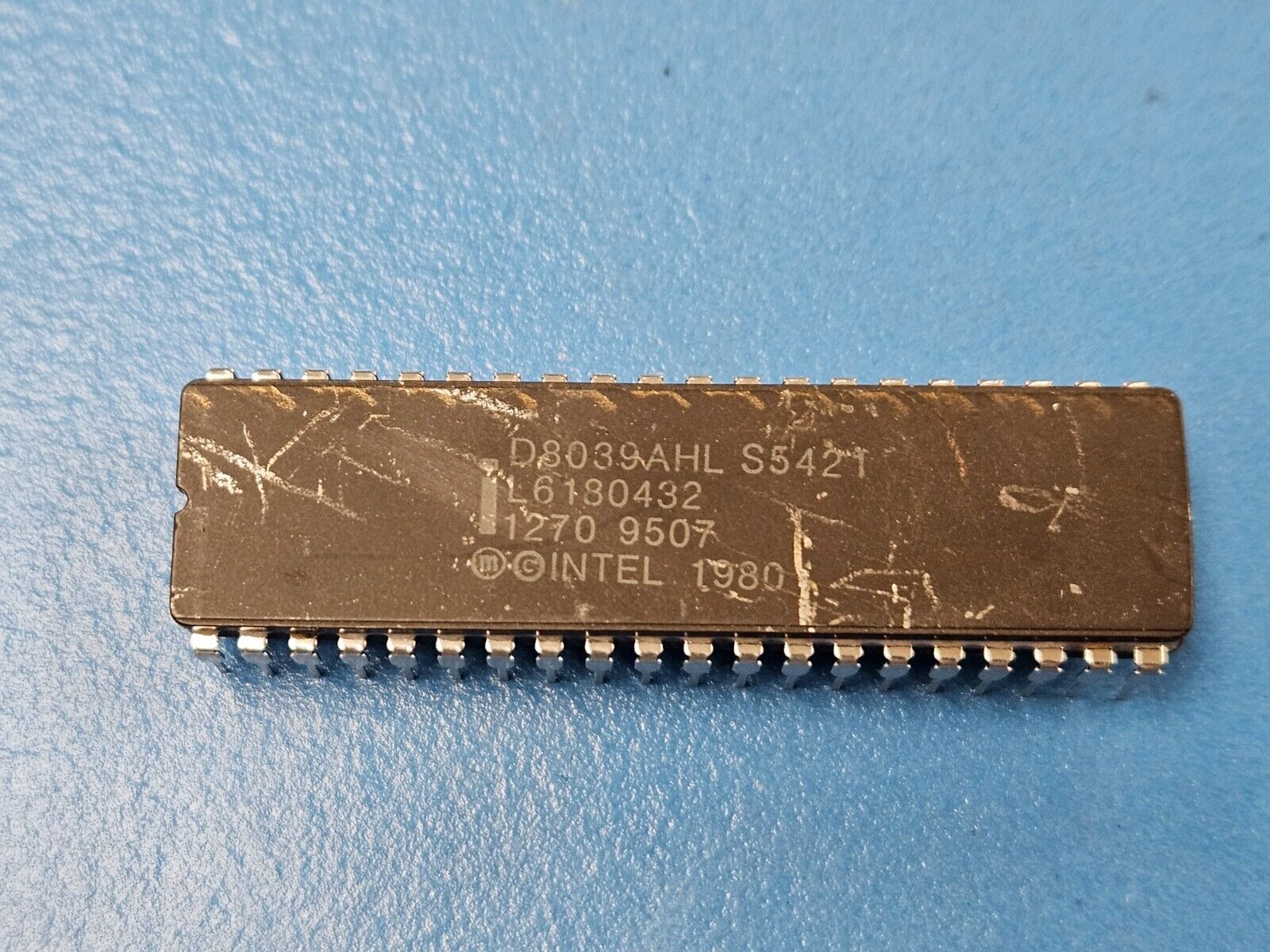

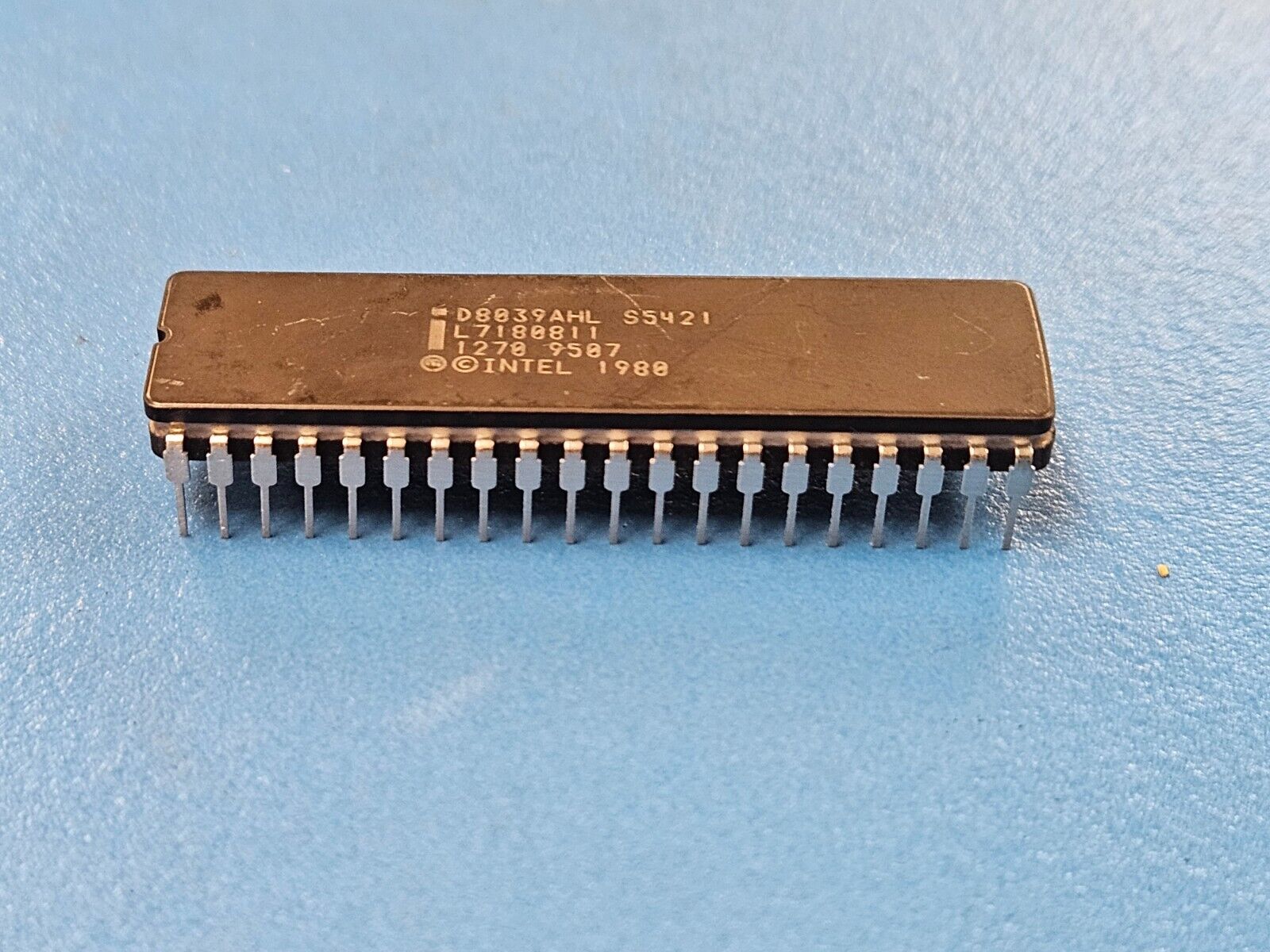

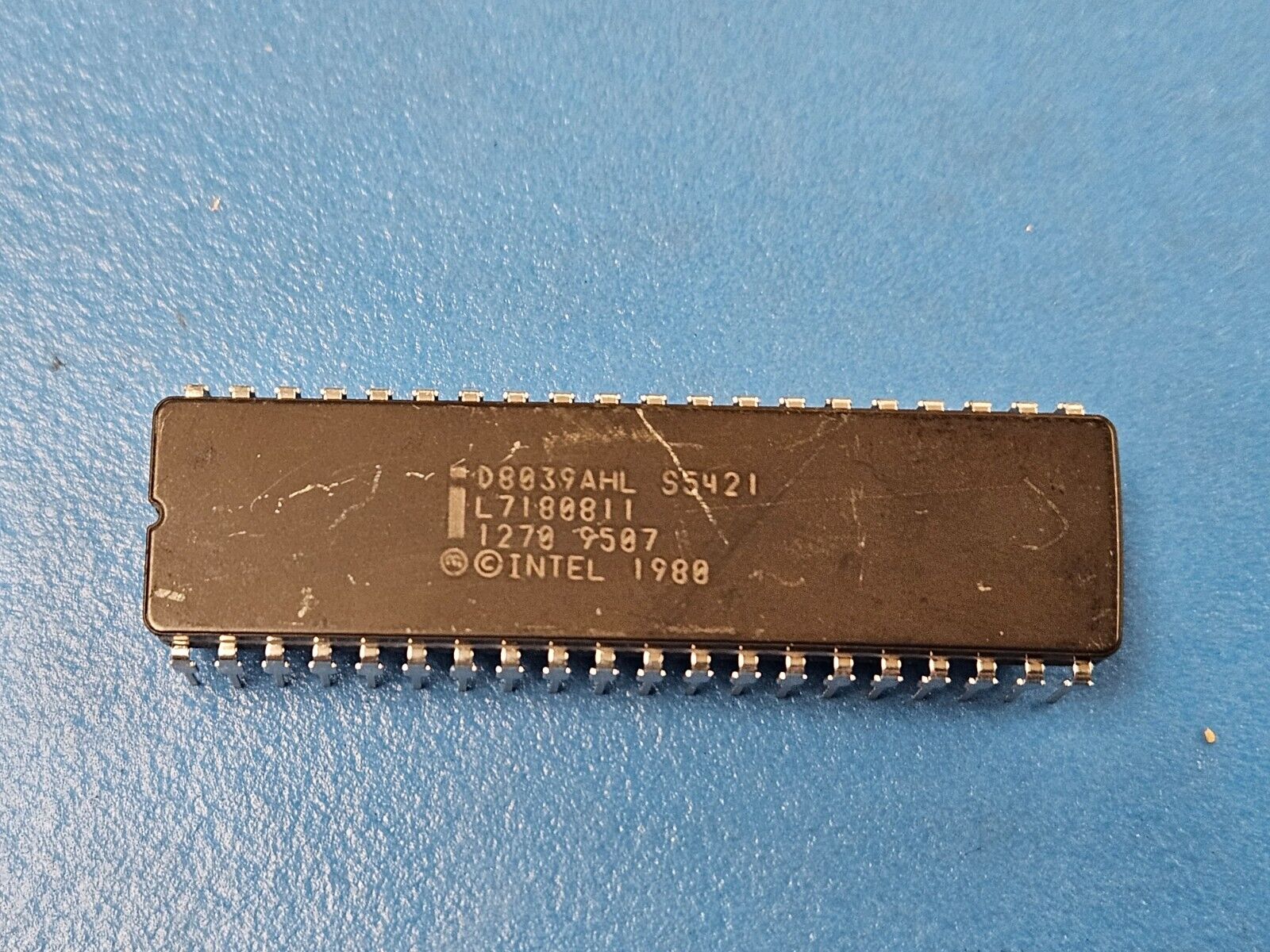

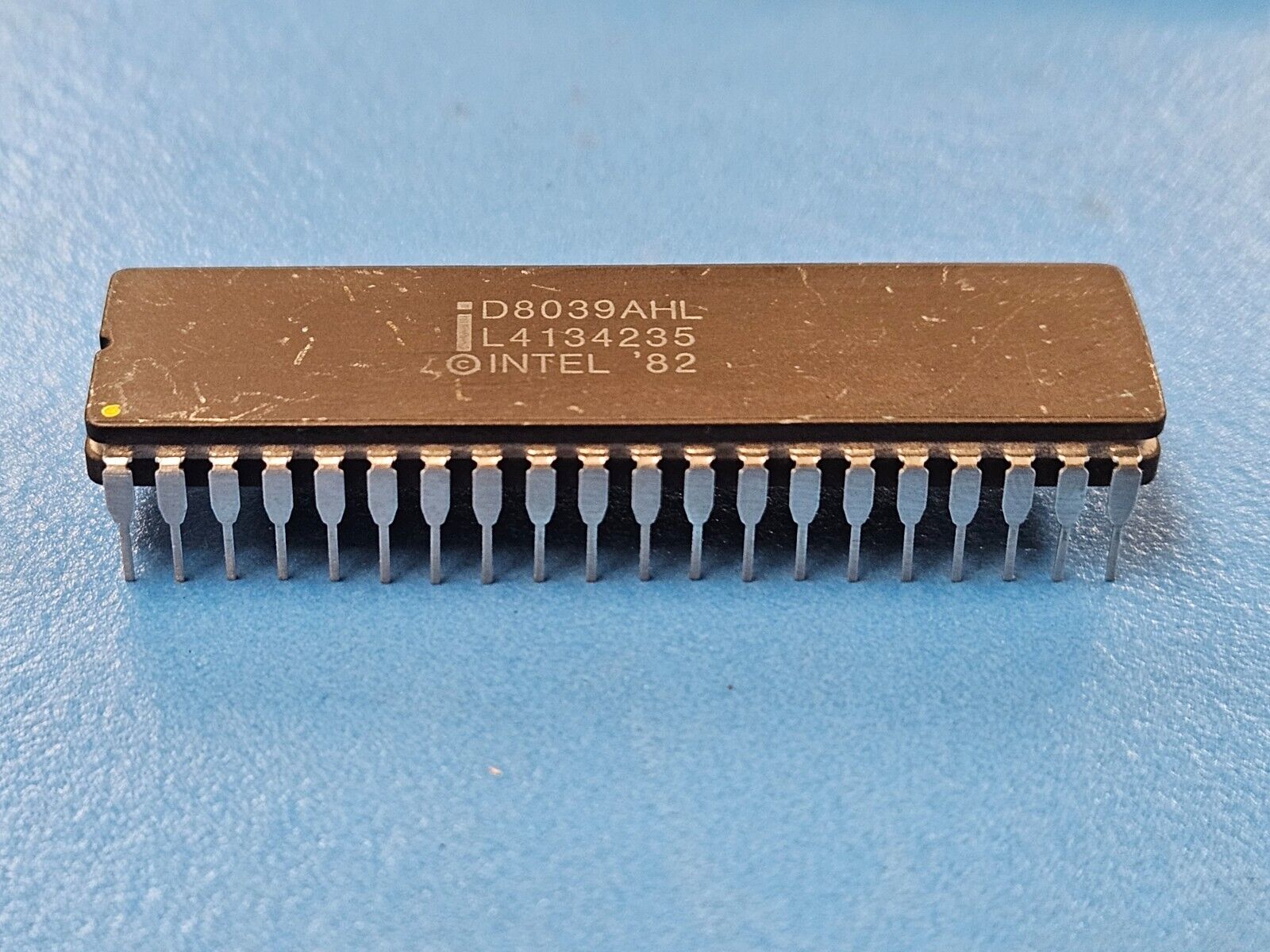

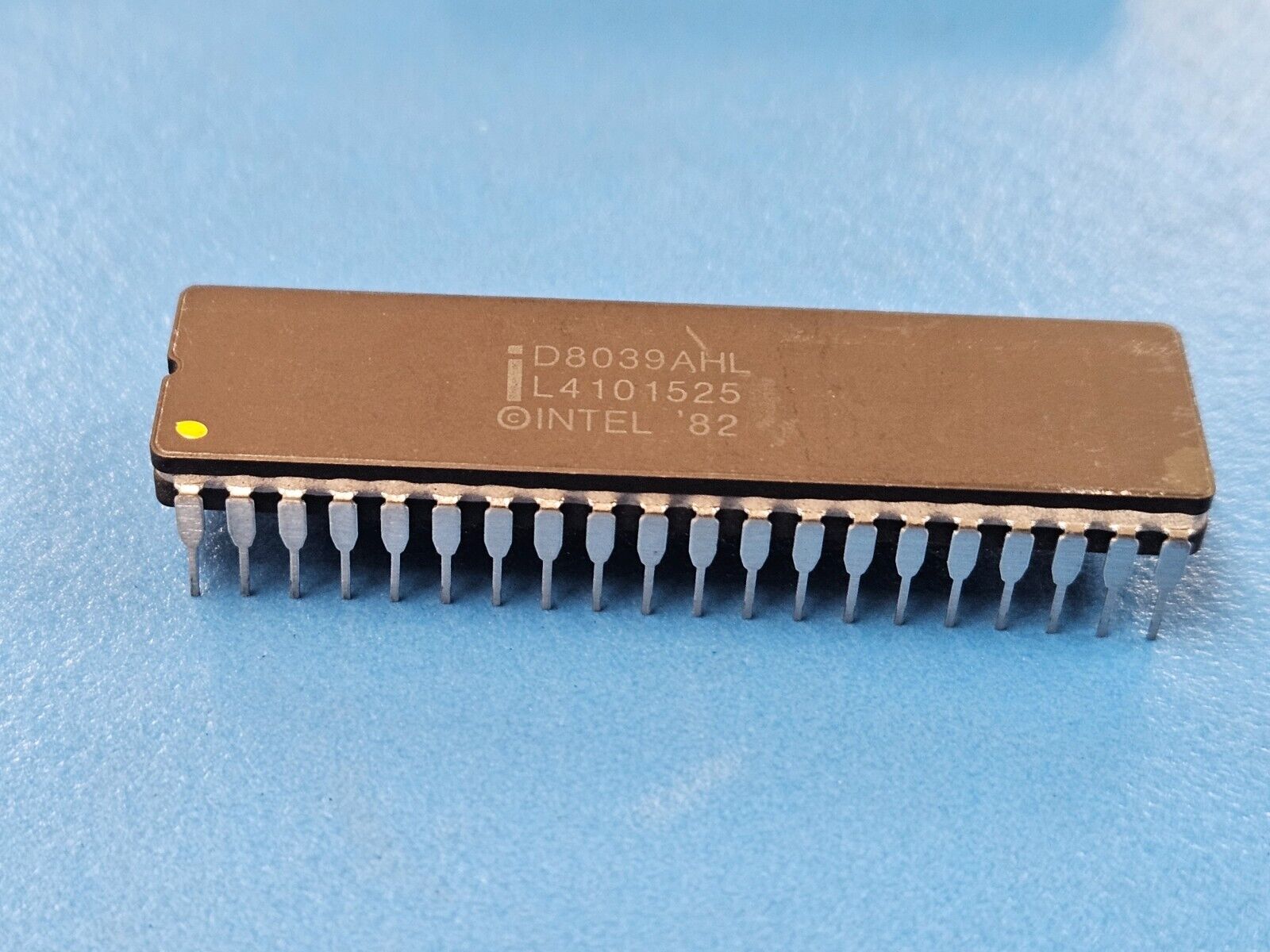

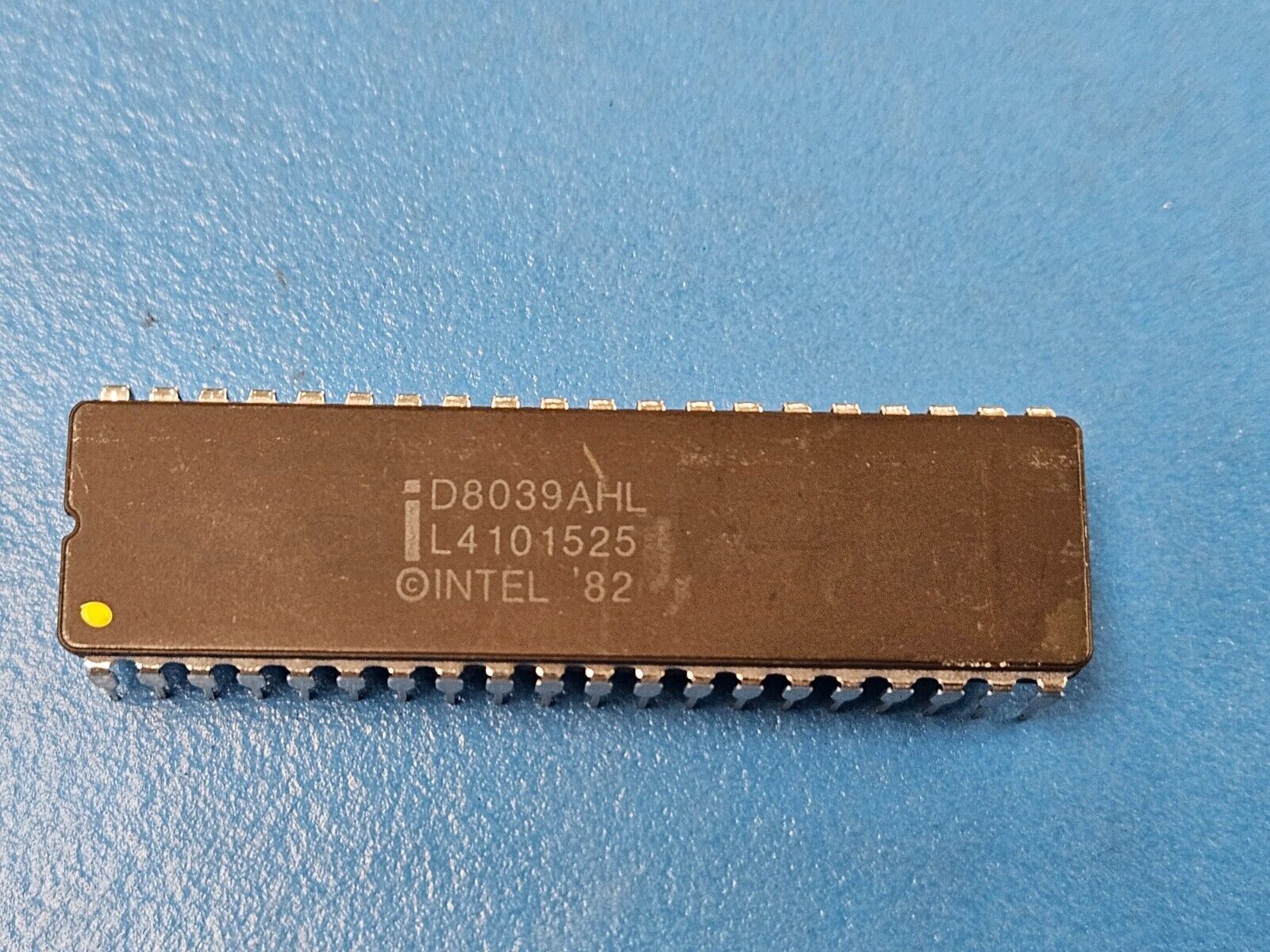

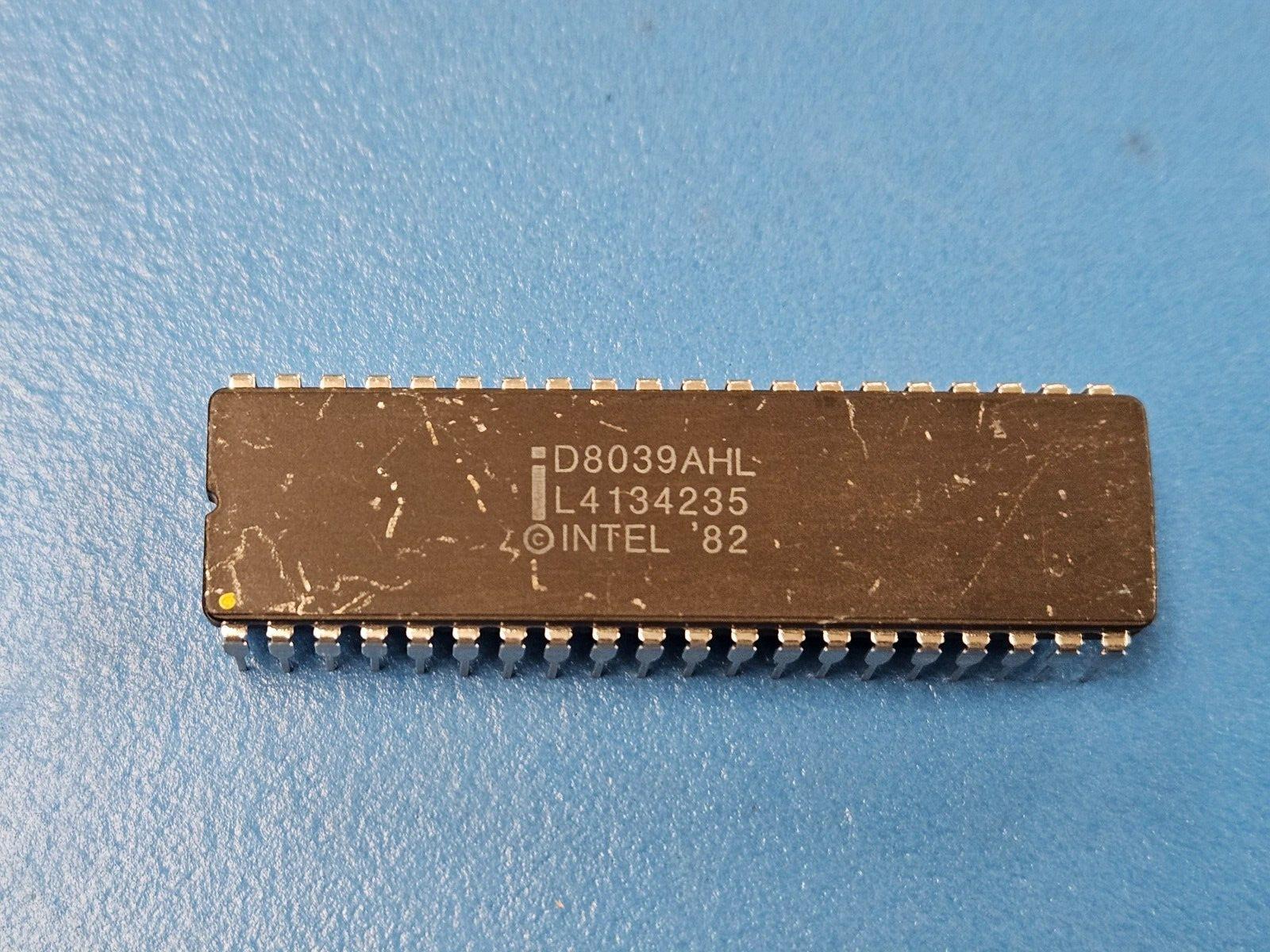

(1PC) D8039AHL Intel Microcontroller, 8-Bit, 8048 CPU, 3.67MHz, NMOS, CDIP40
Tax included.
THIS LISTING IS FOR (1PC) OF D8039AHL BY INTEL
Mfr Package Description CERDIP-40
REACH Compliant Yes
Status Discontinued
ADC Channels NO
Address Bus Width 12.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 11.0 MHz
CPU Family 8048
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-GDIP-T40
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 1.0
Number of I/O Lines 24.0
Number of Serial I/Os 0.0
Number of Terminals 40
Number of Timers 1.0
On Chip Data RAM Width 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 128.0
RAM (words) 128
Seated Height-Max 5.72 mm
Speed 3.67 MHz
Sub Category Microcontrollers
Supply Current-Max 70.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 52.325 mm
Width 15.24 mm
